Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

96 part groups · 11 illustrations

Illustrations

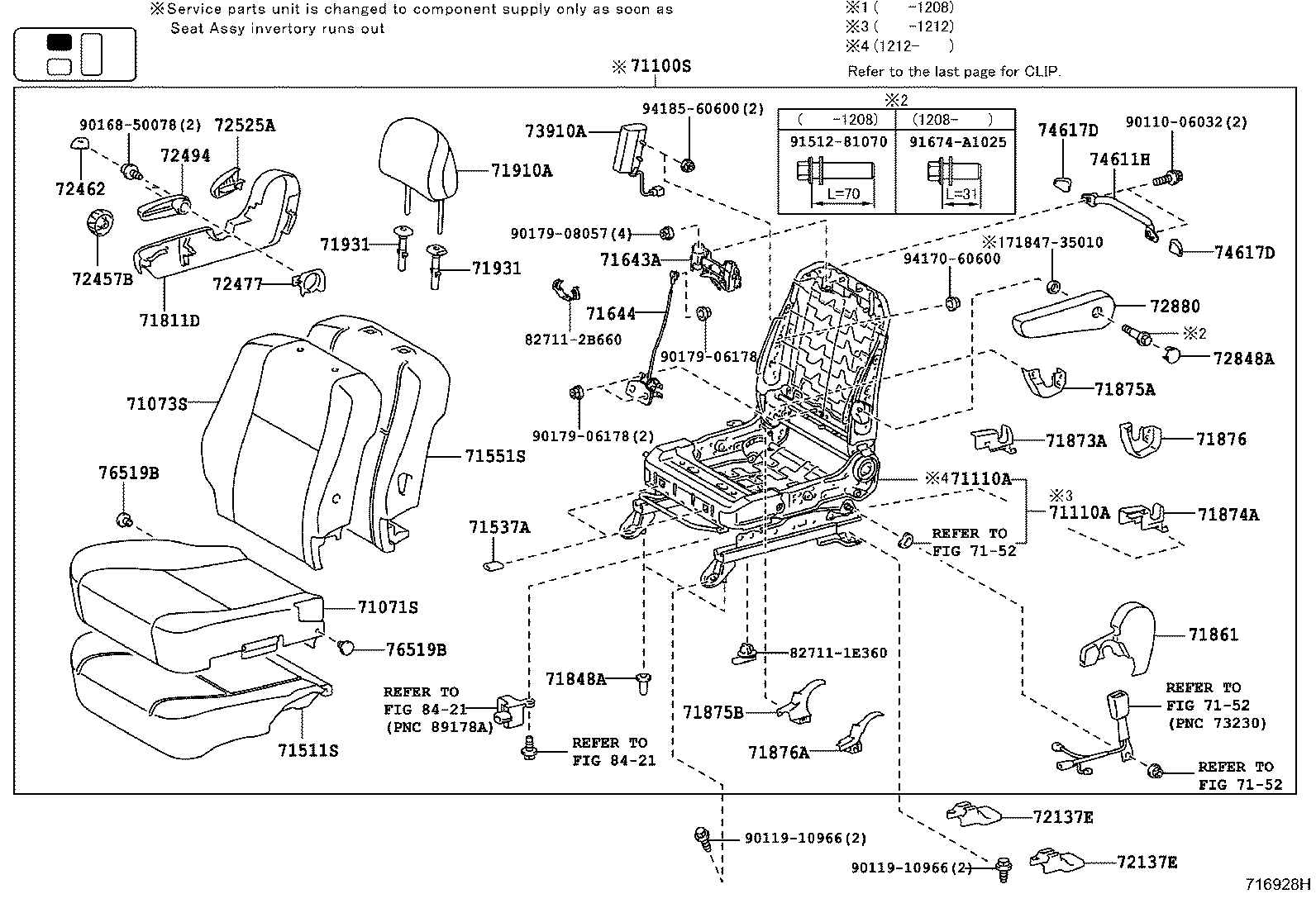

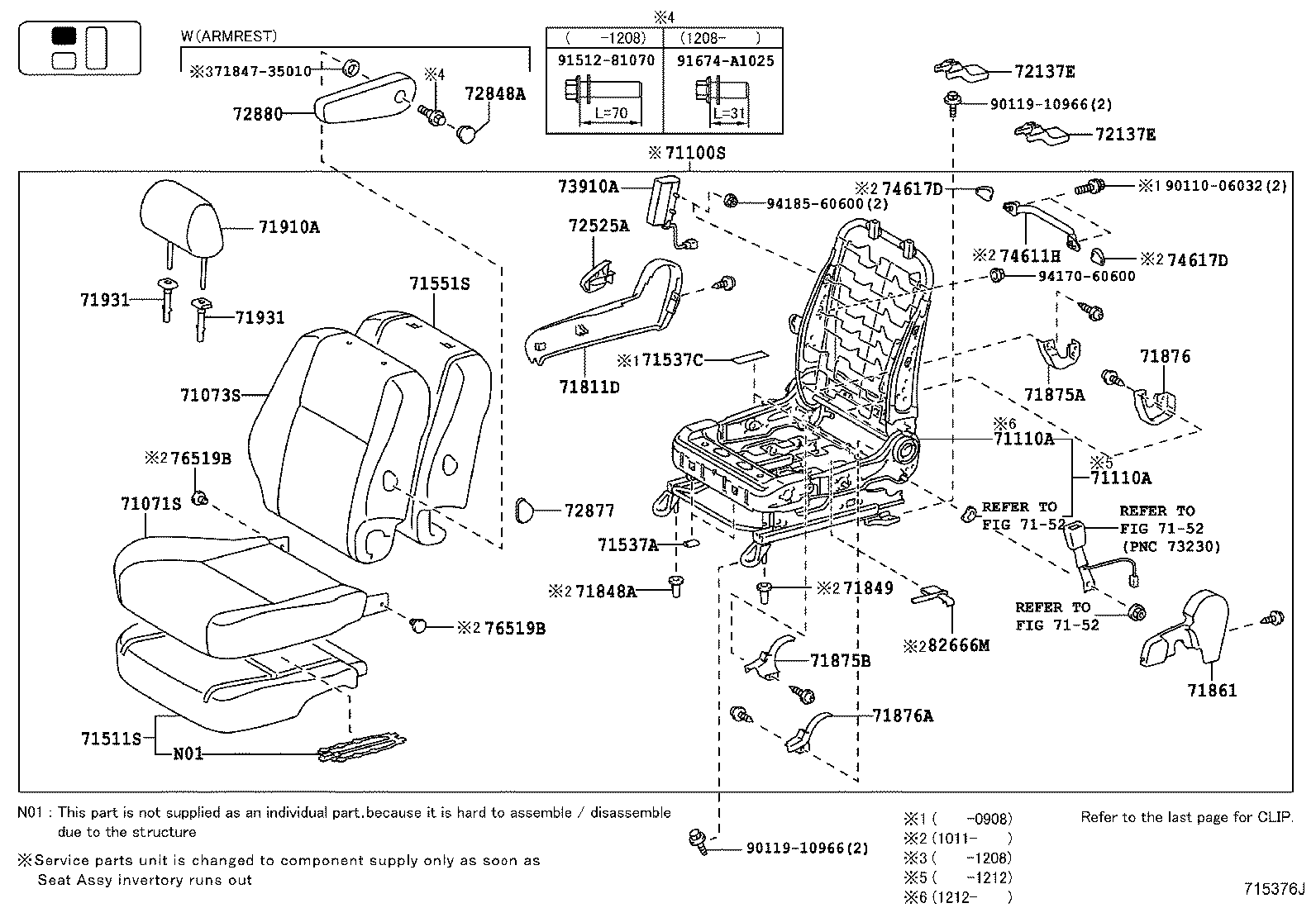

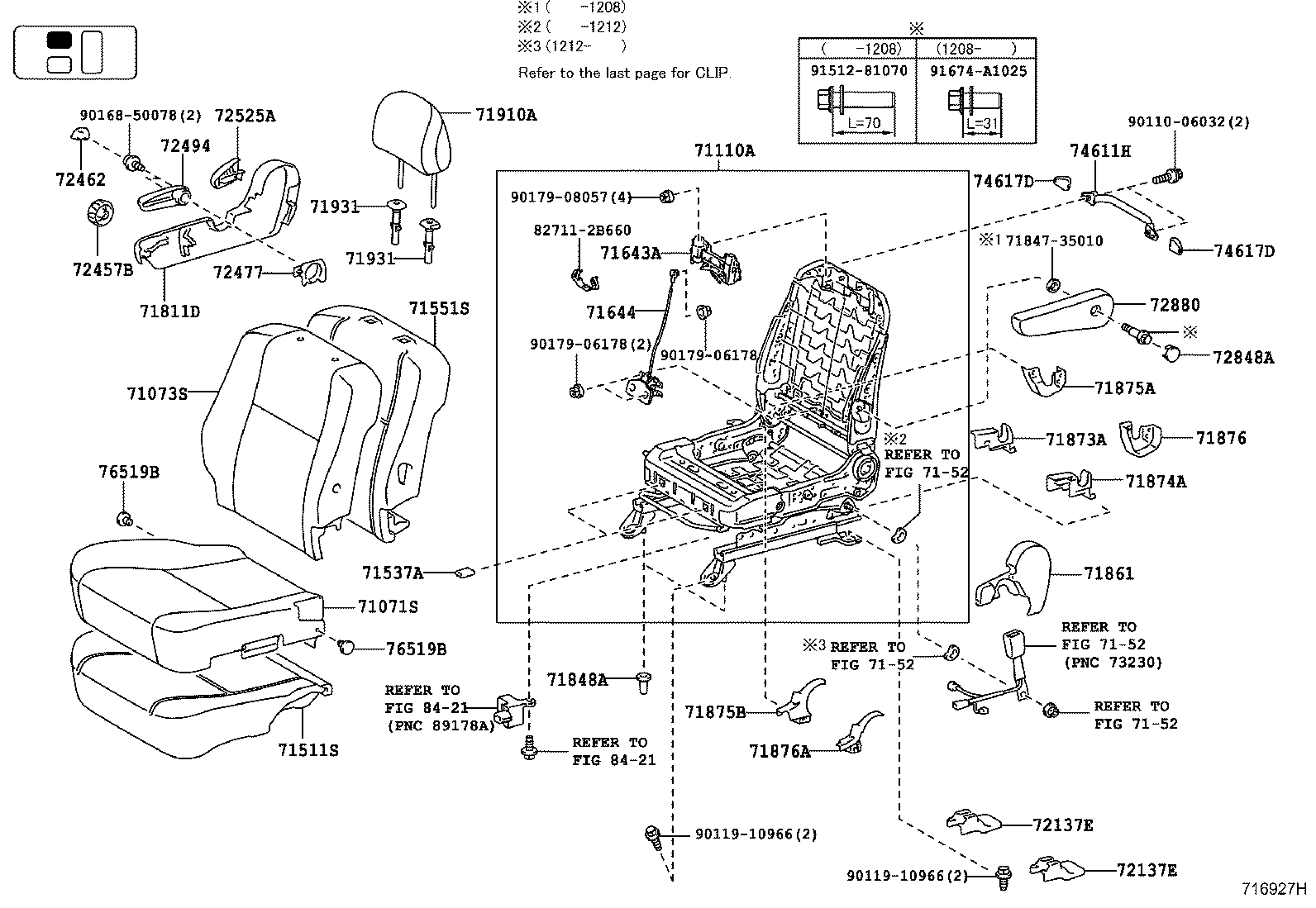

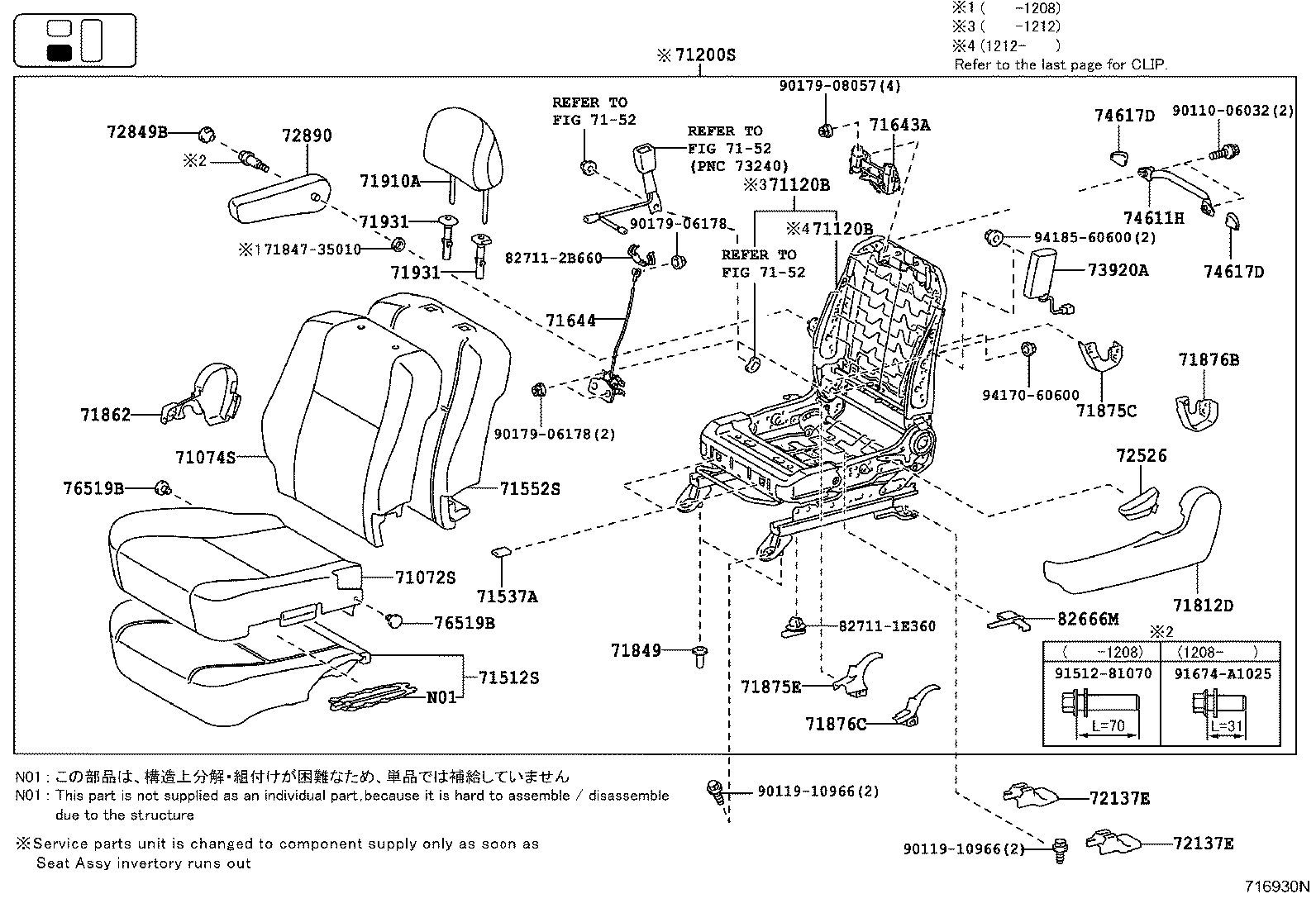

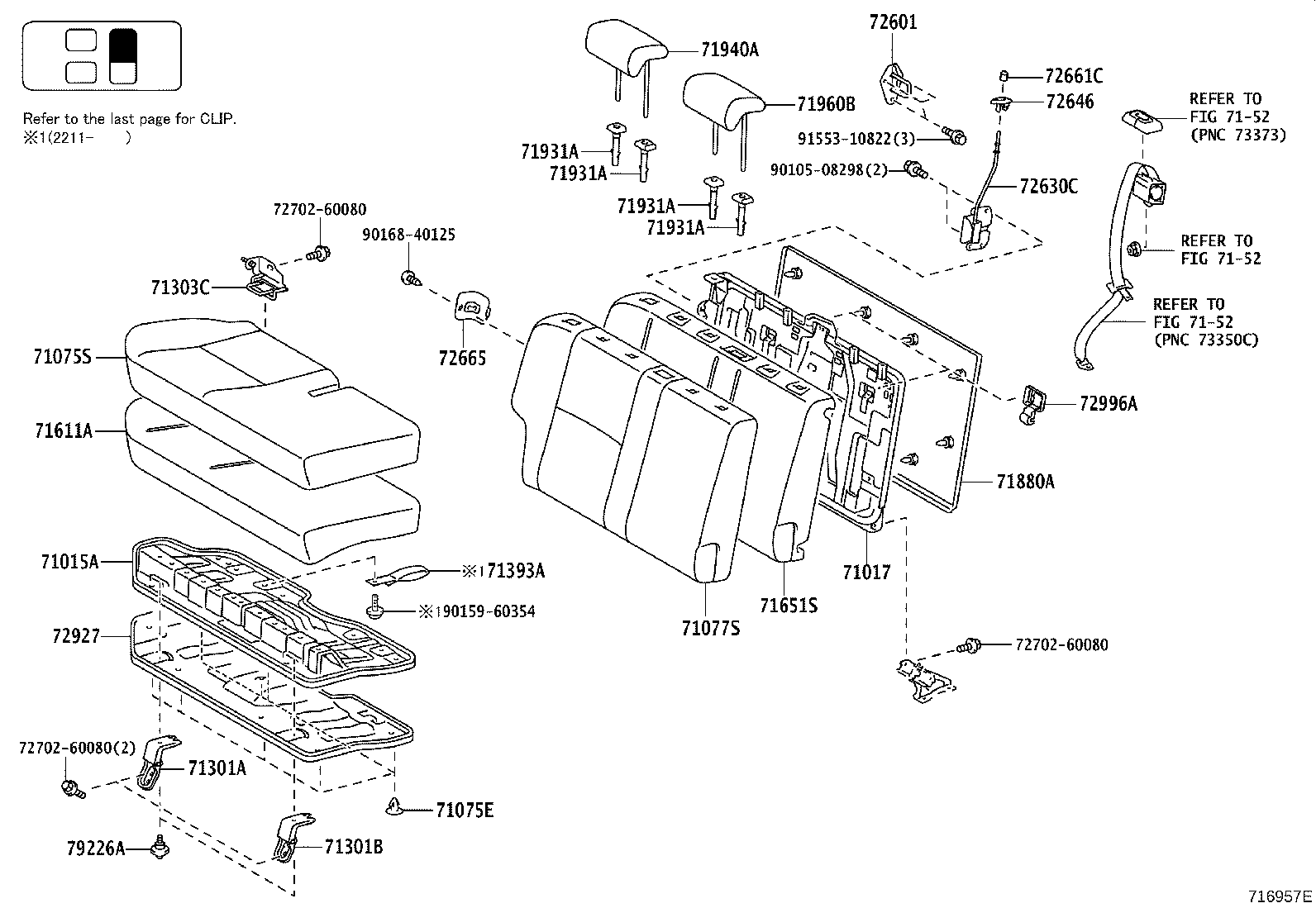

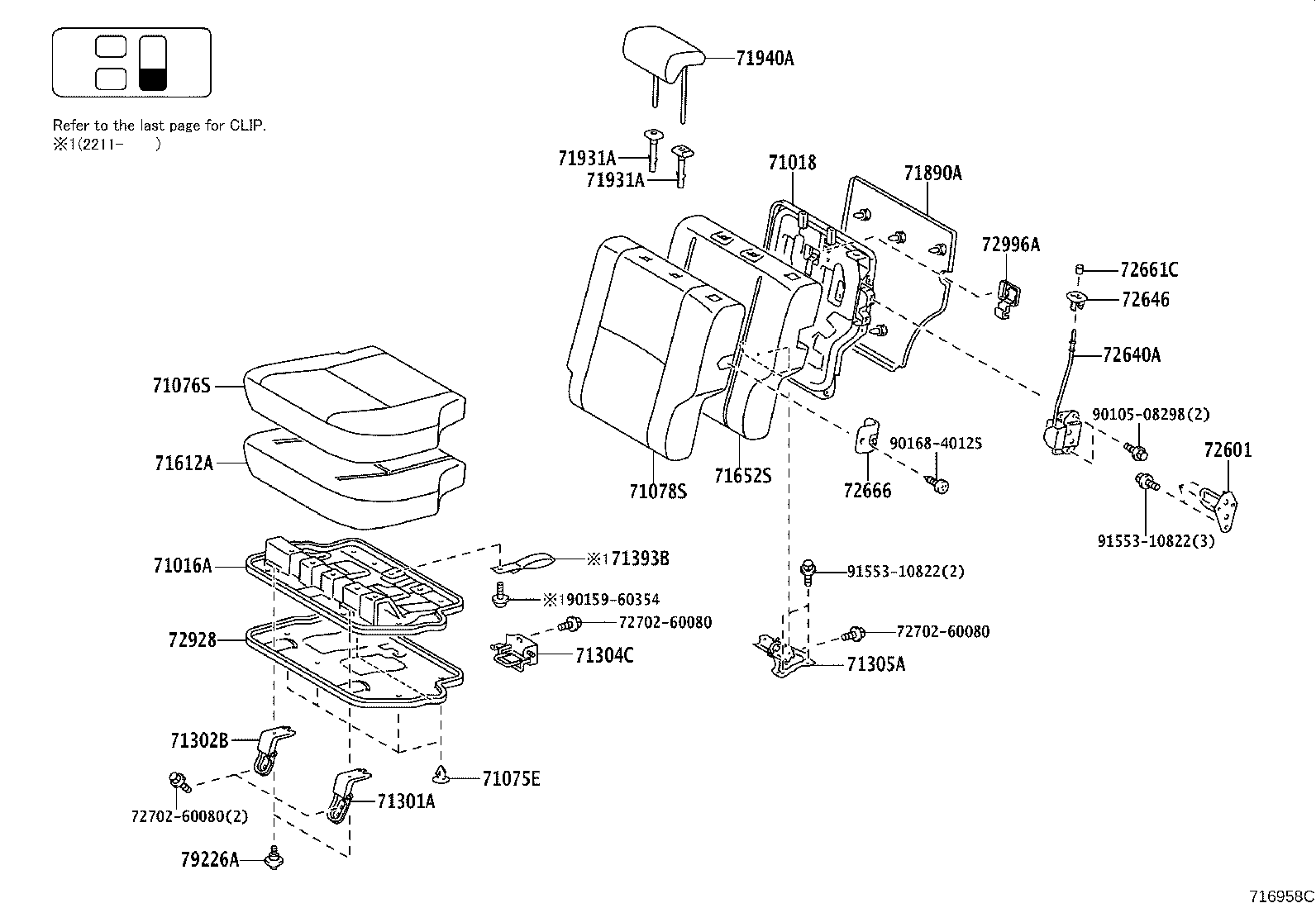

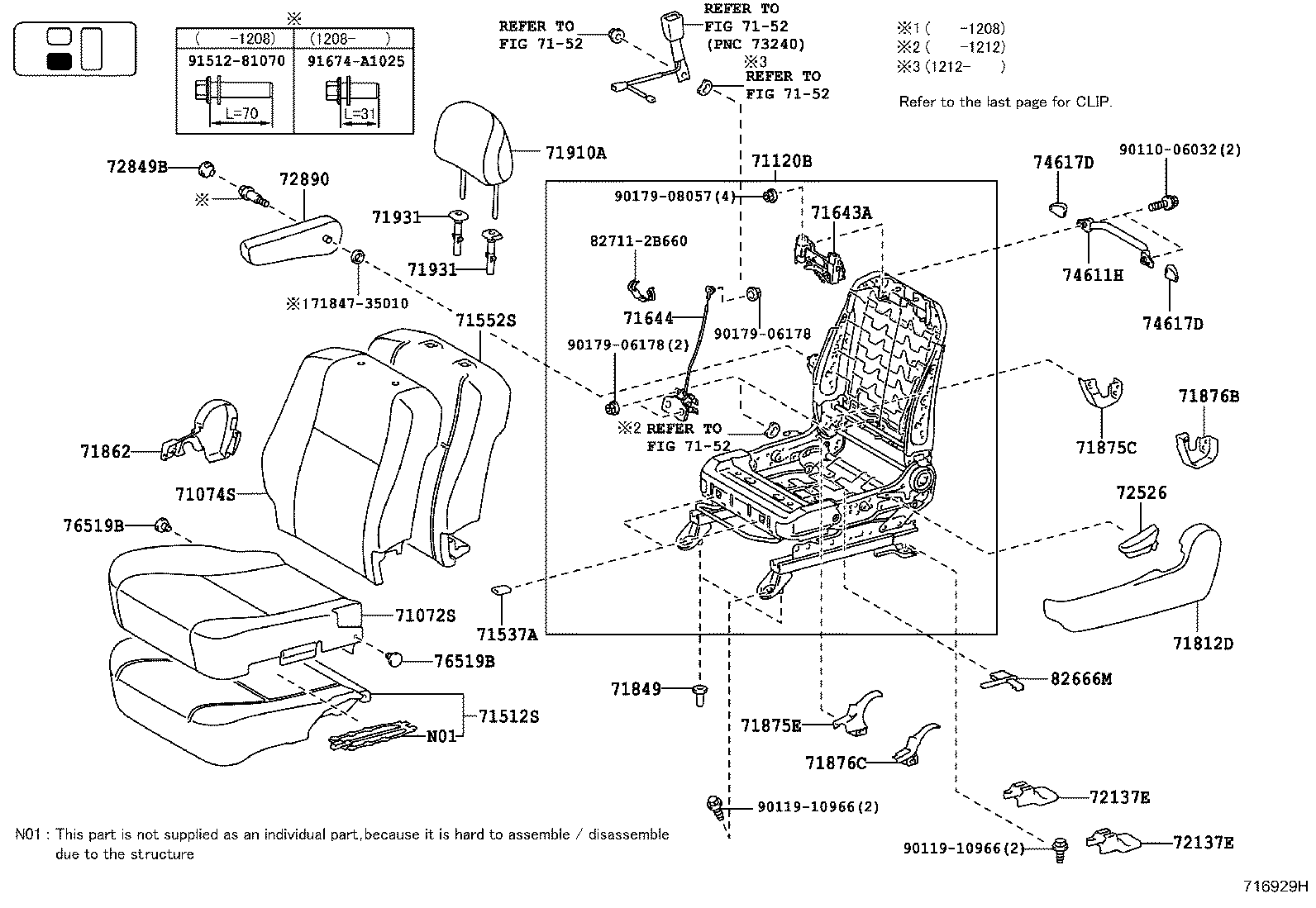

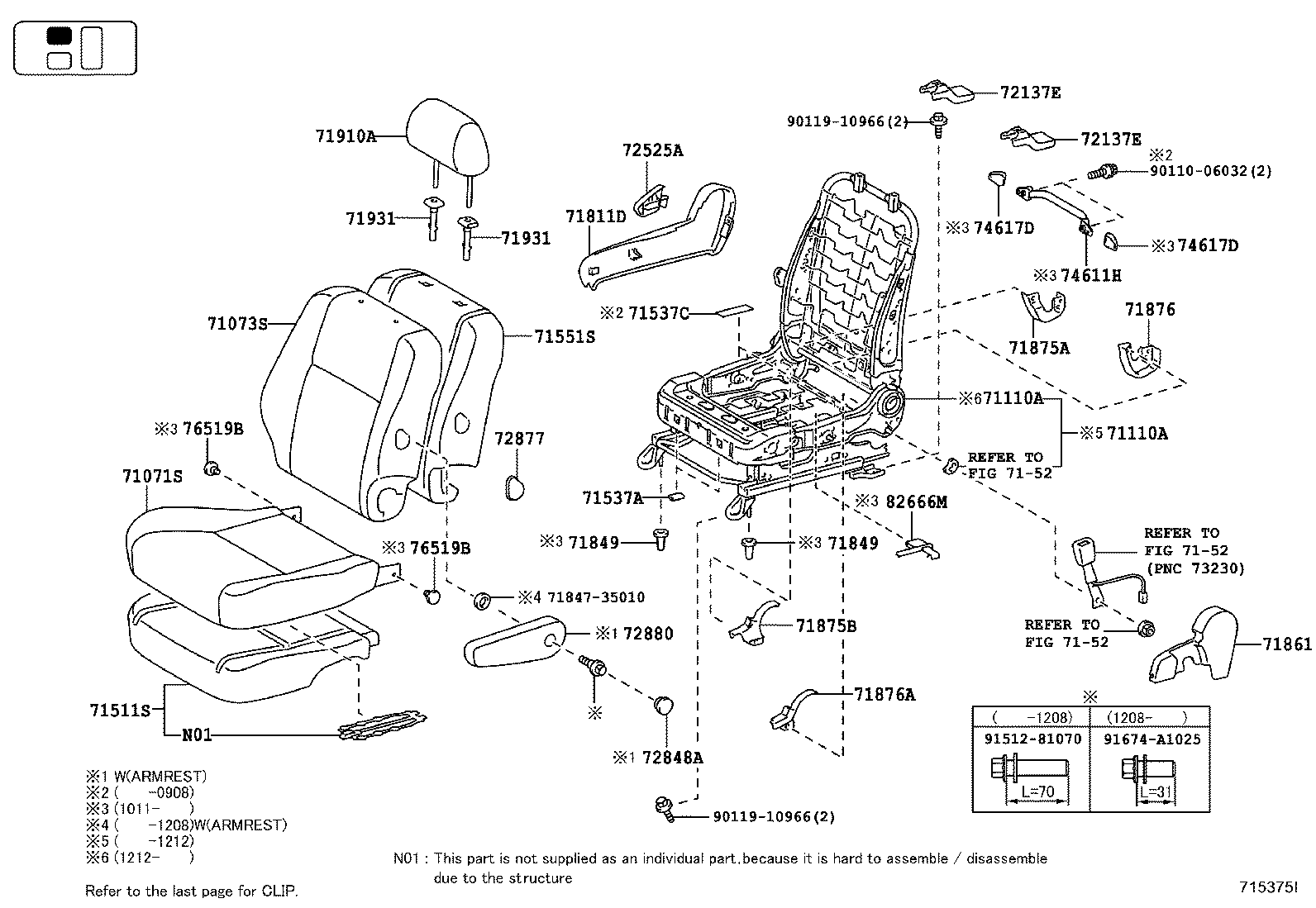

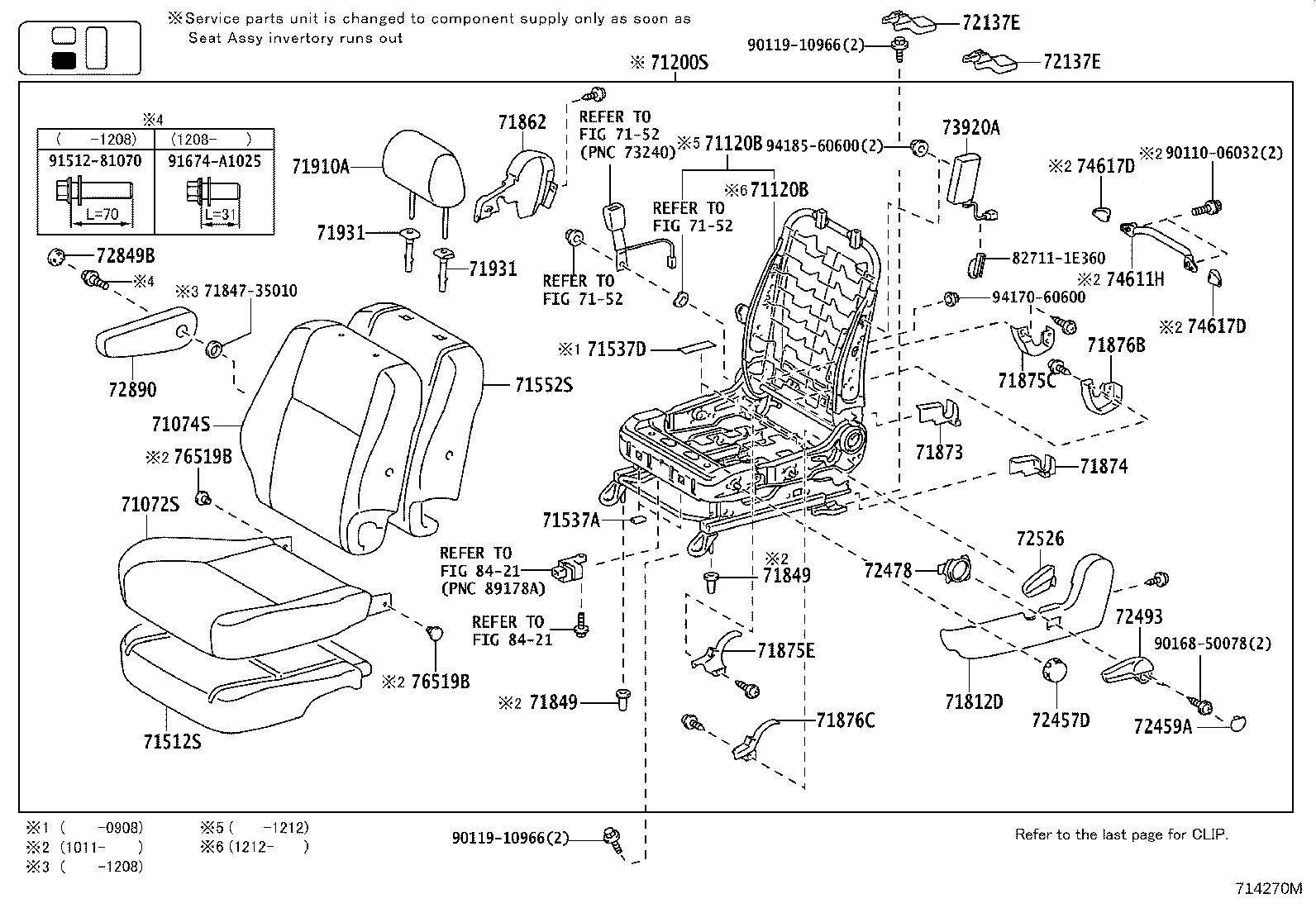

Figure 714269P 714269P 2007-07 → — Figure 714270M 714270M 2007-07 → — Figure 715375I 715375I 2007-07 → — Figure 715376J 715376J 2007-07 → — Figure 716927H 716927H 2010-11 → — Figure 716928H 716928H 2010-11 → — Figure 716929H 716929H 2010-11 → — Figure 716930N 716930N 2010-11 → — Figure 716957E 716957E 2007-07 → — Figure 716958D 716958D 2007-07 → — Figure 718166A 718166A 2010-11 → —

Part groups

PNCDescription
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075E Clip(FOR REAR SEAT)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71200S Seat Assy, Front LH
71301A Hinge Sub-assy, Rear Seat Cushion
71301B Hinge Sub-assy, Rear NO.1 Seat, RH
71302B Hinge Sub-assy, Rear NO.1 Seat, LH
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71393A Band, Rear Seat Cushion, RH
71393B Band, Rear Seat Cushion, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71643A Unit, Active Headrest, Upr
71644 Unit, Active Headrest, Lwr
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875C Cover, Reclining Adjuster Inside, RH
71875E Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876B Cover, Reclining Adjuster Inside, LH
71876C Cover, Reclining Adjuster Inside, LH
71880A Carpet Assy, Rear Seatback Board, RH
71890A Carpet Assy, Rear Seatback Board, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72137E Cover, Seat Track, NO.1
72457B Knob, Vertical Seat Adjuster, RH
72457D Knob, Vertical Seat Adjuster, LH
72459A Cap, Vertical Seat Adjuster Knob
72462 Cover, Vertical Adjuster RH
72477 Spacer, Vertical Adjuster
72478 Bush, Vertical Adjuster
72493 Handle, Vertical Adjusting, NO.2
72494 Handle, Vertical Adjusting, RH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72601 Striker Sub-assy, Rear Seat Lock
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72661C Button, Rear Seatback Lock Release
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72848A Cap, Seat Armrest, NO.1
72849B Cap, Seat Armrest, NO.1
72877 Cover, Seat Armrest, RH
72880 Armrest Assy, Seat, C RH
72890 Armrest Assy, Seat, C LH
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
72996A Cover, Rear Seatback
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
74611H Grip, Assist
74617D Plug, Assist Grip
76519B Clip, Front Seat Cushion Cover
79226A Stopper, Rear NO.1 Seat Cushion
82666M Holder, Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
