Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

12 part groups · 2 illustrations

Illustrations

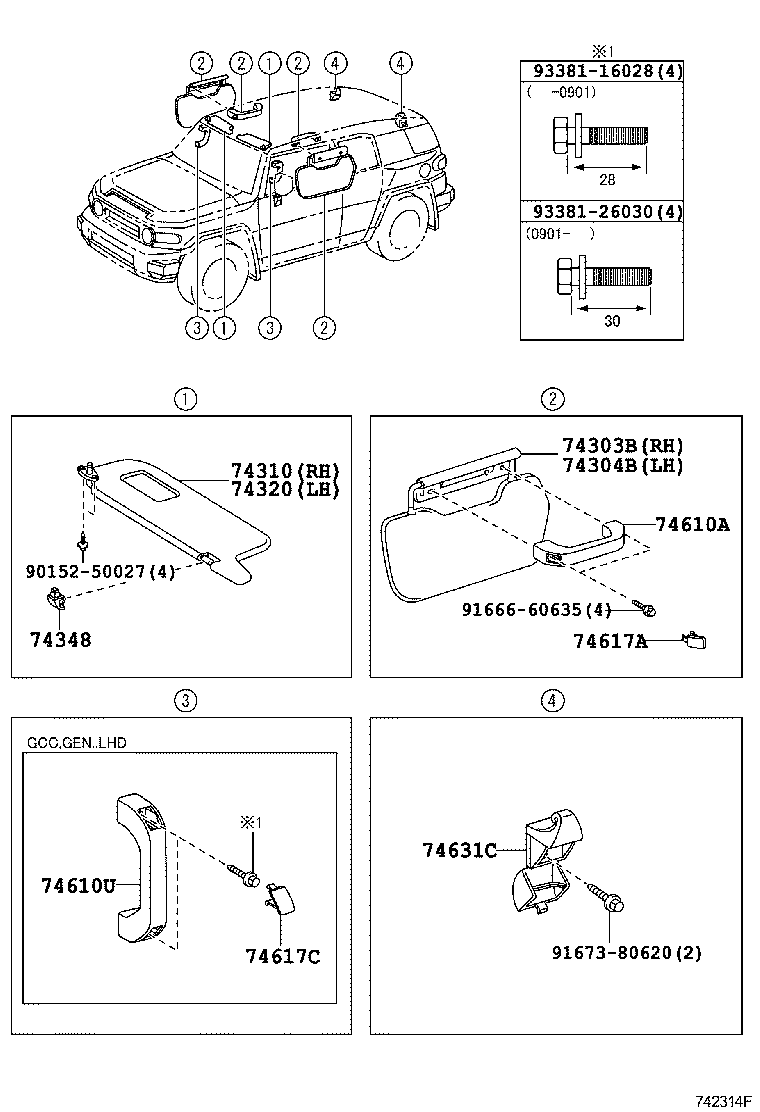

Figure 742313D 742313D 2007-07 → — Figure 742314F 742314F 2007-07 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74303B Visor Sub-assy, RH
74304B Visor Sub-assy, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74610U Grip Assy, Assist
74617A Plug, Assist Grip
74617C Plug, Assist Grip
74631C Hook, Coat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
