Toyota FJ Cruiser
2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General
Supported model
Data version 2023-11

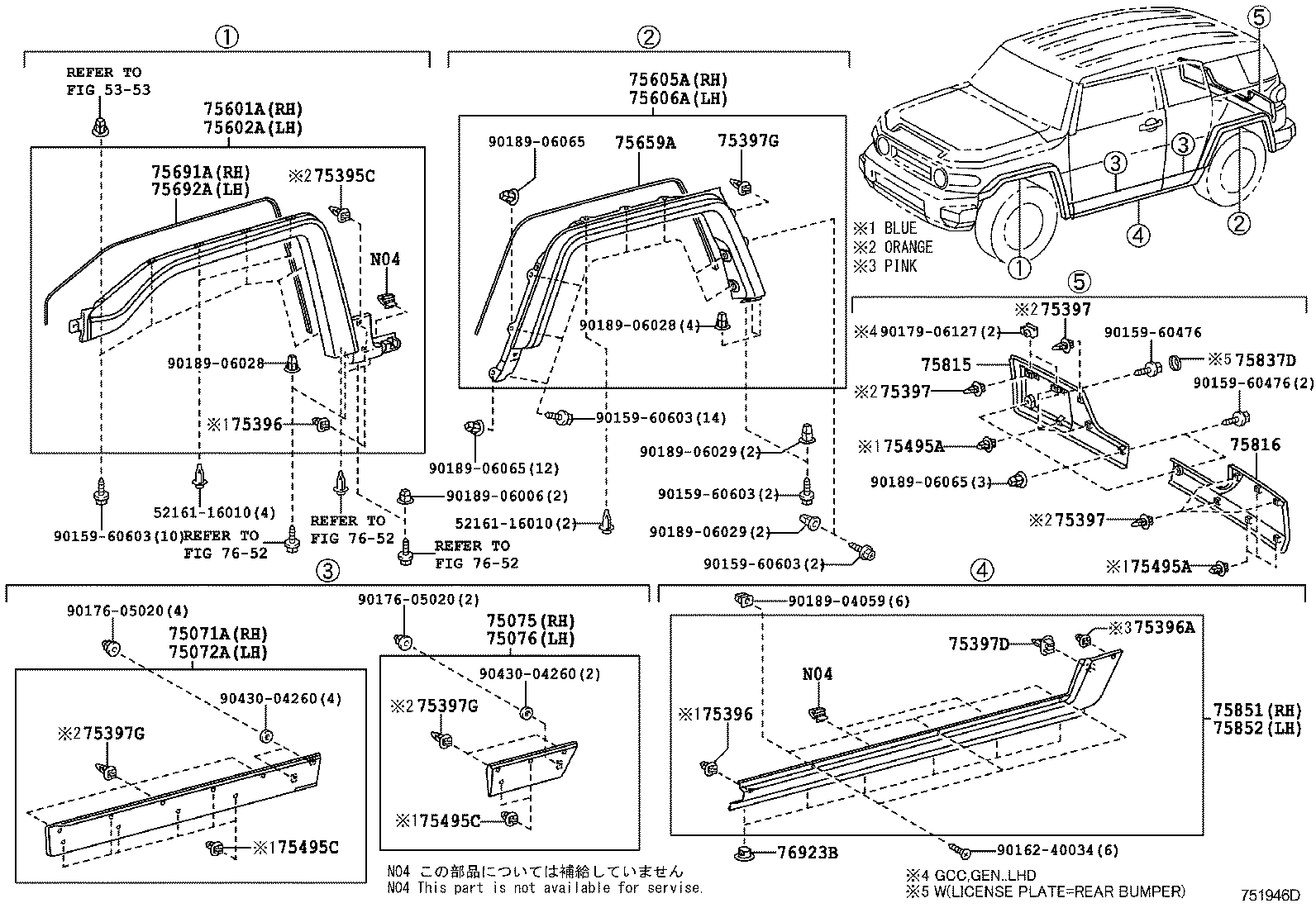

Moulding
47 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75071A | Moulding Sub-assy, Front Door, Outside RH |
| 75072A | Moulding Sub-assy, Front Door, Outside LH |
| 75075 | Moulding Sub-assy, Rear Door, Outside RH |
| 75076 | Moulding Sub-assy, Rear Door, Outside LH |
| 75392H | Retainer, Outside Moulding |
| 75395C | Clip, Outside Moulding, NO.1 |
| 75395J | Clip, Outside Moulding, NO.1 |
| 75396 | Clip, Outside Moulding, NO.2 |
| 75396A | Clip, Outside Moulding, NO.2 |
| 75397 | Clip, Back Door Moulding, NO.3 |
| 75397D | Clip, Outside Moulding, NO.3 |
| 75397G | Clip, Outside Moulding, NO.3 |
| 75495A | Clip, Outside Moulding, NO.4 |
| 75495C | Clip, Outside Moulding, NO.4 |
| 75503 | Moulding Sub-assy, Windshield, Outside Upper |
| 75533 | Moulding, Windshield, Outside RH |
| 75533C | Garnish, Front Pillar, Outer RH |
| 75534 | Moulding, Windshield, Outside LH |
| 75534C | Garnish, Front Pillar, Outer LH |
| 75535A | Moulding, Windshield, Outside Lower |
| 75553A | Moulding, Roof Drip Side Finish, Rear RH |
| 75554A | Moulding, Roof Drip Side Finish, Rear LH |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75555E | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75556D | Moulding, Roof Drip Side Finish, Center LH |
| 75557C | Moulding, Roof Drip Side Finish, Center NO.2 RH |
| 75558C | Moulding, Roof Drip Side Finish, Center NO.2 LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75563 | Retainer, Roof Drip Side Finish Moulding, NO.1 |
| 75565 | Protector, Roof Side Garnish, NO.1 |
| 75566C | Protector, Roof Side Garnish, NO.2 |
| 75596 | Cover, Roof Drip Side Finish Moulding Joint, RH |
| 75597 | Cover, Roof Drip Side Finish Moulding Joint, LH |
| 75601A | Moulding Sub-assy, Front Fender, RH |
| 75602A | Moulding Sub-assy, Front Fender, LH |
| 75605A | Moulding Sub-assy, Quarter Outside, RH |
| 75606A | Moulding Sub-assy, Quarter Outside, LH |
| 75659A | Pad, Quarter Panel Moulding, NO.1 |
| 75691A | Pad, Front Fender Outside Moulding, RH |
| 75692A | Pad, Front Fender Outside Moulding, LH |
| 75815 | Moulding, Back Door Outside, RH |
| 75816 | Moulding, Back Door Outside, LH |
| 75837D | Cover, Back Door Finish, RH |
| 75851 | Moulding, Rocker Panel, RH |
| 75852 | Moulding, Rocker Panel, LH |
| 76923B | Retainer, Side Mudguard |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
