Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

115 part groups · 17 illustrations

Illustrations

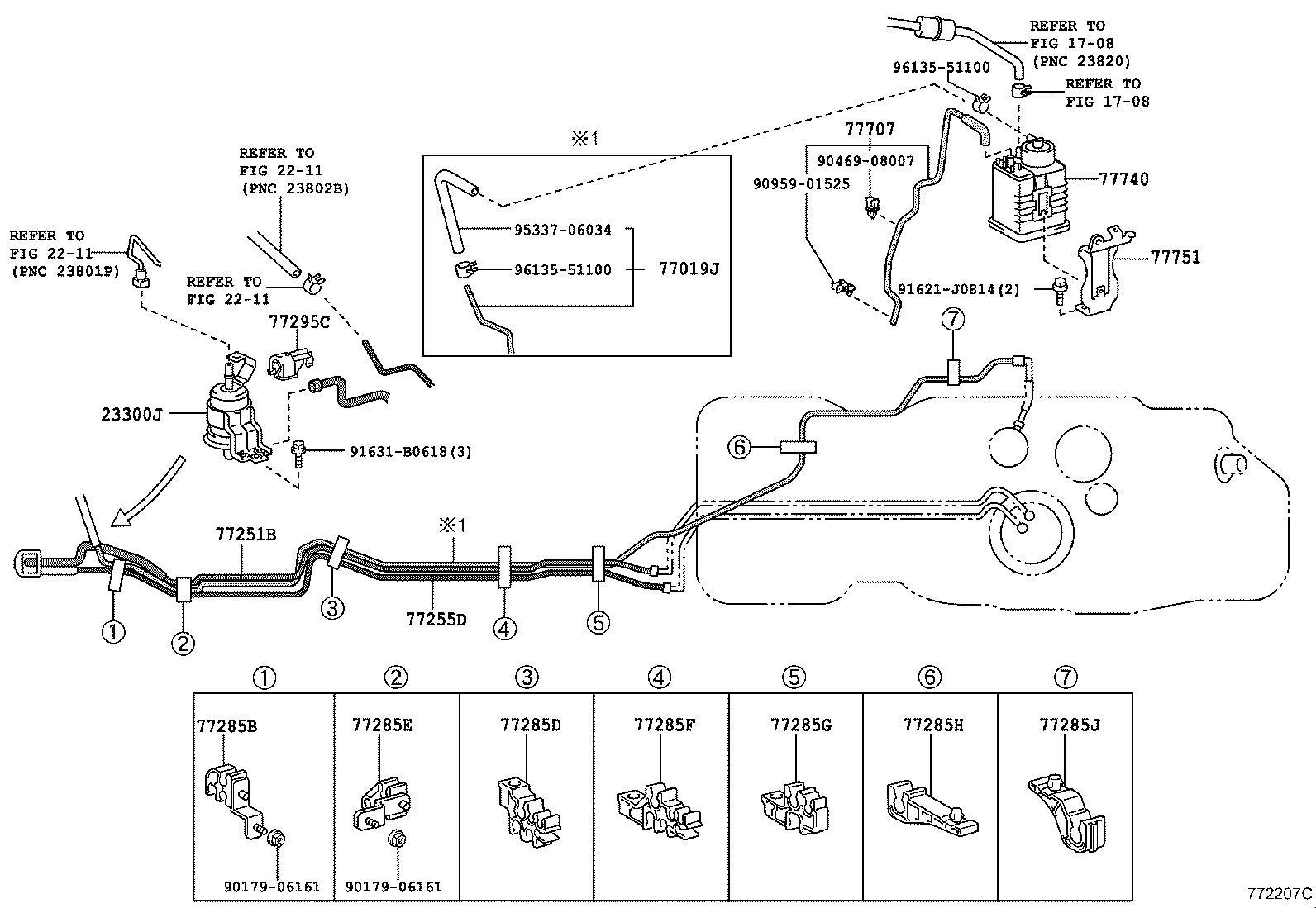

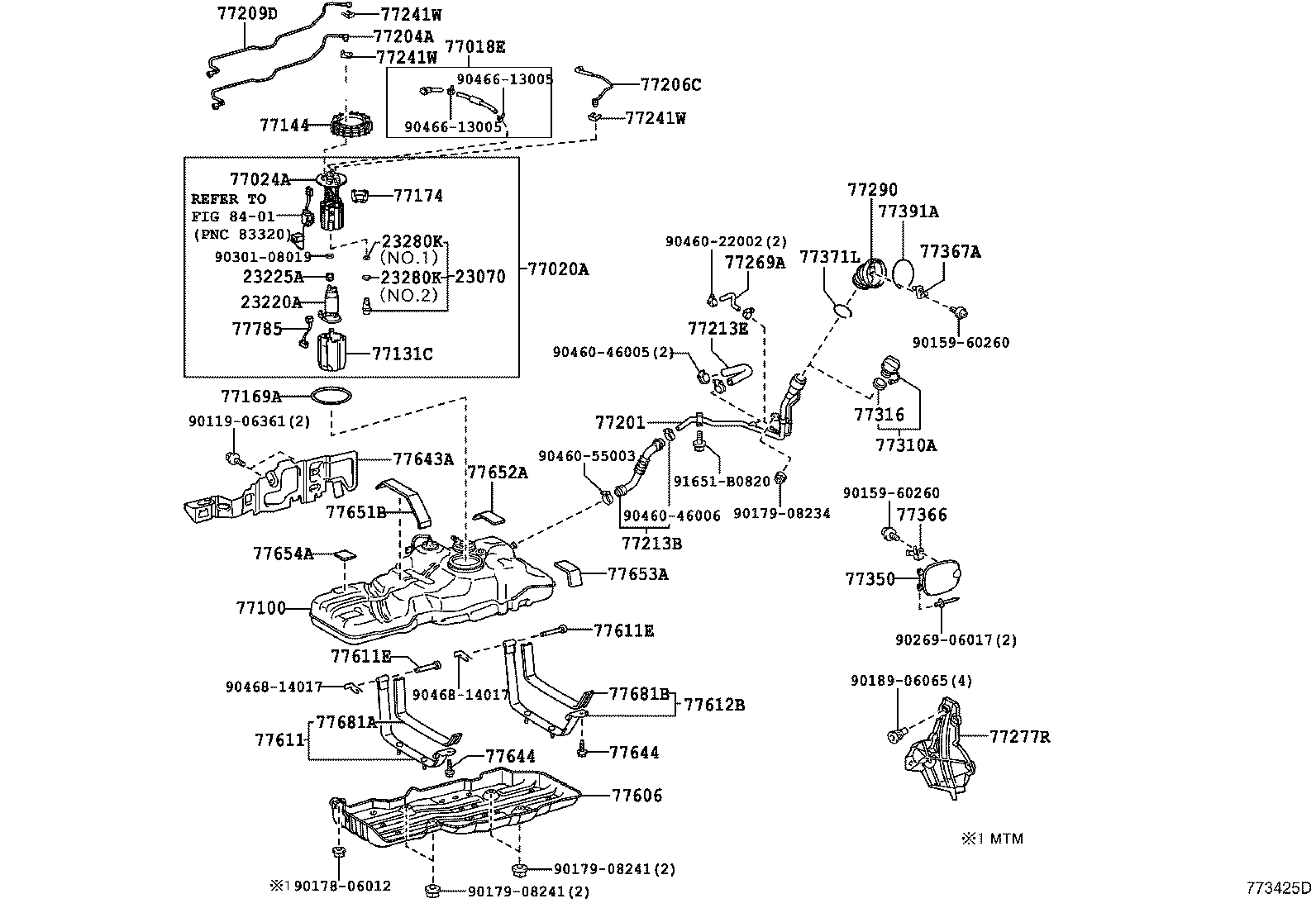

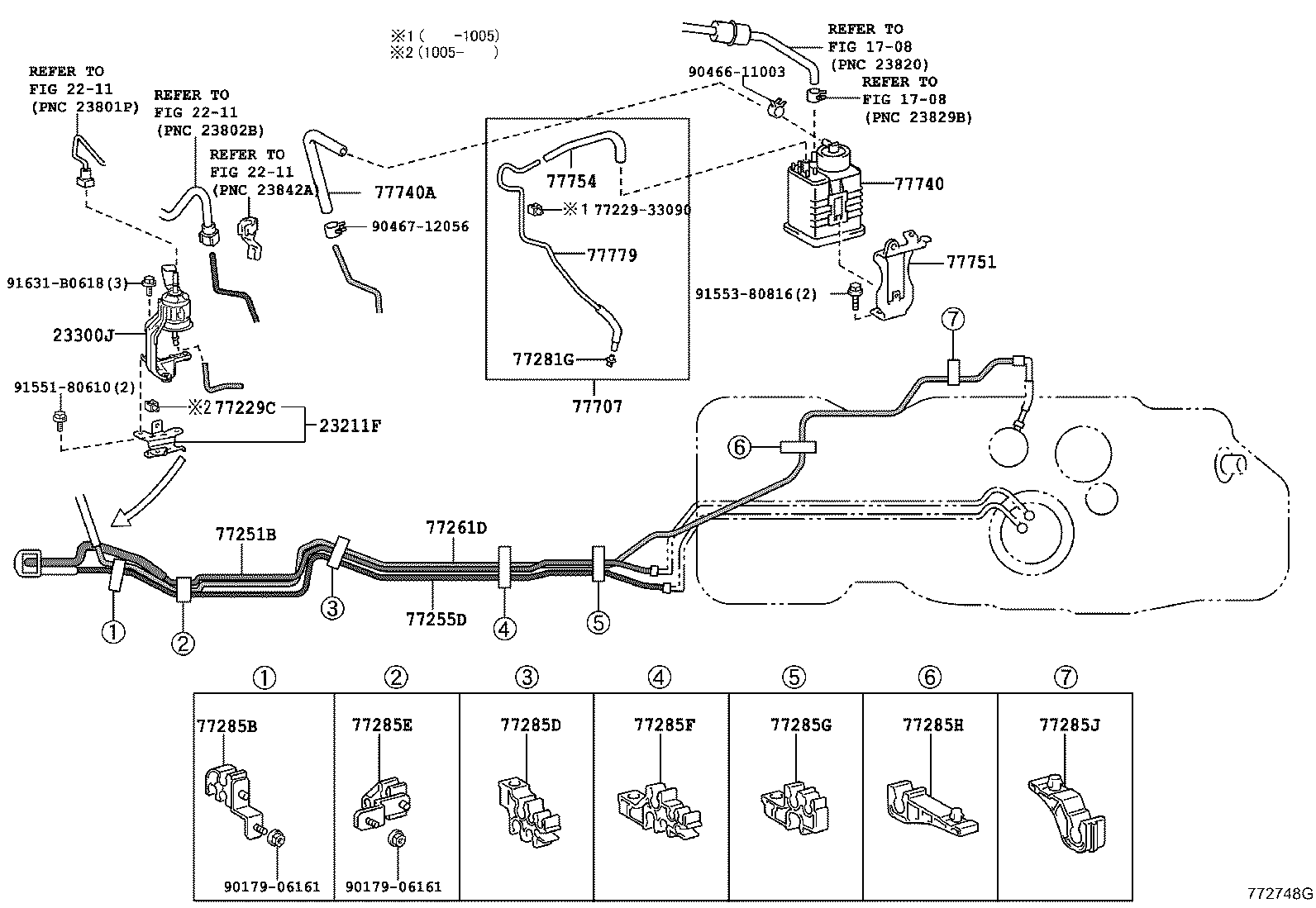

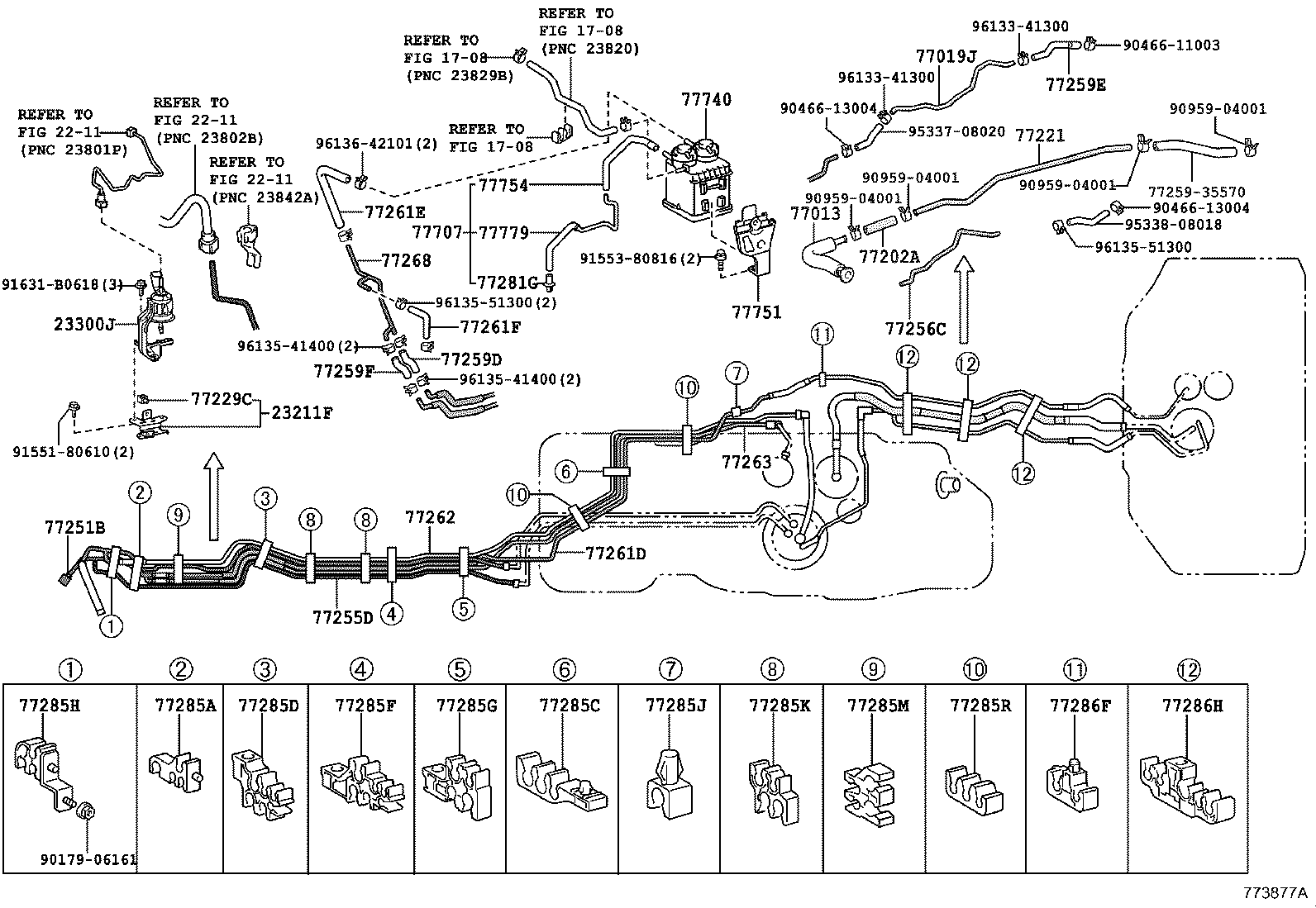

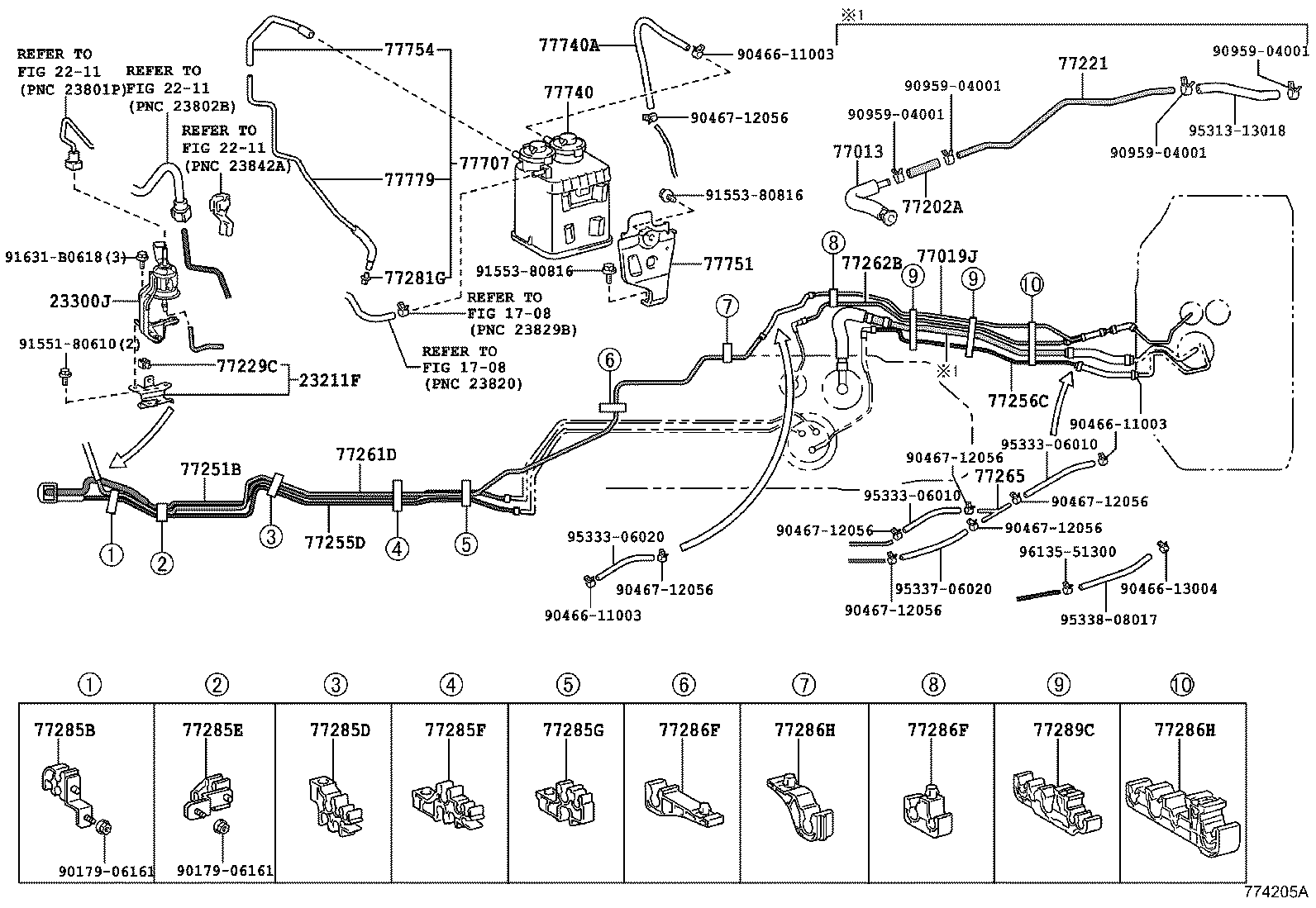

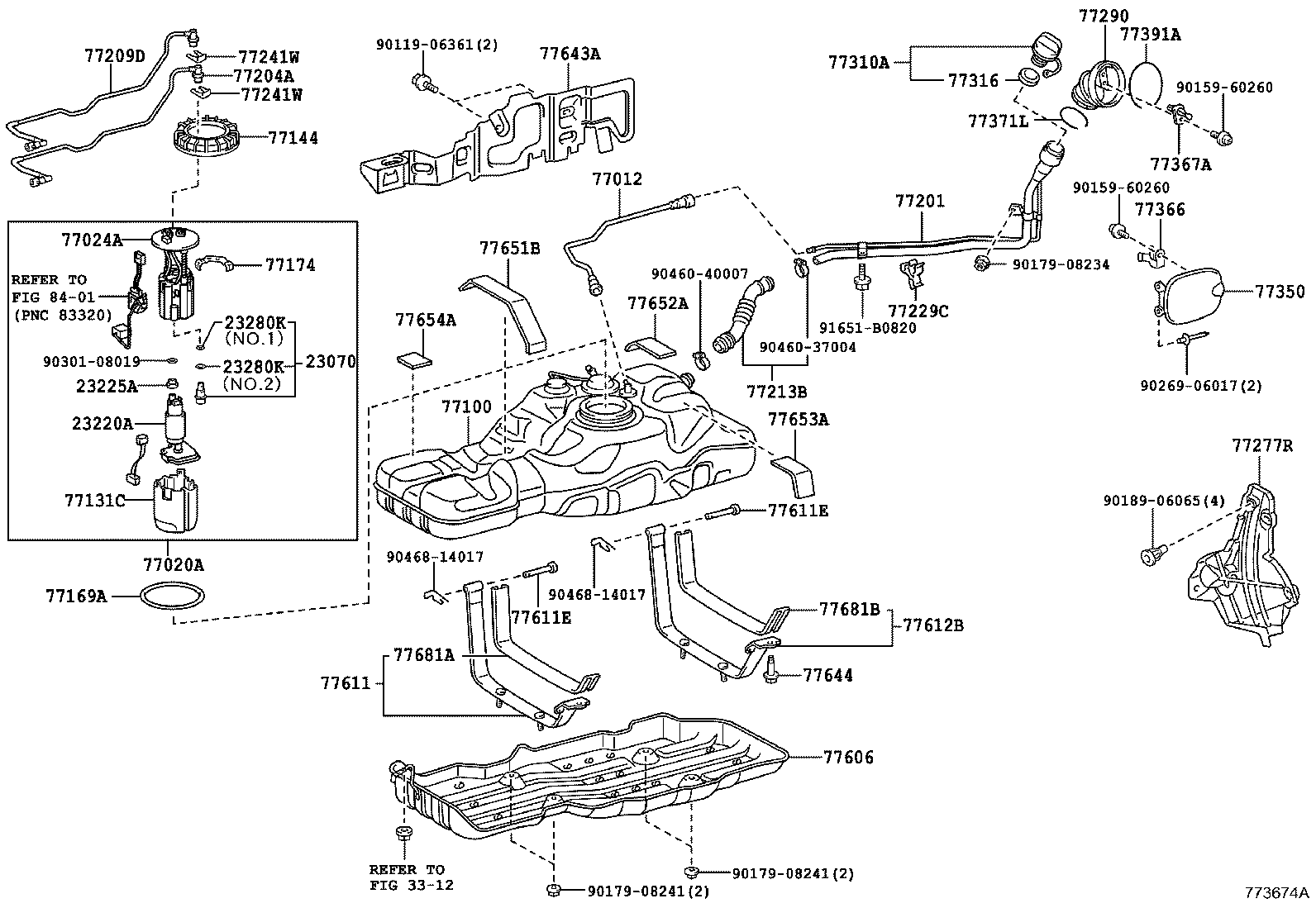

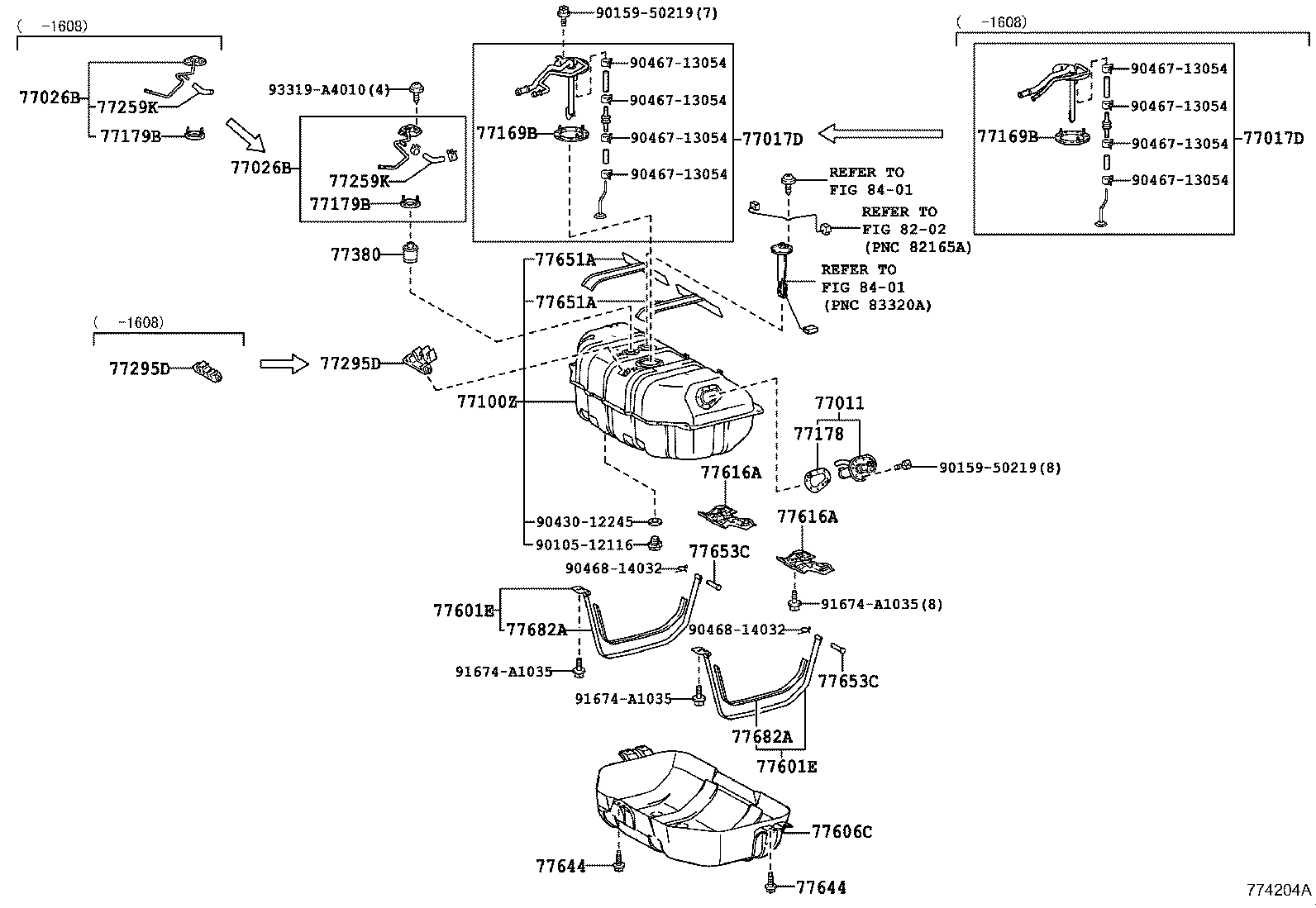

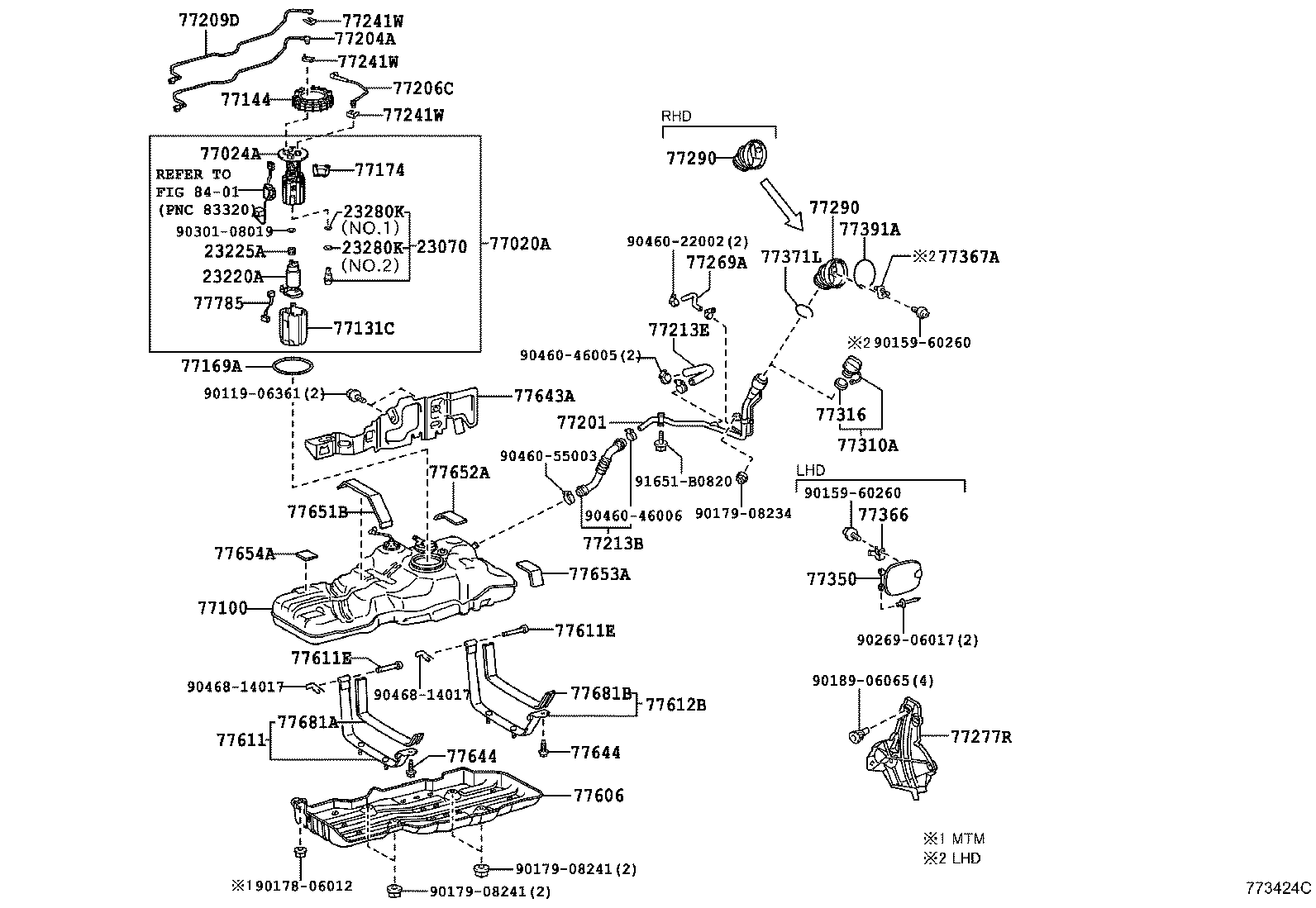

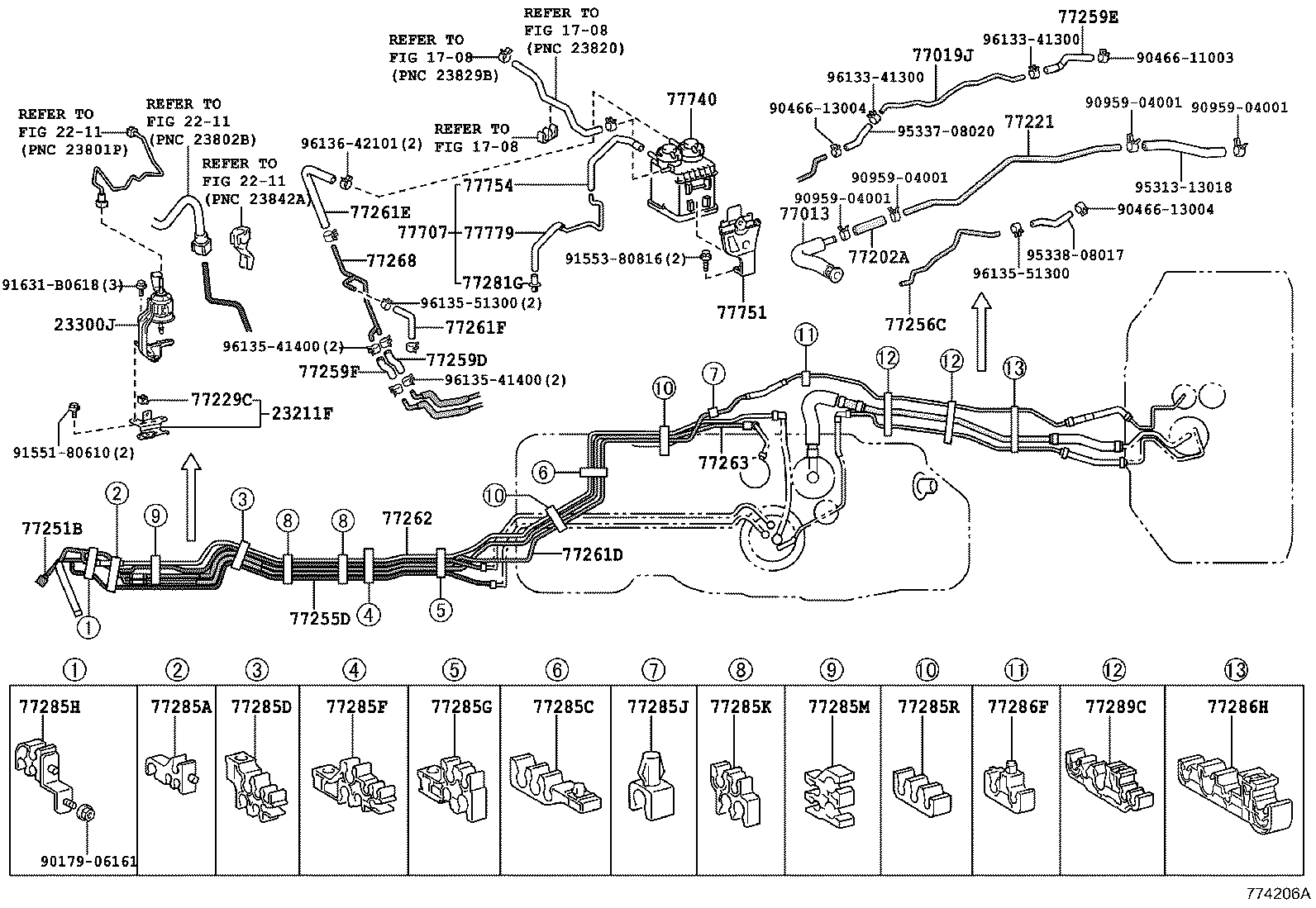

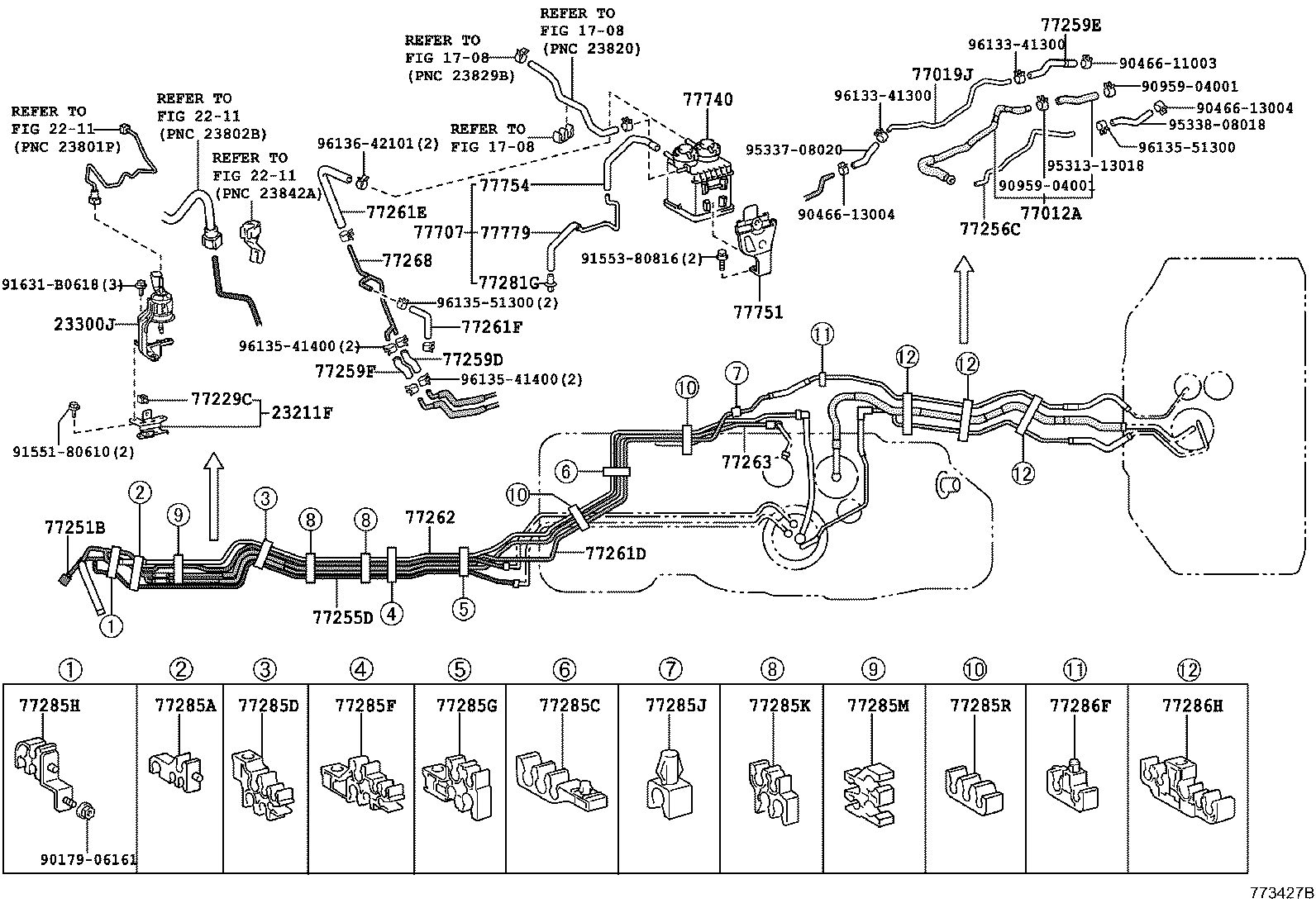

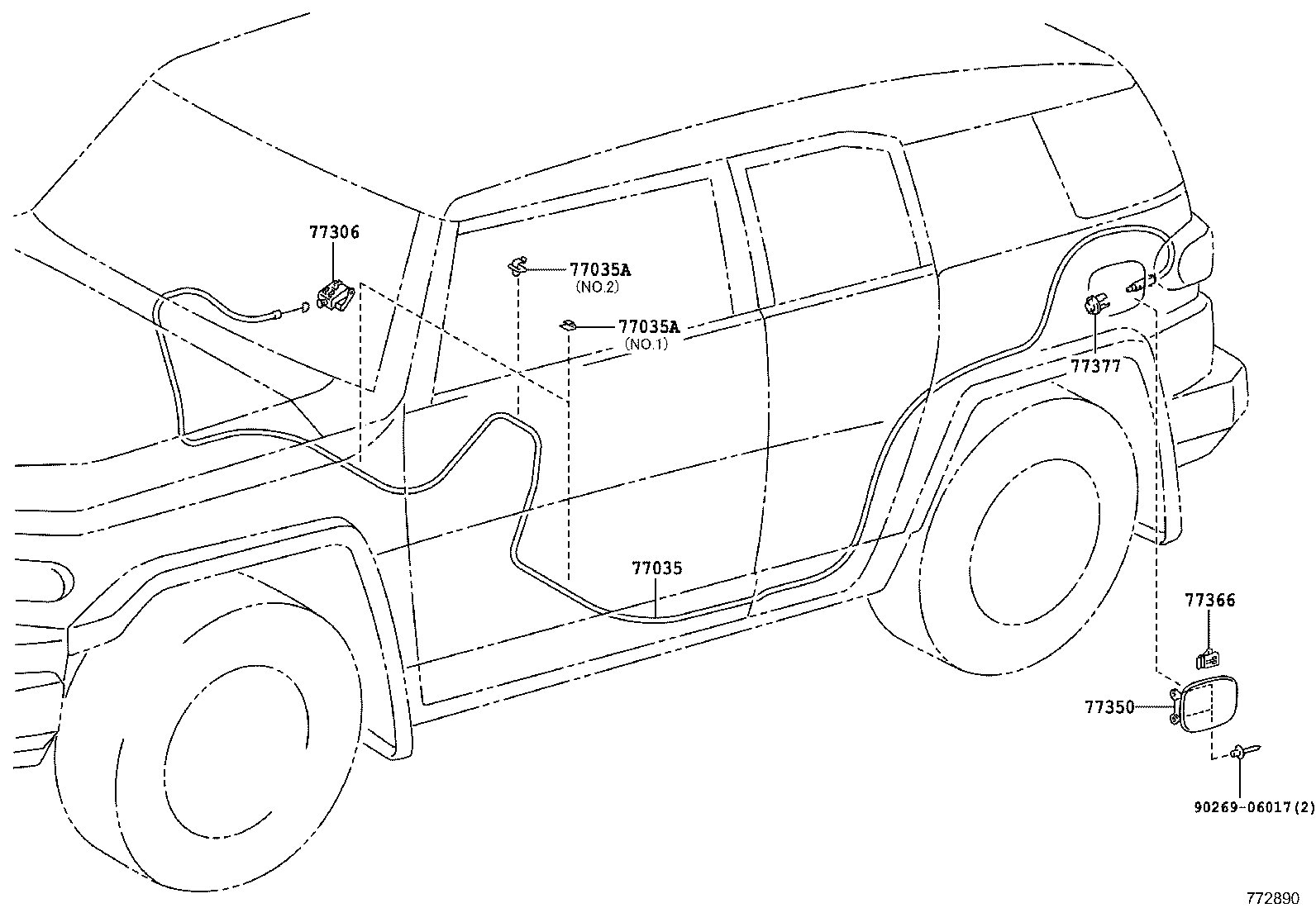

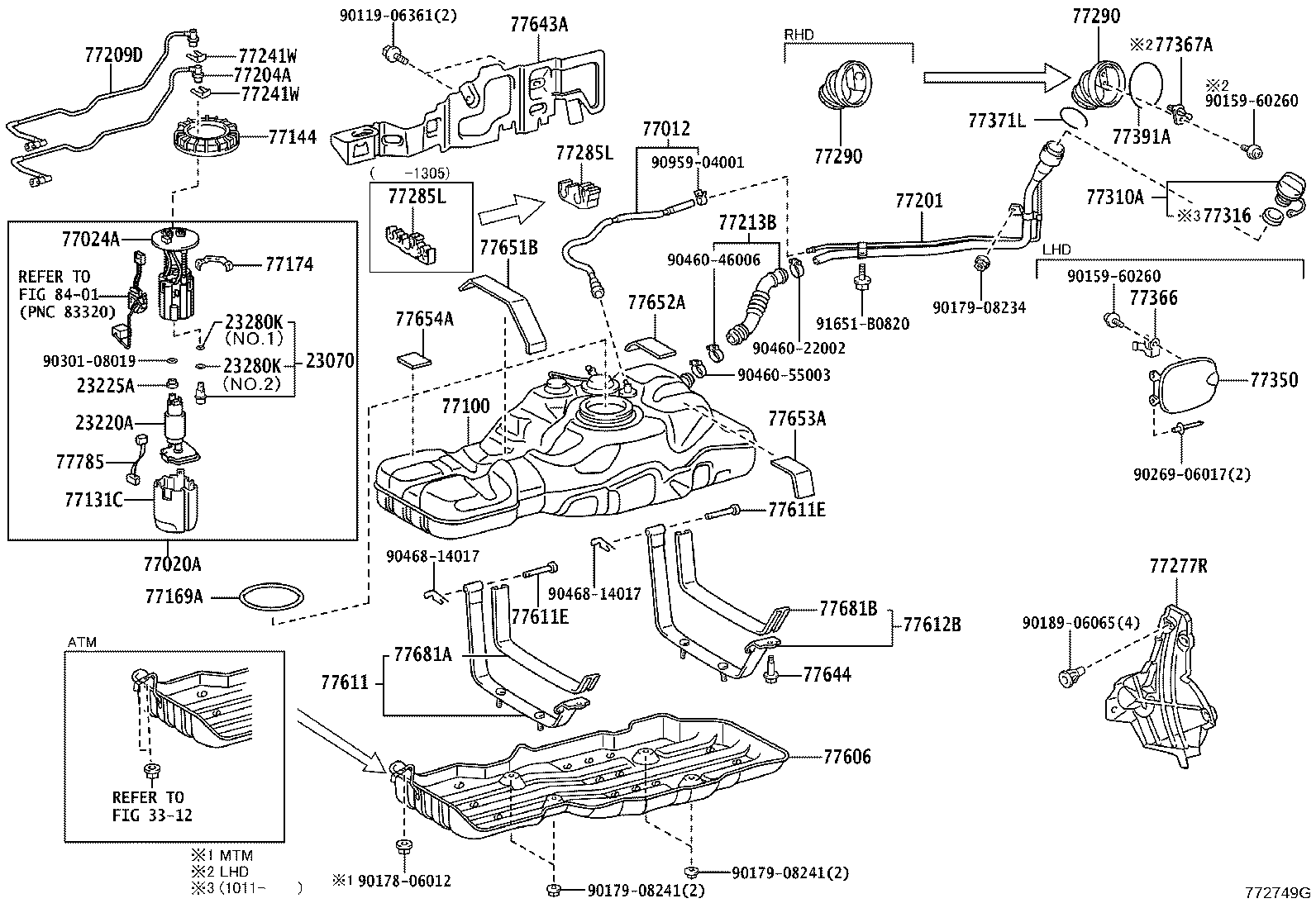

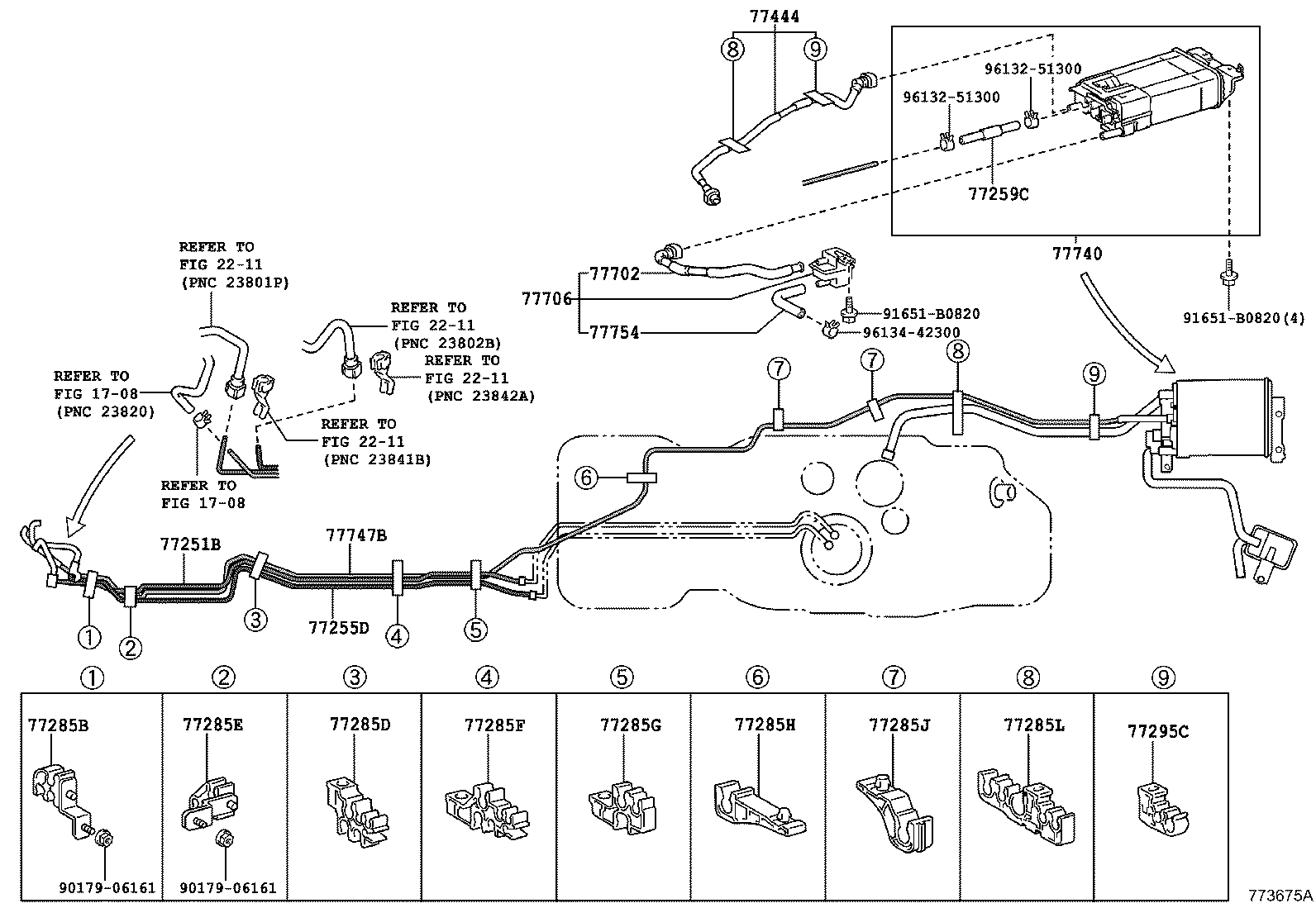

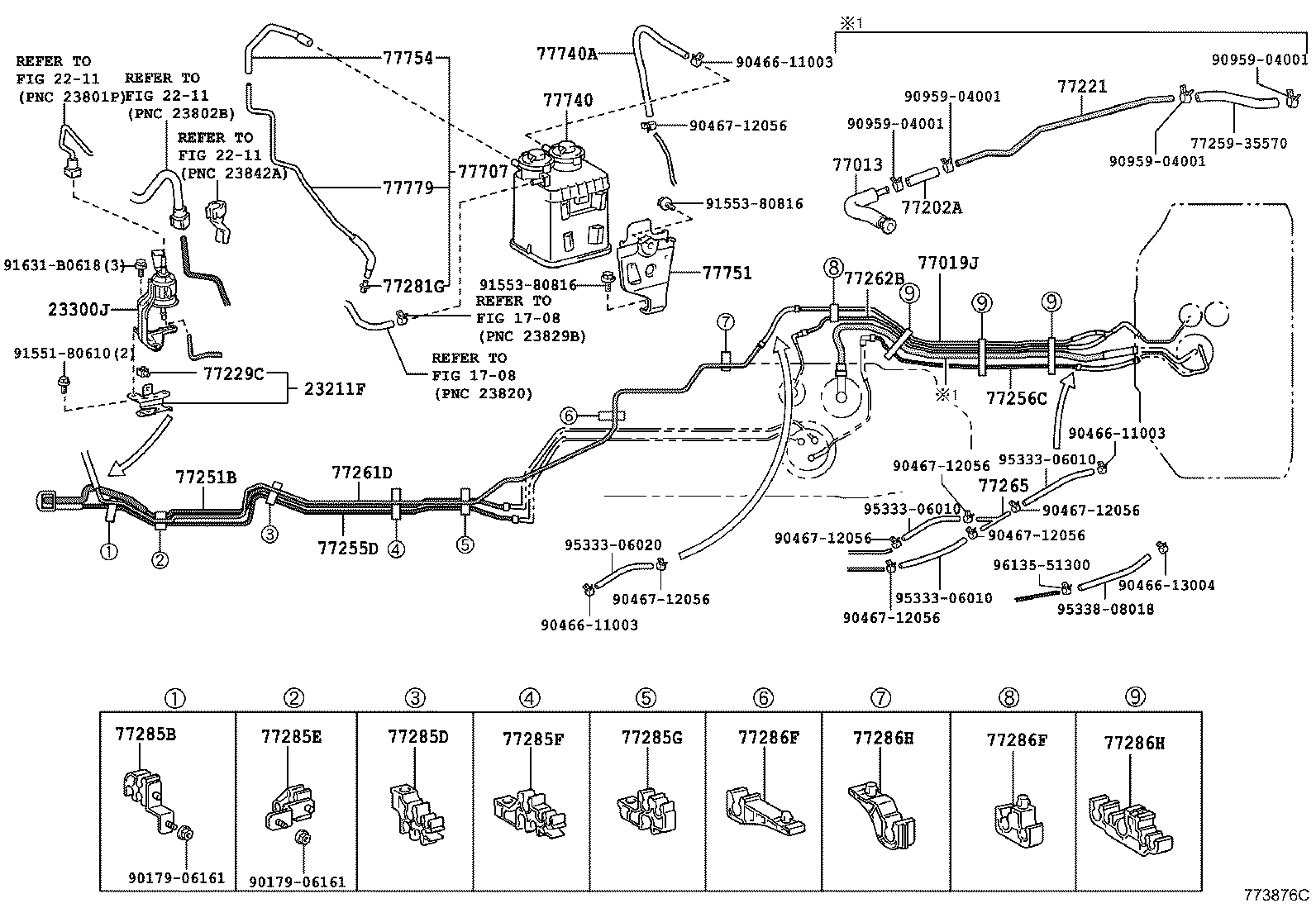

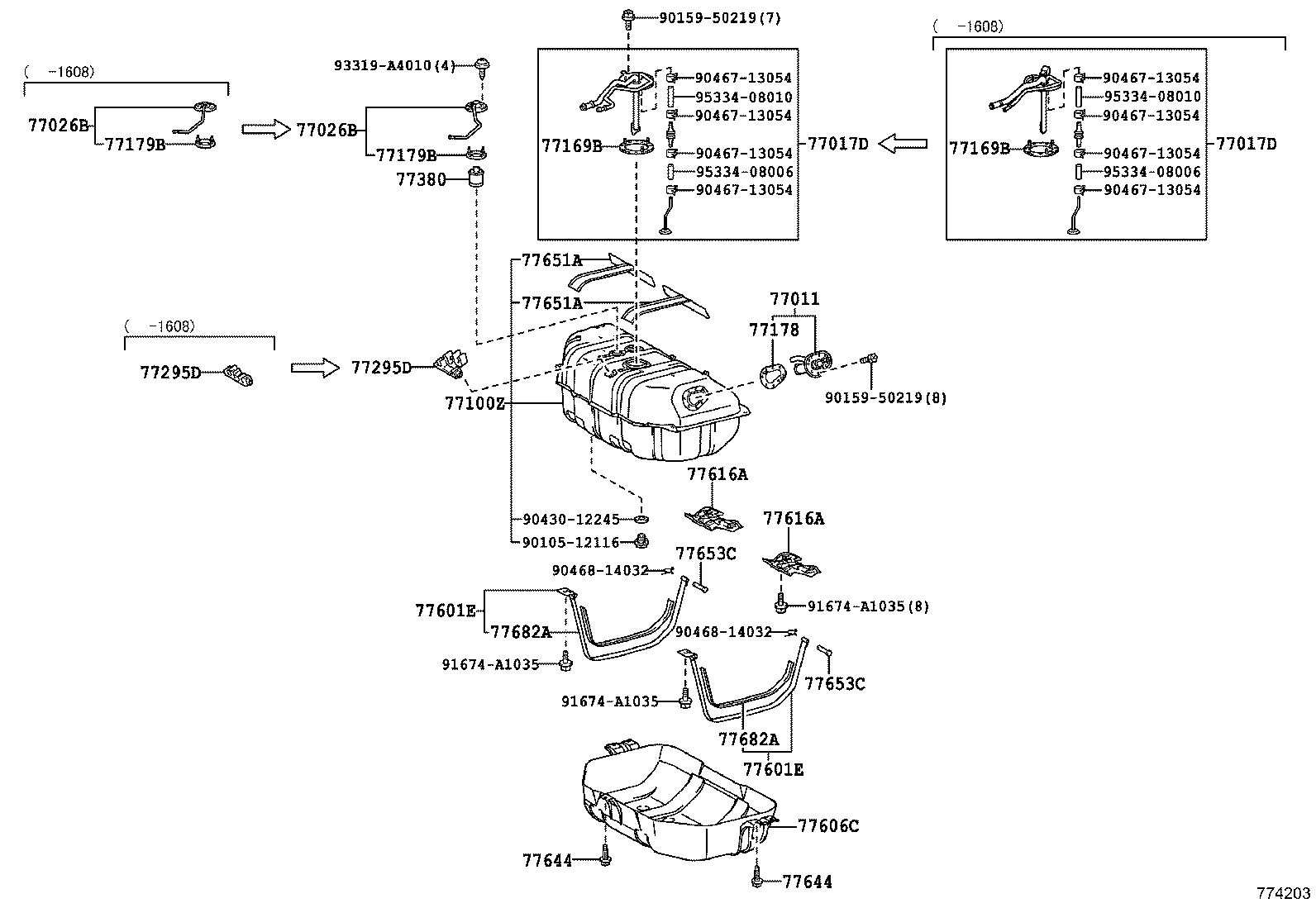

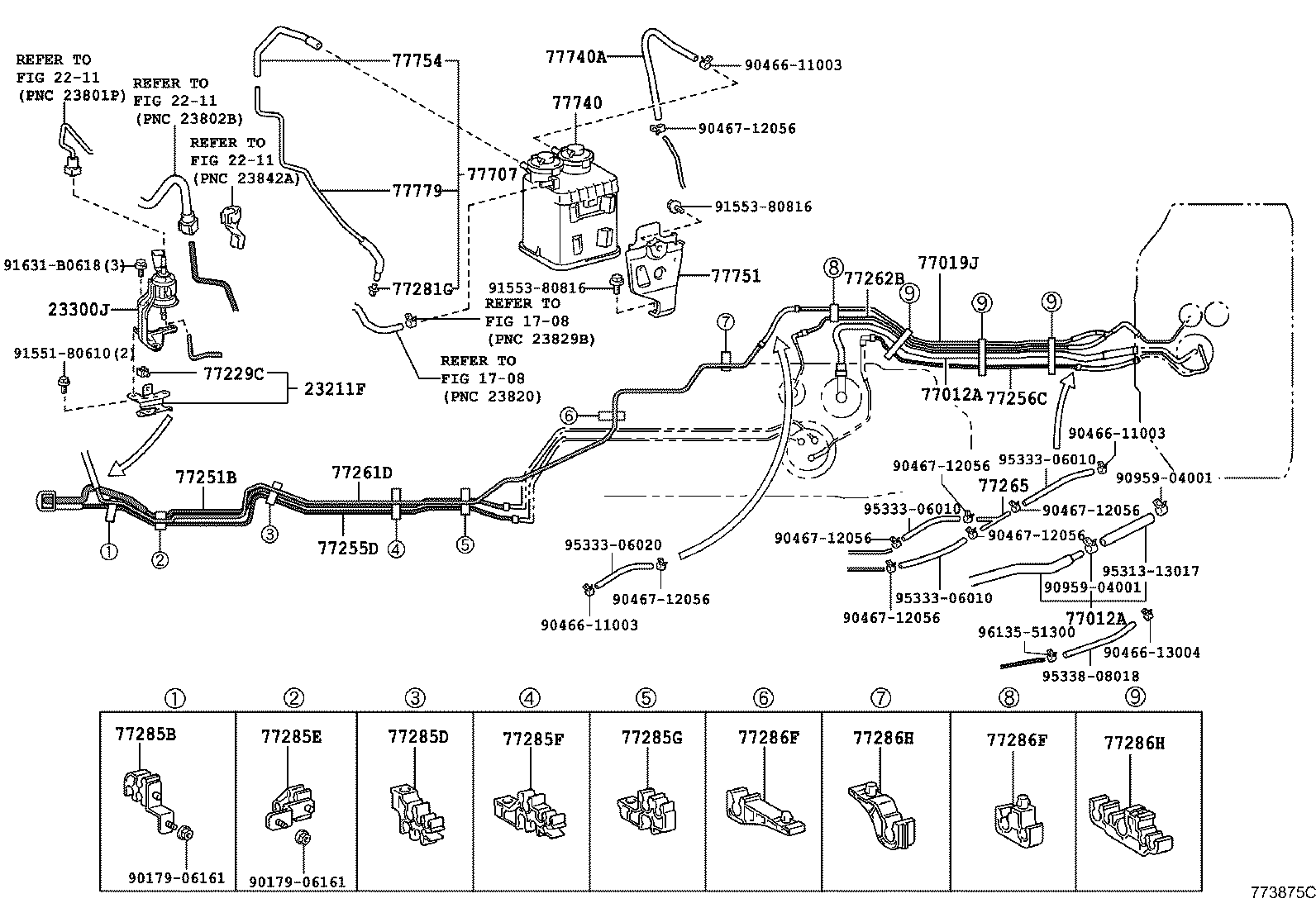

Figure 772206E 772206E 2007-07 → 2009-08 Figure 772749G 772749G 2009-08 → — Figure 773424C 773424C 2012-11 → — Figure 773425D 773425D 2012-11 → — Figure 774203 774203 2012-11 → — Figure 774204A 774204A 2012-11 → — Figure 773674A 773674A 2014-08 → — Figure 772207C 772207C 2007-07 → 2009-08 Figure 772748G 772748G 2009-08 → — Figure 773875C 773875C 2012-11 → 2014-03 Figure 773876C 773876C 2014-03 → 2016-08 Figure 774205A 774205A 2016-08 → — Figure 773427B 773427B 2012-11 → 2014-03 Figure 773877A 773877A 2014-03 → 2016-08 Figure 774206A 774206A 2016-08 → — Figure 773675A 773675A 2014-08 → — Figure 772890 772890 2010-11 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23211F Bracket
23220A Pump Assy, Fuel W/Filter
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23300J Filter Assy, Fuel
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77012 Tube Sub-assy, Fuel Tank Breather
77012A Tube Sub-assy, Fuel Tank Breather, NO.1
77013 Tube Sub-assy, Fuel Tank Breather, NO.2
77017D Tube Sub-assy, Fuel Tank Vent
77018E Tube Sub-assy, Fuel Tank Evaporation Vent
77019J Tube Sub-assy, Fuel Tank TO Canister
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77035A Clamp (FOR FUEL LID LOCK CONTROL CABLE)
77100 Tank Assy, Fuel
77100Z Tank Sub-assy, Fuel Sub
77131C Sub-tank, Fuel, NO.1
77144 Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77169B Gasket, Fuel Suction Tube Set, NO.1
77174 Support, Fuel Suction, NO.1
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179B Gasket, Fuel Tank Evaporation Vent Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77202A Hose, Fuel, NO.1 (FOR BREATHER TUBE)
77204A Tube, Fuel Tank Return
77206C Tube Sub-assy, Fuel Main, NO.2
77209D Tube Sub-assy, Fuel Tank Main
77213B Hose, Fuel Tank TO Filler Pipe
77213E Hose, Fuel Tank TO Filler Pipe
77221 Tube, Fuel Tank Breather, NO.1
77229C Clamp, Breather Tube
77241W Clip, Tube Joint
77251B Tube, Fuel Main
77255D Tube, Fuel Return
77256C Tube, Fuel Return, NO.2
77259C Hose, Fuel
77259D Hose, Fuel, NO.1
77259E Hose, Fuel
77259F Hose, Fuel
77259K Hose, Fuel
77261D Tube, Fuel Tank TO Canister
77261E Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77261F Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77262 Tube, Fuel Emission, NO.2
77262B Tube, Fuel Tank TO Canister, NO.2
77263 Tube, Fuel Tank TO Canister, NO.3
77265 Connector, Fuel Main Tube
77268 Tube, Fuel Tank TO Canister, NO.4
77269A Hose, Fuel Tank Breather
77277R Protector, Fuel Tank Filler Pipe
77281G Clamp, Fuel Hose
77285A Support, Fuel Return And Main Tube
77285B Clamp, Fuel Tube W/Grommet, NO.1
77285C Clamp, Fuel Tube, NO.1 (FOR FRONT FUEL MAIN)
77285D Clamp, Fuel Tube, NO.1
77285E Clamp, Fuel Tube W/Grommet, NO.1
77285F Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77285H Clamp, Fuel Tube, NO.1
77285J Clamp, Fuel Tube, NO.1
77285K Clamp, Fuel Tube, NO.1
77285L Clamp, Fuel Tube, NO.1
77285M Clamp, Fuel Tube, NO.1
77285R Clamp, Fuel Tube, NO.1
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77289C Clamp, Fuel Tube, NO.4
77290 Shield Assy, Fuel Tank Filler Pipe
77295C Grommet, Fuel Tube
77295D Grommet, Fuel Tube
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77367A Clamp, Fuel Filler Lid Pin, NO.1
77371L Ring, Fuel Tank Filler Pipe Shield
77377 Retainer, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77391A Ring, Fuel Inlet Box
77444 Hose, Fuel Tank Vent
77601E Band Sub-assy, Fuel Tank
77606 Protector Sub-assy, Fuel Tank, NO.1
77606C Protector, Fuel Tank, NO.2
77611 Band, Fuel Tank
77611E Pin, Fuel Tank Band
77612B Band, Fuel Tank, NO.2
77616A Bracket, Fuel Tank Band, NO.4
77643A Protector, Fuel Tank, NO.3
77644 Bolt, Fuel Tank
77651A Cushion, Fuel Tank, NO.1
77651B Cushion, Fuel Tank
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77653C Pin, Fuel Tank Band, NO.1
77654A Cushion, Fuel Tank, NO.4
77681A Seat, Fuel Tank Band
77681B Seat, Fuel Tank Band
77682A Seat, Fuel Tank Band, NO.2
77702 Hose Sub-assy, Canister Outlet, NO.2
77706 Filter Sub-assy, Charcoal Canister
77707 Tube Sub-assy, Charcoal Canister Outlet
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77747B Tube, Charcoal Canister, NO.1
77751 Bracket, Charcoal Canister Base
77754 Hose, Charcoal Canister Outlet, NO.1
77779 Tube, Charcoal Canister Outlet
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
