Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

17 part groups · 3 illustrations

Illustrations

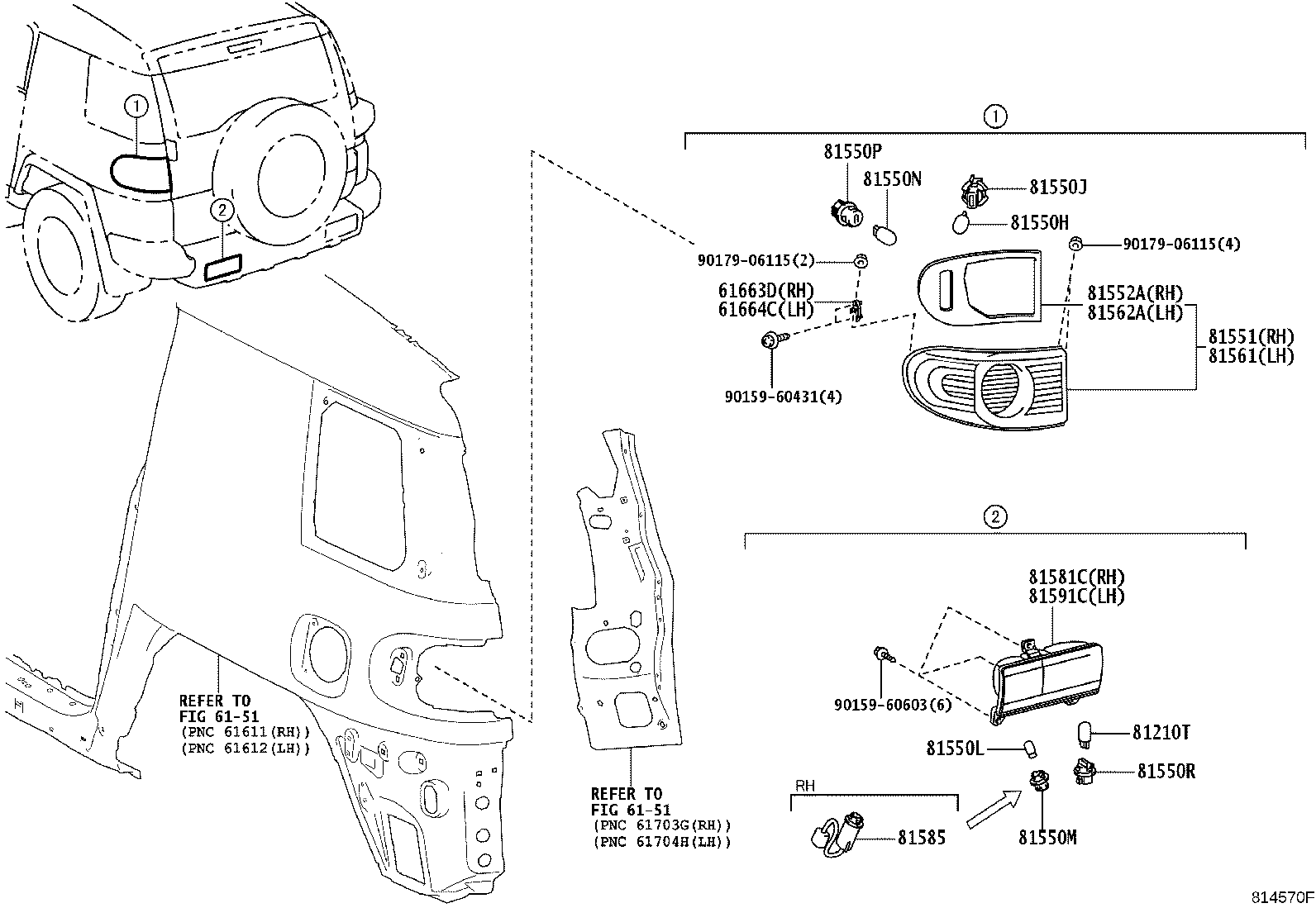

Figure 814950H 814950H 2007-07 → — Figure 814570F 814570F 2007-12 → — Figure 814570F 814570F 2010-11 → —

Part groups

PNCDescription
61663D Support, Rear Combination Lamp, RH
61664C Support, Rear Combination Lamp, LH
81210T Bulb, Rear Fog Lamp
81550H Bulb, Tail & Stop Lamp
81550J Socket, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550M Socket, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550P Socket, Back UP Lamp
81550R Socket, Rear Fog Lamp
81551 Lens, Rear Combination Lamp, RH
81552A Gasket, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81562A Gasket, Rear Combination Lamp, LH
81581C Lens And Body, Rear Lamp, RH
81585 Socket & Wire, Rear Lamp
81591C Lens, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
