Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

5 part groups · 3 illustrations

Illustrations

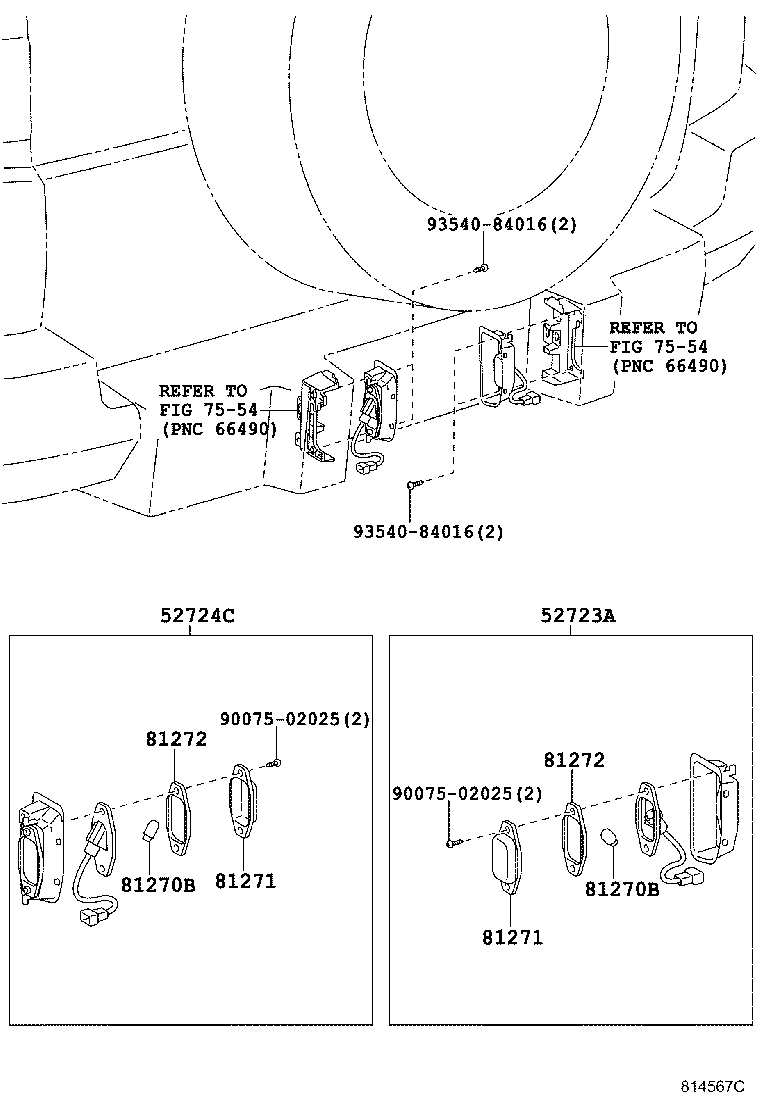

Figure 813550B 813550B 2007-07 → — Figure 814567C 814567C 2007-12 → — Figure 814567C 814567C 2009-08 → —

Part groups

PNCDescription
52723A Moulding, Rear Bumper Extension, RH
52724C Moulding, Rear Bumper Extension, LH
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
