Toyota FJ Cruiser
2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General
Supported model
Data version 2023-11
Wiring & Clamp
40 part groups · 15 illustrations

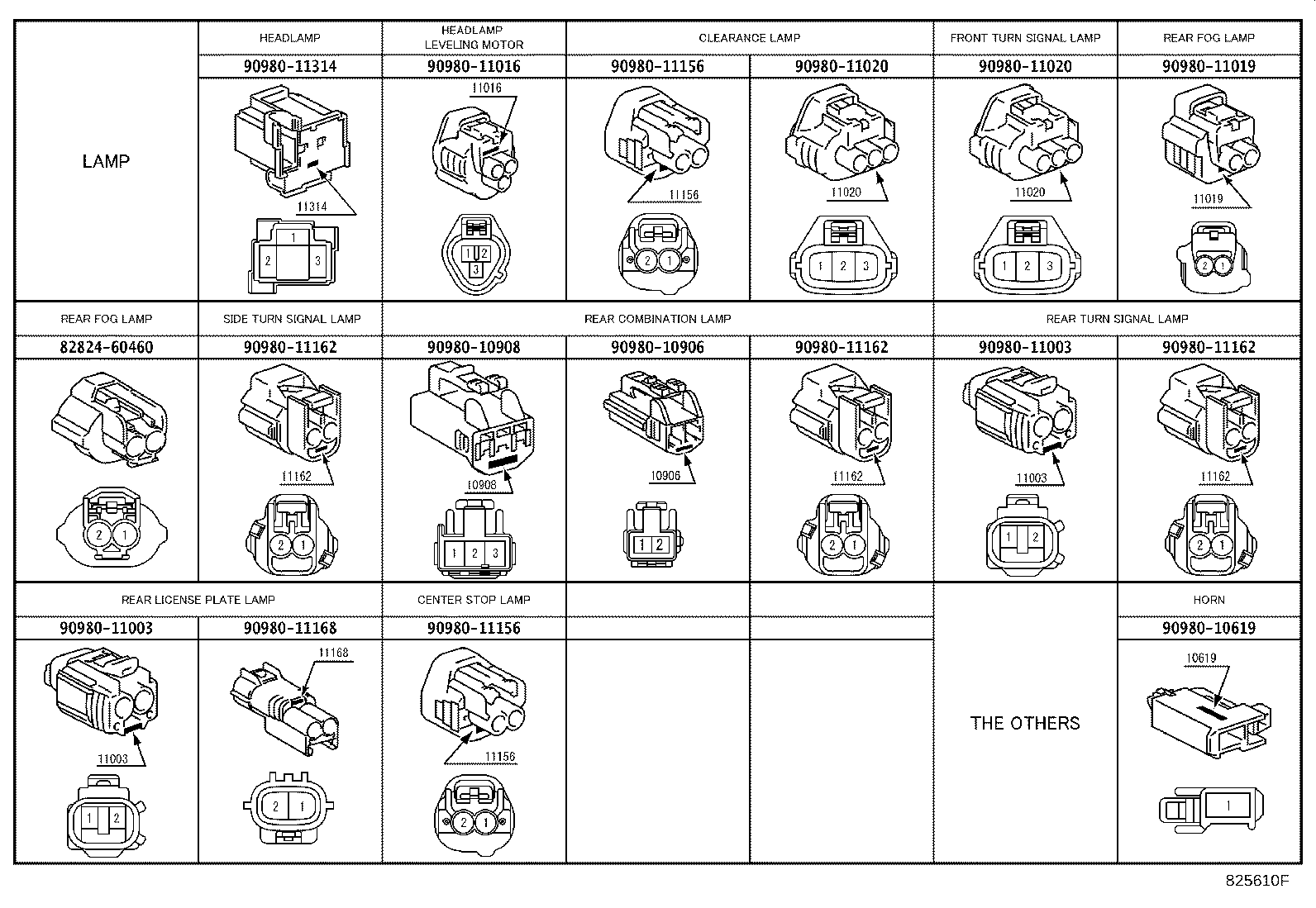

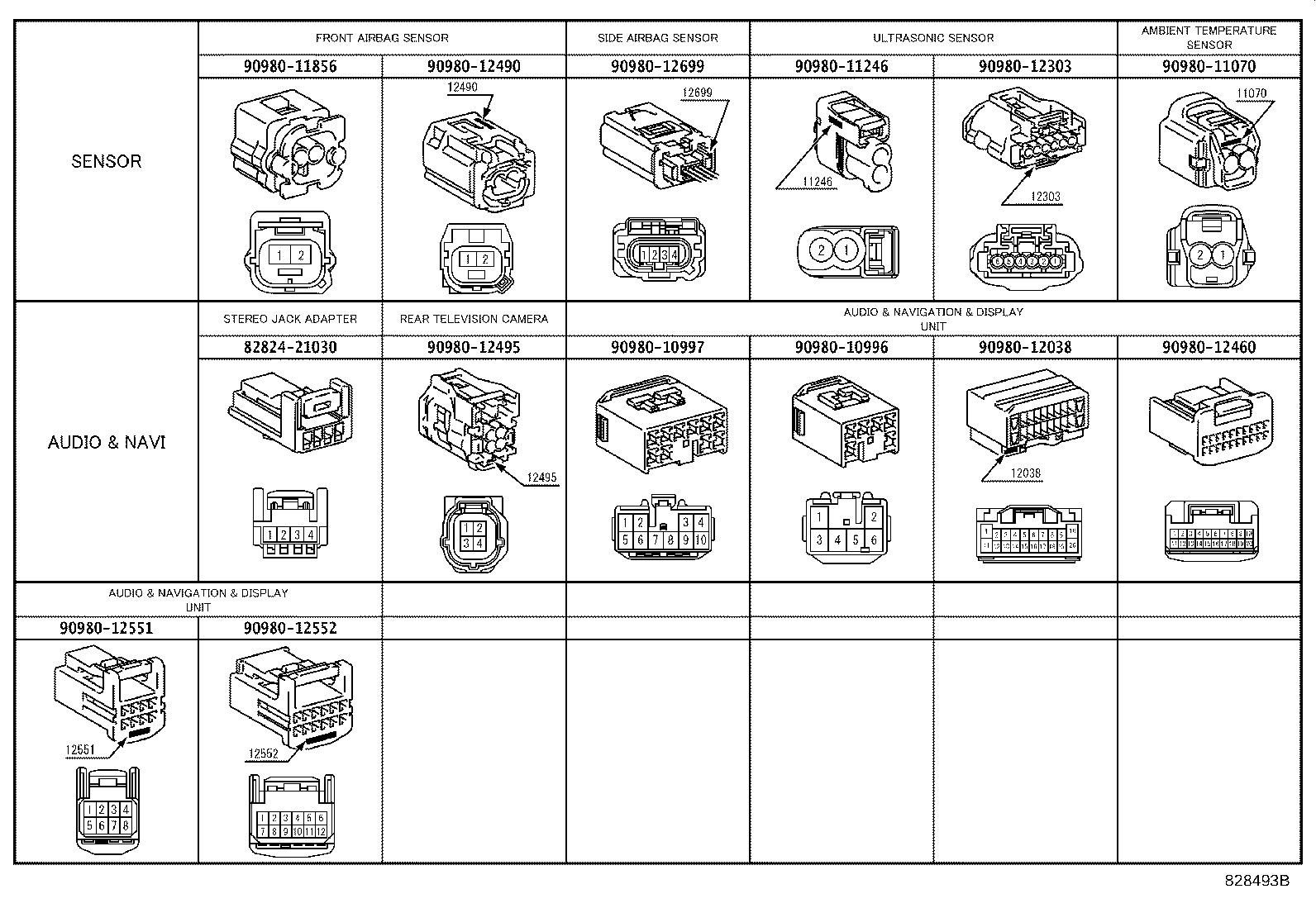

Illustrations
Part groups

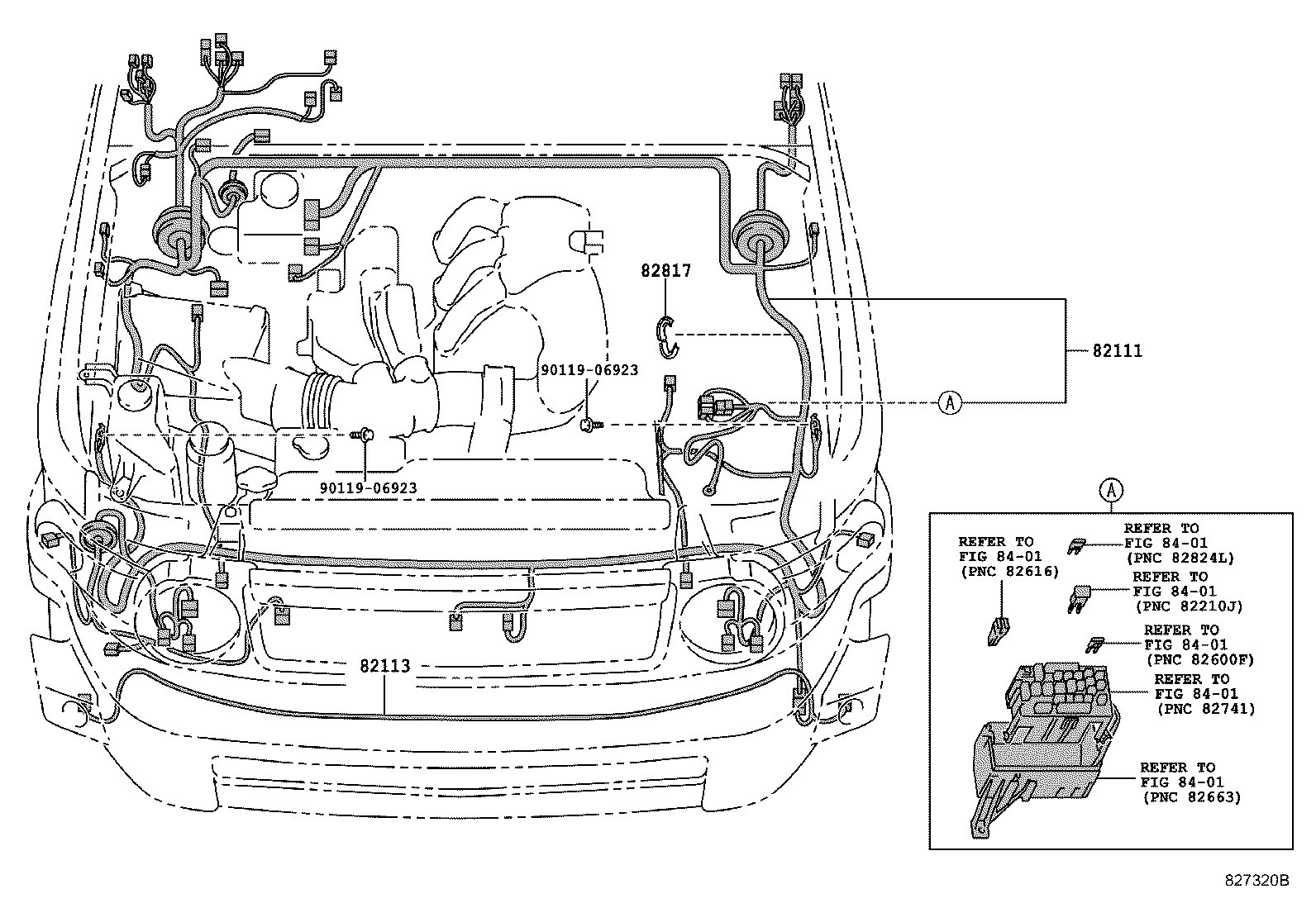

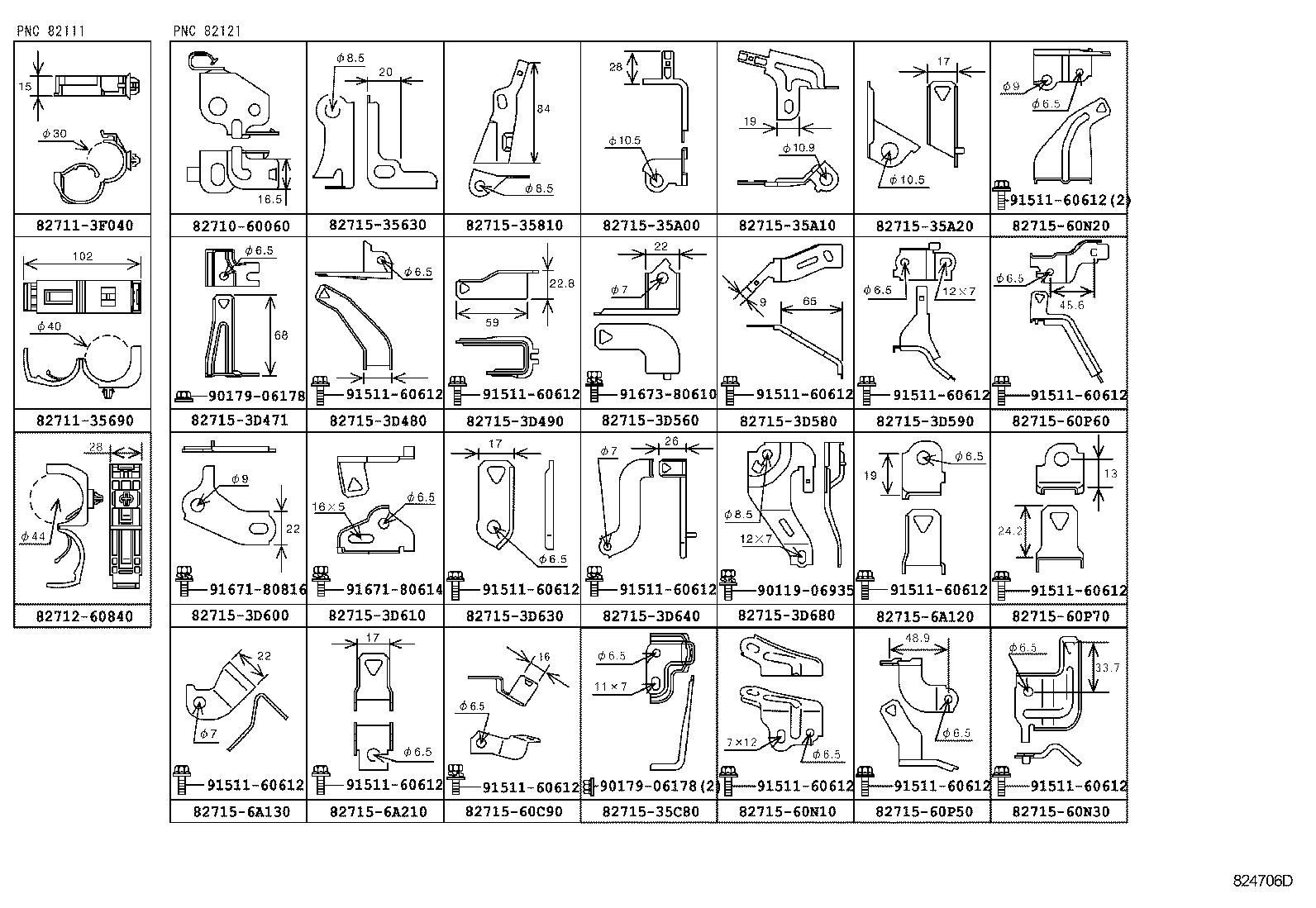

| PNC | Description |
|---|---|
| 82111 | Wire, Engine Room Main |
| 82113 | Wire, Engine Room, NO.3 |

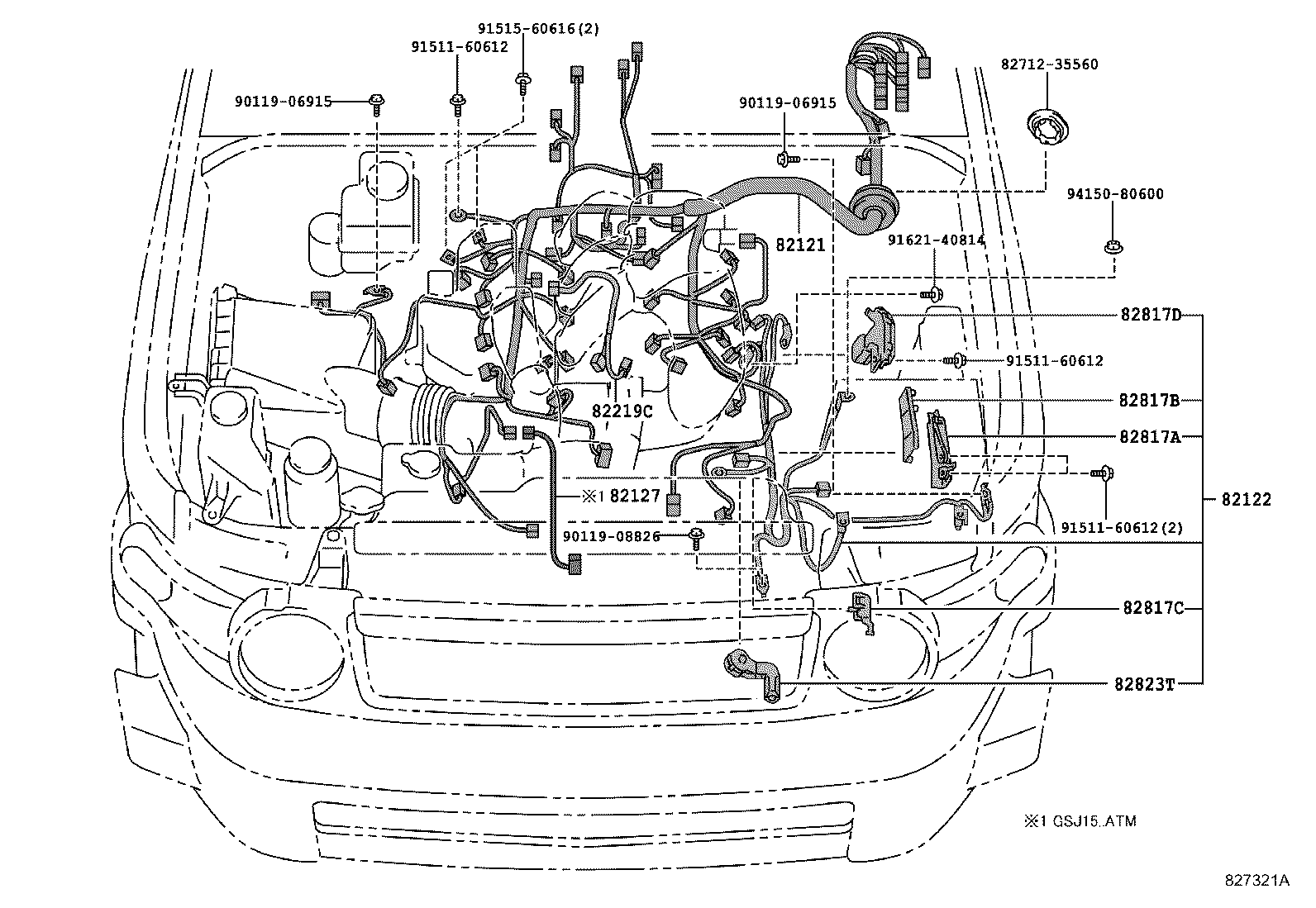

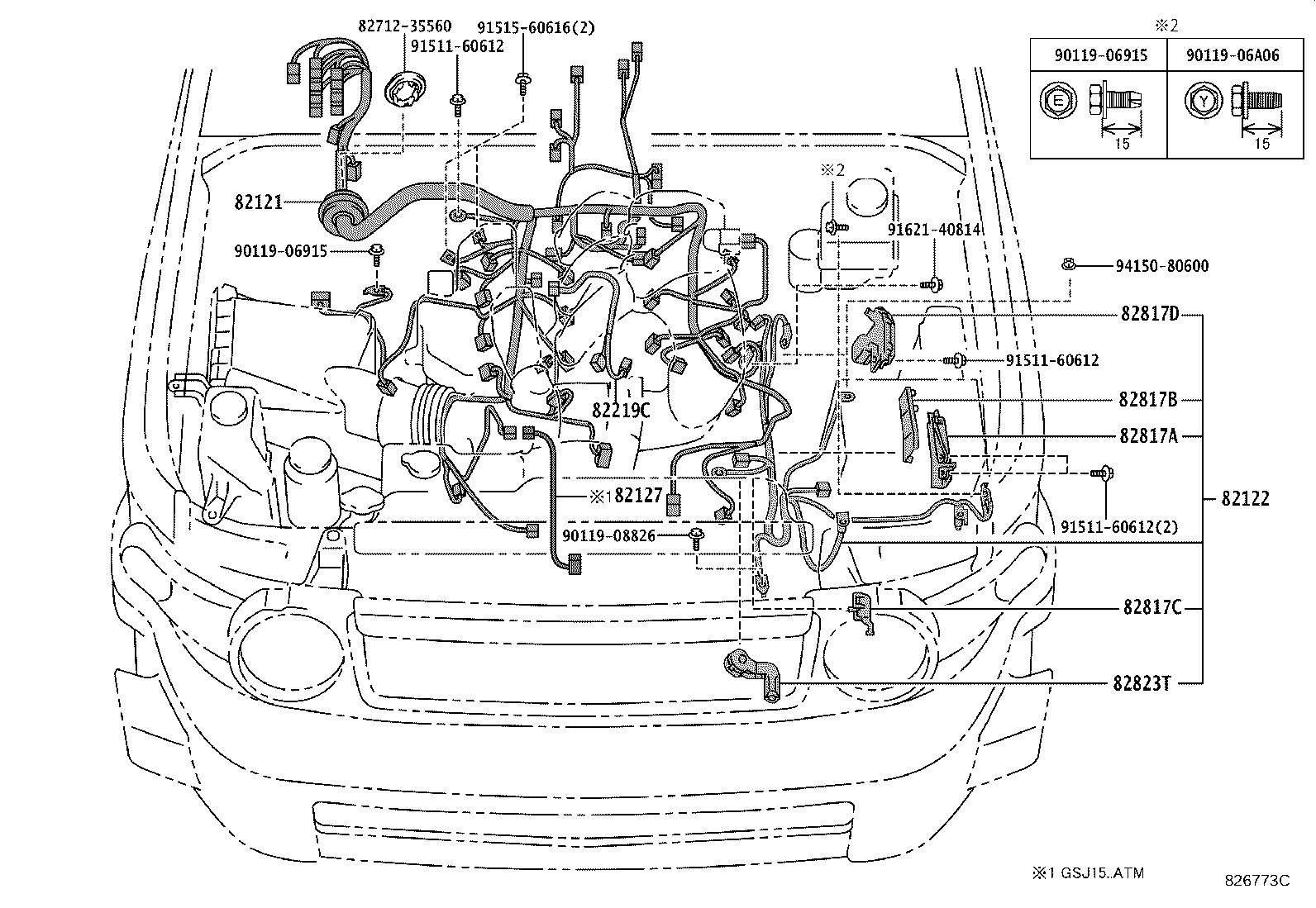

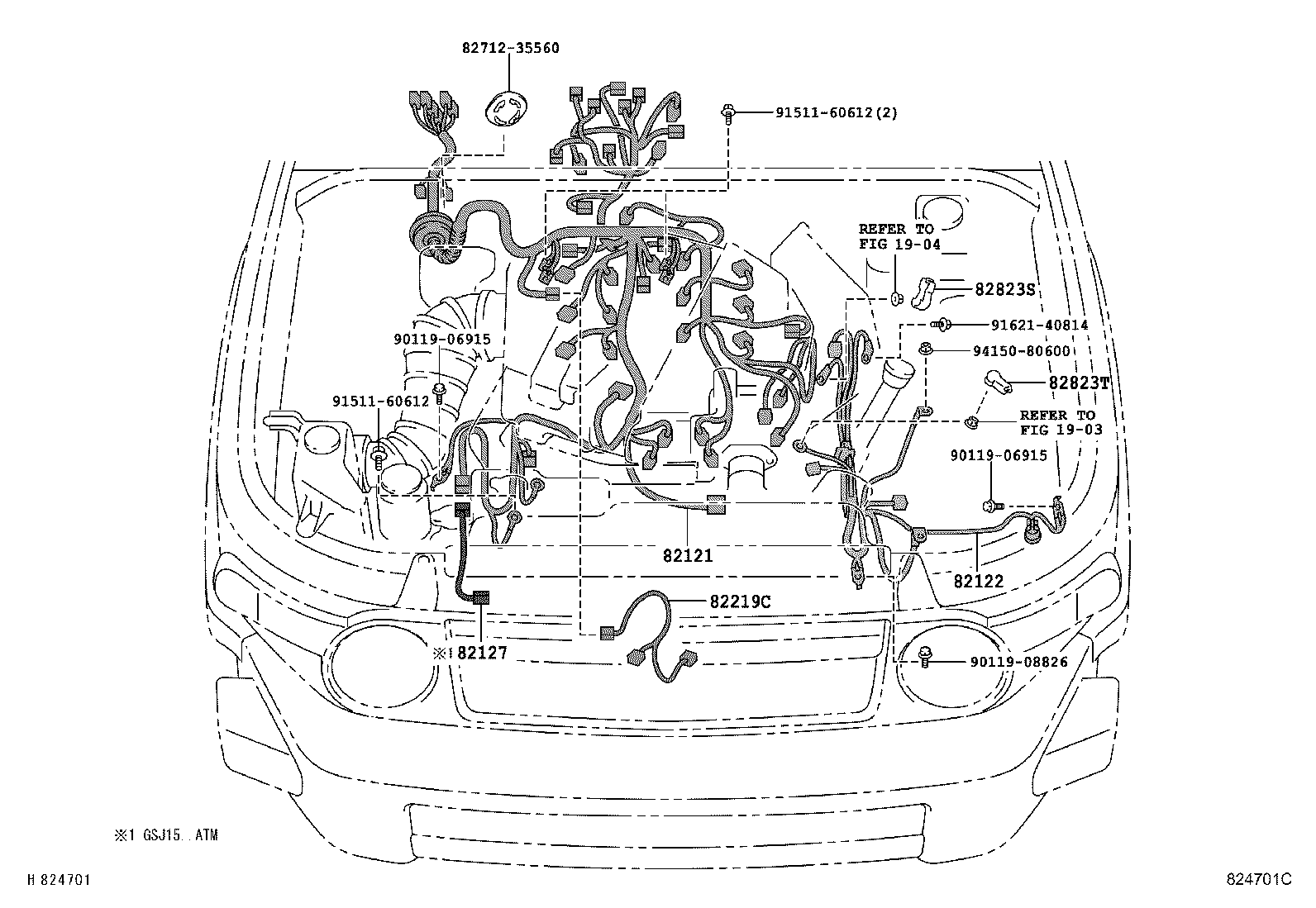

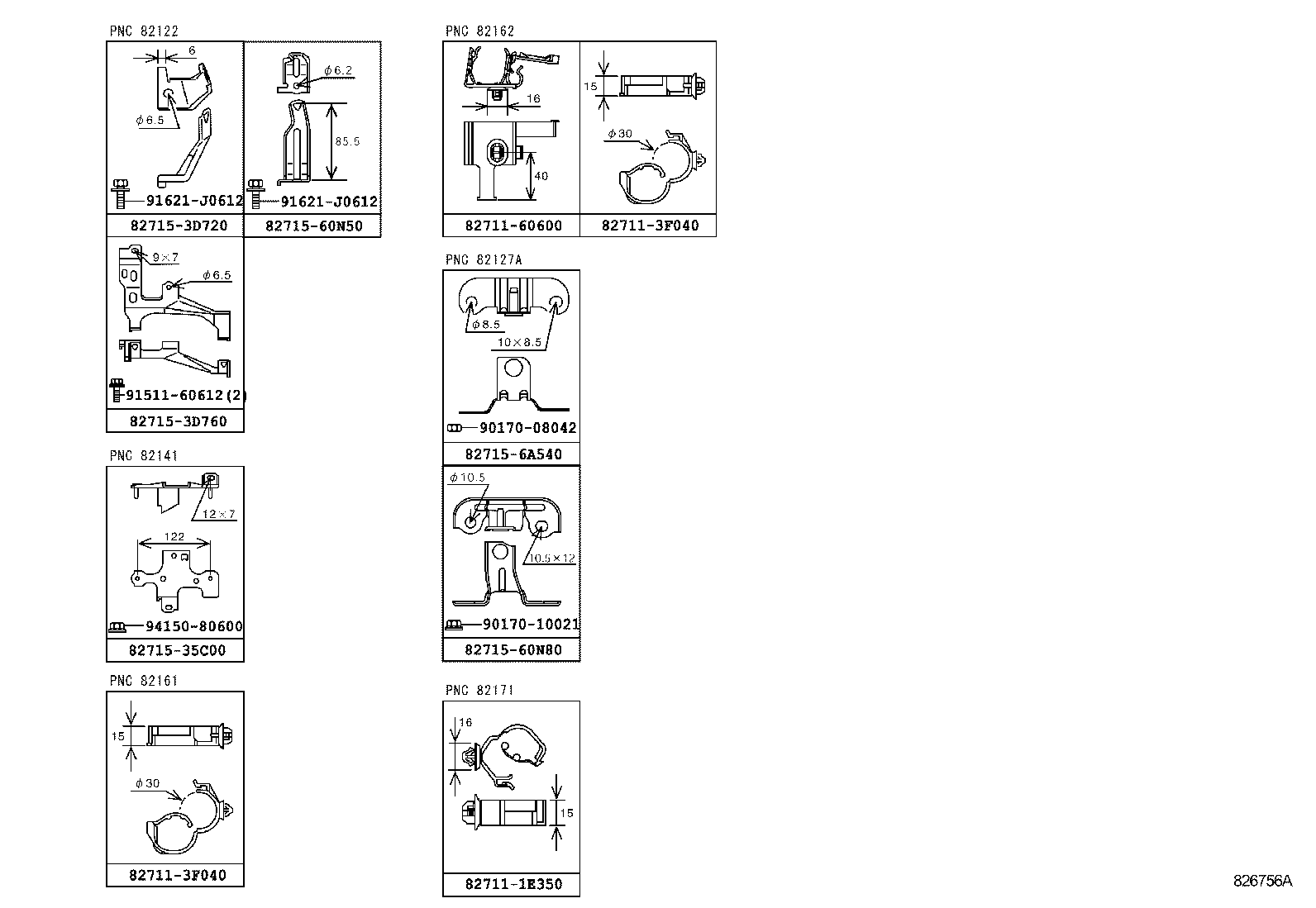

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82127 | Wire, Differential |
| 82127A | Wire, Differential (TO WIRE FRAME) |

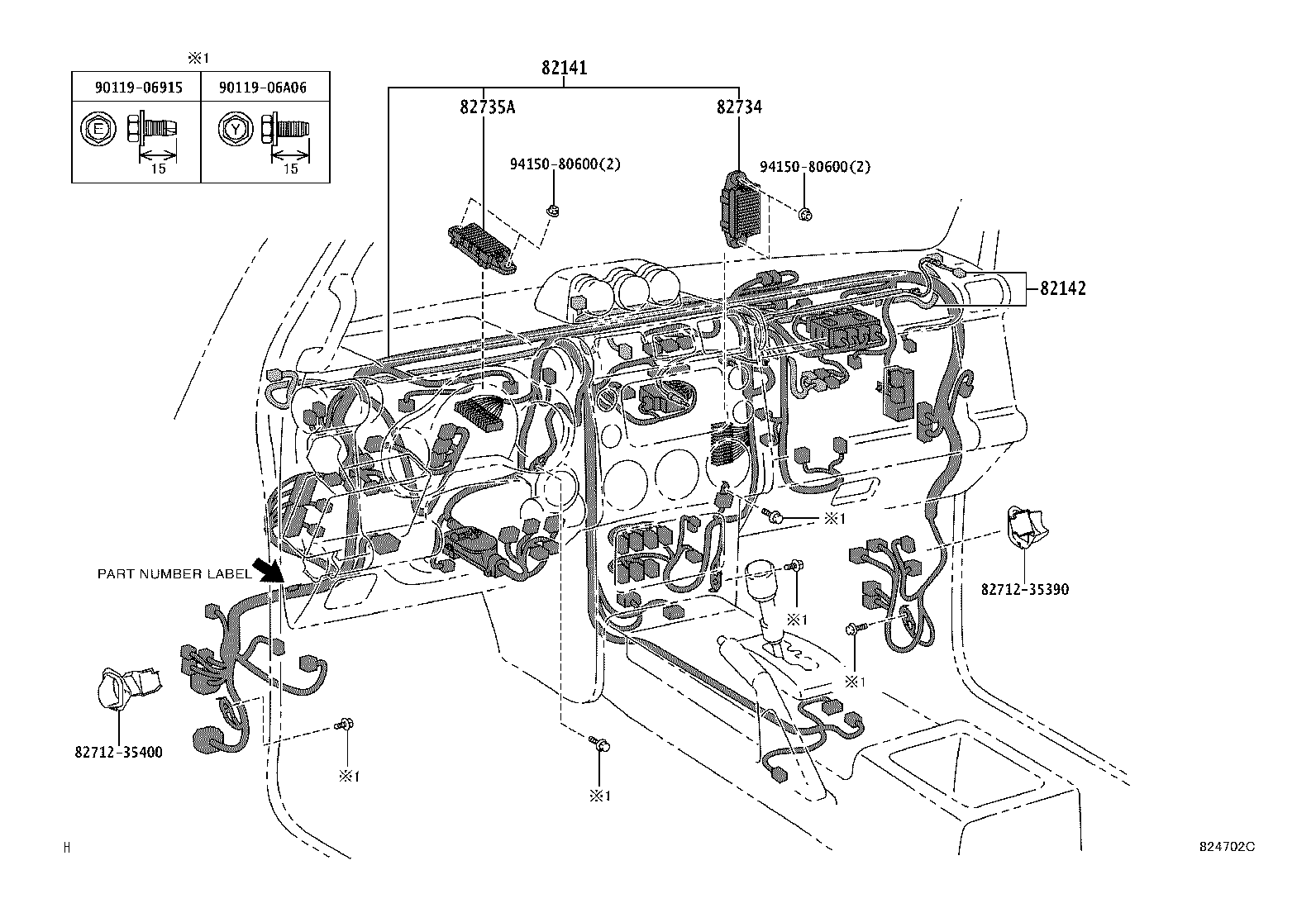

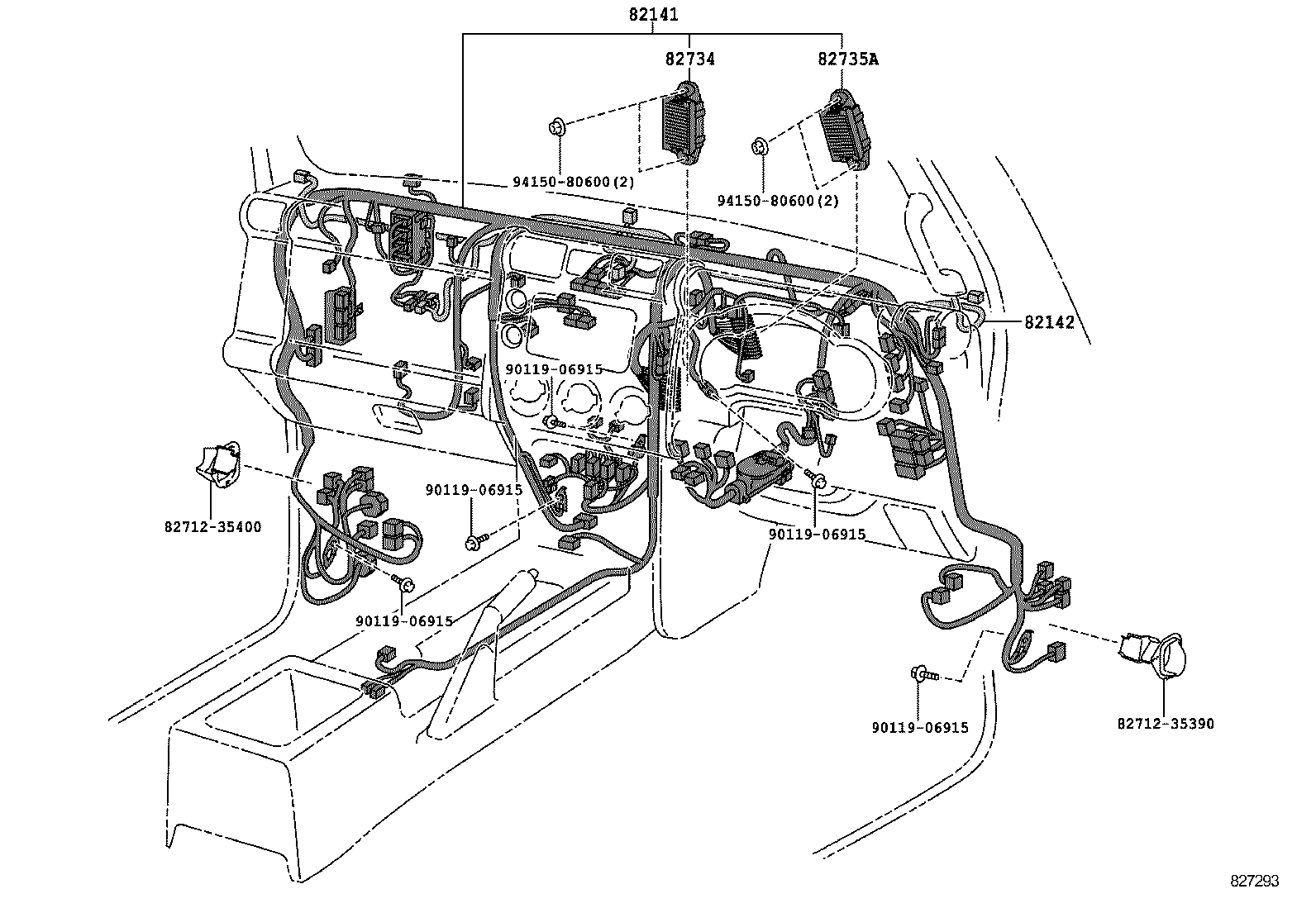

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |

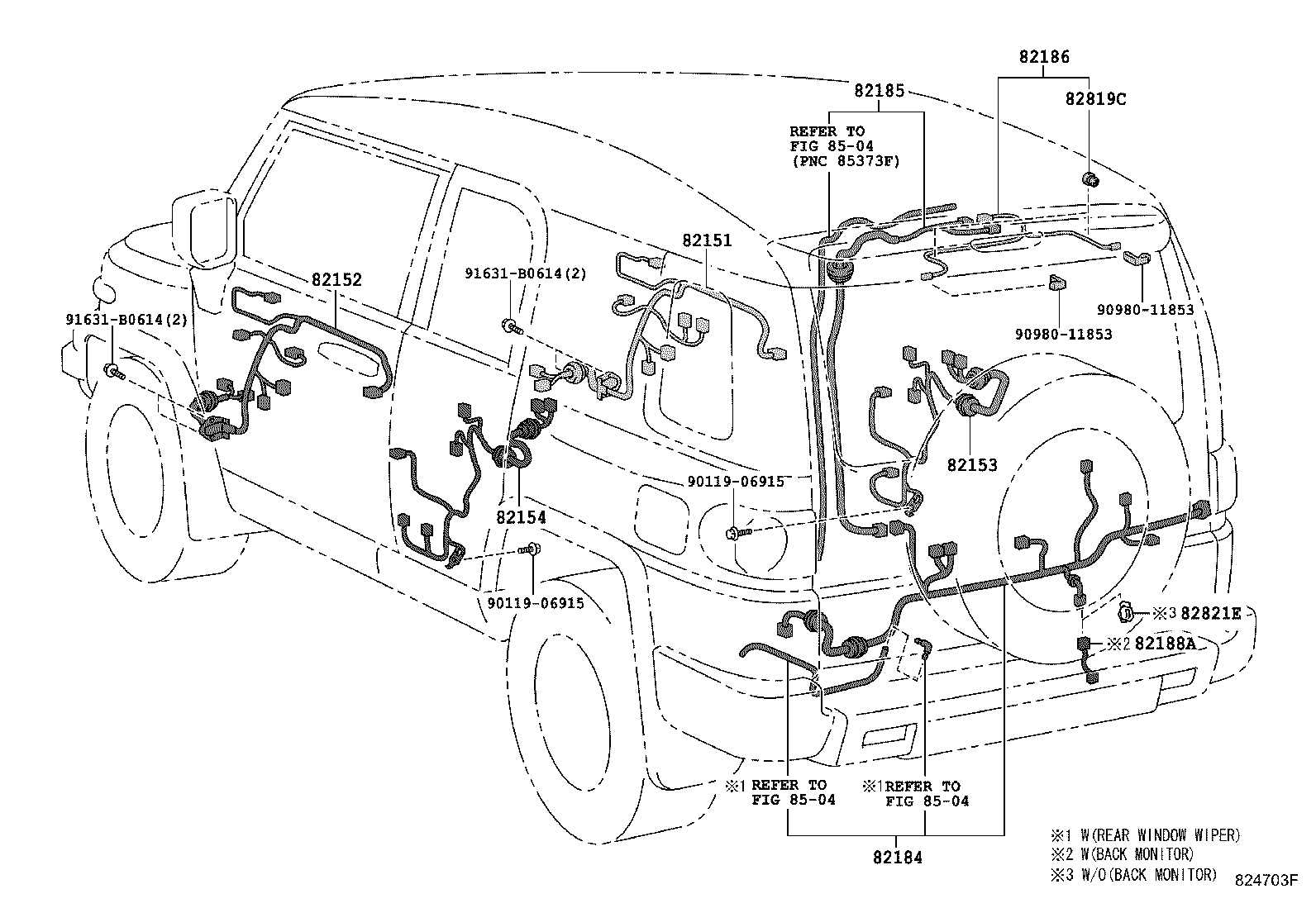

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

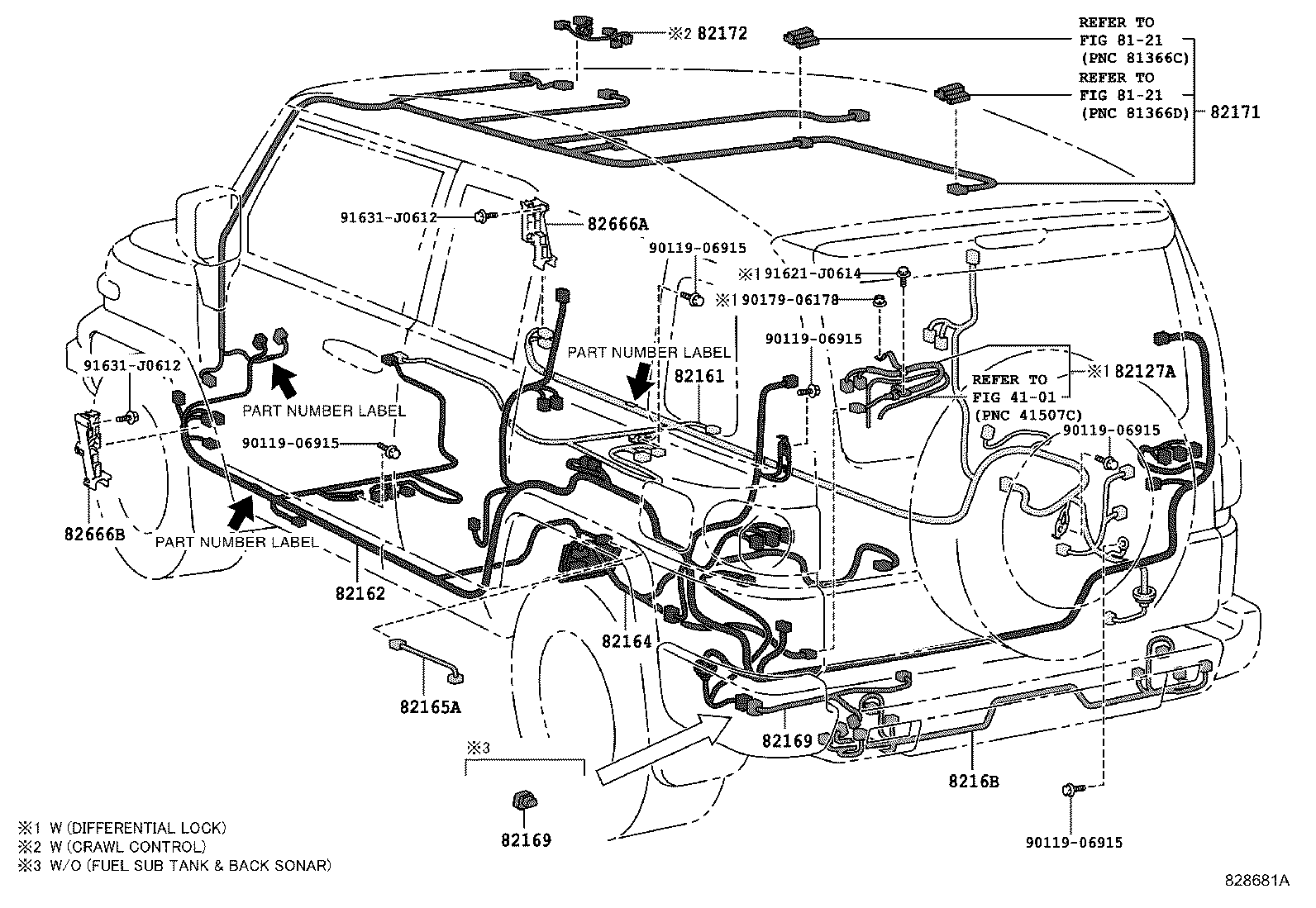

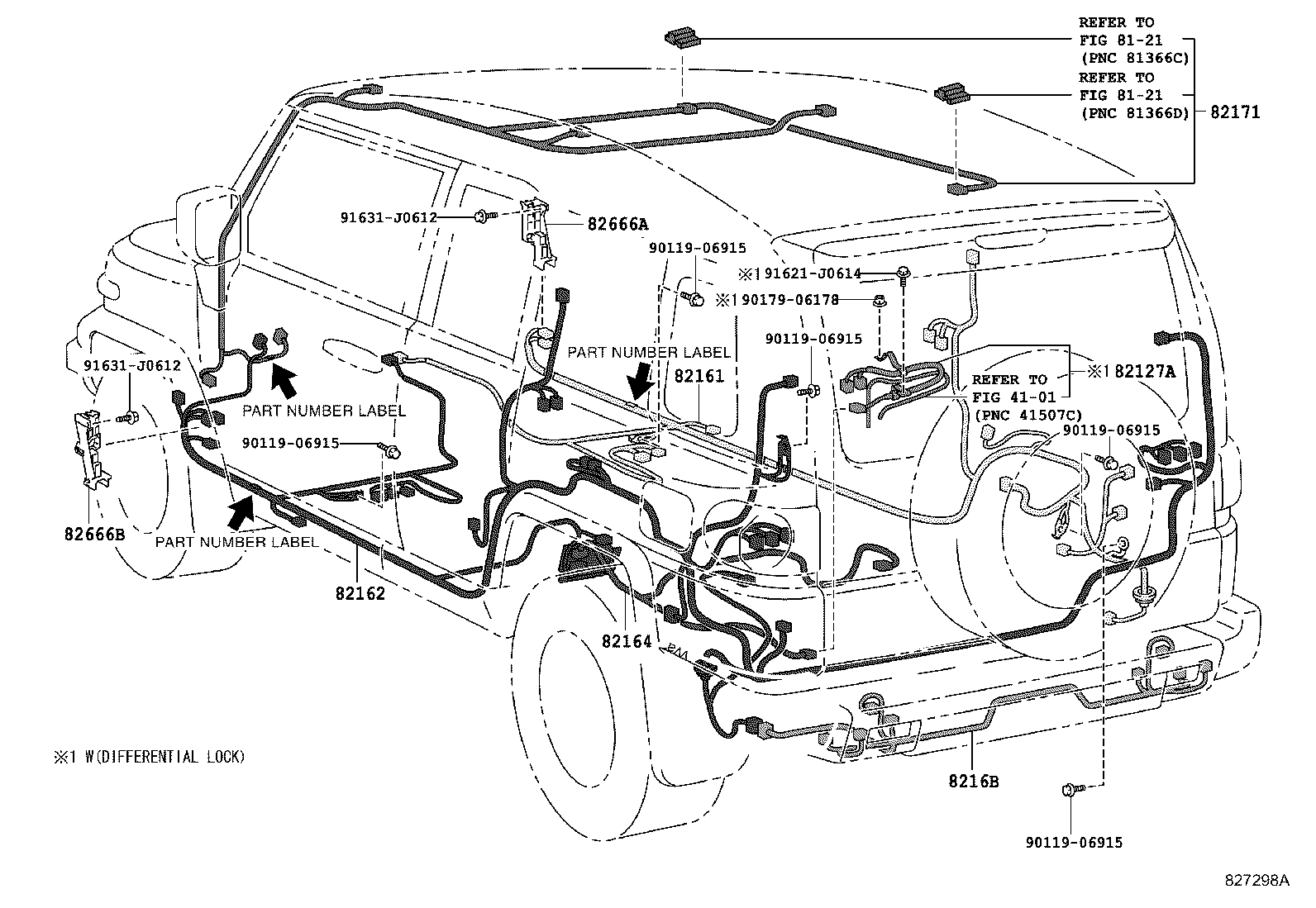

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |

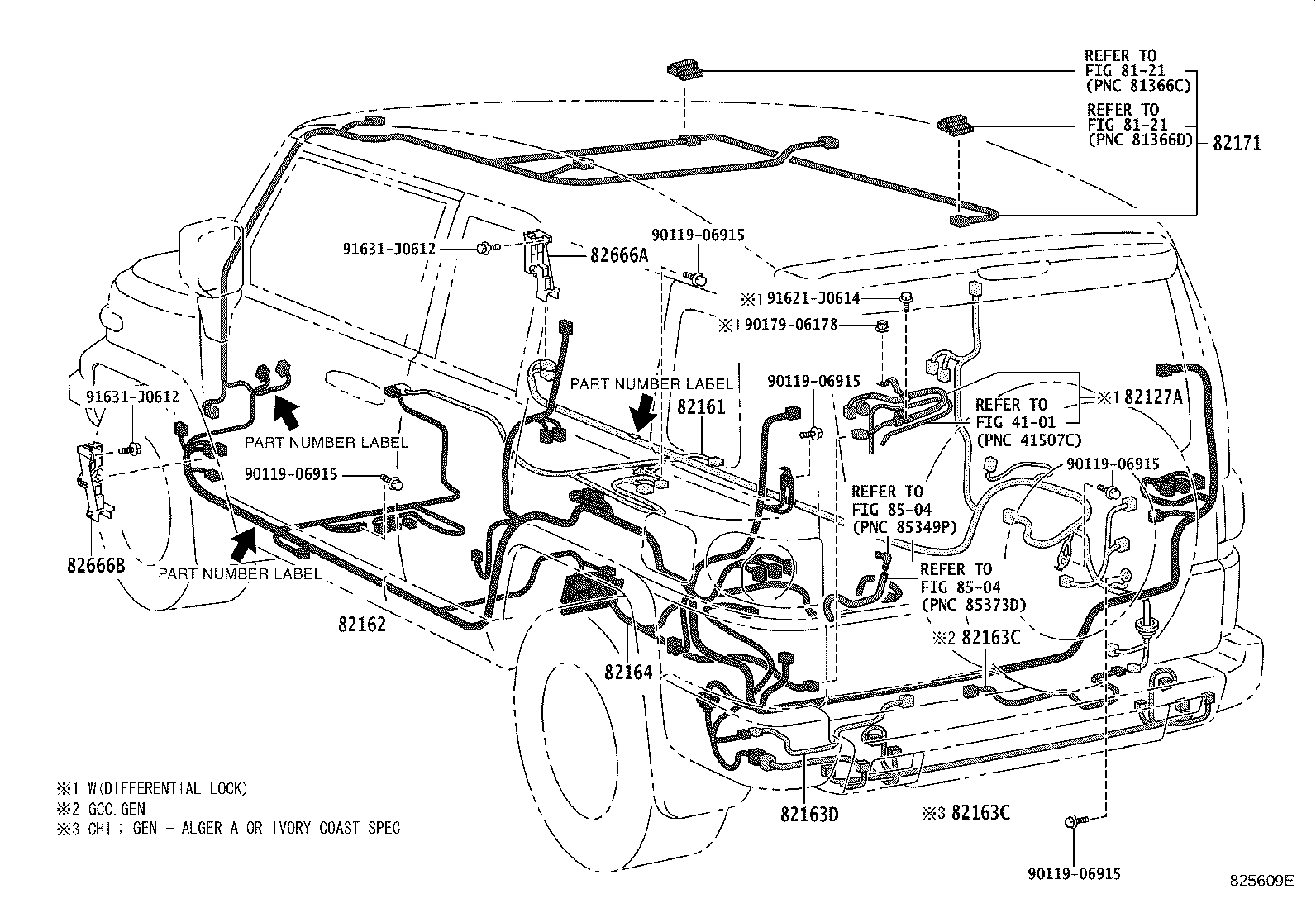

| 82163C | Wire, Floor NO.3 RH |
| 82163D | Wire, Floor NO.3 LH |
| 82164 | Wire, Frame |
| 82165A | Wire, Frame, NO.2 |
| 82169 | Wire Frame, NO.3 |
| 8216B | Wire, Floor NO.8 |
| 82171 | Wire, Roof, NO.1 |
| 82172 | Wire, Roof, NO.2 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82186 | Wire, Rear Window, NO.1 |
| 82188A | Wire, Back Door, NO.3 |
| 82219C | Wire, Sensor |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82734 | Block, Center Junction |
| 82735A | Block, Driver Side Junction |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82819C | Grommet, Wiring Harness |
| 82821E | Cover, Connector |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
