Toyota FJ Cruiser
2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General
Supported model
Data version 2023-11

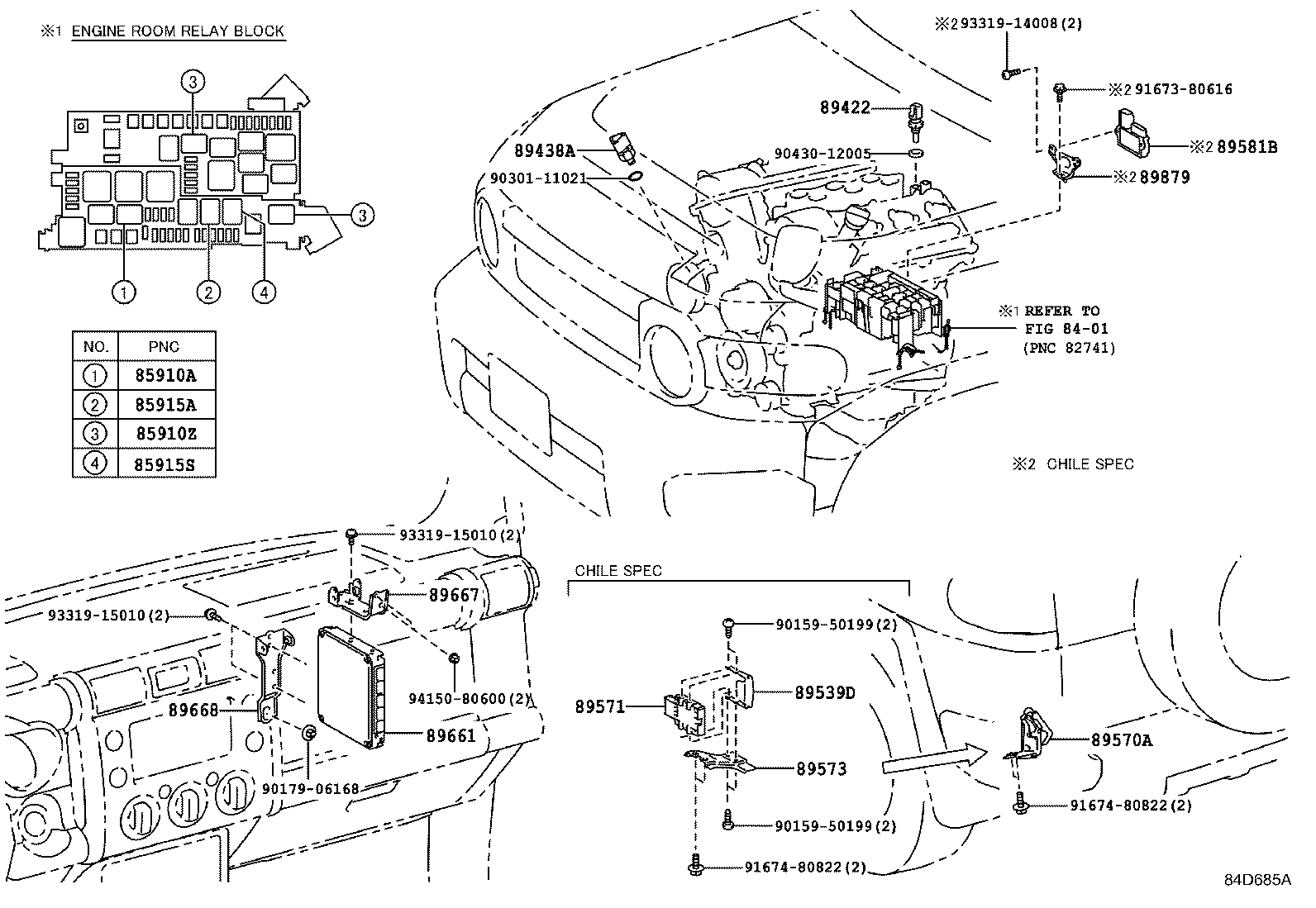

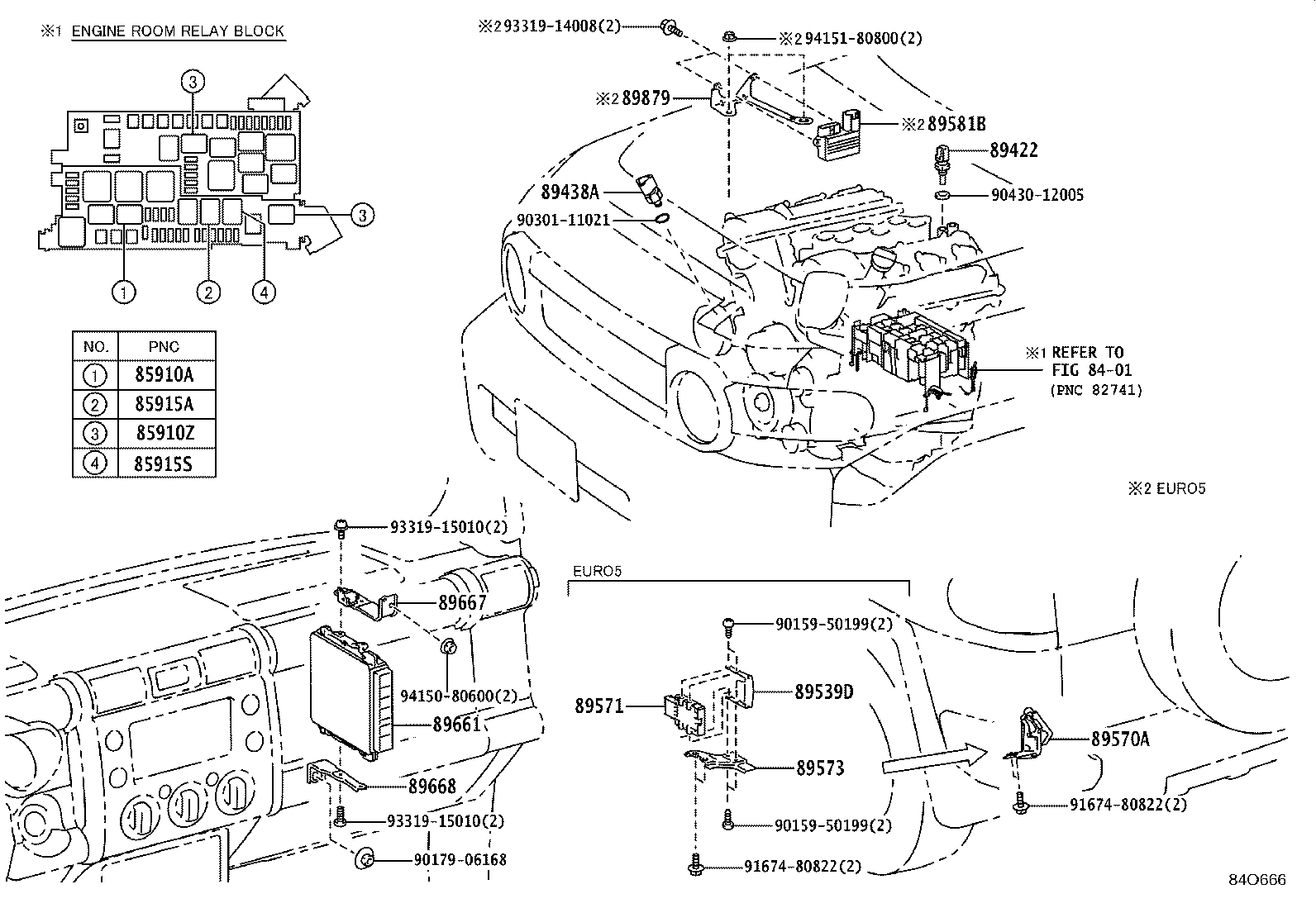

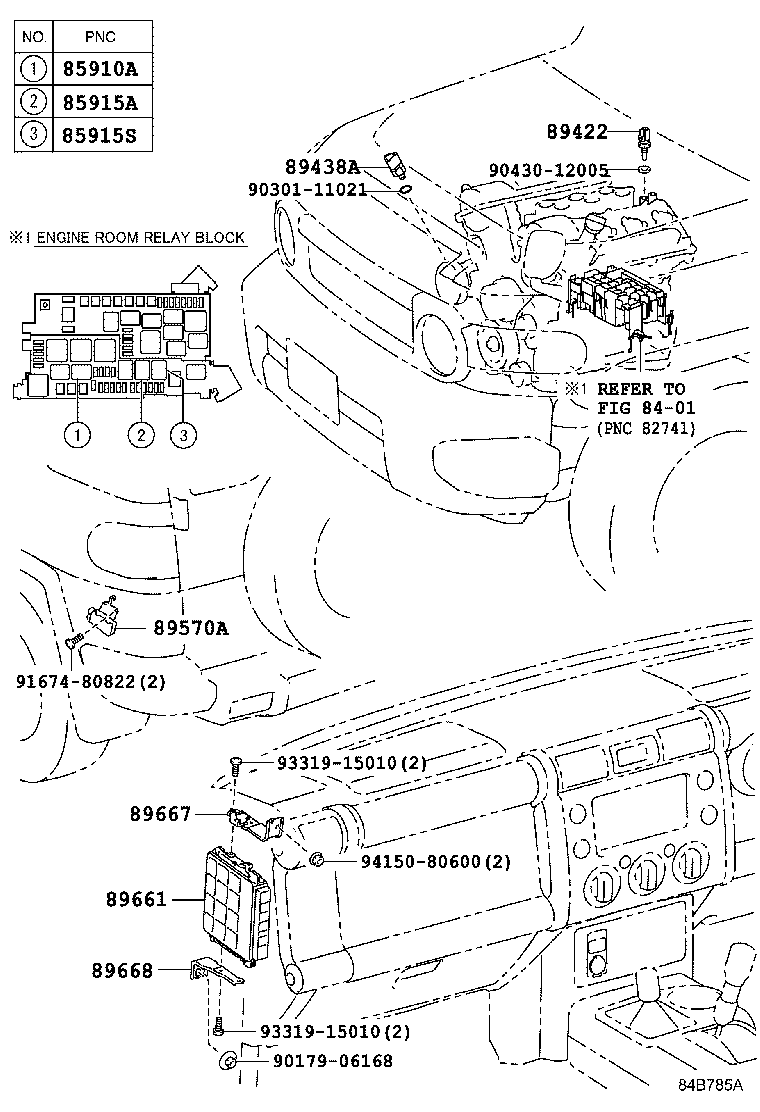

Electronic Fuel Injection System
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 28380 | Relay Assy, Fuel Pump |
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910Z | Relay, Injection (FOR EFI) |
| 85915A | Relay, Main |
| 85915S | Relay, Heater (FOR AIR FUEL RATIO SENSOR) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89438A | Switch, Power Steering Oil Pressure |
| 89539D | Bracket, Computer |
| 89570A | Computer Assy, Fuel Pump Control |
| 89571 | Computer, Fuel Pump Control |
| 89573 | Bracket, Fuel Pump Control Computer |
| 89581B | Driver, Air Injection Control |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
| 89879 | Bracket, Injector Driver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
