Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

11 part groups · 2 illustrations

Illustrations

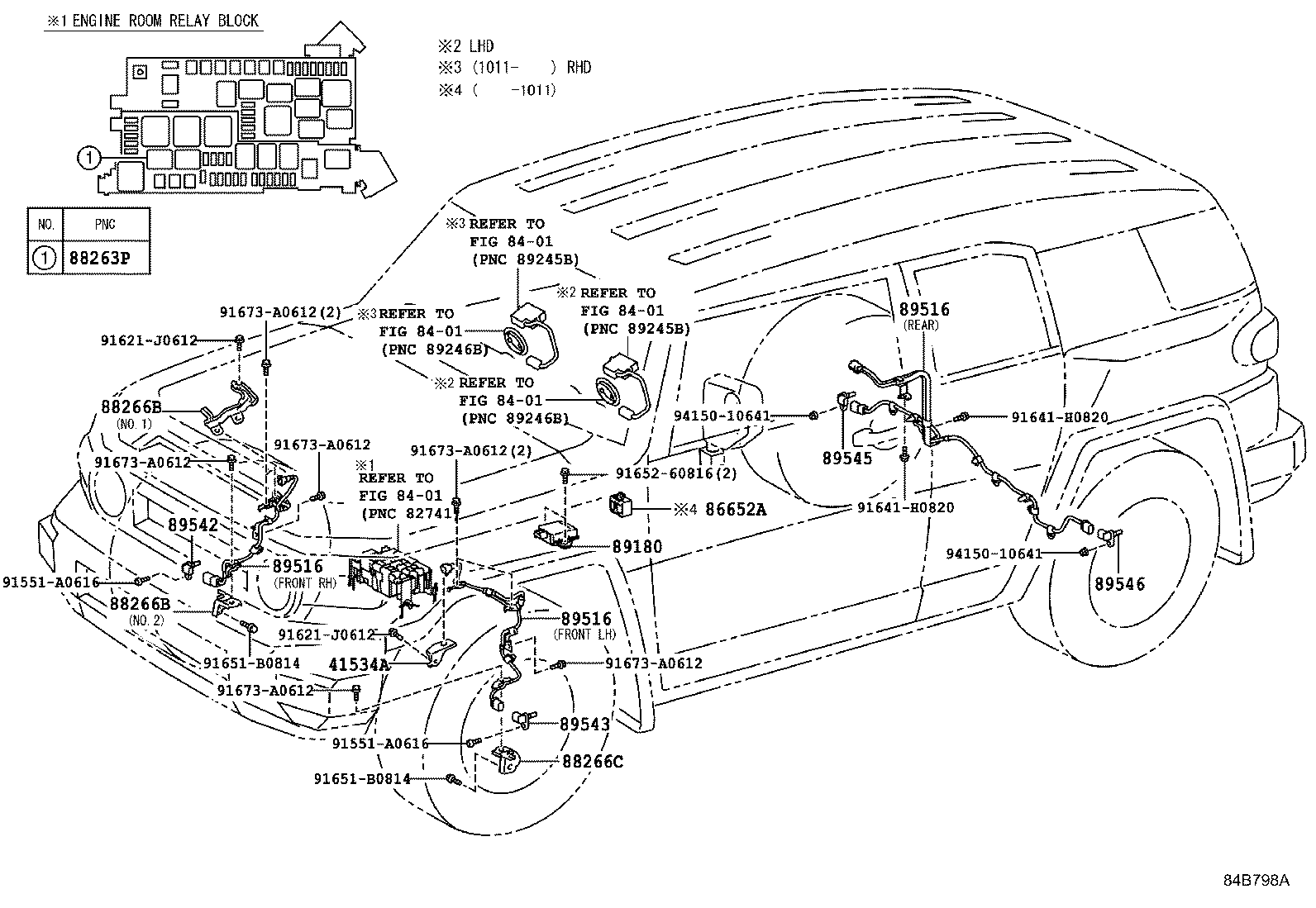

Figure 849082D 849082D 2007-07 → 2009-08 Figure 84B798A 84B798A 2009-08 → —

Part groups

PNCDescription
41534A Bracket, Front Differential Breather
86652A Buzzer Assy, Skid Control
88263P Relay, Stop Lamp Control
88266B Clamp, Skid Control Sensor, NO.1
88266C Clamp, Skid Control Sensor, NO.2
89180 Sensor Assy, Yawrate
89516 Wire, Skid Control Sensor
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
