Toyota FJ Cruiser
2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General
Supported model
Data version 2023-11
Speaker

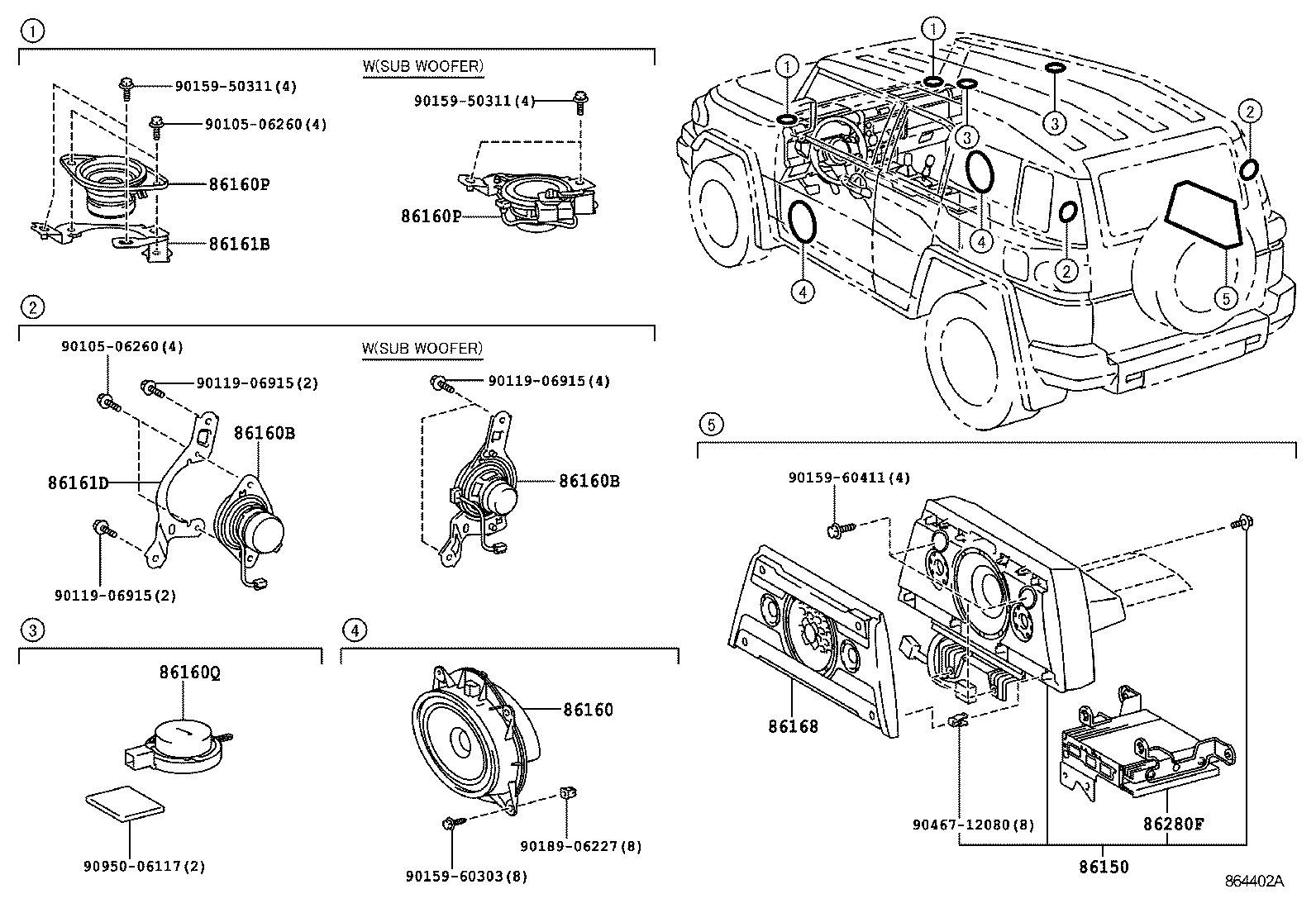

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86150 | Speaker Assy, W/Box, NO.1 |
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86160P | Speaker Assy, Front NO.2 |
| 86160Q | Speaker Assy, Roof |
| 86161B | Bracket, Speaker, Front NO.2 |
| 86161D | Bracket, Speaker Mounting, NO.1 |
| 86168 | Cover, Speaker Mounting |
| 86280F | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
