Toyota FJ Cruiser

2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

10 part groups · 2 illustrations

Illustrations

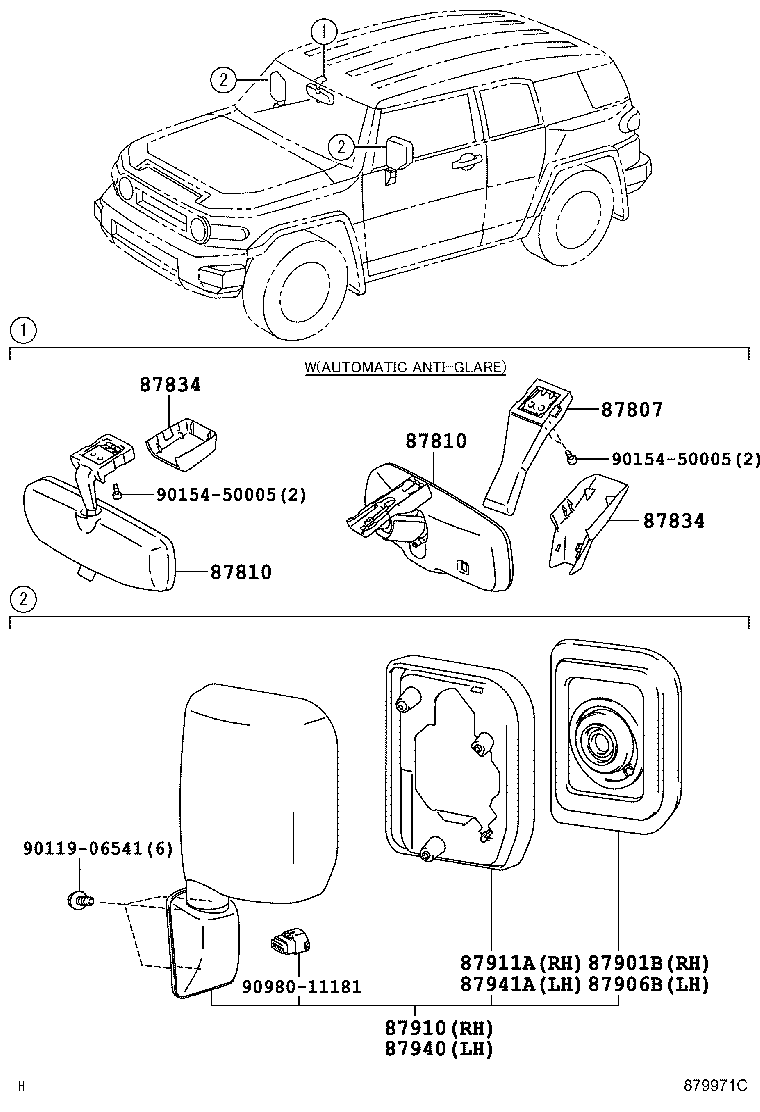

Figure 87A974B 87A974B 2007-07 → — Figure 879971C 879971C 2007-12 → —

Part groups

PNCDescription
81880D Bulb, Outer Mirror Lamp Assy
87807 Stay Sub-assy, Inner Rear View Mirror
87810 Mirror Assy, Inner Rear View
87834 Cover, Inner Rear View Mirror Stay Holder
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87910 Mirror Assy, Outer Rear View, RH
87911A Visor, Outer Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87941A Visor, Outer Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
