Toyota FJ Cruiser
2007-07 → 2022-12 · chassis GSJ15 · catalogue 663310 · General
Supported model
Data version 2023-11

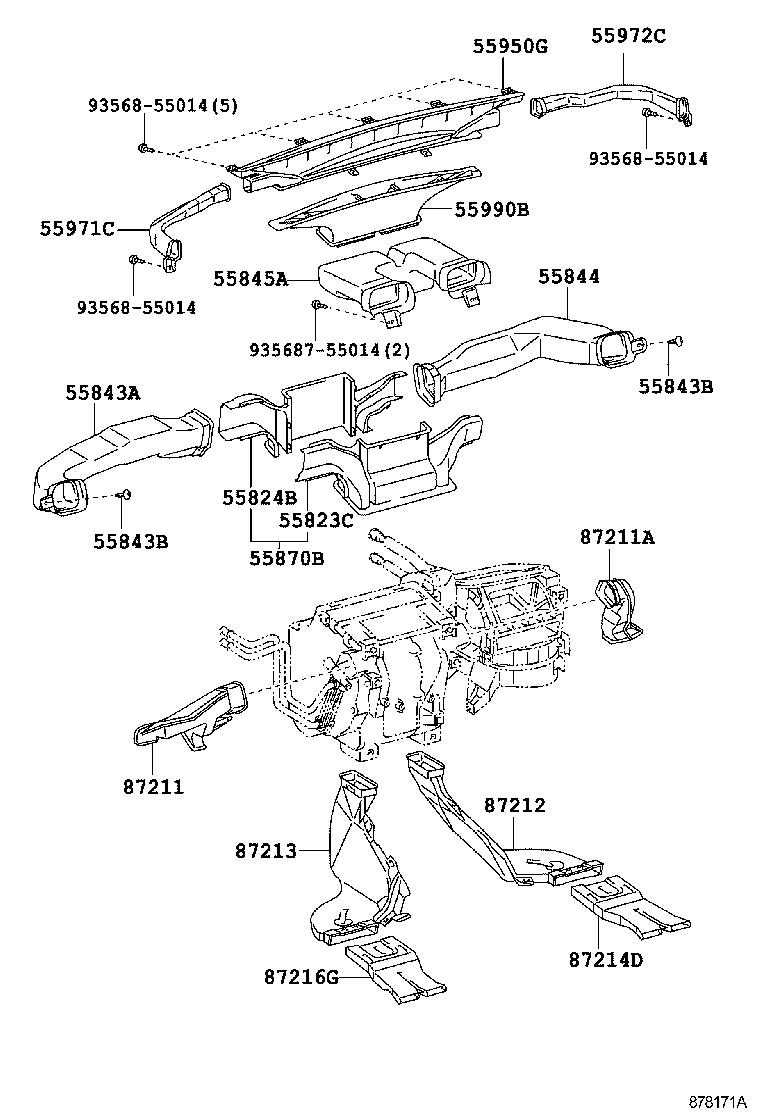

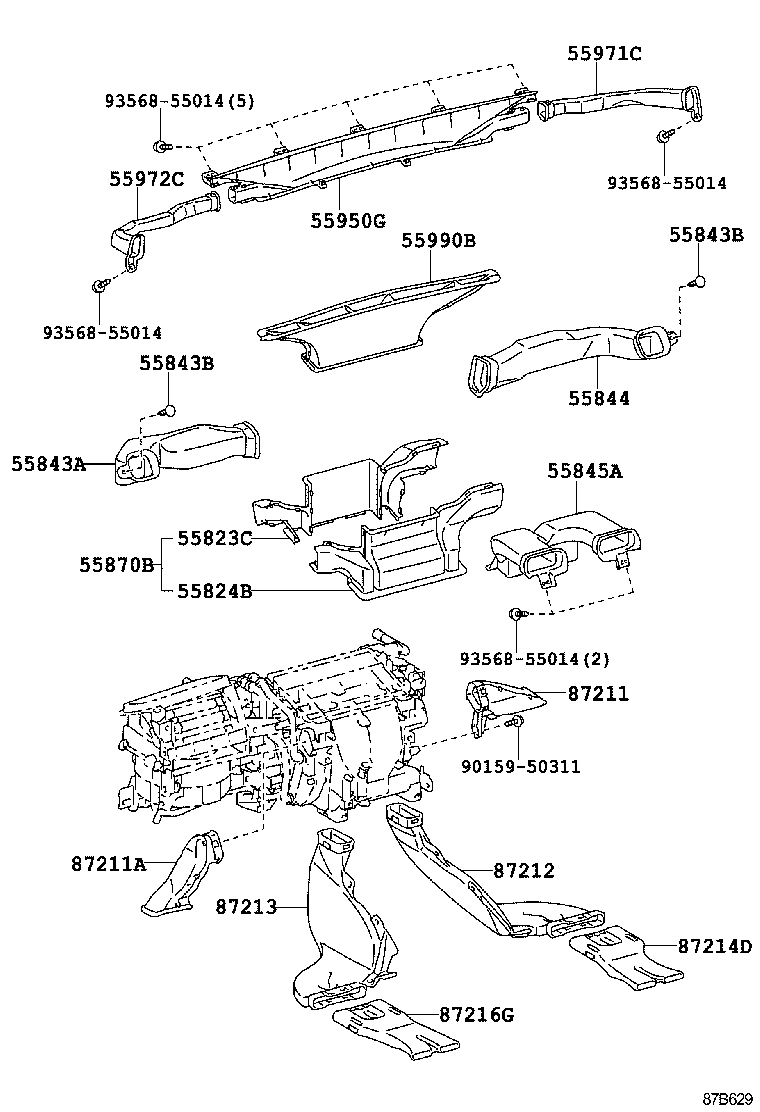

Heating & Air Conditioning - Control & Air Duct
19 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55823C | Duct, Front Ventilator |
| 55824B | Duct, Front Ventilator |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55843B | Clip, Heater TO Register Duct |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55870B | Duct Assy, Heater TO Register |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 55990B | Nozzle Assy, Defroster, Lower |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87214D | Duct, Air, Rear NO.3 |
| 87216G | Guide, Air Duct, Rear LH |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88650B | Amplifier Assy, Airconditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
