Heating & Air Conditioning - Water Piping

6 part groups · 2 illustrations

Illustrations

Figure 878166B

878166B 2007-07 → 2009-08

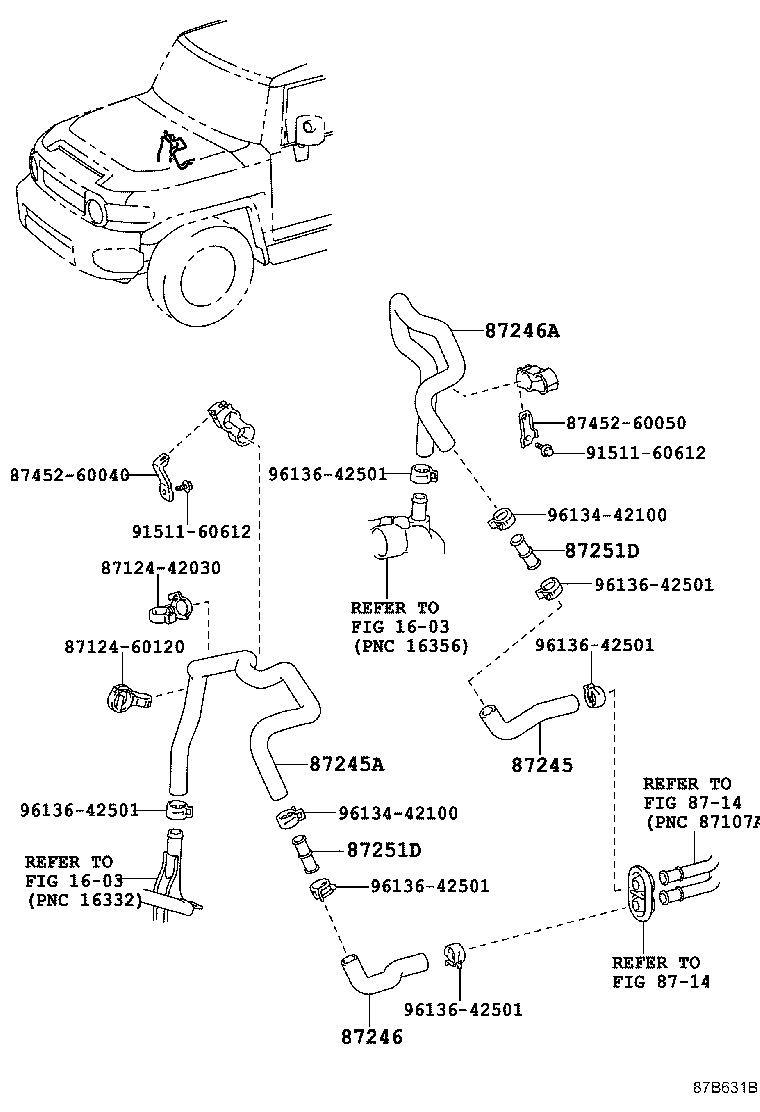

Figure 87B631B

87B631B 2009-08 → —

Part groups

PNC	Description
87124H	Clamp, Heater Hose, NO.3
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87251D	Joint, Water, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
