Toyota Wildlander (GTMC)
2020-04 → present · chassis AXAH5#,AXAL5#,MXAA5# · catalogue 664330 · General
Supported model
Data version 2024-04

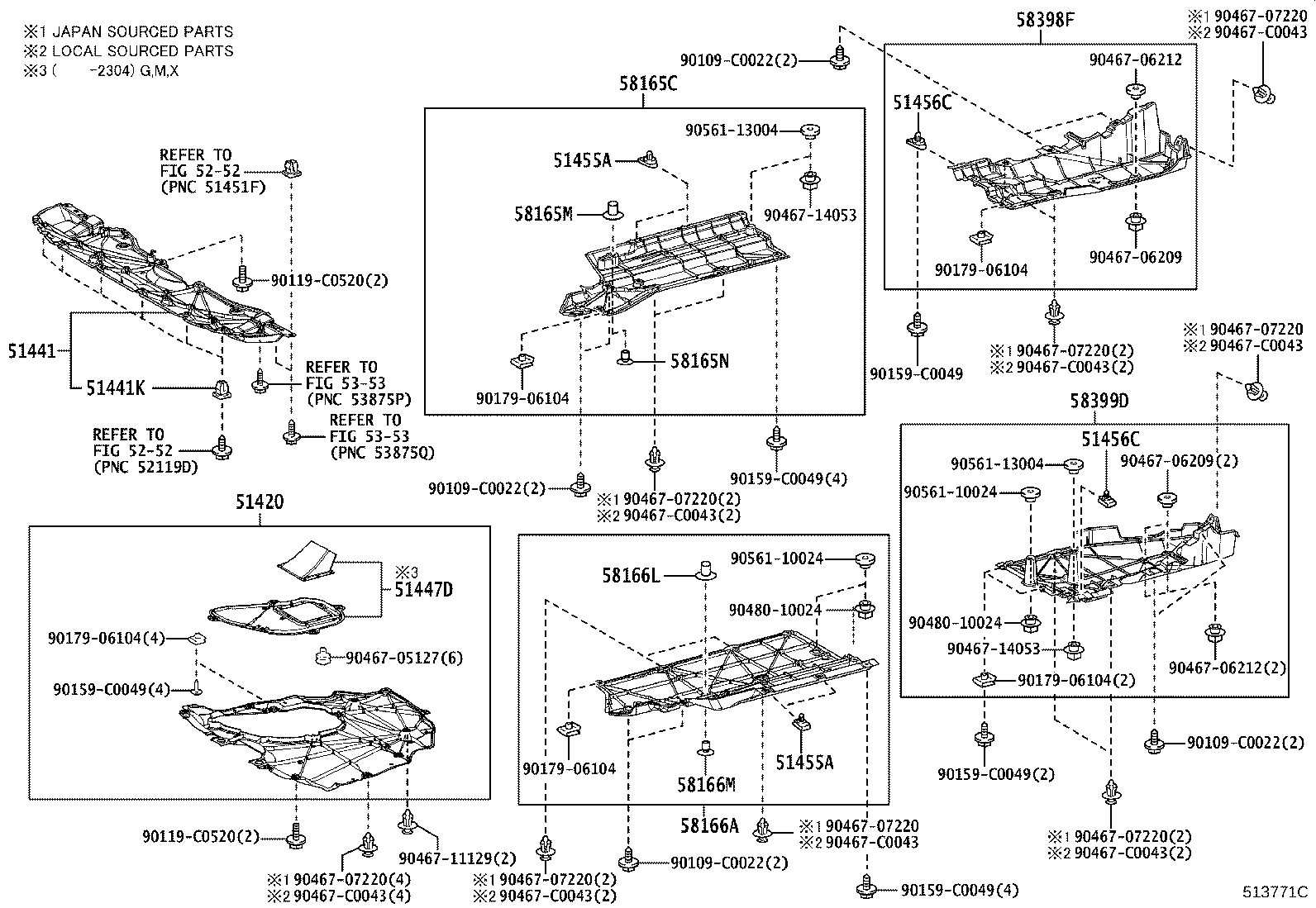

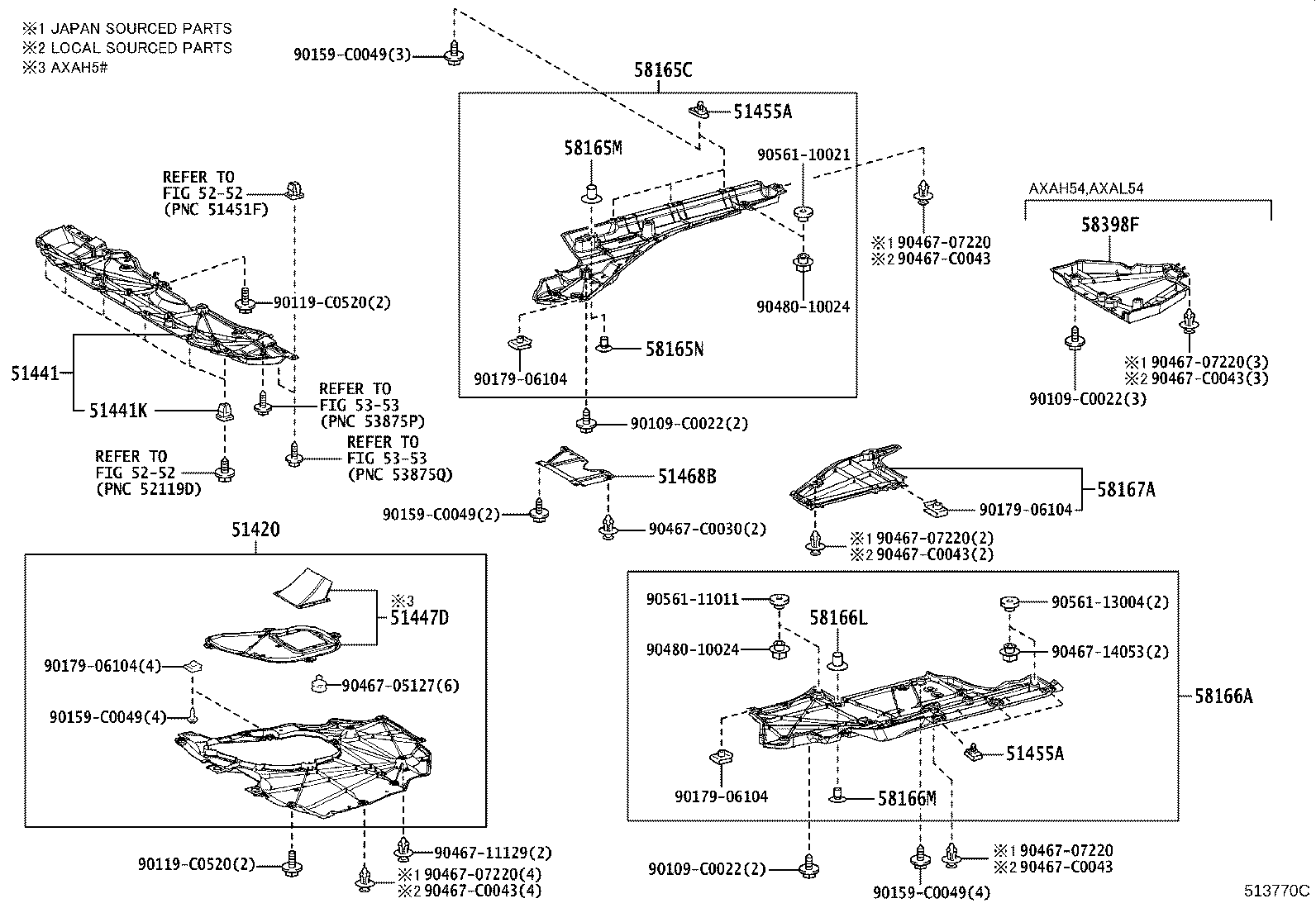

Suspension Crossmember & Under Cover
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

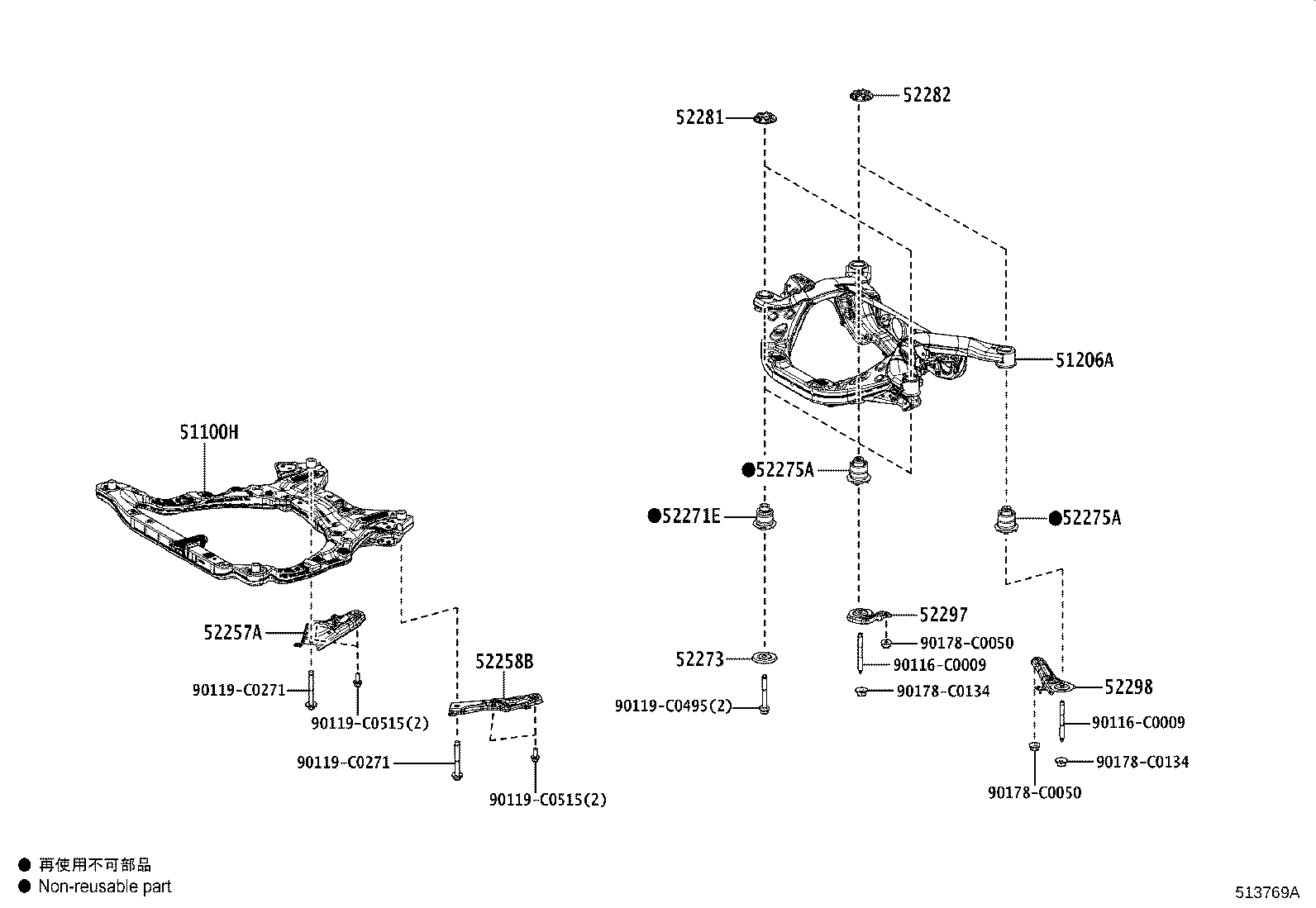

| 51100H | Frame Assy, Front |
| 51206A | Member Sub-assy, Rear Suspension |
| 51420 | Cover Assy, Engine Under, NO.2 |
| 51441 | Cover, Engine Under, NO.1 |
| 51441K | Grommet(FOR ENGINE UNDER COVER) |
| 51447D | Cover, Engine Under, NO.4 Center |
| 51455A | Seal, Engine Under Cover, NO.1 |
| 51456C | Seal, Engine Under Cover, NO.2 |
| 51468B | Insulator, Engine Under Cover Heat |
| 52257A | Brace, Front Suspension Member, Rear RH |
| 52258B | Brace, Front Suspension Member, Rear LH |
| 52271E | Cushion, Rear Suspension Member Body Mounting, Front RH |
| 52273 | Stopper, Rear Suspension Member, Lower |
| 52275A | Cushion, Rear Suspension Member Body Mounting, Rear |
| 52281 | Cushion, Differential Support Member |
| 52282 | Stopper, Differential Support Member, Upper |
| 52297 | Brace, Rear Suspension Member, Rear Lower RH |
| 52298 | Brace, Rear Suspension Member, Rear Lower LH |
| 58165C | Cover, Front Floor, RH |
| 58165M | Clip, Front Floor Cover, NO.1 |
| 58165N | Clip, Front Floor Cover, NO.2 |
| 58166A | Cover, Front Floor, LH |
| 58166L | Clip, Front Floor Cover, NO.1 |
| 58166M | Clip, Front Floor Cover, NO.2 |
| 58167A | Cover, Front Floor, Center |
| 58398F | Cover, Floor Under, NO.1 |
| 58399D | Cover, Floor Under, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
