Toyota Wildlander (GTMC)

2020-04 → present · chassis AXAH5#,AXAL5#,MXAA5# · catalogue 664330 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

27 part groups · 3 illustrations

Illustrations

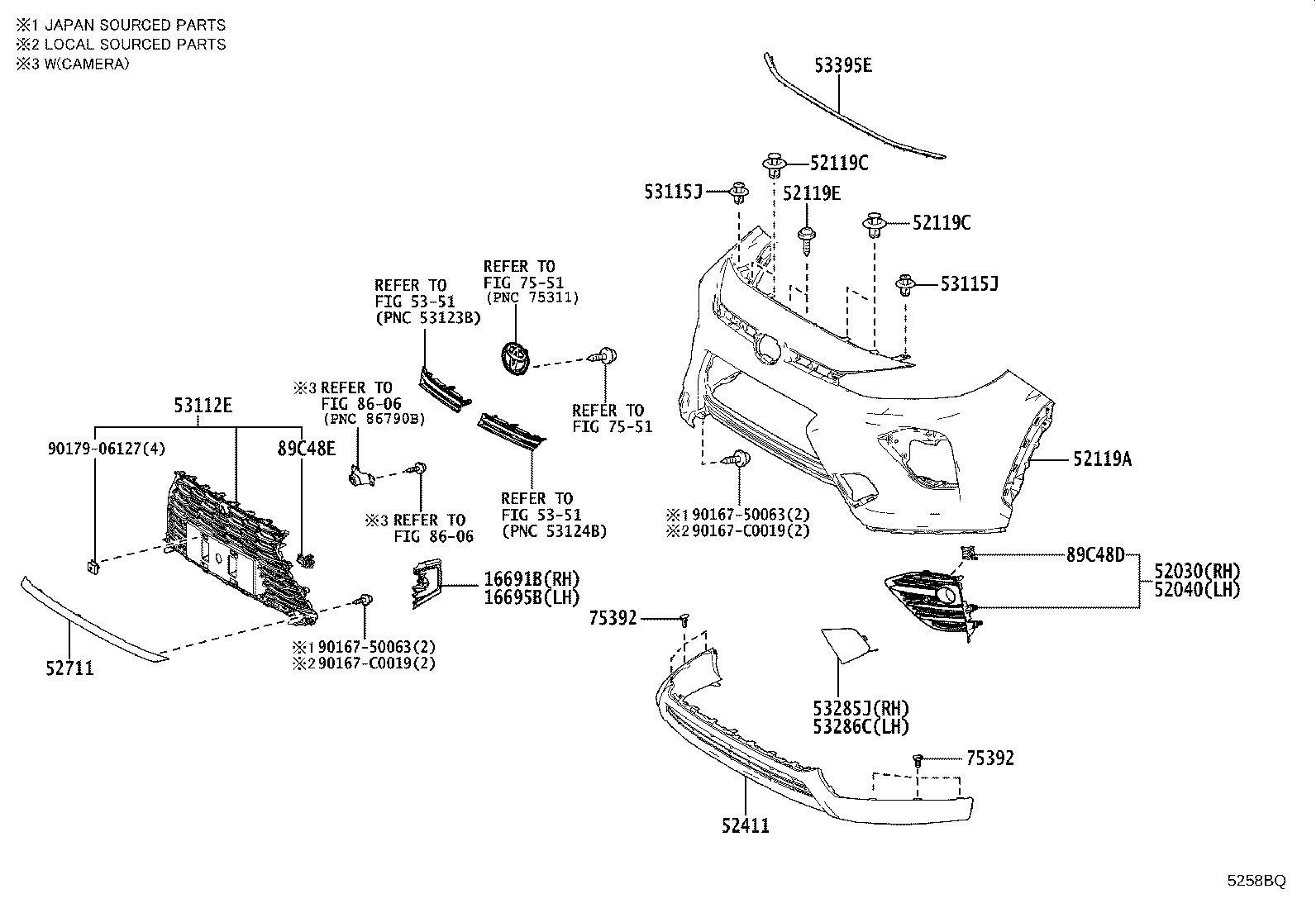

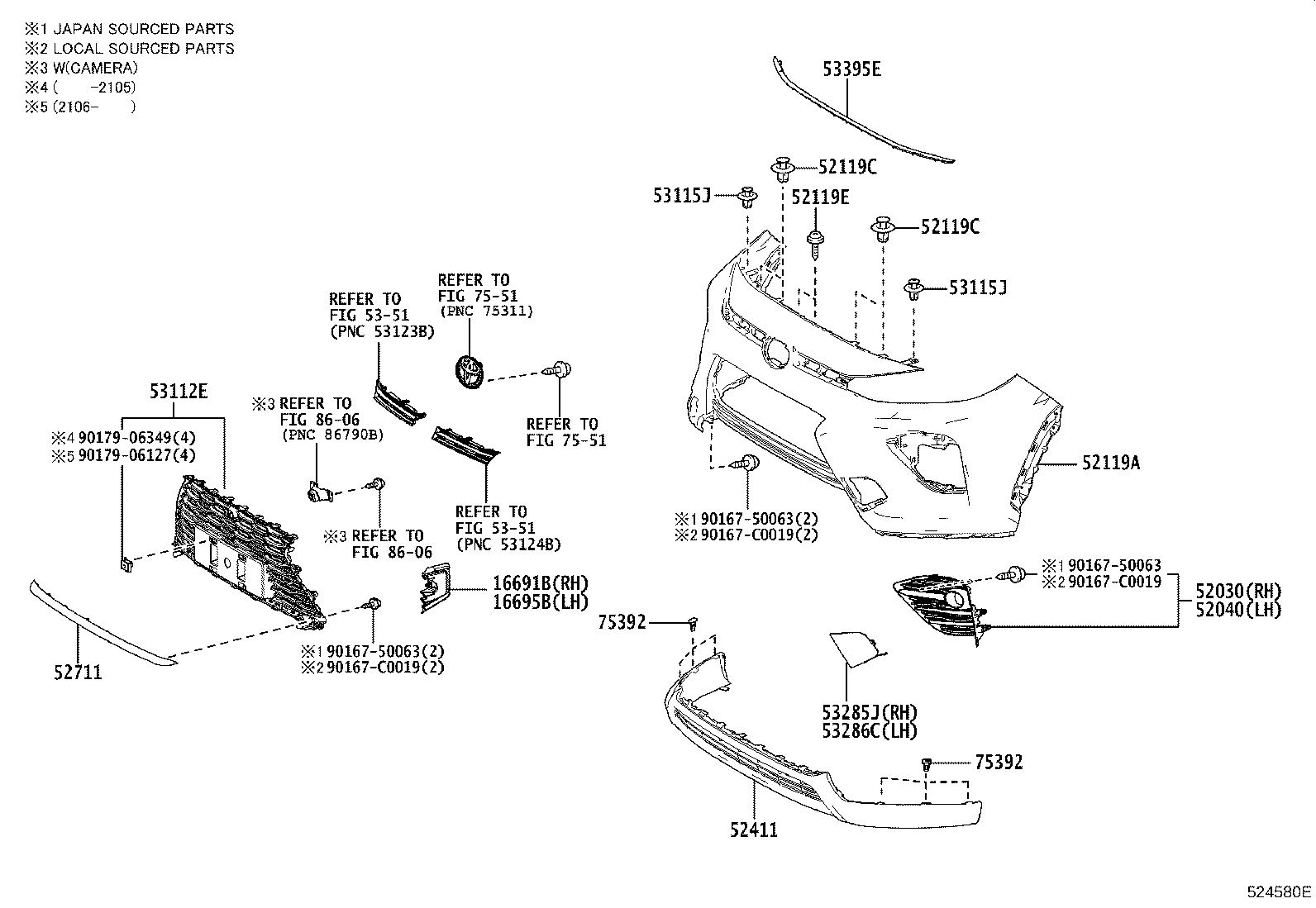

Figure 524579C 524579C 2020-04 → — Figure 524580E 524580E 2020-04 → — Figure 5258BQ 5258BQ 2024-05 → —

Part groups

PNCDescription
16691B Plate, Radiator Side Air Guide, Front RH
16695B Plate, Radiator Side Air Guide, Front LH
51451F Grommet, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52102F Extension Sub-assy, Front Bumper, RH
52103C Extension Sub-assy, Front Bumper, LH
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52119D Screw, NO.1
52119E Screw, NO.2
52132A Reinforcement, Front Bumper, NO.2
52411 Guard, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52614 Absorber, Front Bumper Energy, NO.2
52618 Absorber, Front Bumper, Lower
52711 Moulding, Front Bumper
53112E Grille, Radiator, Lower NO.1
53115J Clip, Radiator Grille Bracket
53285J Cover, Front Bumper Arm Hole, RH
53286C Cover, Front Bumper Arm Hole, LH
53395E Seal, Hood TO Front End Panel
75392 Retainer, Outside Moulding
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
