Roof Panel & Back Panel

77 part groups · 12 illustrations

Illustrations

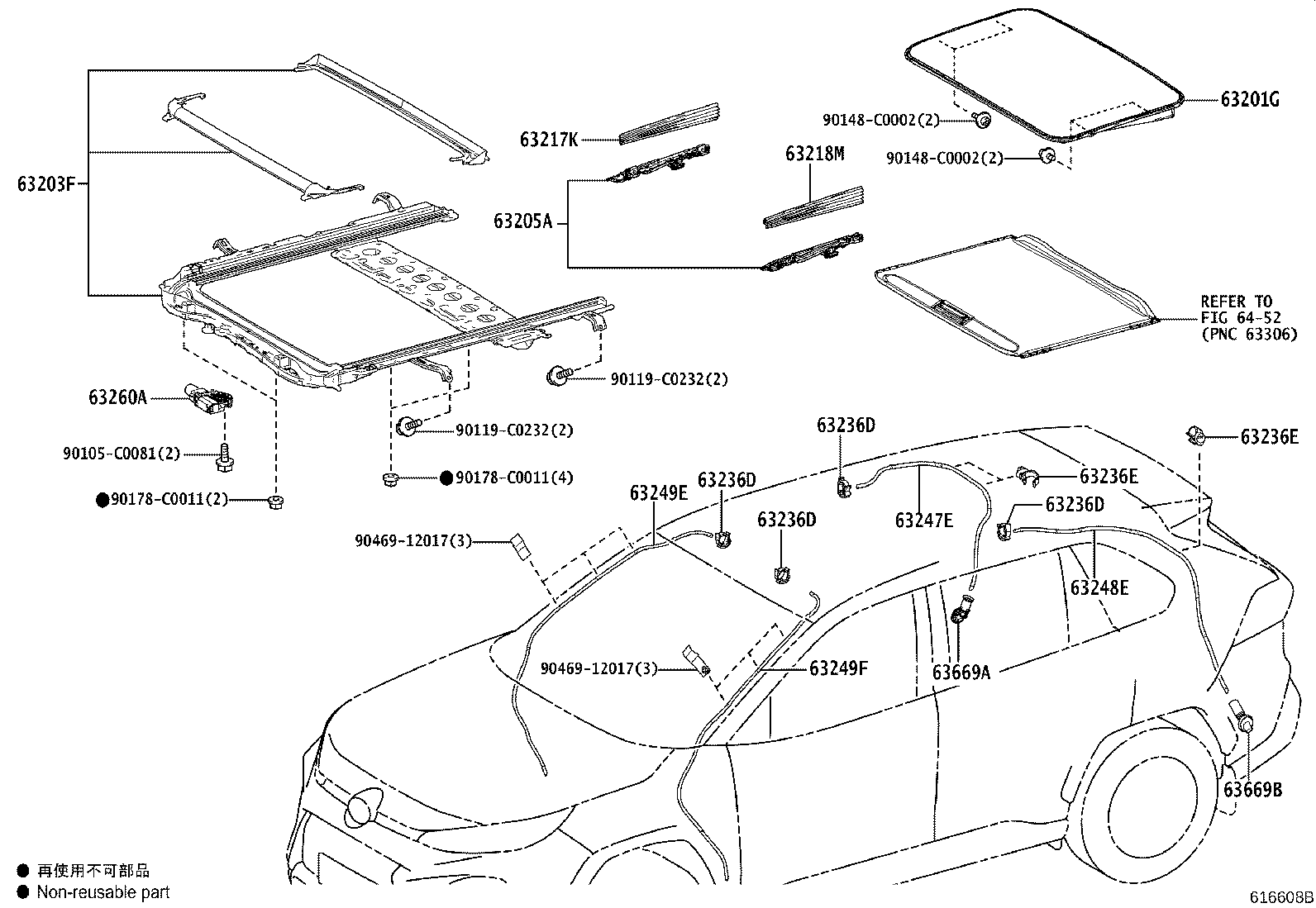

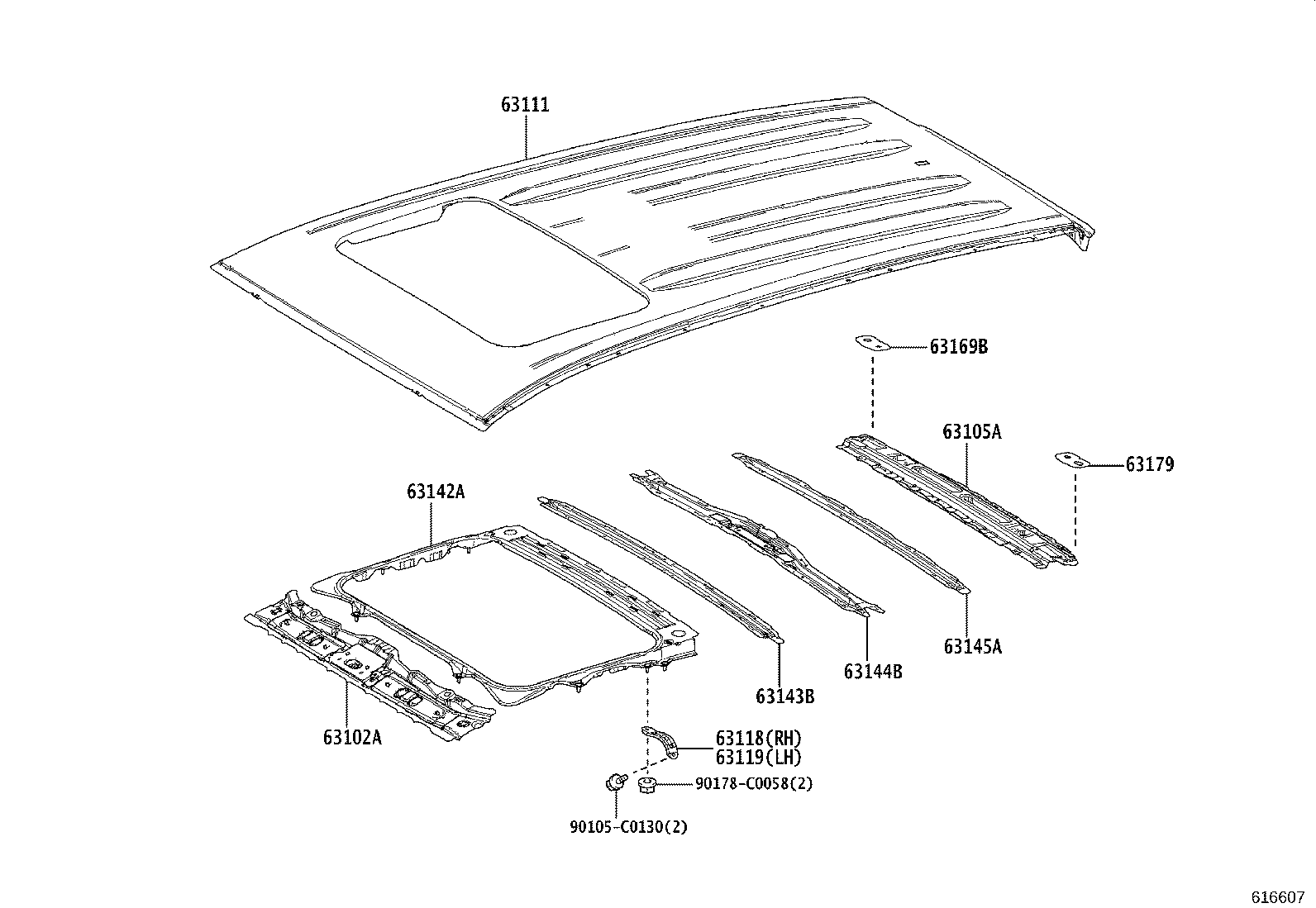

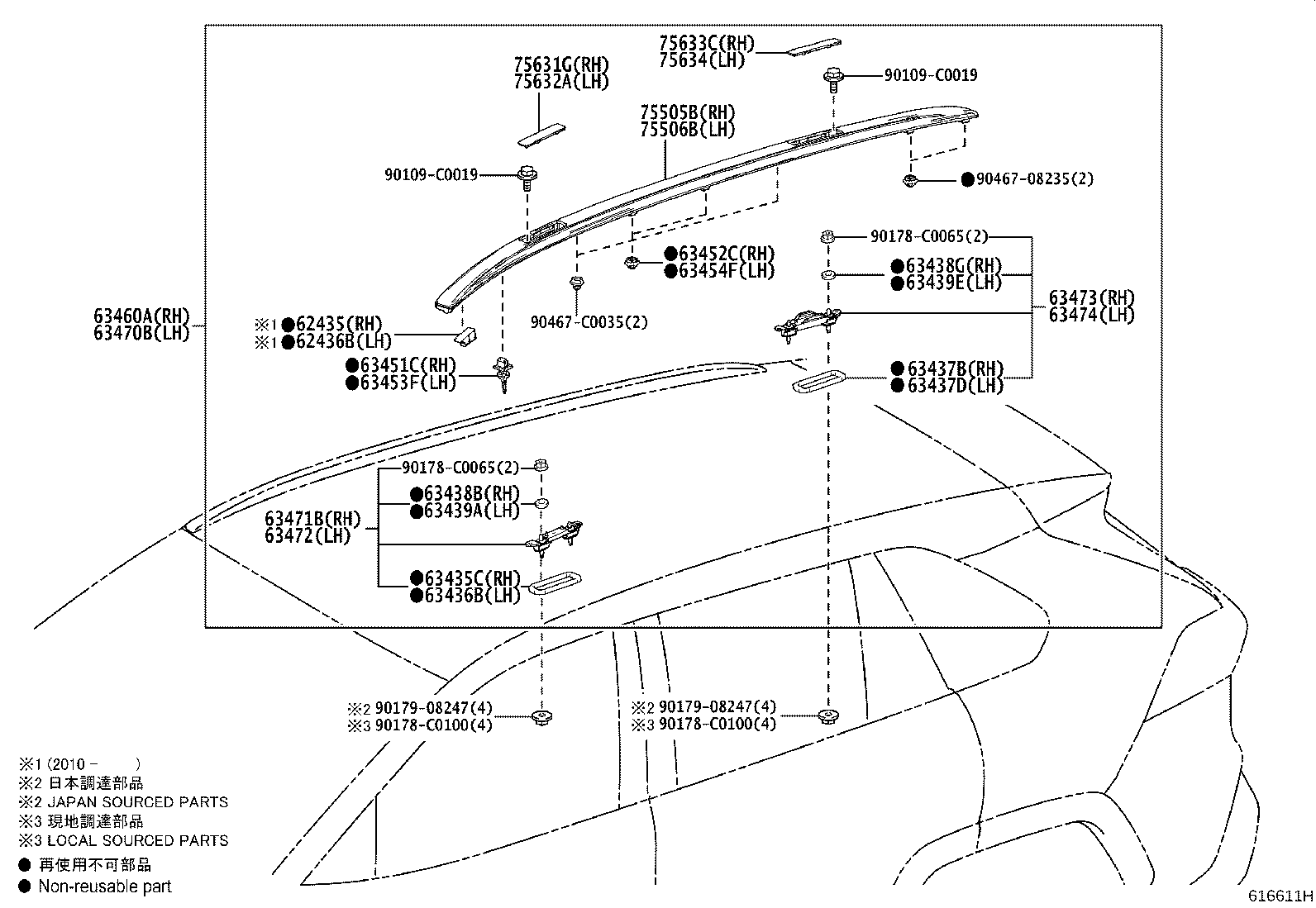

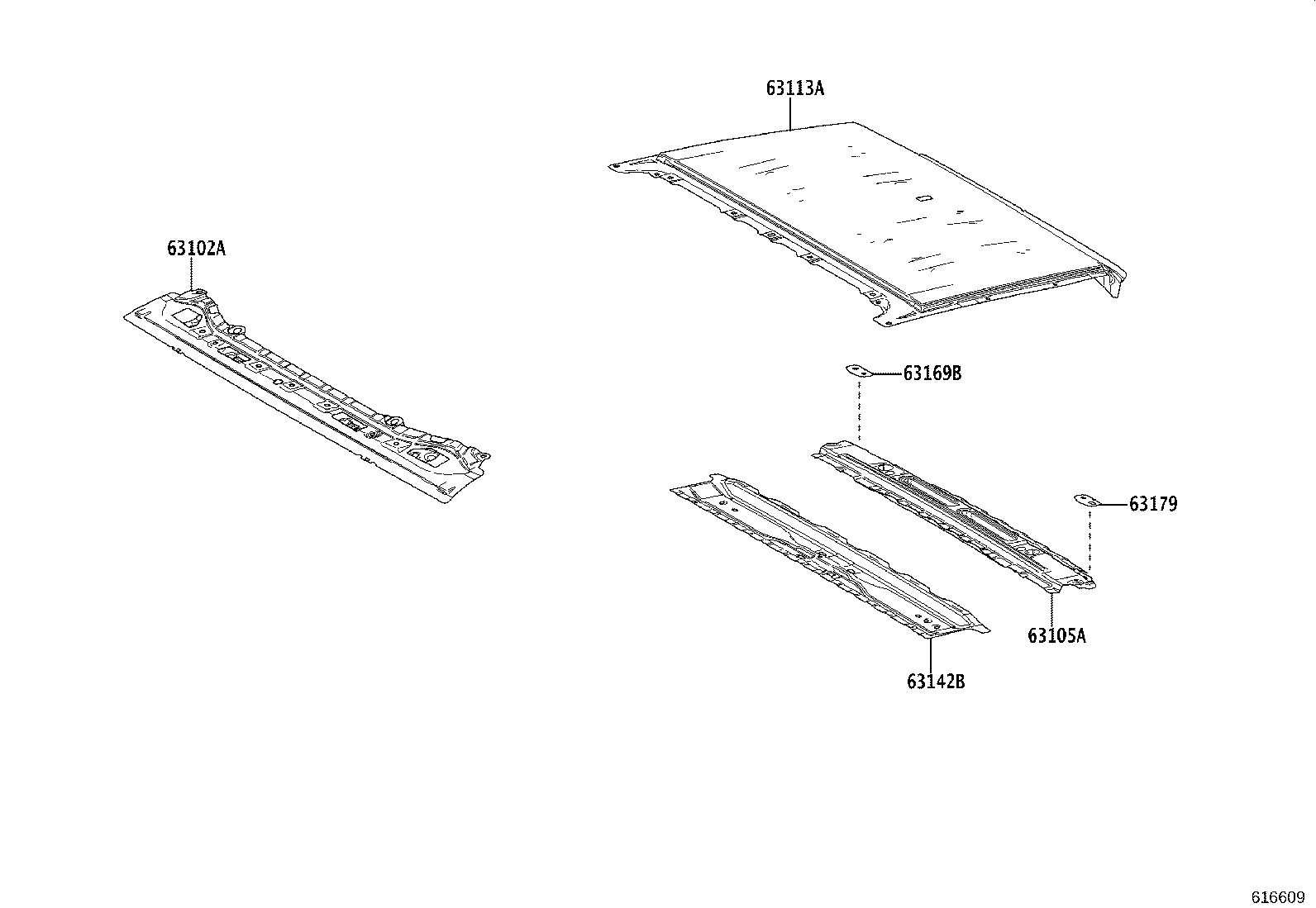

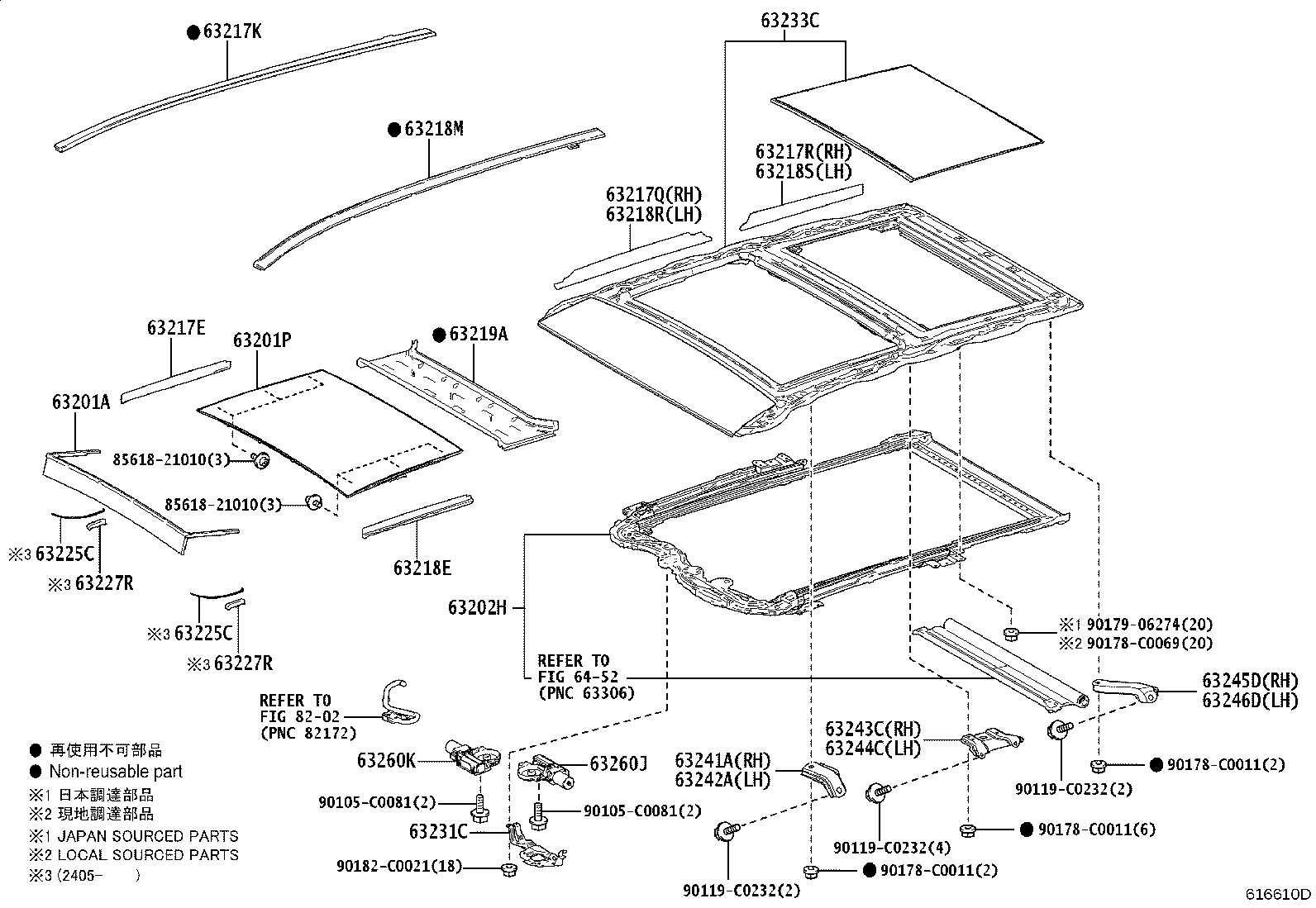

Figure 616606 616606 2020-04 → 2023-03 Figure 616606 616606 2023-04 → — Figure 616607 616607 2020-04 → 2023-03 Figure 616607 616607 2023-04 → — Figure 616608B 616608B 2020-04 → 2023-03 Figure 616608B 616608B 2023-04 → — Figure 616609 616609 2020-04 → 2023-03 Figure 616609 616609 2023-04 → — Figure 616610D 616610D 2020-04 → 2023-03 Figure 616610D 616610D 2023-04 → — Figure 616611H 616611H 2020-04 → 2023-03 Figure 616611H 616611H 2023-04 → —

Part groups

PNCDescription
62435 Pad, Roof Side Rail Garnish, RH
62436B Pad, Roof Side Rail Garnish, LH
63102A Panel Sub-assy, Windshield Header
63103B Reinforcement Sub-assy, Roof Panel, Center
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63113A Panel, Roof, NO.3
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63141G Reinforcement, Roof Panel, NO.1
63142A Reinforcement, Roof Panel, NO.2
63142B Reinforcement, Roof Panel, Rear
63143B Reinforcement, Roof Panel, NO.3
63144B Reinforcement, Roof Panel, NO.4
63145A Reinforcement, Roof Panel, NO.5
63169B Plate, Roof Panel Reinforcement, RH
63179 Plate, Roof Panel Reinforcement, LH
63201A Panel Sub-assy, Sliding Roof OR Removable Roof
63201G Glass Sub-assy, Sliding Roof
63201P Glass Sub-assy, Sliding Roof
63202H Rail Sub-assy, Slide Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63217E Garnish, Sliding Roof, Front RH
63217K Garnish, Sliding Roof Side, RH
63217Q Garnish, Sliding Roof Side, RH
63217R Garnish, Sliding Roof Side, RH
63218E Garnish, Sliding Roof, Front LH
63218M Garnish, Sliding Roof Side, LH
63218R Garnish, Sliding Roof Side, LH
63218S Garnish, Sliding Roof Side, LH
63219A Garnish, Sliding Roof, Rear
63225C Spring, Roof Wind Deflector
63227R Case, Wind Deflector Arm
63231C Bracket, Room Lamp
63233C Panel, Sliding Roof Housing
63236D Clamp, Sliding Roof Drain Hose
63236E Clamp, Sliding Roof Drain Hose
63241A Bracket, Sliding Roof Housing Front Mounting, RH
63242A Bracket, Sliding Roof Housing Front Mounting, LH
63243C Bracket, Sliding Roof Housing Center Mounting, RH
63244C Bracket, Sliding Roof Housing Center Mounting, LH
63245D Bracket, Sliding Roof Housing Rear Mounting, RH
63246D Bracket, Sliding Roof Housing Rear Mounting, LH
63247E Hose, Sliding Roof Drain, Rear RH
63248E Hose, Sliding Roof Drain, Rear LH
63249E Hose, Sliding Roof Drain
63249F Hose, Sliding Roof Drain
63260A Gear Sub-assy, Sliding Roof Drive
63260J Gear Assy, Sliding Roof Drive
63260K Gear Assy, Sliding Roof Drive
63435C Seal, Roof Carrier, NO.1 RH
63436B Seal, Roof Carrier, NO.1 LH
63437B Seal, Roof Carrier, NO.2 RH
63437D Seal, Roof Carrier, NO.2 LH
63438B Seal, Roof Carrier, NO.3 RH
63438G Seal, Roof Carrier, NO.4 RH
63439A Seal, Roof Carrier, NO.3 LH
63439E Seal, Roof Carrier, NO.4 LH
63451C Retainer, Roof Rack, Front RH
63452C Retainer, Roof Rack, Rear RH
63453F Retainer, Roof Rack, Front LH
63454F Retainer, Roof Rack, Rear LH
63460A Rack Assy, Roof, RH
63470B Rack Assy, Roof, LH
63471B Leg, Roof Rack, Front RH
63472 Leg, Roof Rack, Front LH
63473 Leg, Roof Rack, Rear RH
63474 Leg, Roof Rack, Rear LH
63669A Grommet, Sliding Roof Drain
63669B Grommet, Sliding Roof Drain
75505B Garnish Sub-assy, Roof Side, Front RH
75506B Garnish Sub-assy, Roof Side, Front LH
75631G Lid, Roof Side Garnish, NO.1 RH
75632A Lid, Roof Side Garnish, NO.1 LH
75633C Lid, Roof Side Garnish, NO.2 RH
75634 Lid, Roof Side Garnish, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
