Toyota Wildlander (GTMC)

2020-04 → present · chassis AXAH5#,AXAL5#,MXAA5# · catalogue 664330 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

7 part groups · 3 illustrations

Illustrations

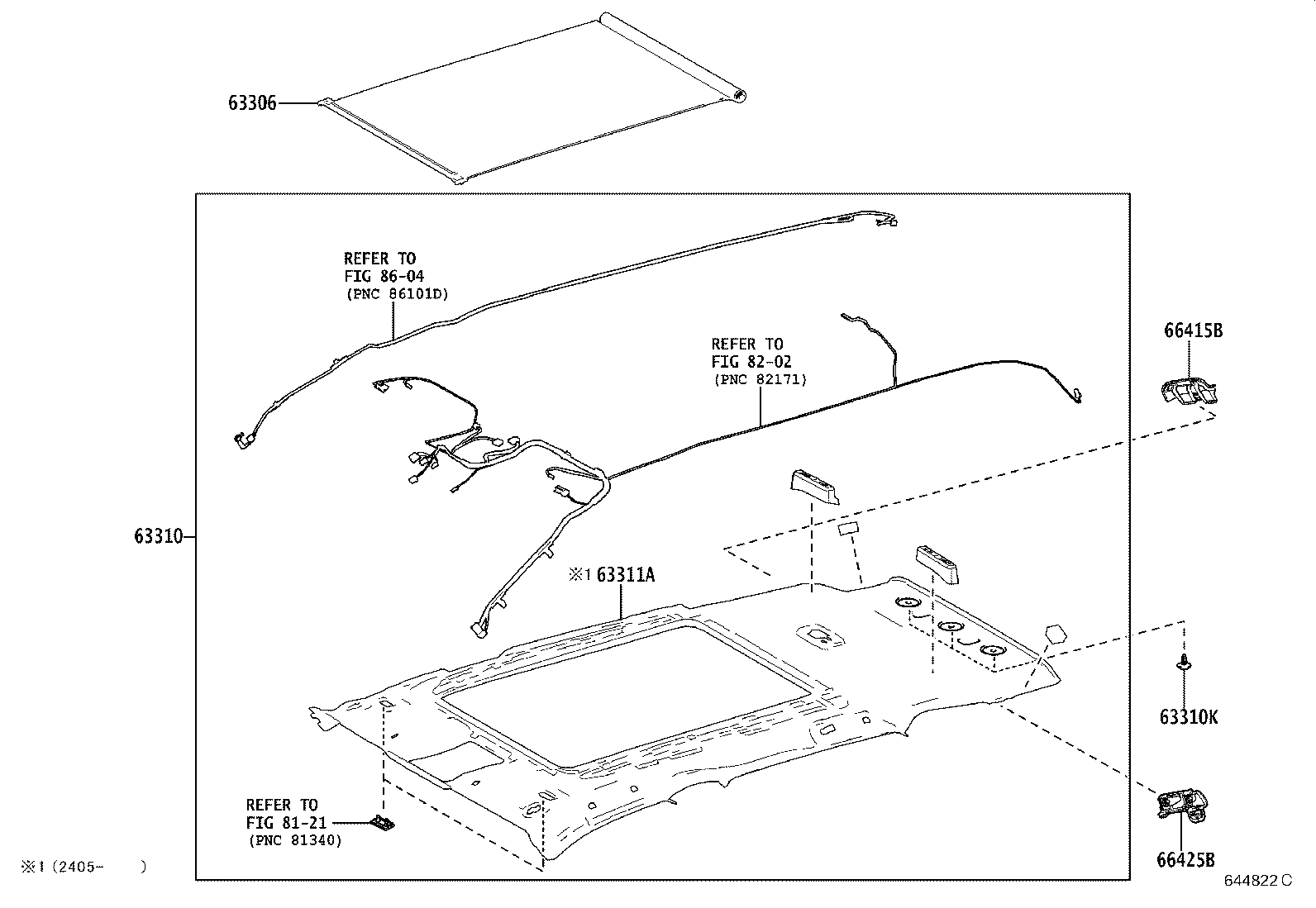

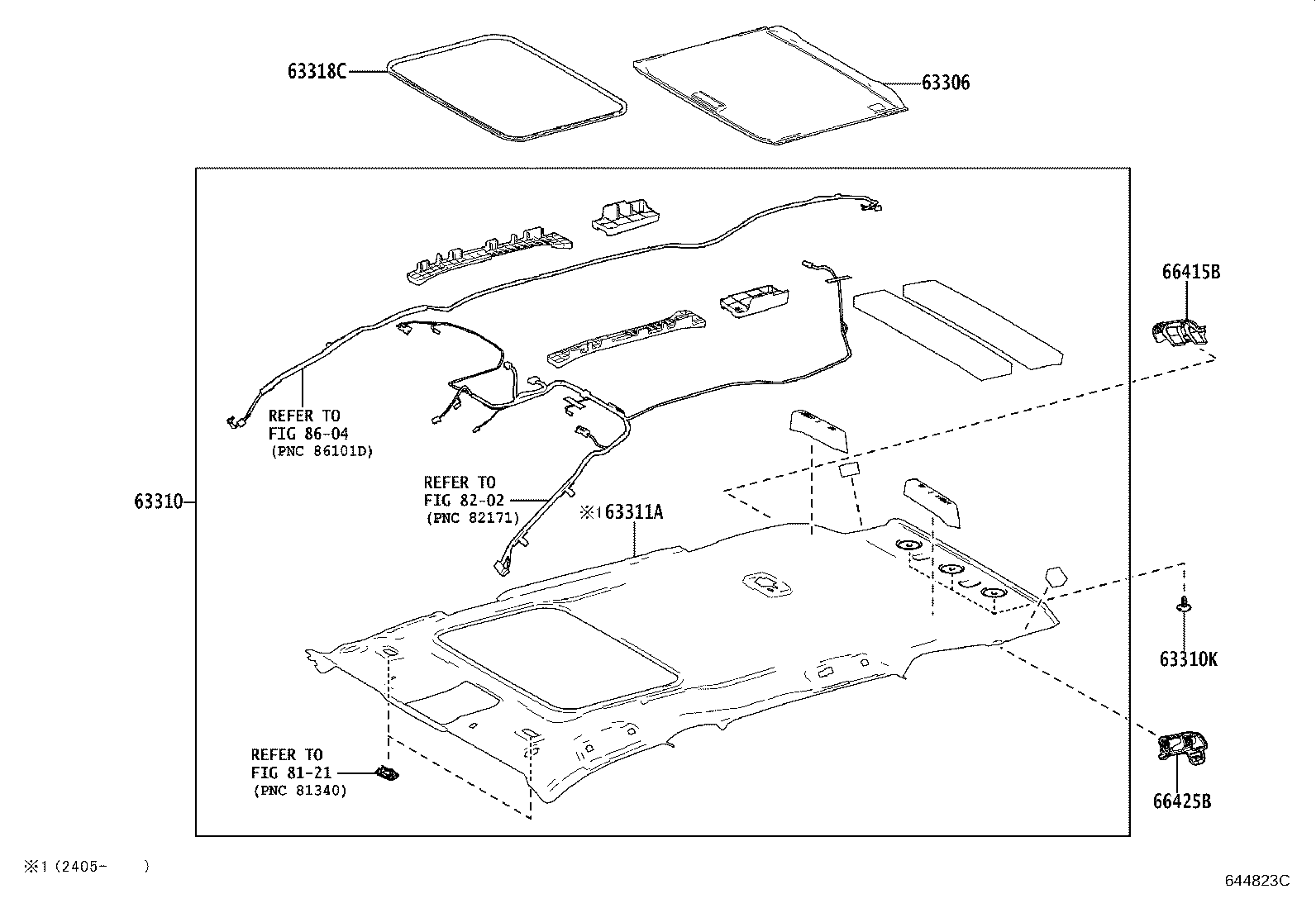

Figure 644821C 644821C 2020-04 → — Figure 644823C 644823C 2020-04 → — Figure 644822C 644822C 2020-04 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310K Clip
63311A Headlining, Roof NO.1
63318C Moulding, Sun Roof Opening Trim
66415B Spacer, Side Rail, Rear NO.2 RH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
