Toyota Wildlander (GTMC)

2020-04 → present · chassis AXAH5#,AXAL5#,MXAA5# · catalogue 664330 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

19 part groups · 2 illustrations

Illustrations

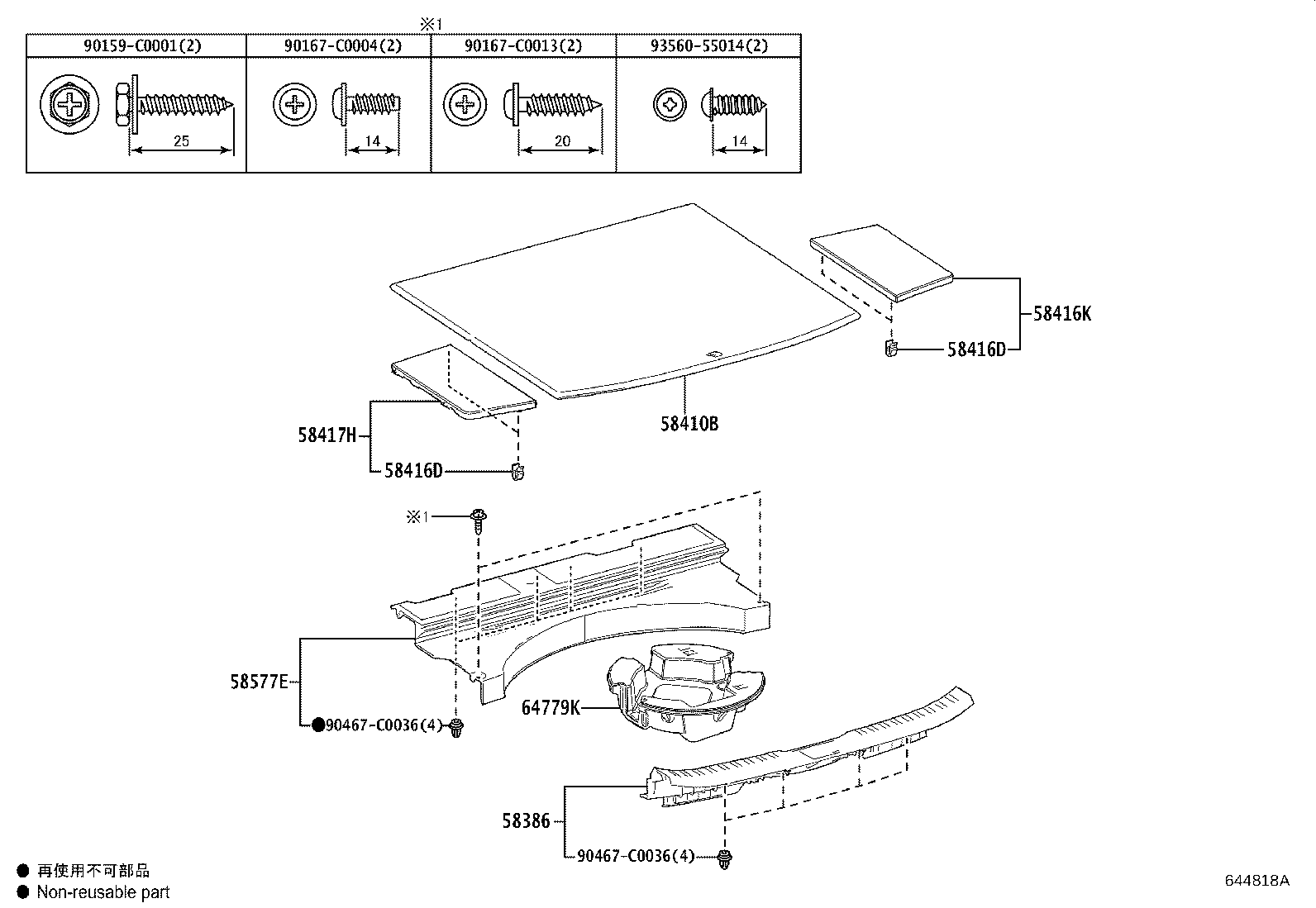

Figure 644817E 644817E 2020-04 → — Figure 644818A 644818A 2020-04 → —

Part groups

PNCDescription
58386 Plate, Rear Floor Finish
58410B Board Assy, Deck
58416D Clip, Rear Floor Board
58416K Board, Rear Floor, NO.2
58417H Board, Rear Floor, NO.3
58460D Striker Assy, Luggage Hold Belt
58577E Plate, Rear Floor Mat Support Side, NO.1
58792G Support, Jack Carrier
64230A Net Assy, Room Partition
64714J Cover, Deck Side Trim, RH
64730H Clip(FOR DECK TRIM SIDE PANEL)
64730J Panel Assy, Deck Trim Side, RH
64730K Clip(FOR DECK SIDE TRIM PANEL)
64733C Pad, Deck Trim Side, NO.1
64734A Pad, Deck Trim Side, NO.2
64740E Panel Assy, Deck Trim Side, LH
64779K Stopper, Spare Wheel Cover
65351A Cover, Battery Hole
73708A Bracket Set, Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
