Toyota Wildlander (GTMC)
2020-04 → present · chassis AXAH5#,AXAL5#,MXAA5# · catalogue 664330 · General
Supported model
Data version 2024-04

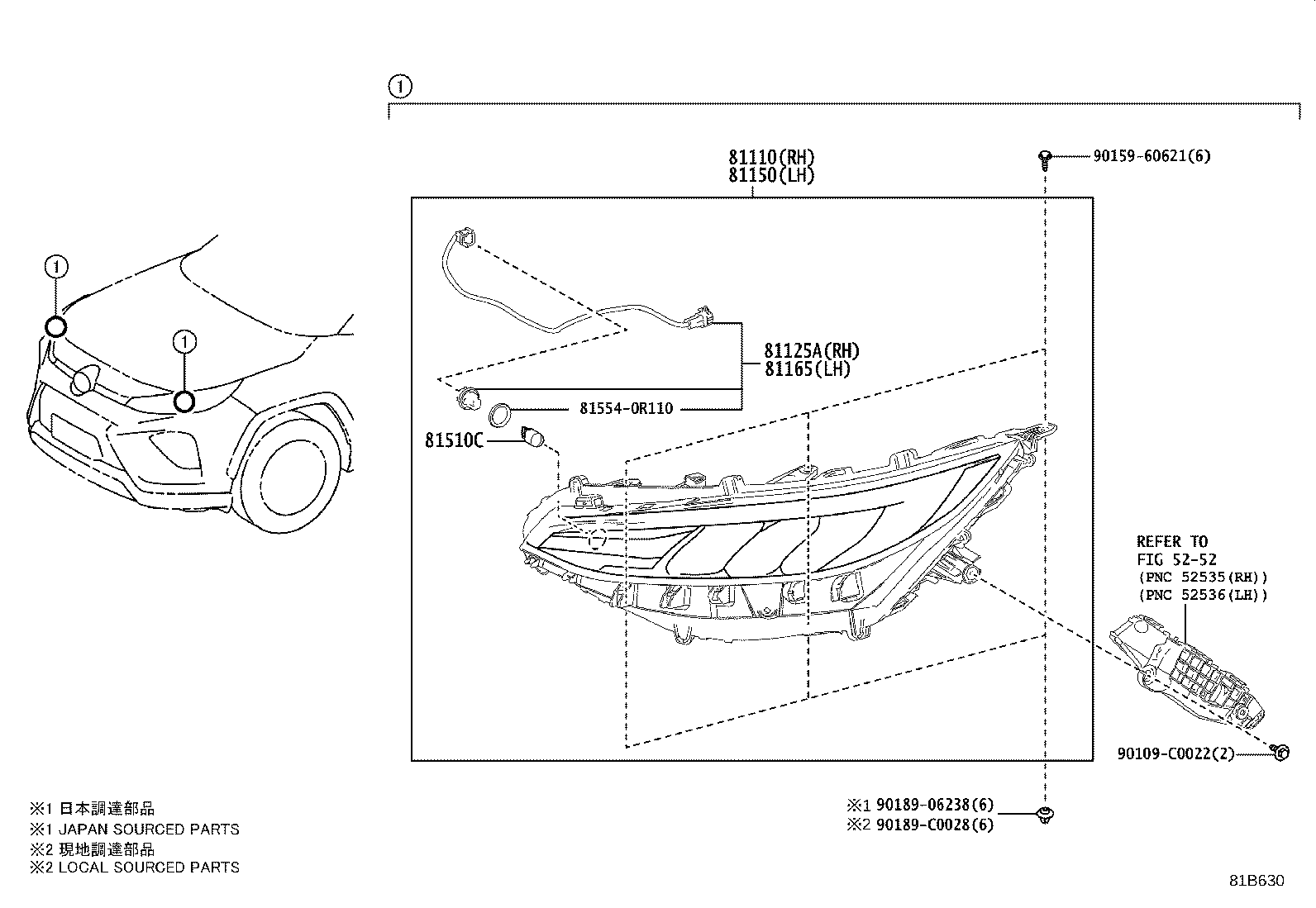

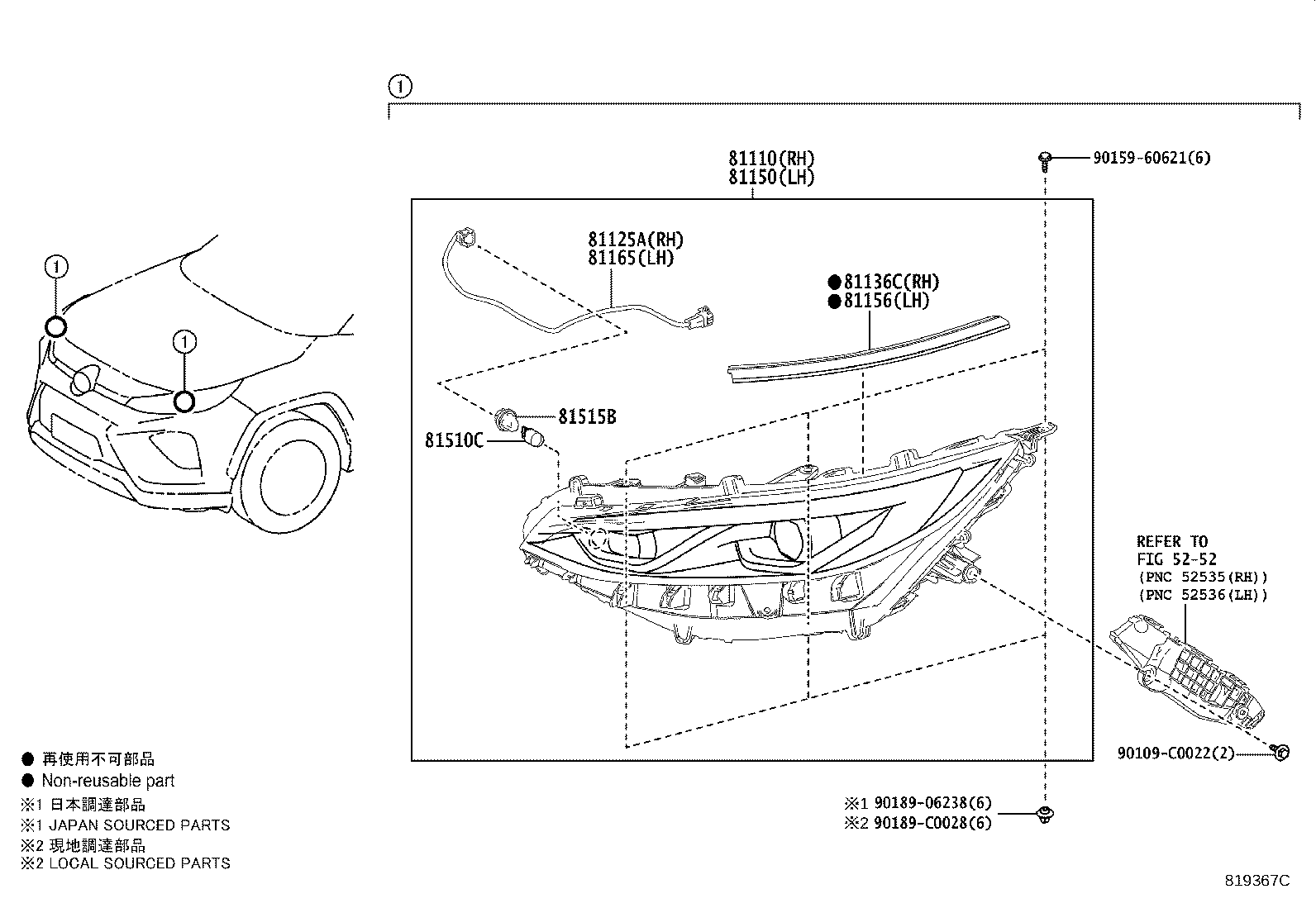

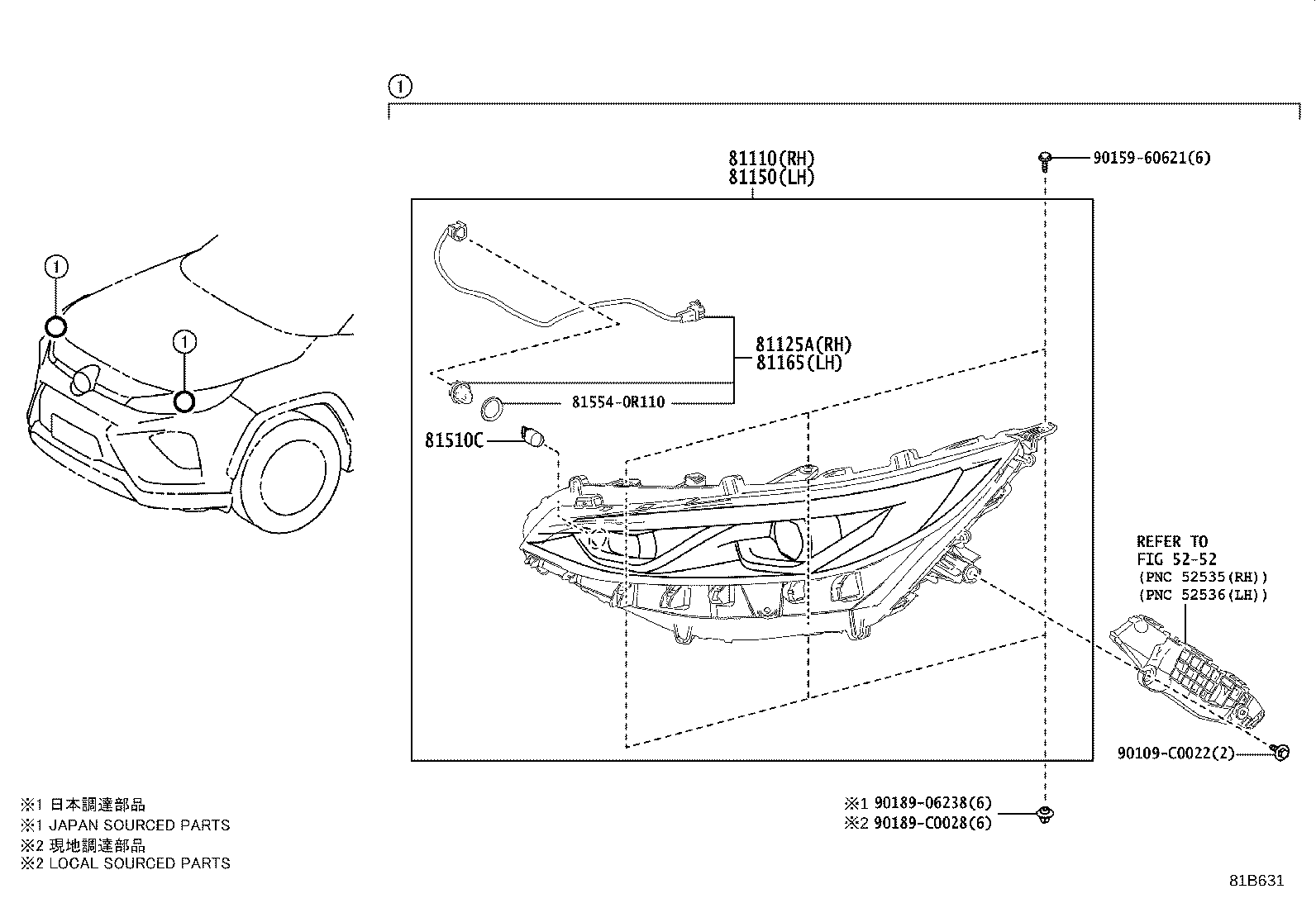

Headlamp
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81125A | Cord, Headlamp, RH |
| 81136C | Rim, Headlamp, RH |
| 81150 | Headlamp Assy, LH |
| 81156 | Rim, Headlamp, LH |
| 81165 | Cord, Headlamp, LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
