Toyota Wildlander (GTMC)

2020-04 → present · chassis AXAH5#,AXAL5#,MXAA5# · catalogue 664330 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

15 part groups · 2 illustrations

Illustrations

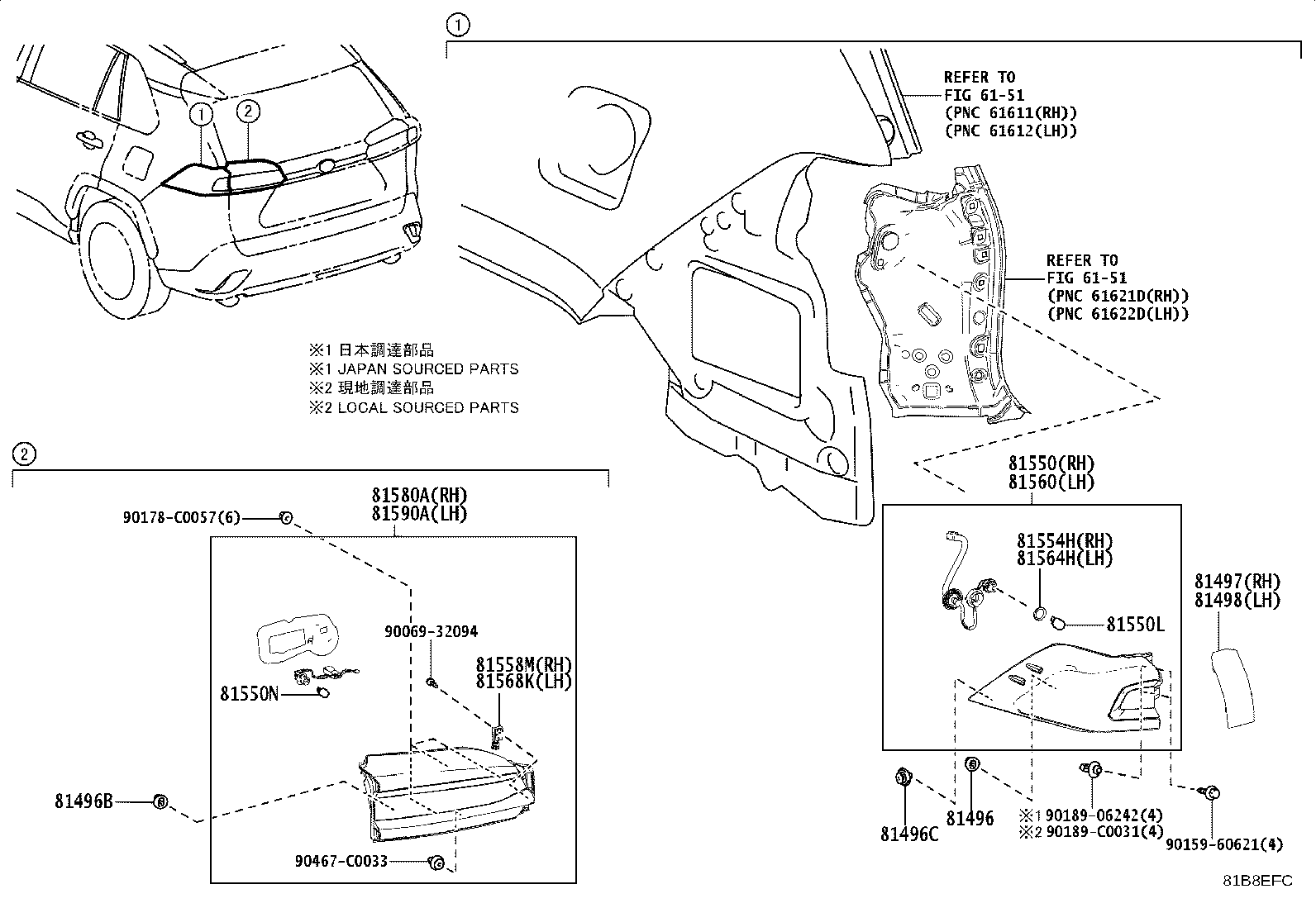

Figure 819368E 819368E 2020-04 → 2024-05 Figure 81B8EFC 81B8EFC 2024-05 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81496B Guide, Rear Lamp
81496C Guide, Rear Combination Lamp, NO.2
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81550 Lamp Assy, Rear Combination, RH
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81554H Packing, Rear Combination Lamp, RH
81558M Bracket, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81564H Packing, Rear Combination Lamp, LH
81568K Bracket, Rear Combination Lamp, LH
81580A Lamp Assy, Rear
81590A Lamp Assy, Rear, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
