Toyota Wildlander (GTMC)

2020-04 → present · chassis AXAH5#,AXAL5#,MXAA5# · catalogue 664330 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

15 part groups · 4 illustrations

Illustrations

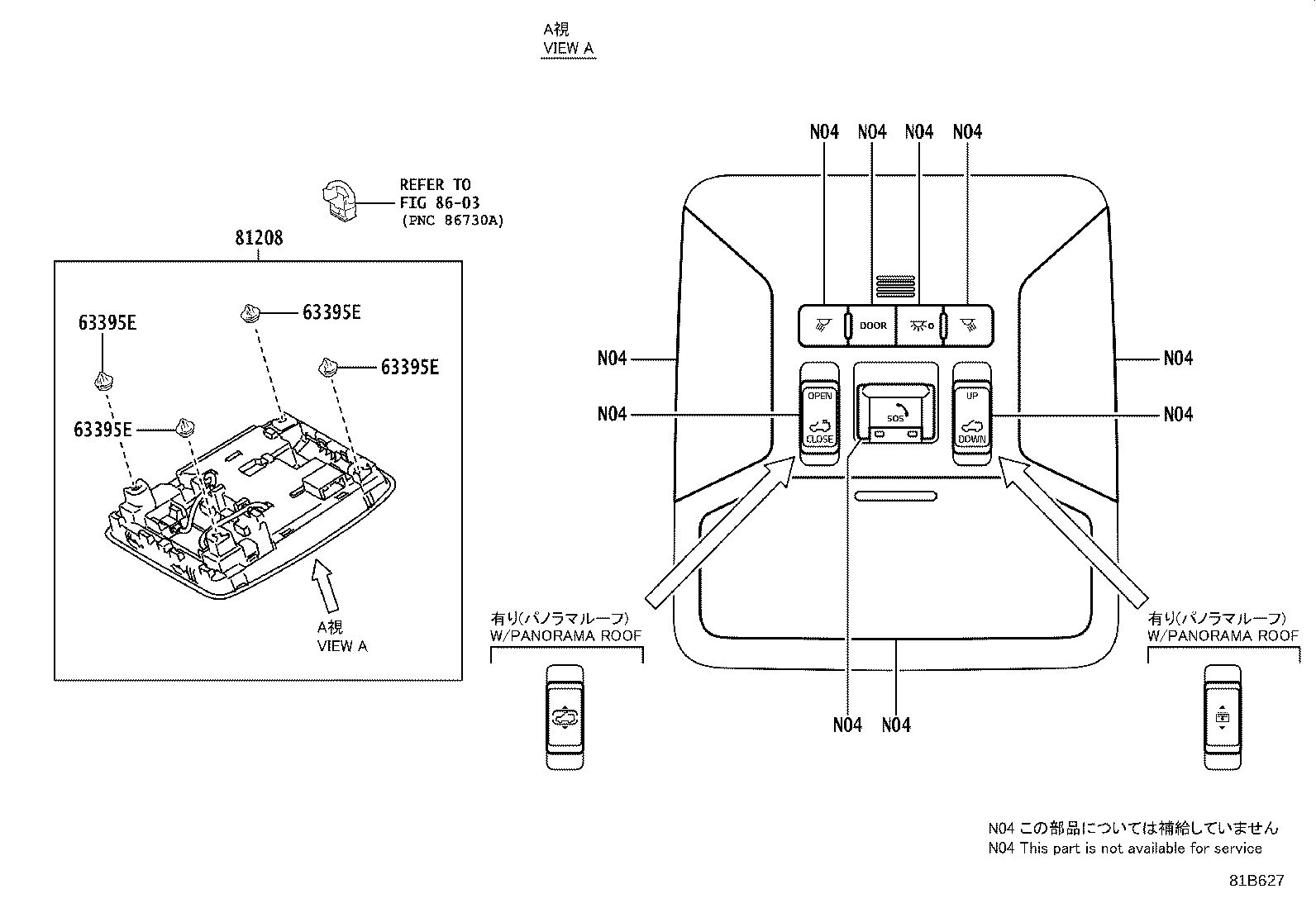

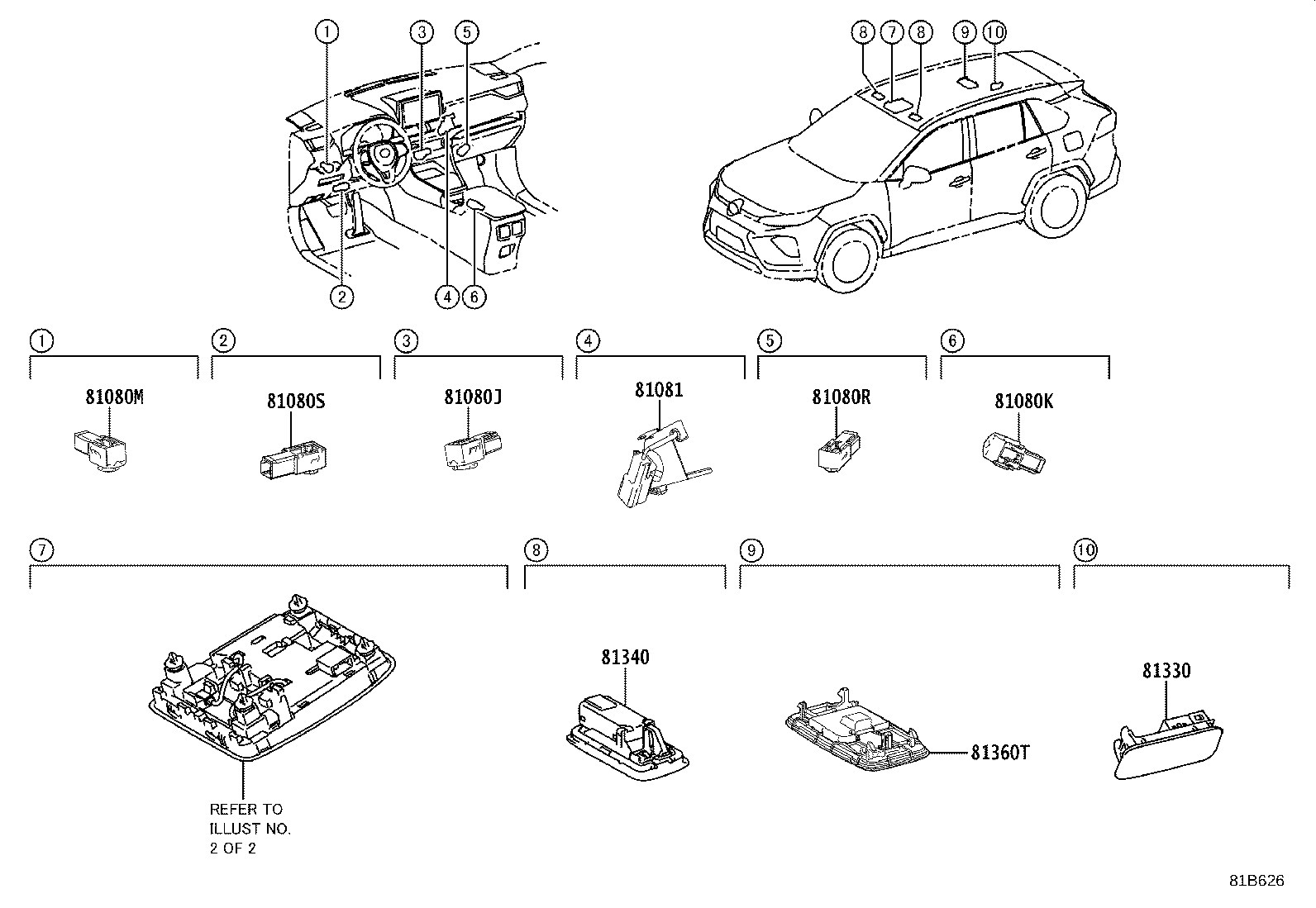

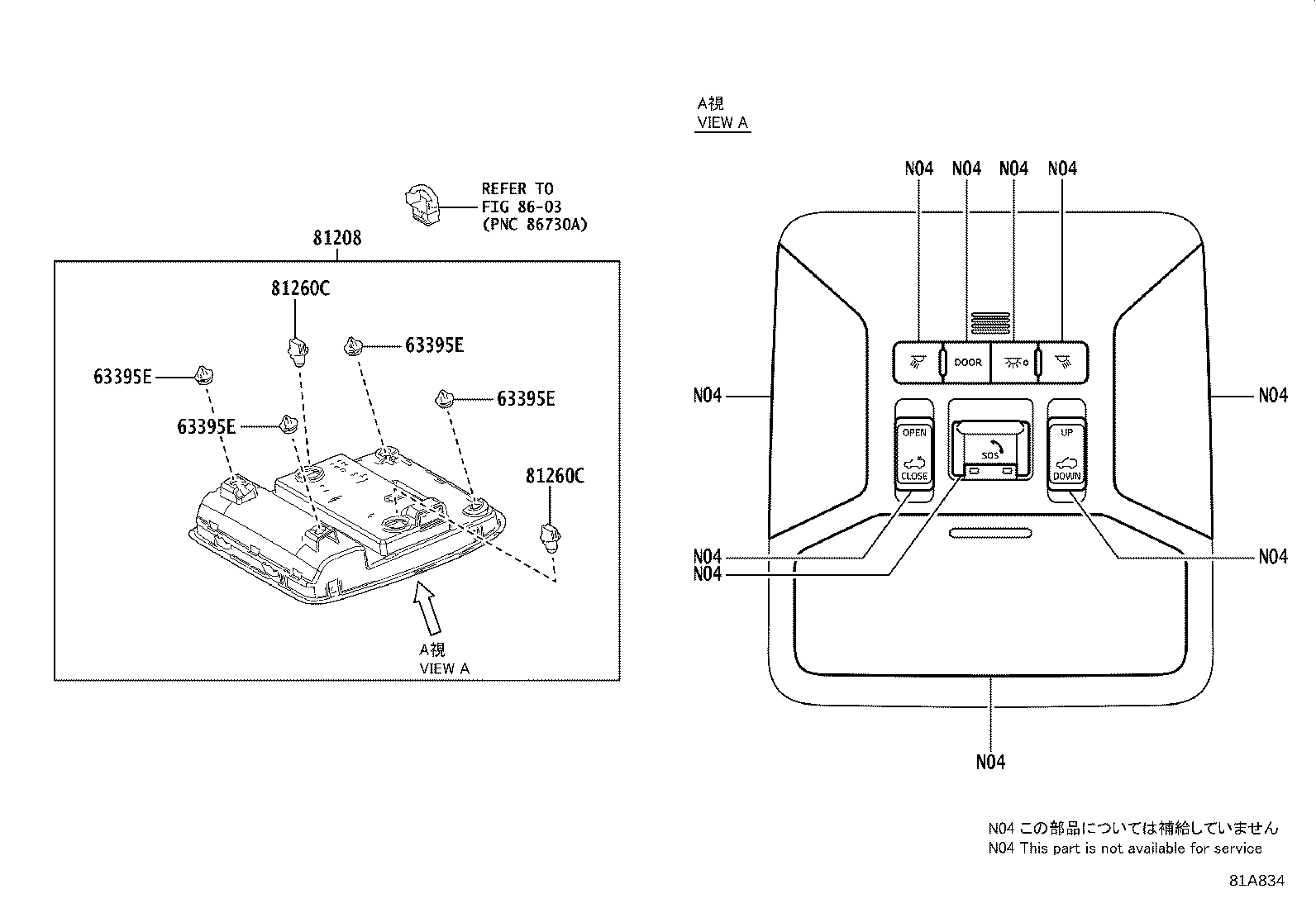

Figure 819369A 819369A 2020-04 → 2023-03 Figure 81B626 81B626 2023-04 → — Figure 81A834 81A834 2020-04 → 2023-03 Figure 81B627 81B627 2023-04 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080M Lamp Assy, Interior Illumination, NO.1
81080R Lamp Assy, Interior Illumination, NO.1 RH
81080S Lamp Assy, Interior Illumination, NO.1 LH
81081 Lamp Sub-assy, Interior Illumination
81208 Lamp Sub-assy, Map
81240B Bulb, Room Lamp, NO.1
81260C Bulb(FOR MAP LAMP)
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
