Toyota Wildlander (GTMC)

2020-04 → present · chassis AXAH5#,AXAL5#,MXAA5# · catalogue 664330 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

144 part groups · 39 illustrations

Illustrations

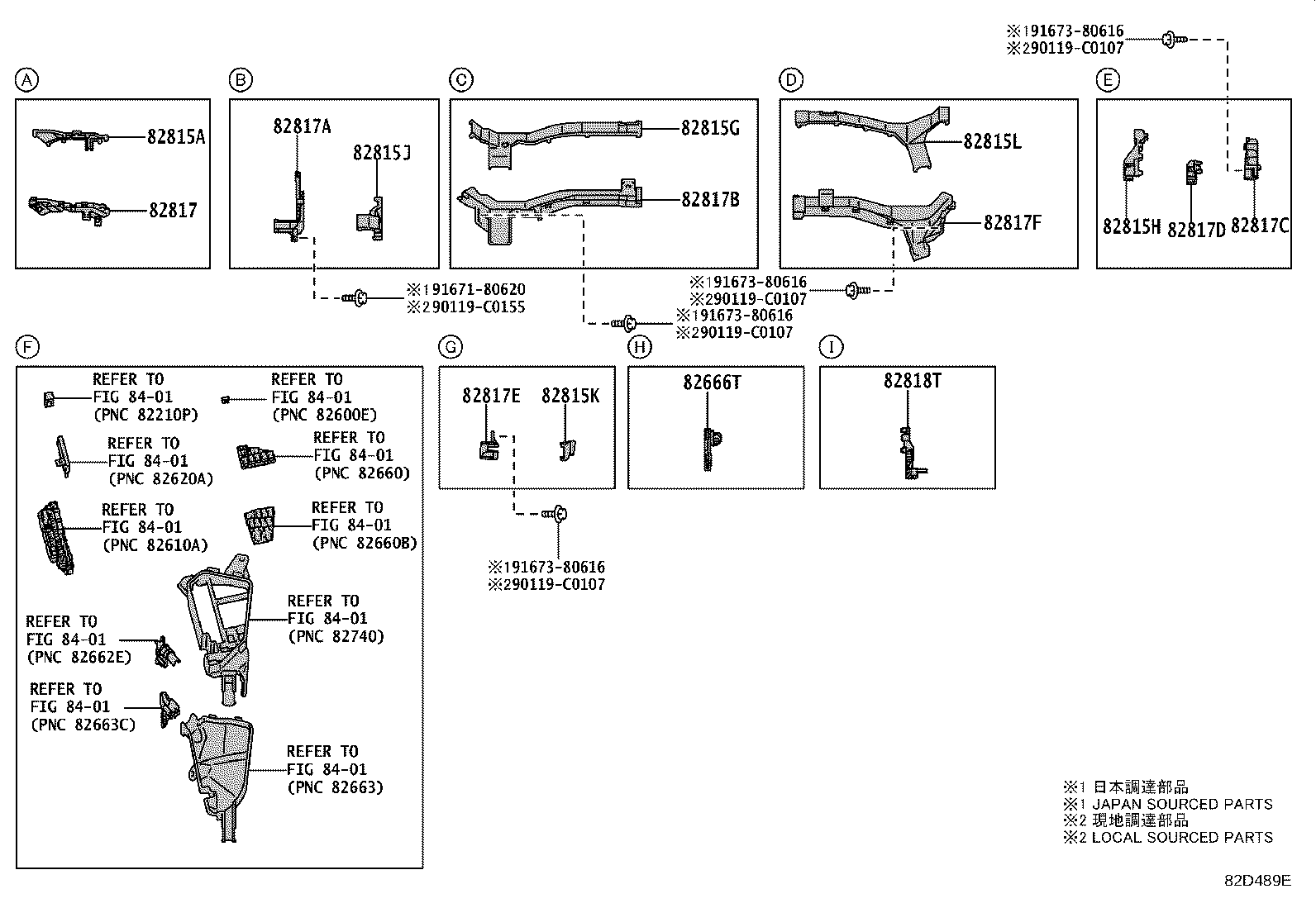

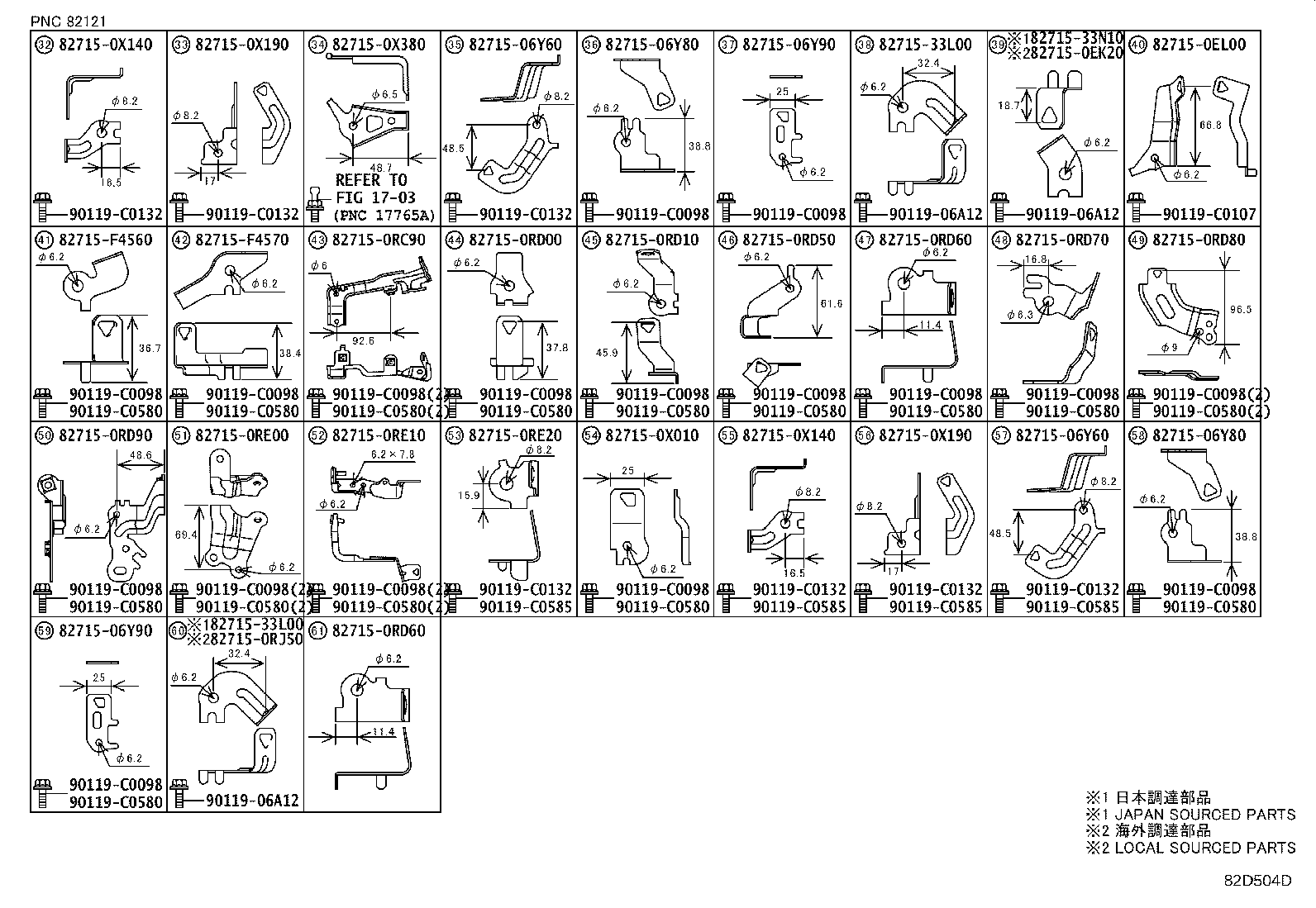

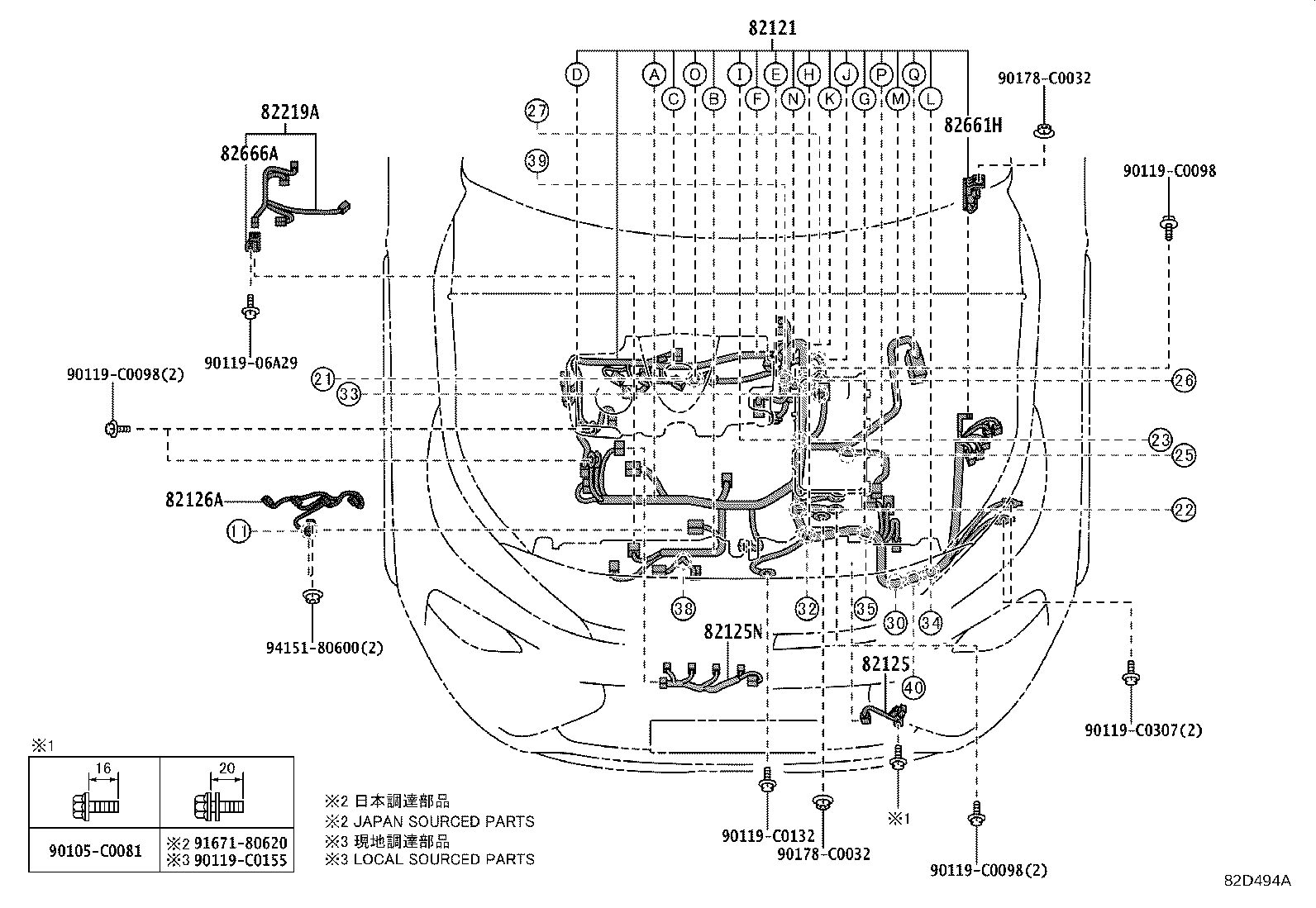

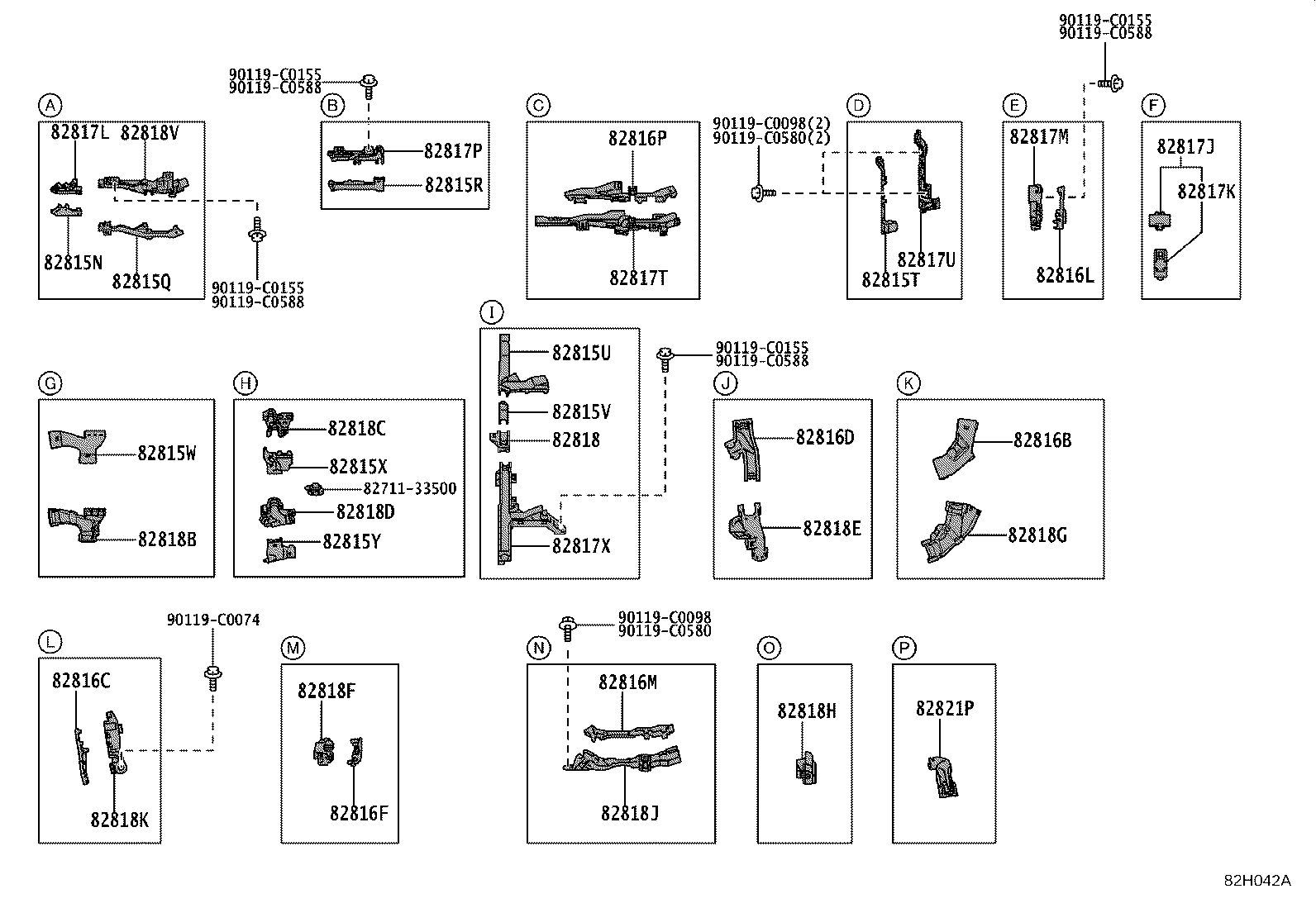

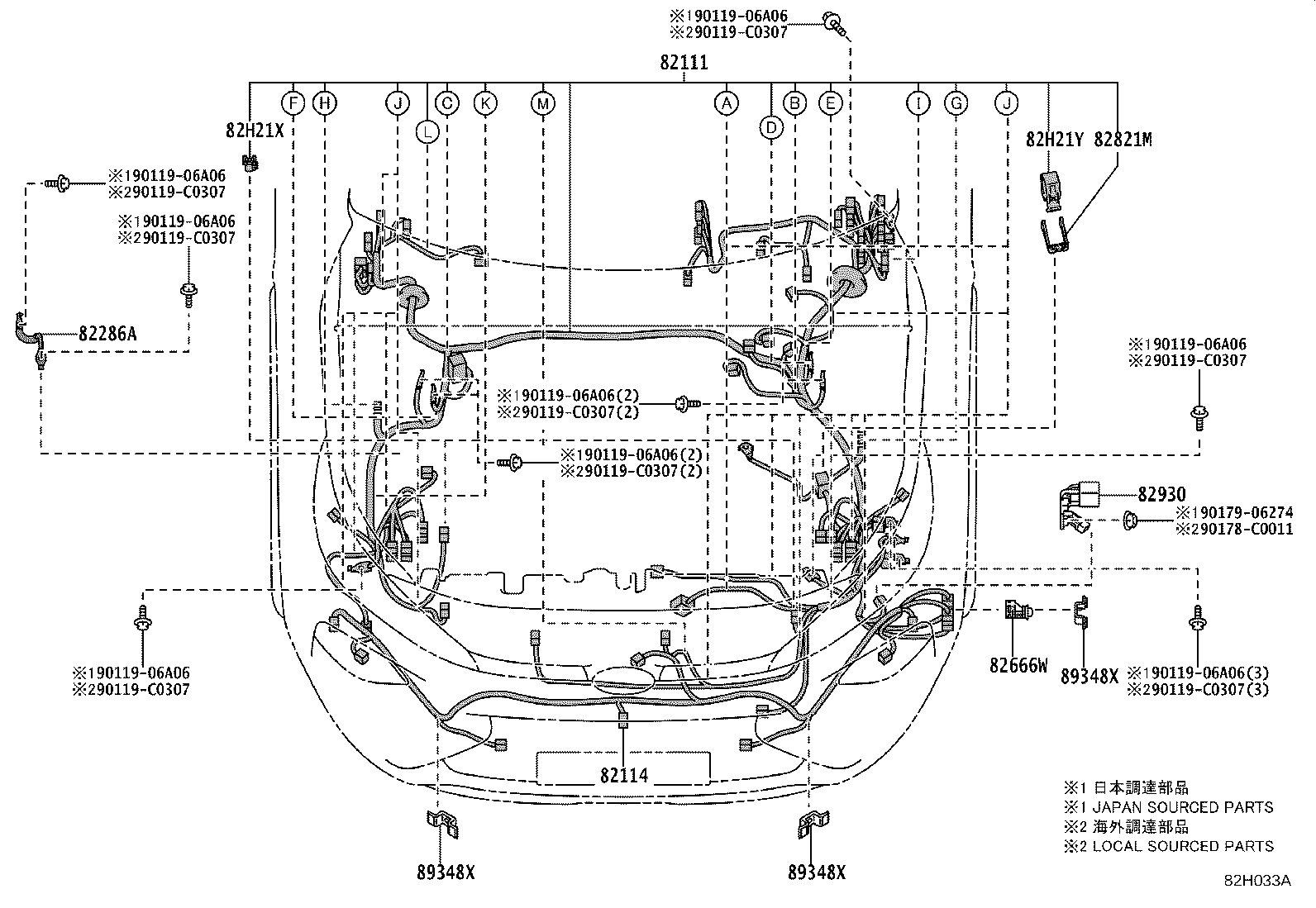

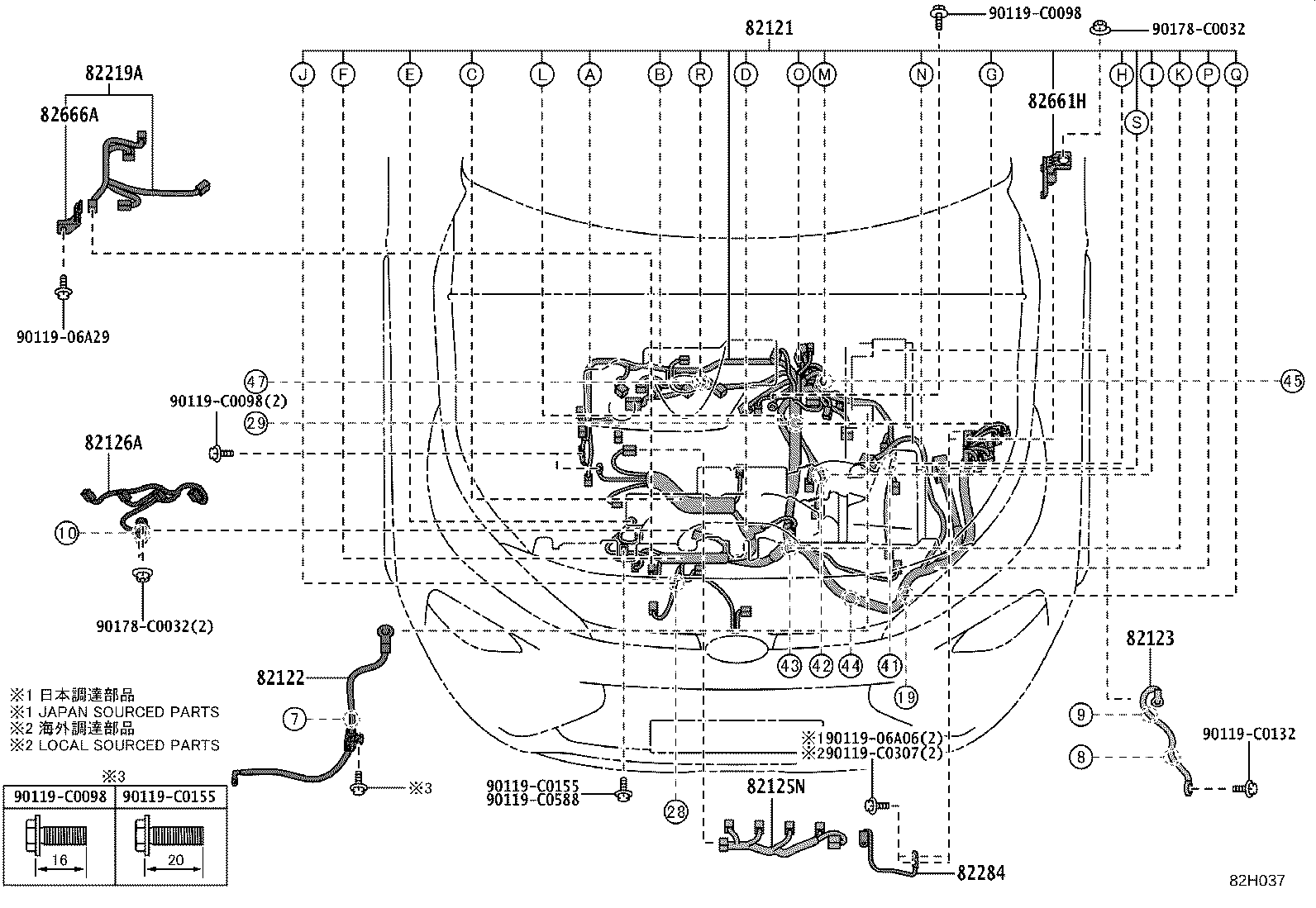

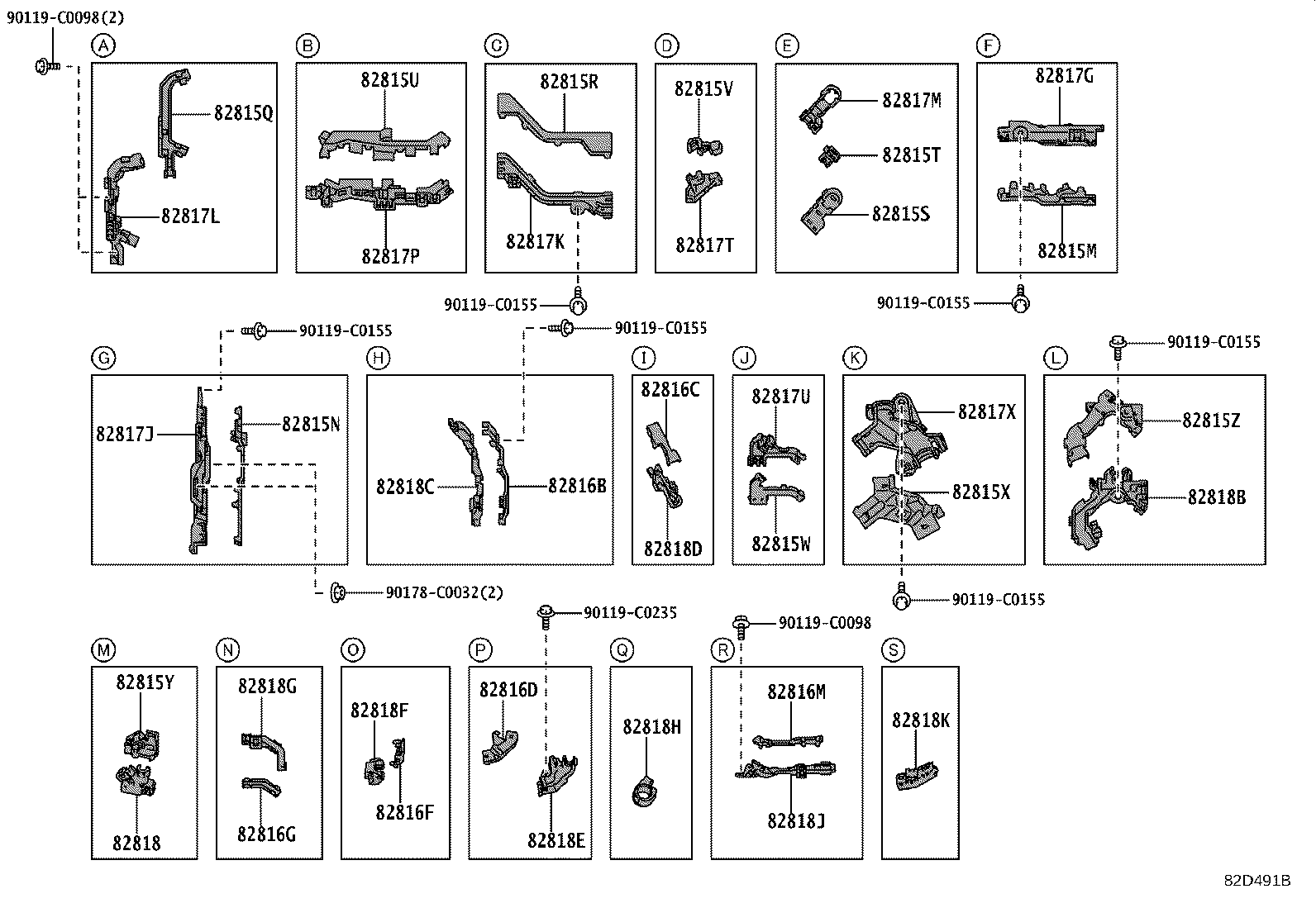

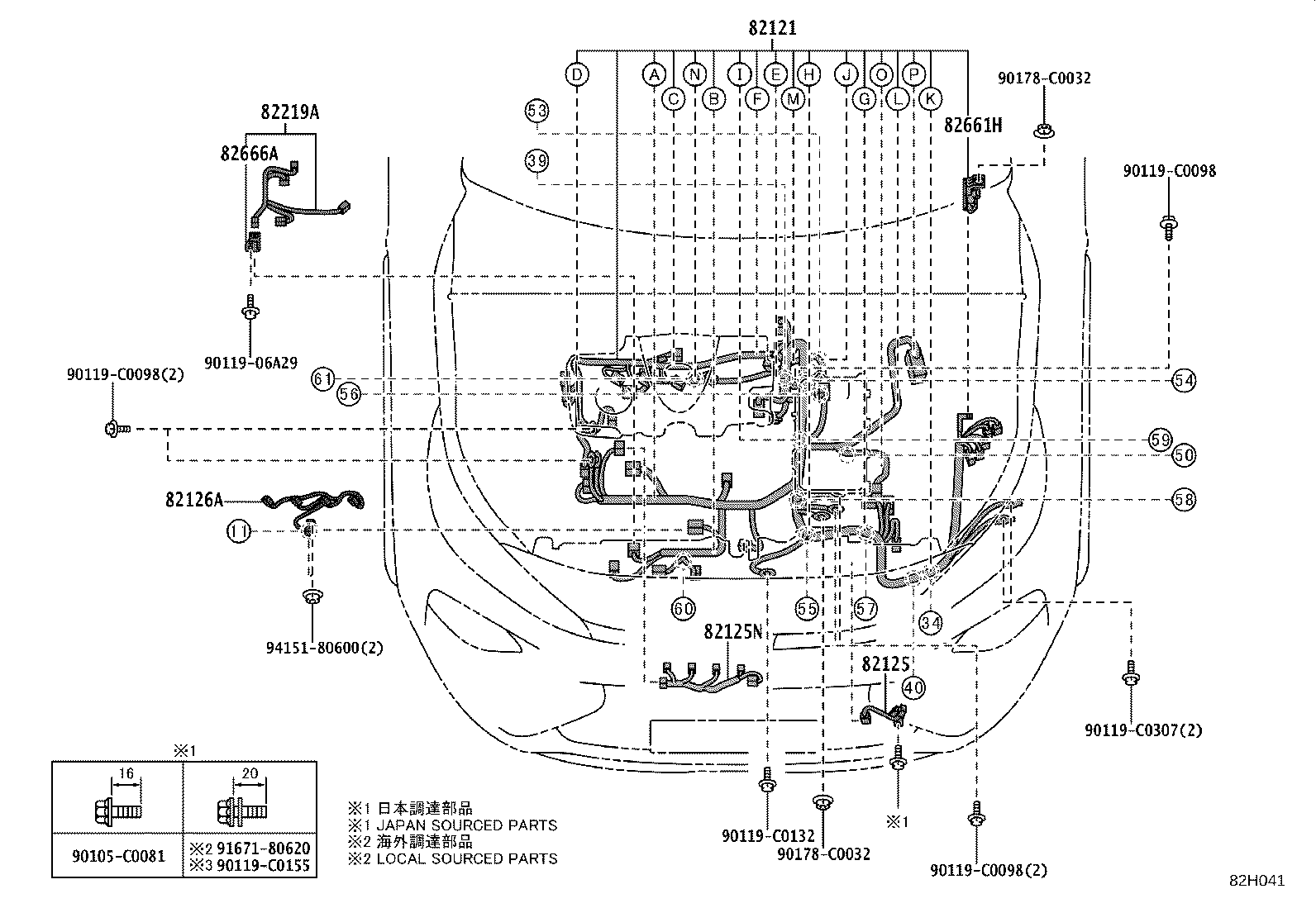

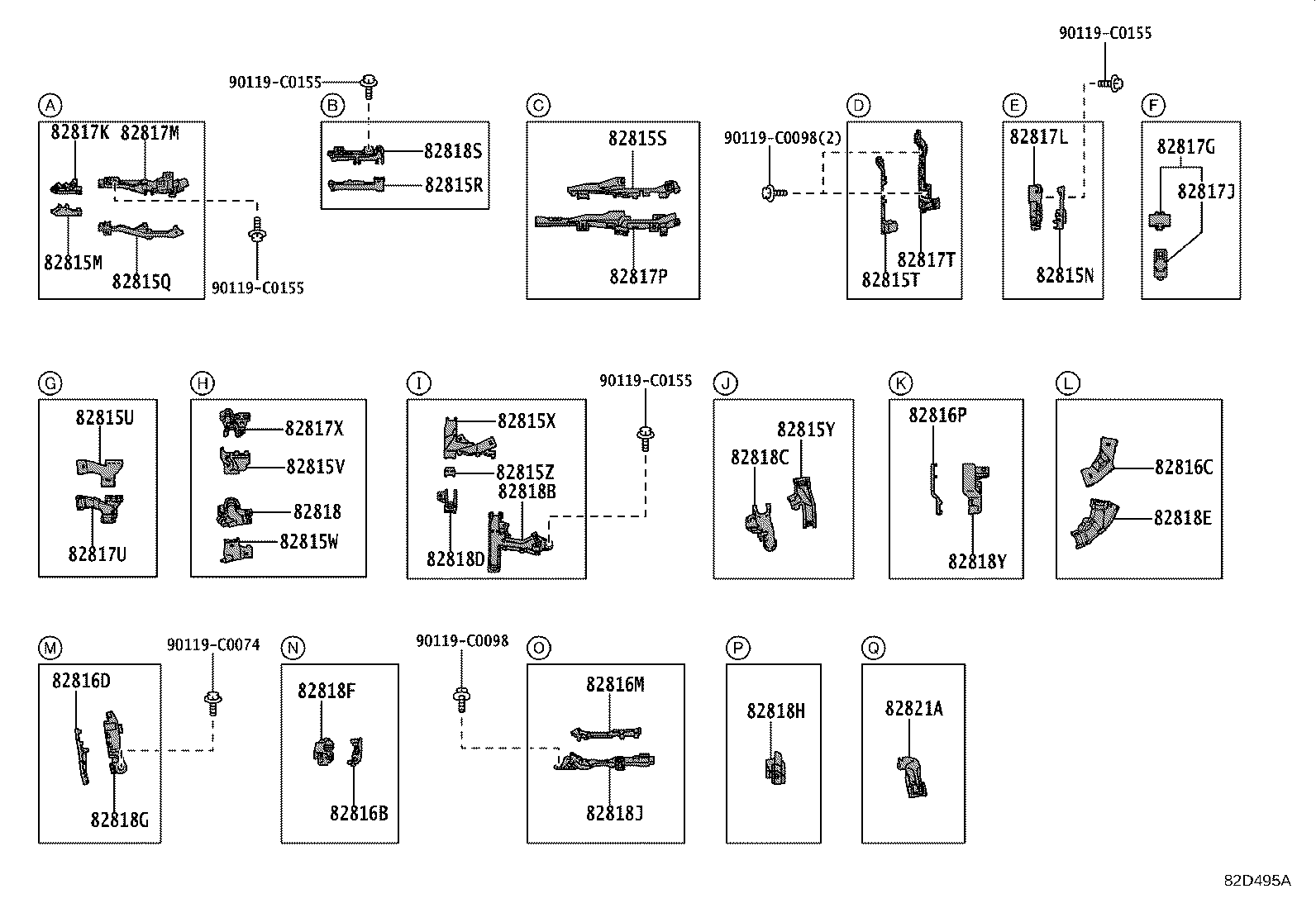

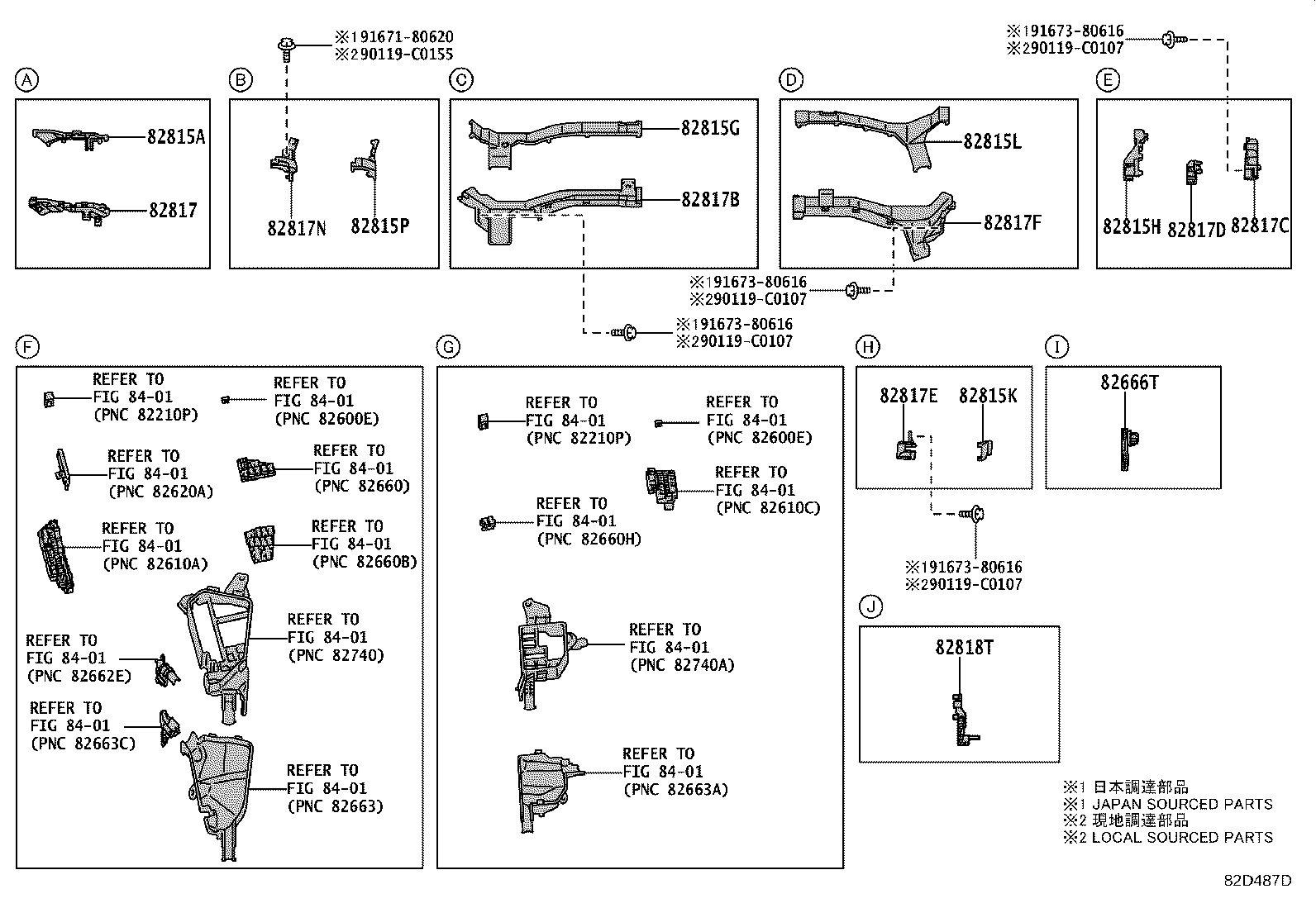

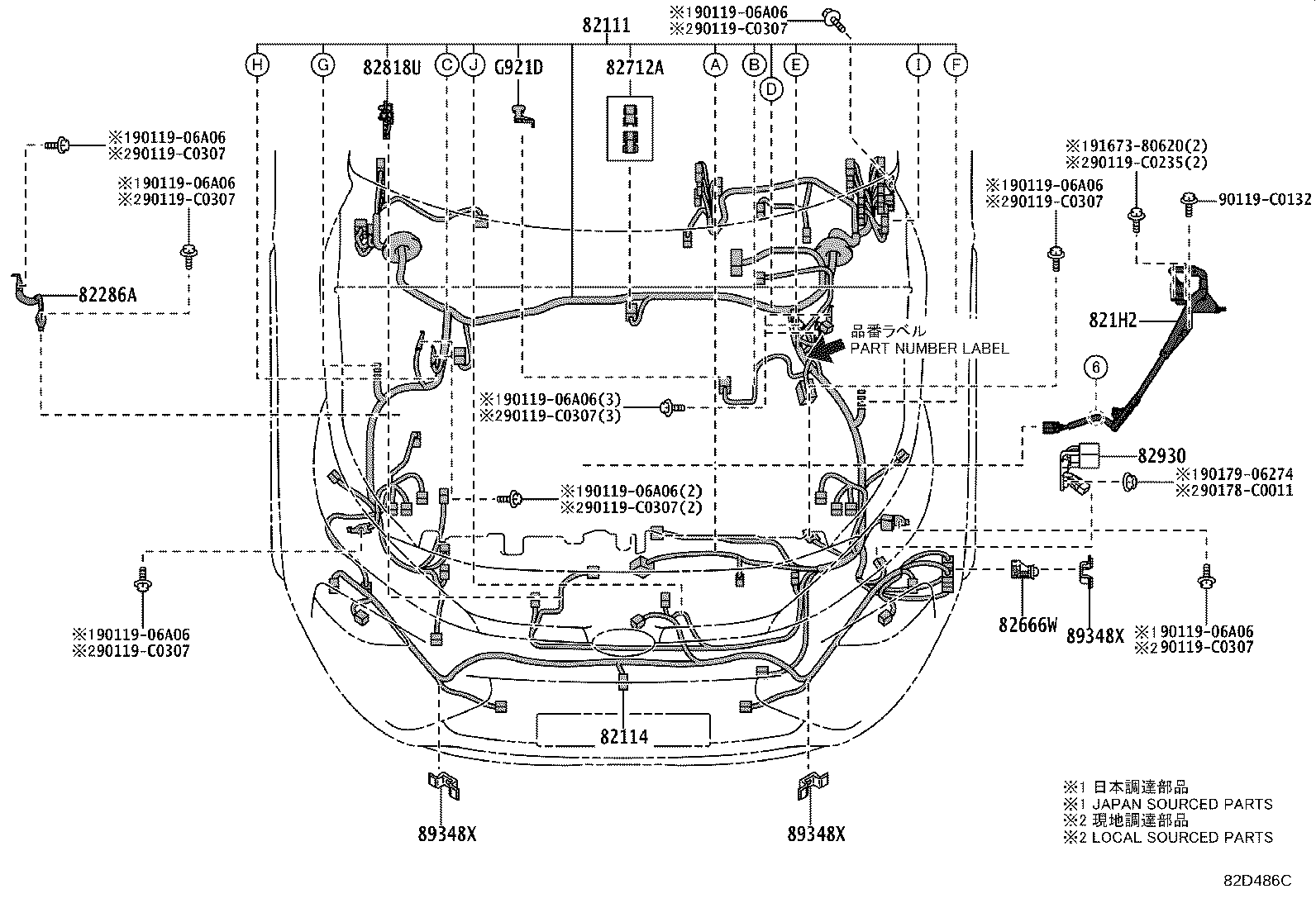

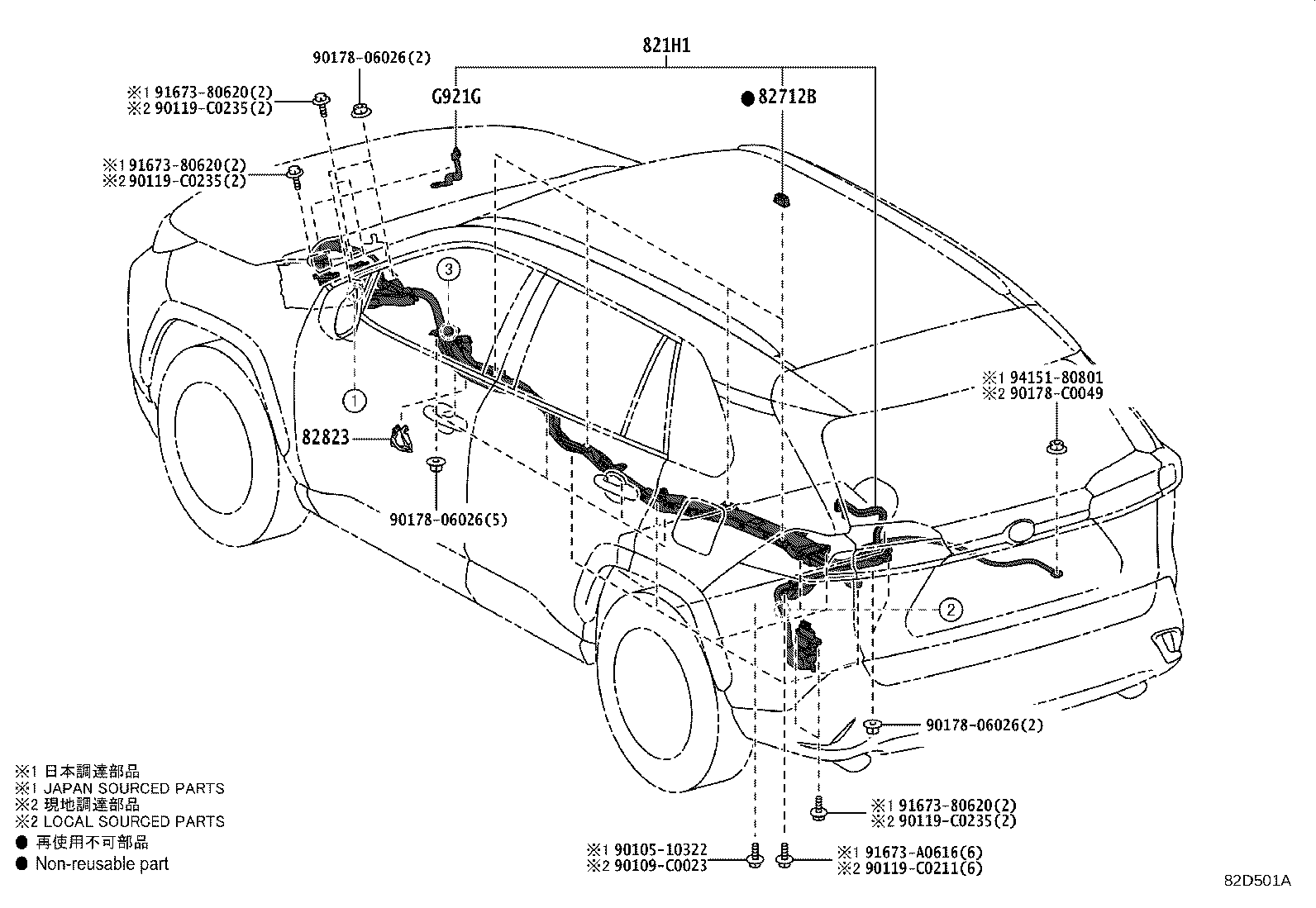

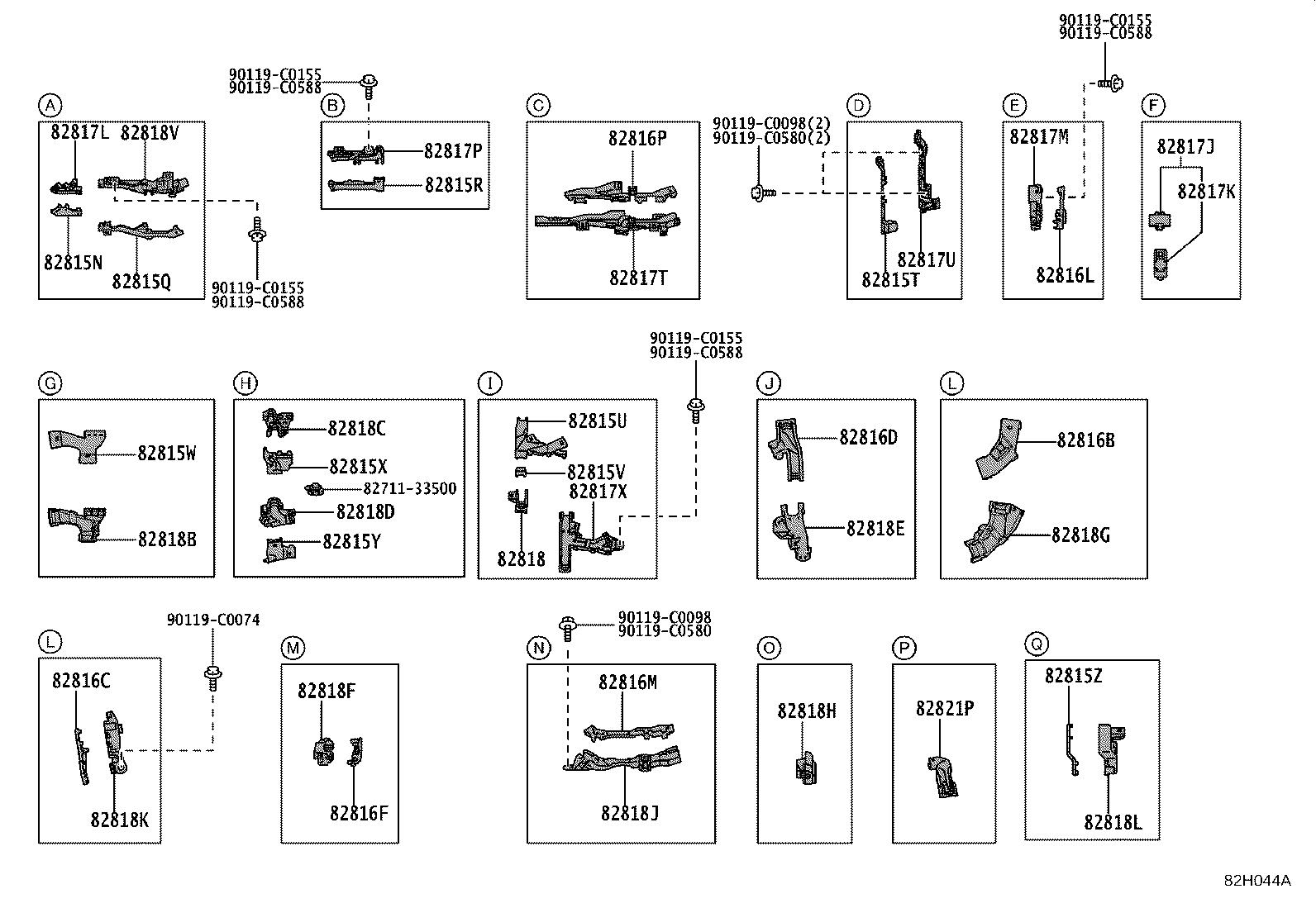

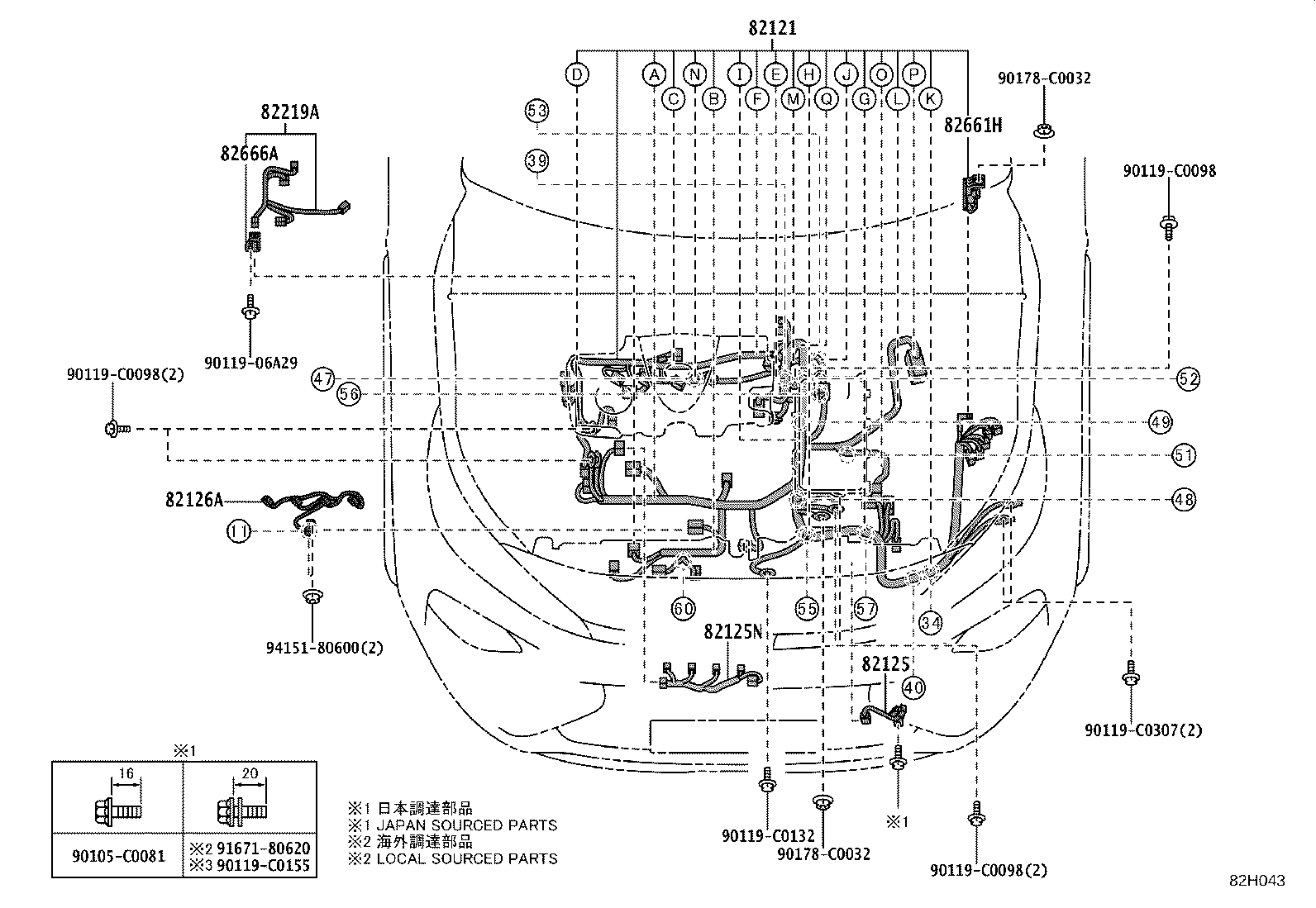

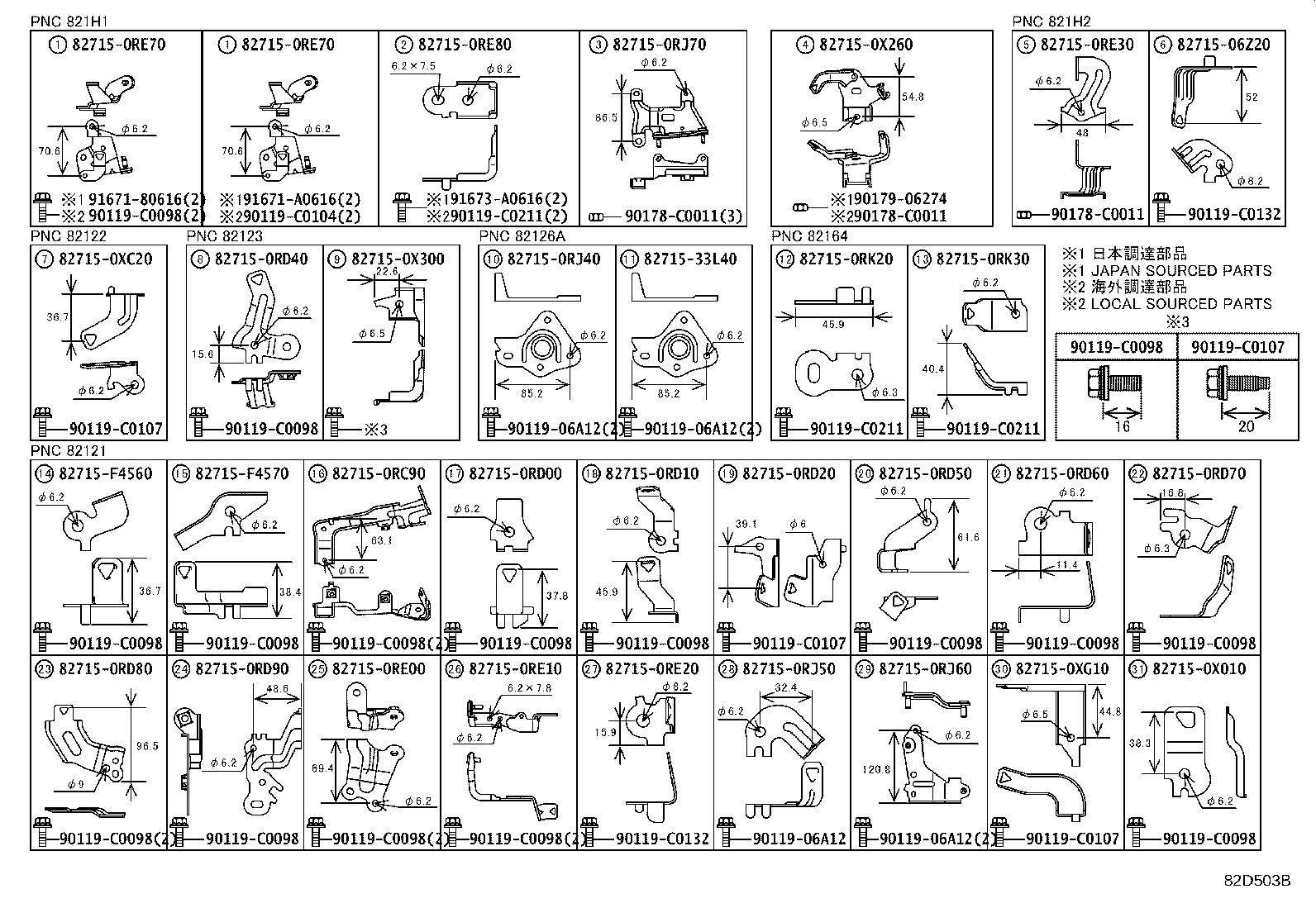

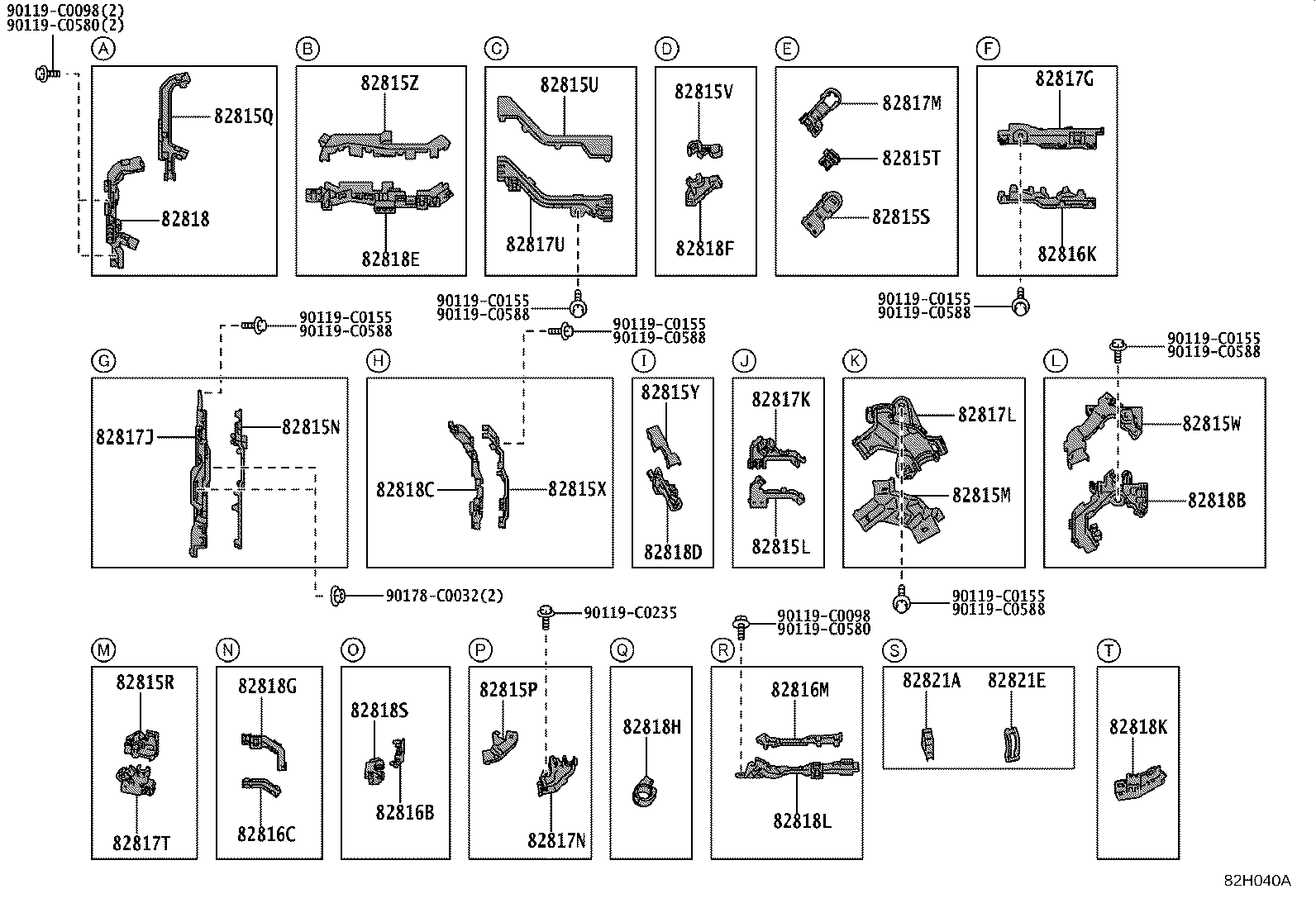

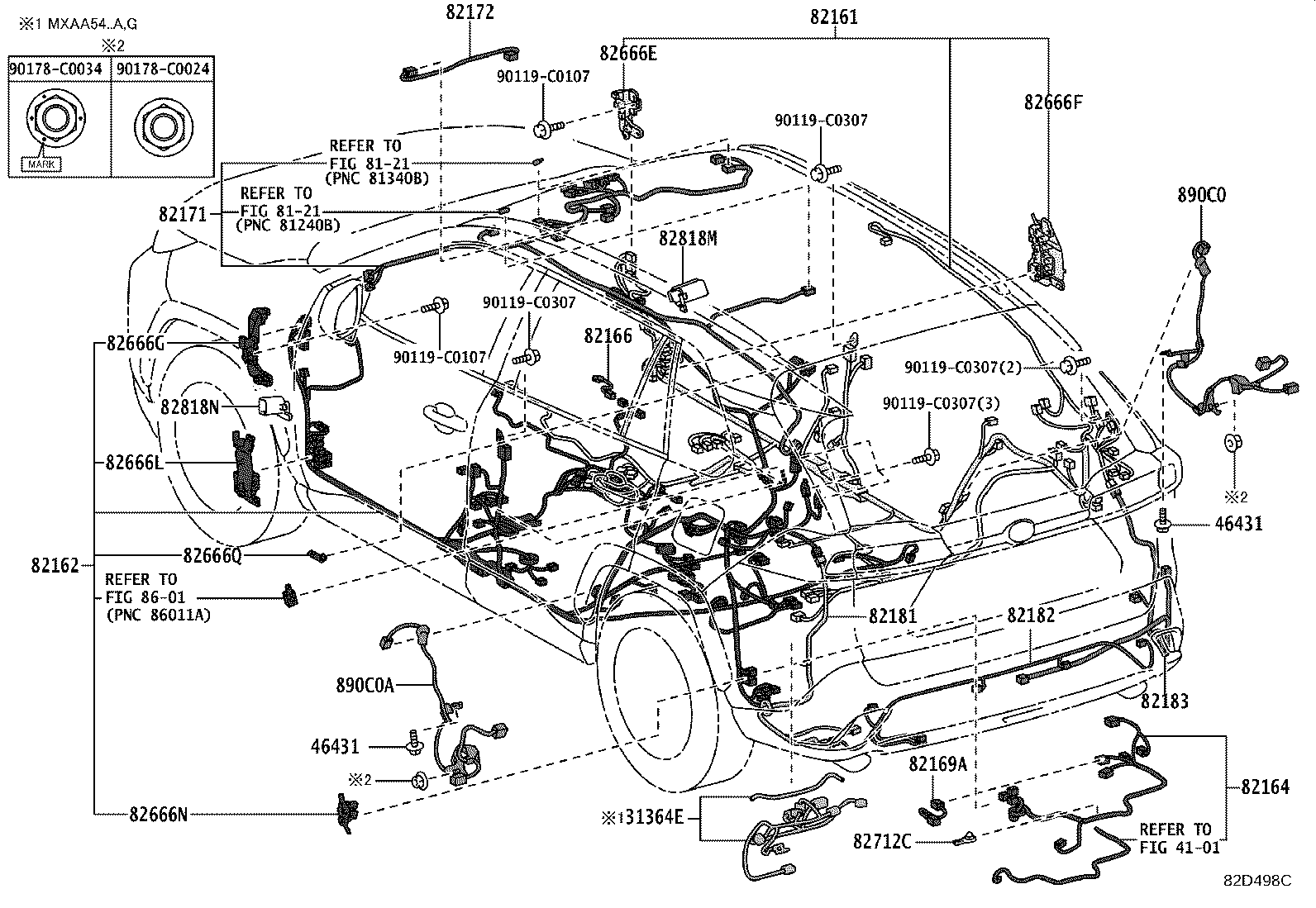

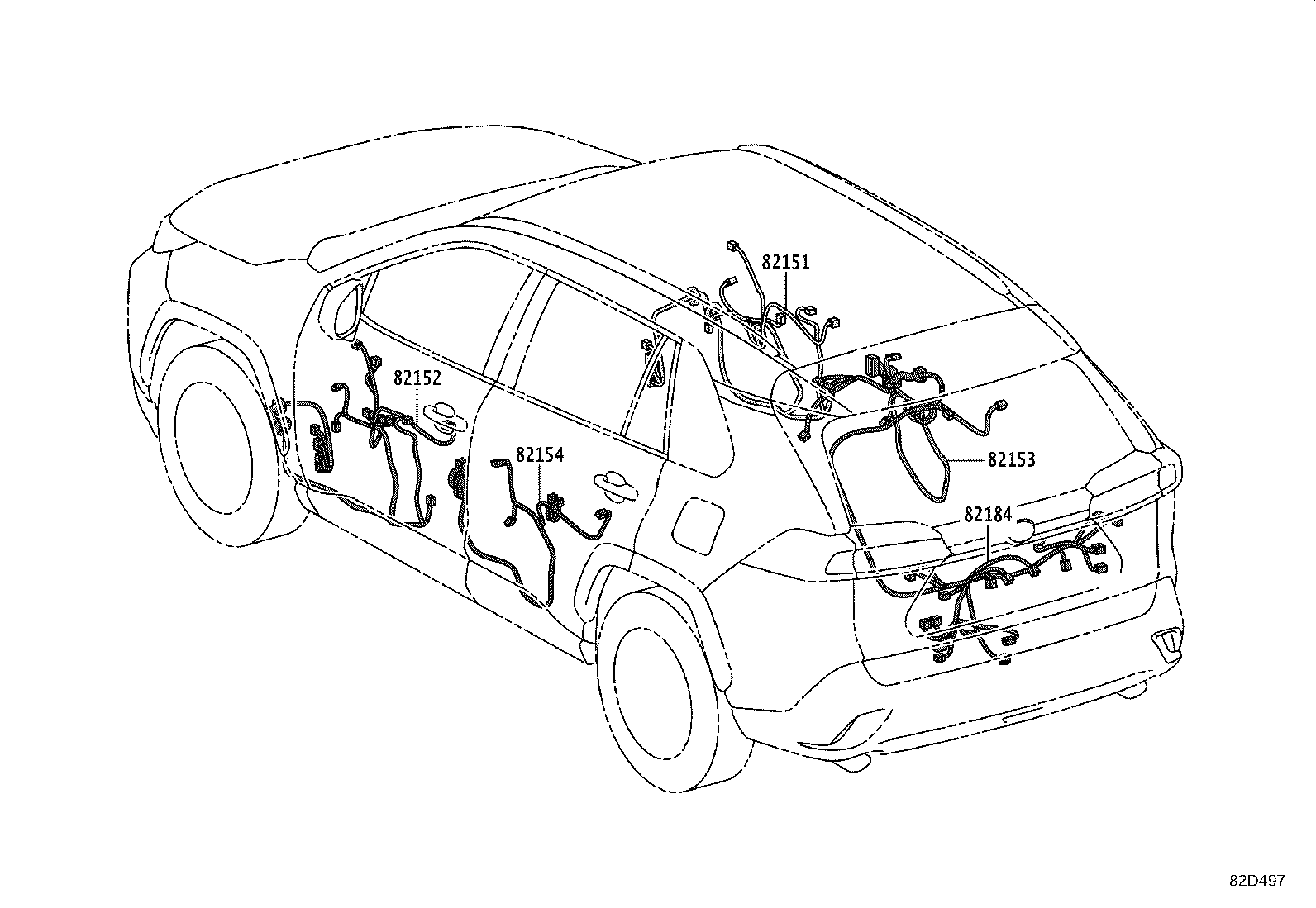

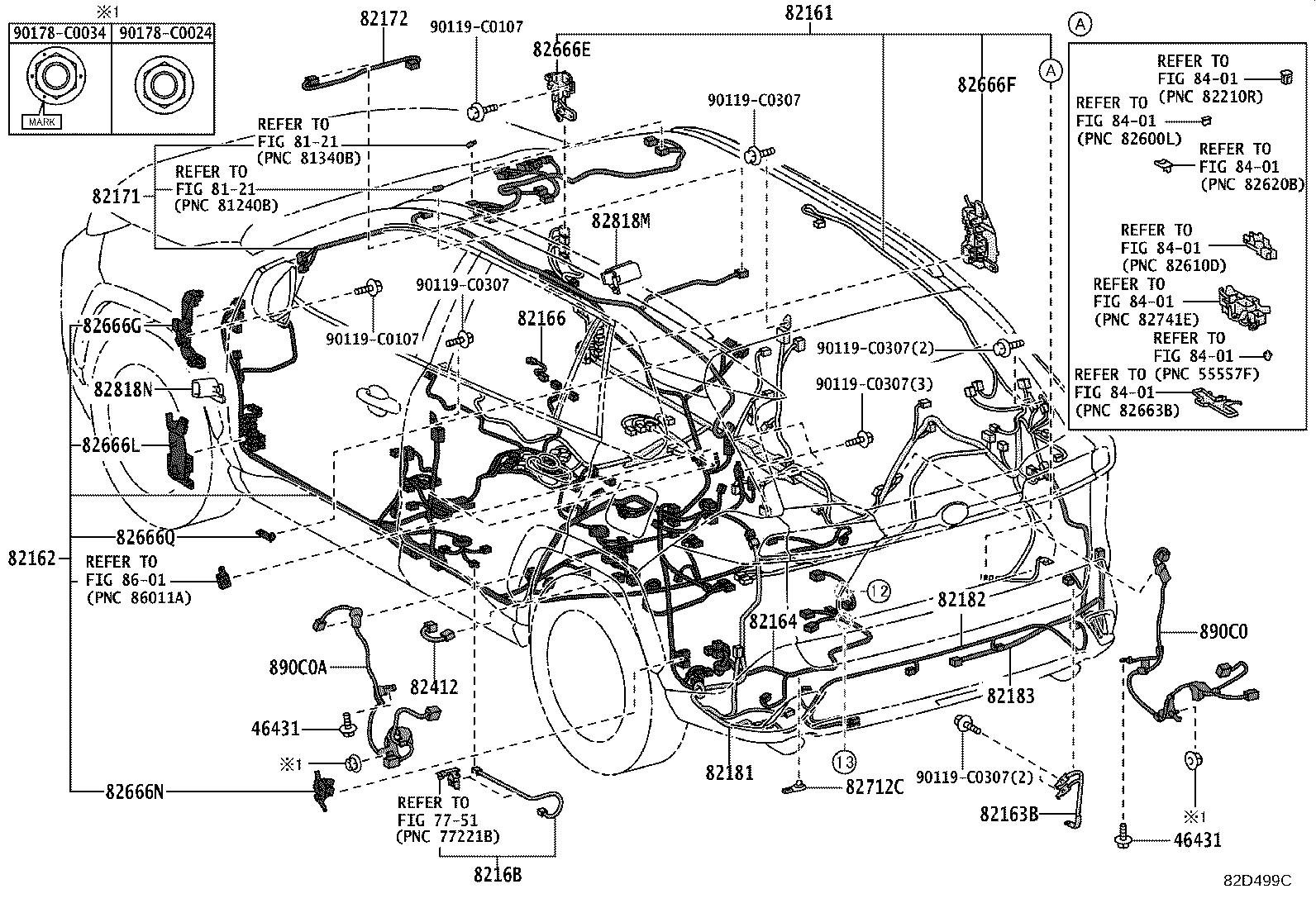

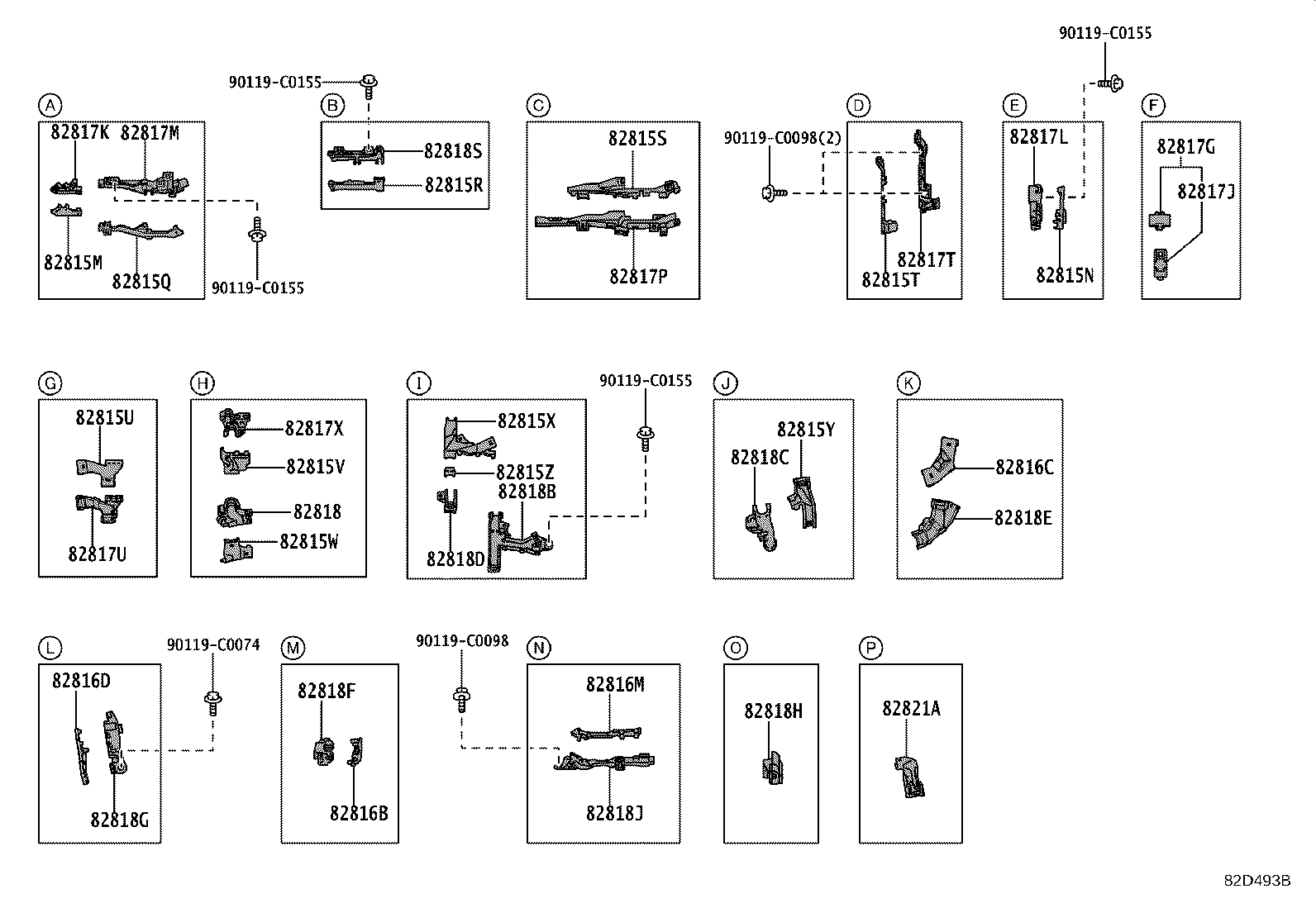

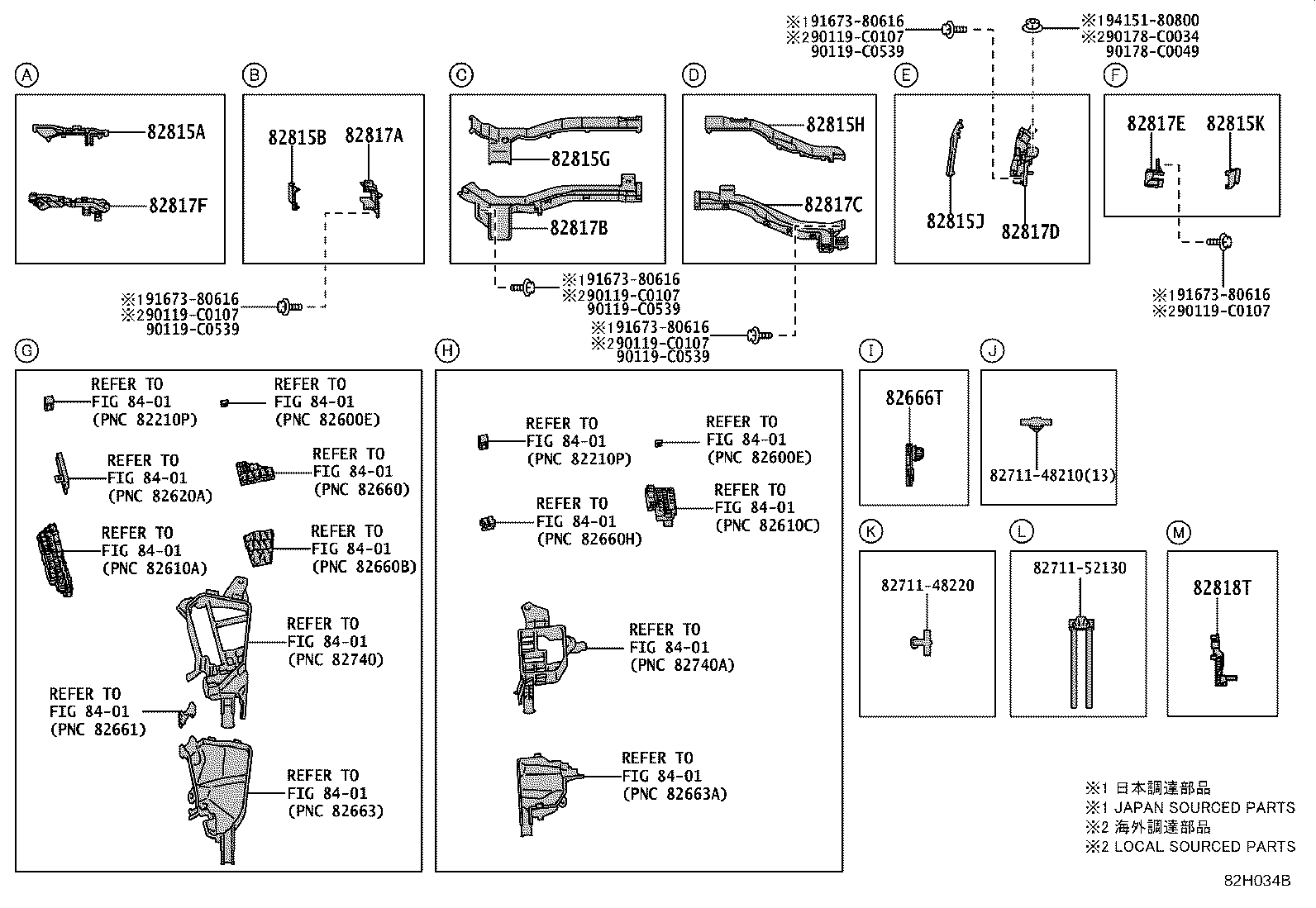

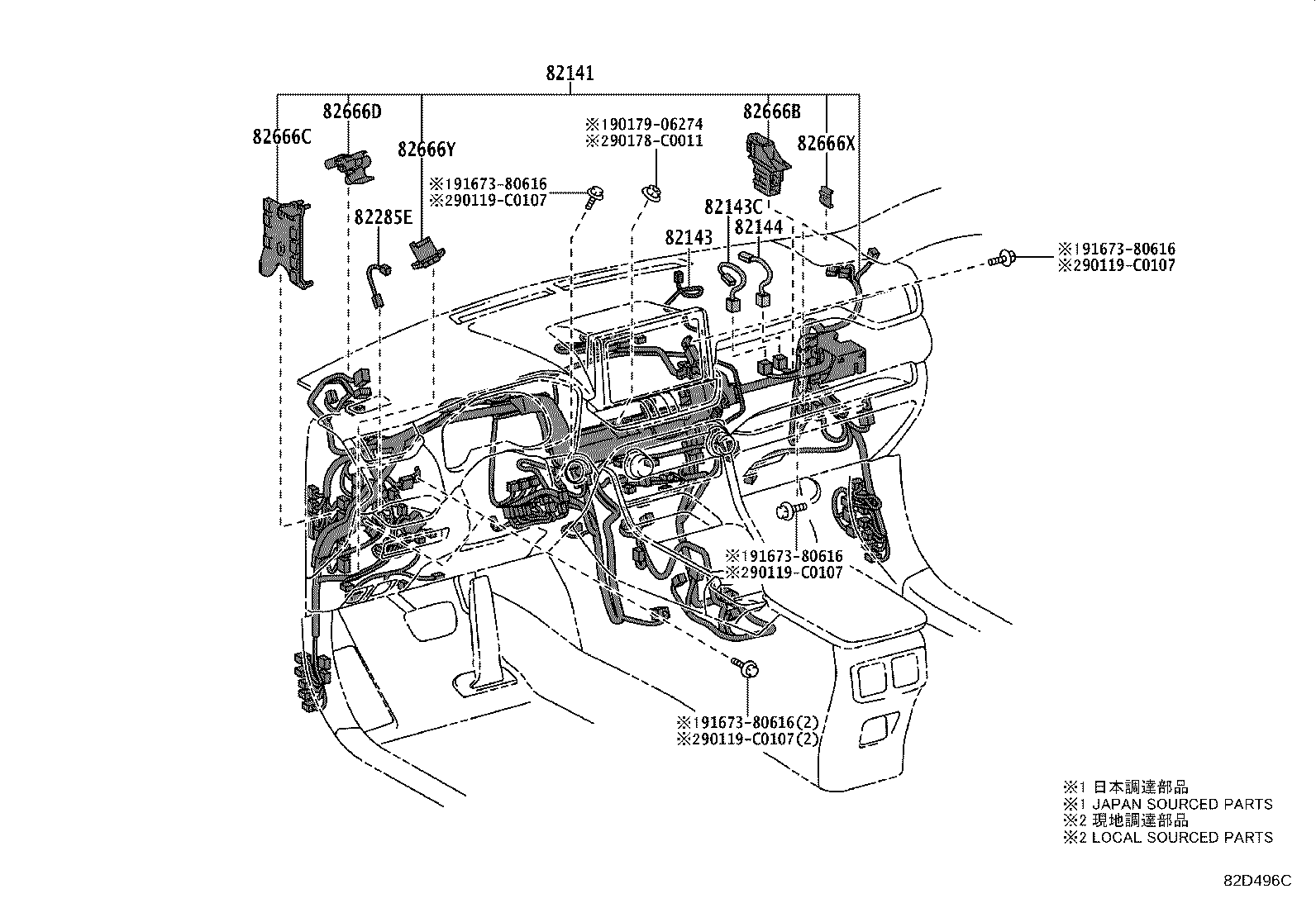

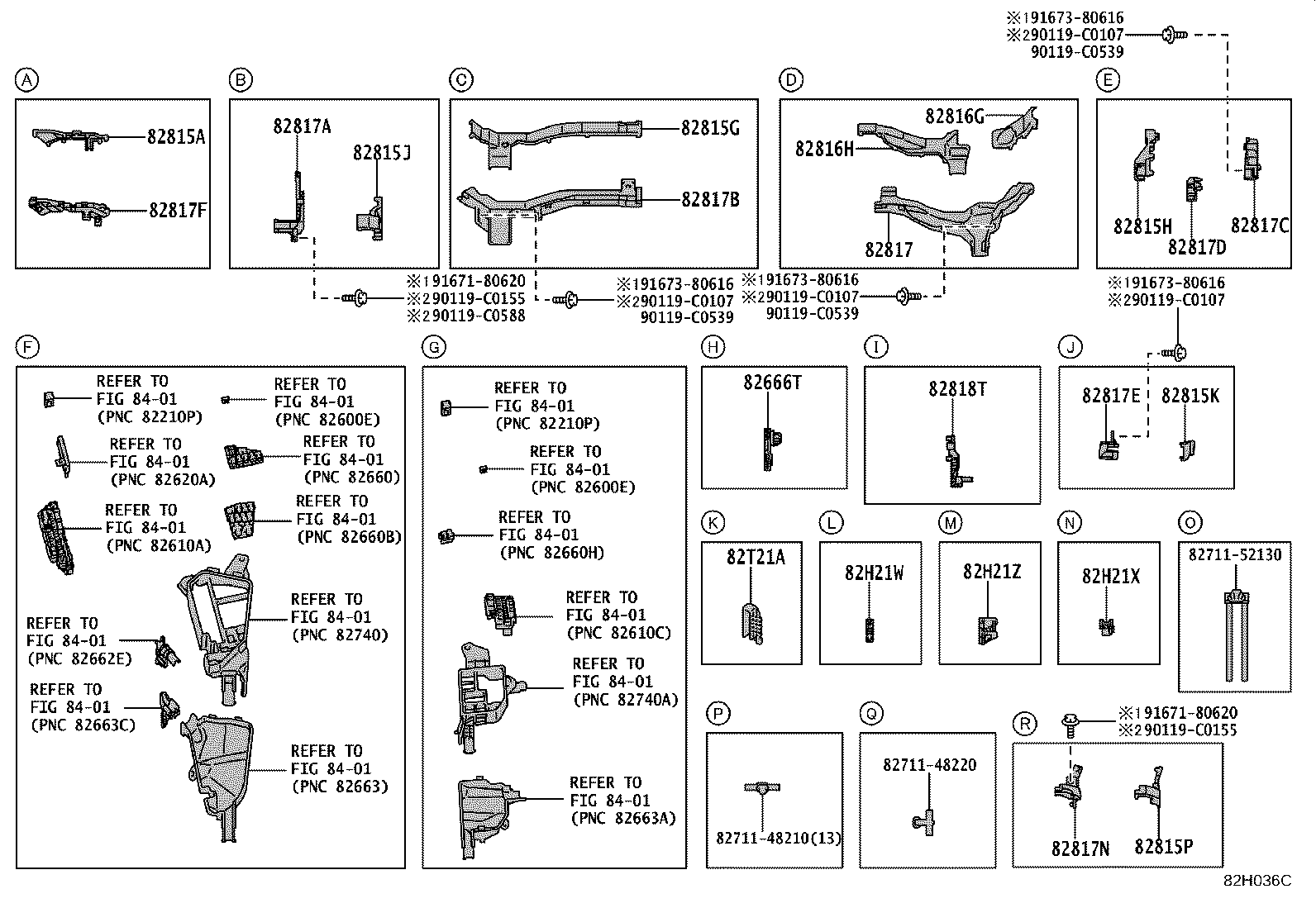

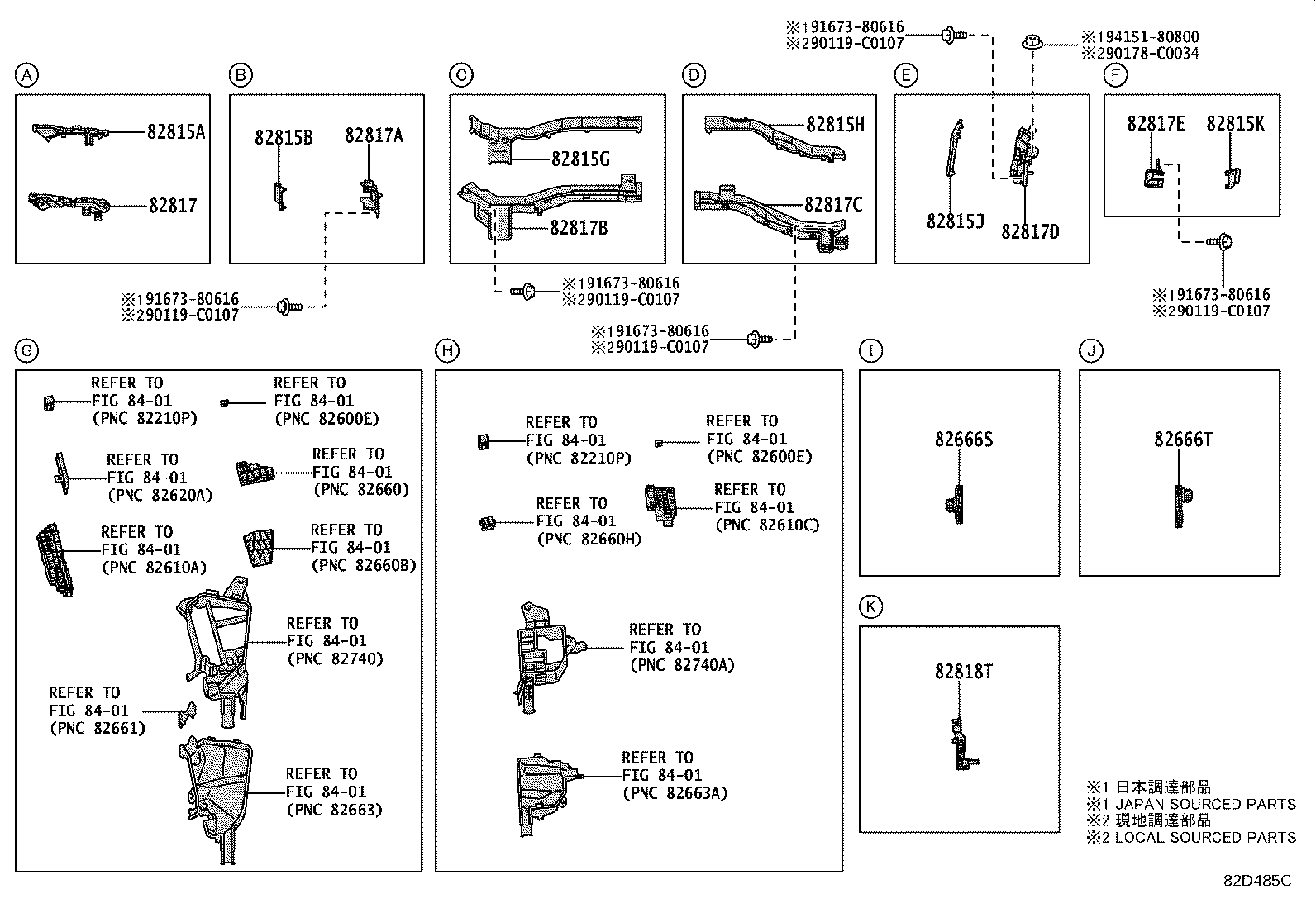

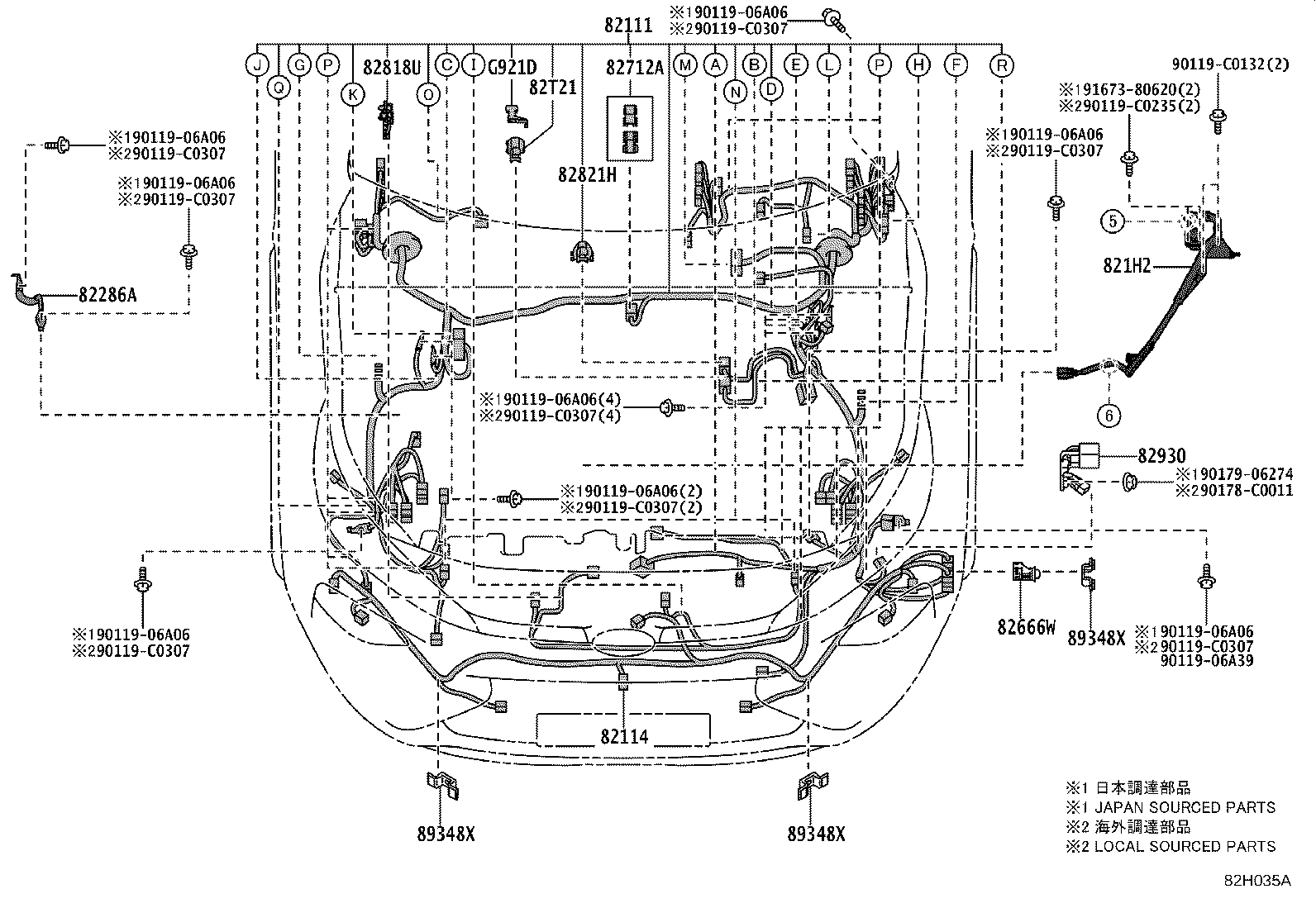

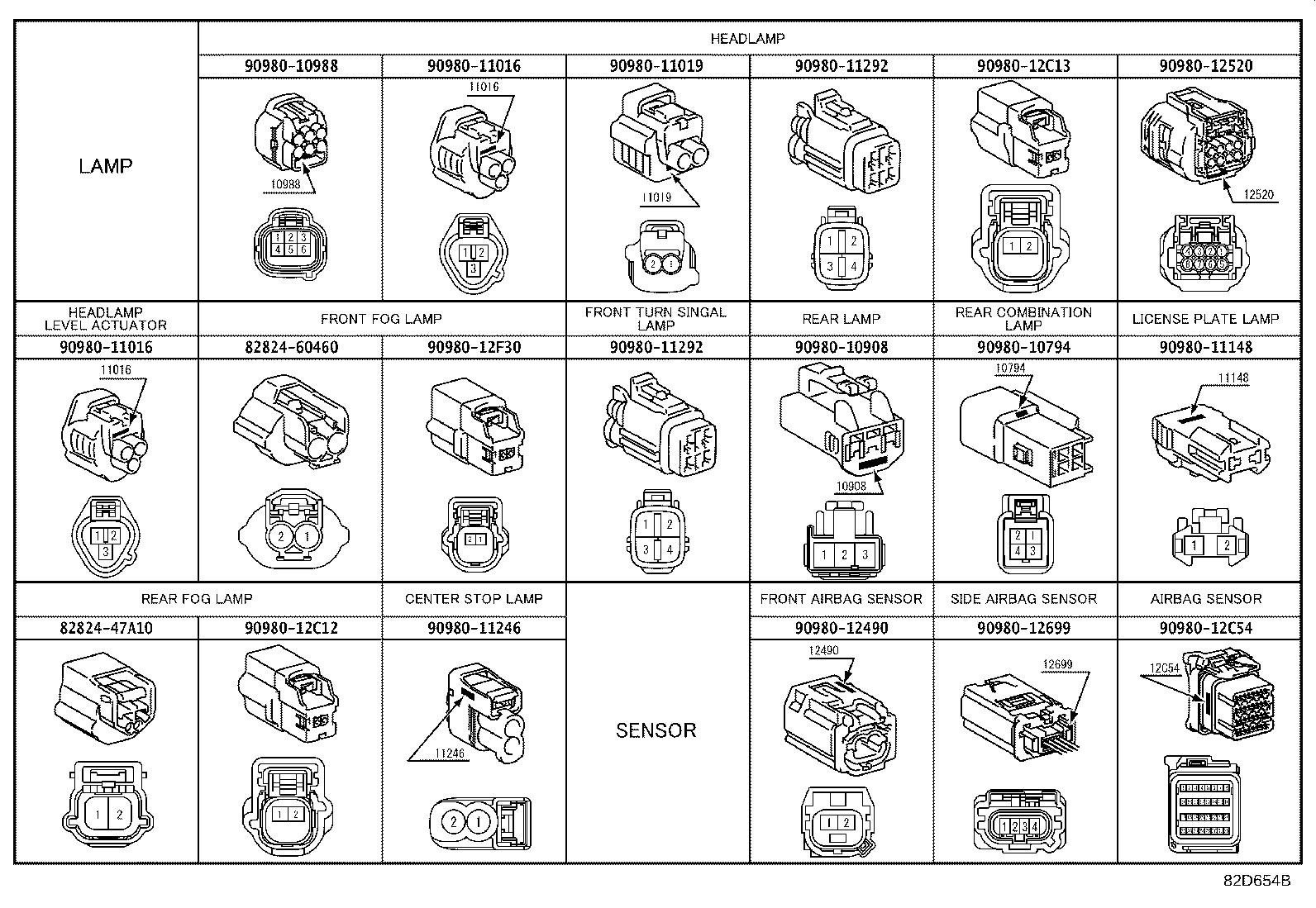

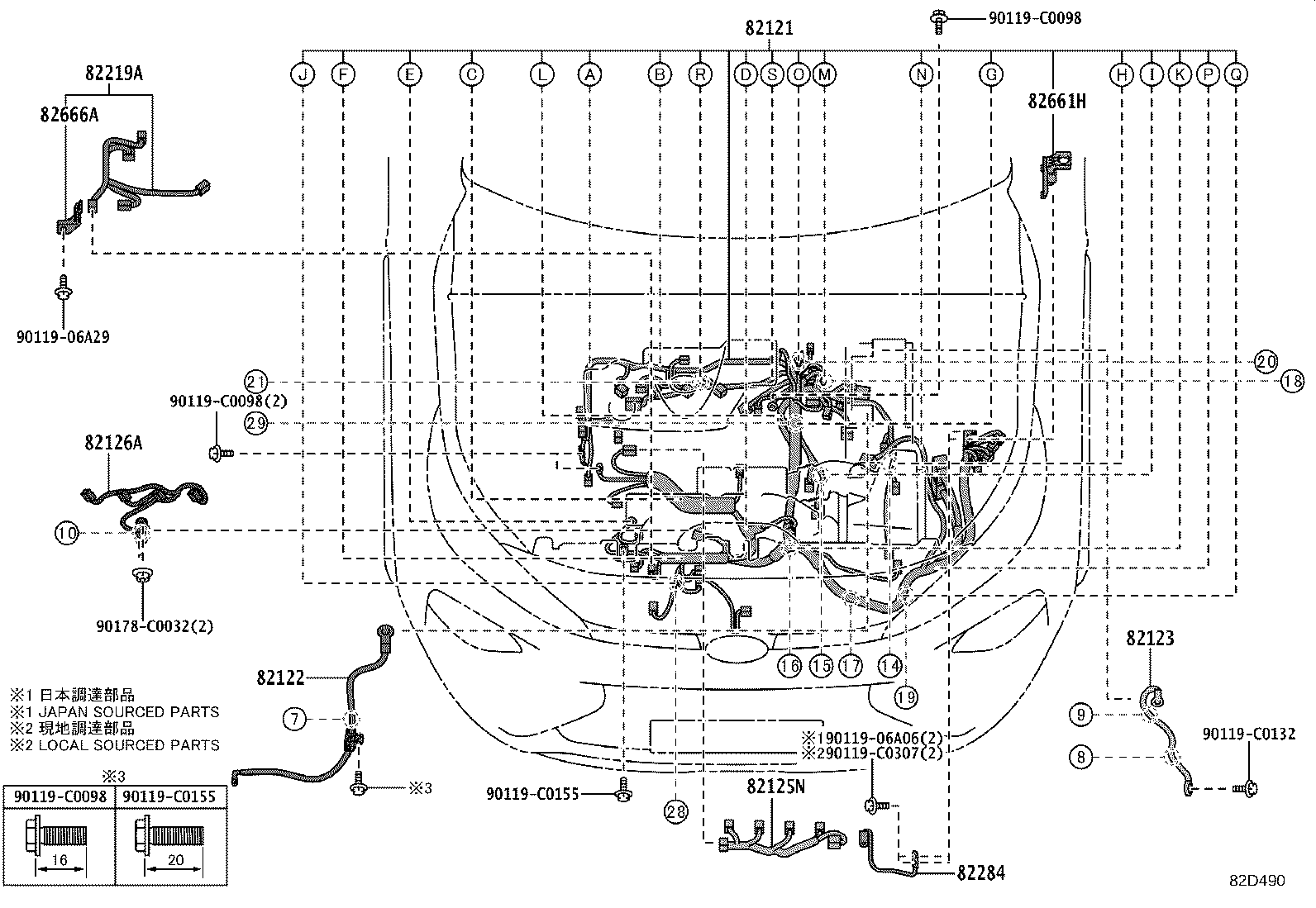

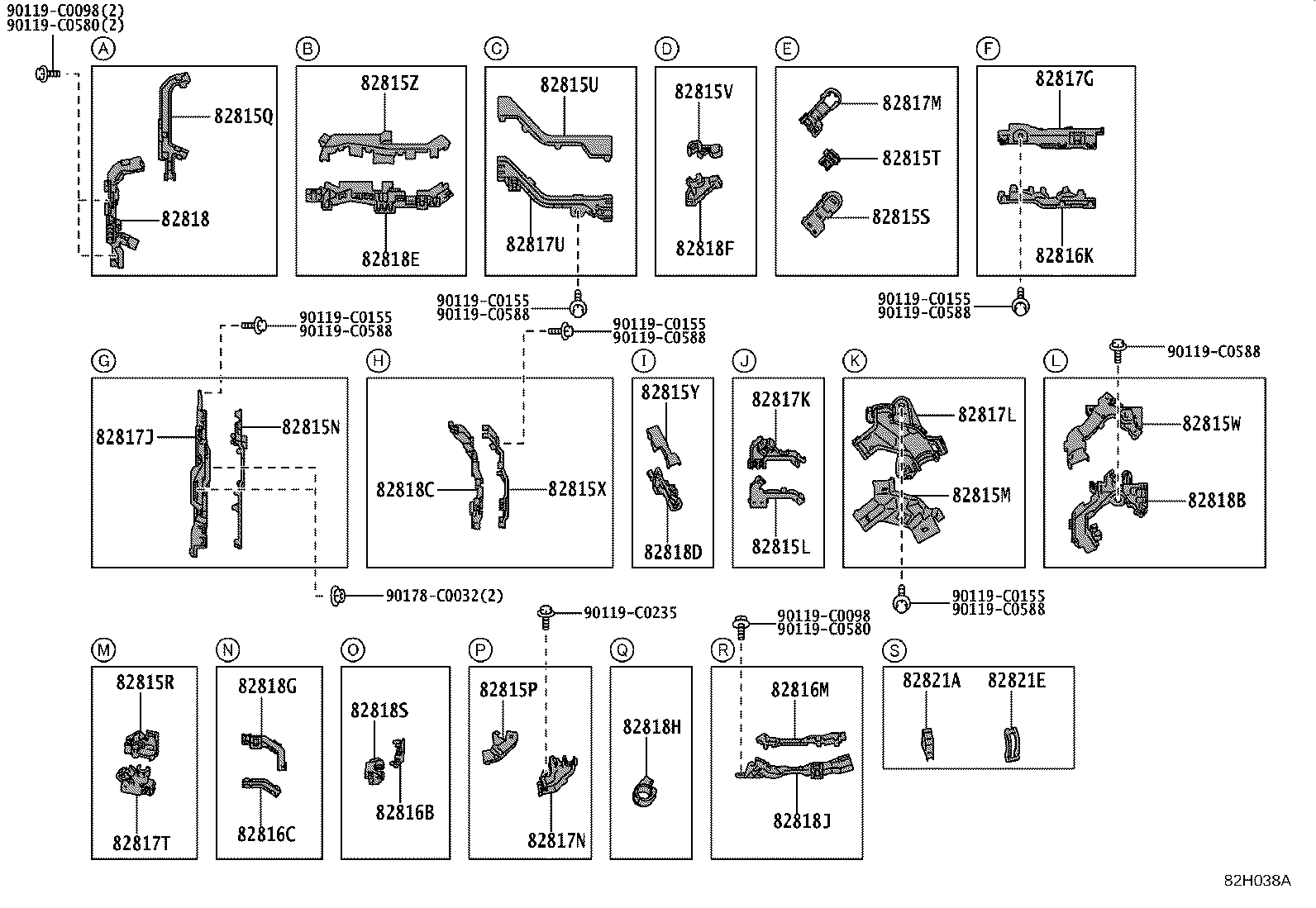

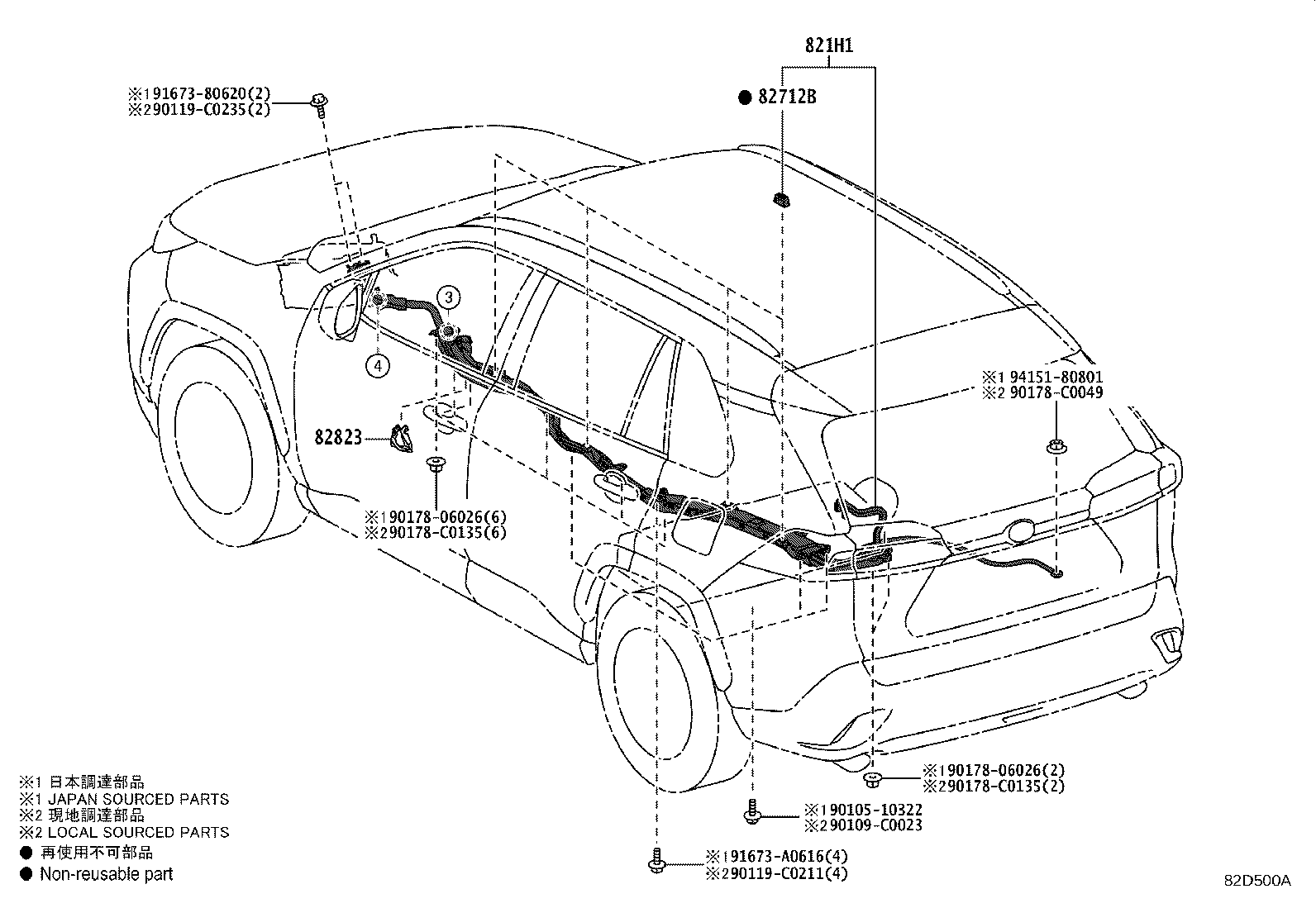

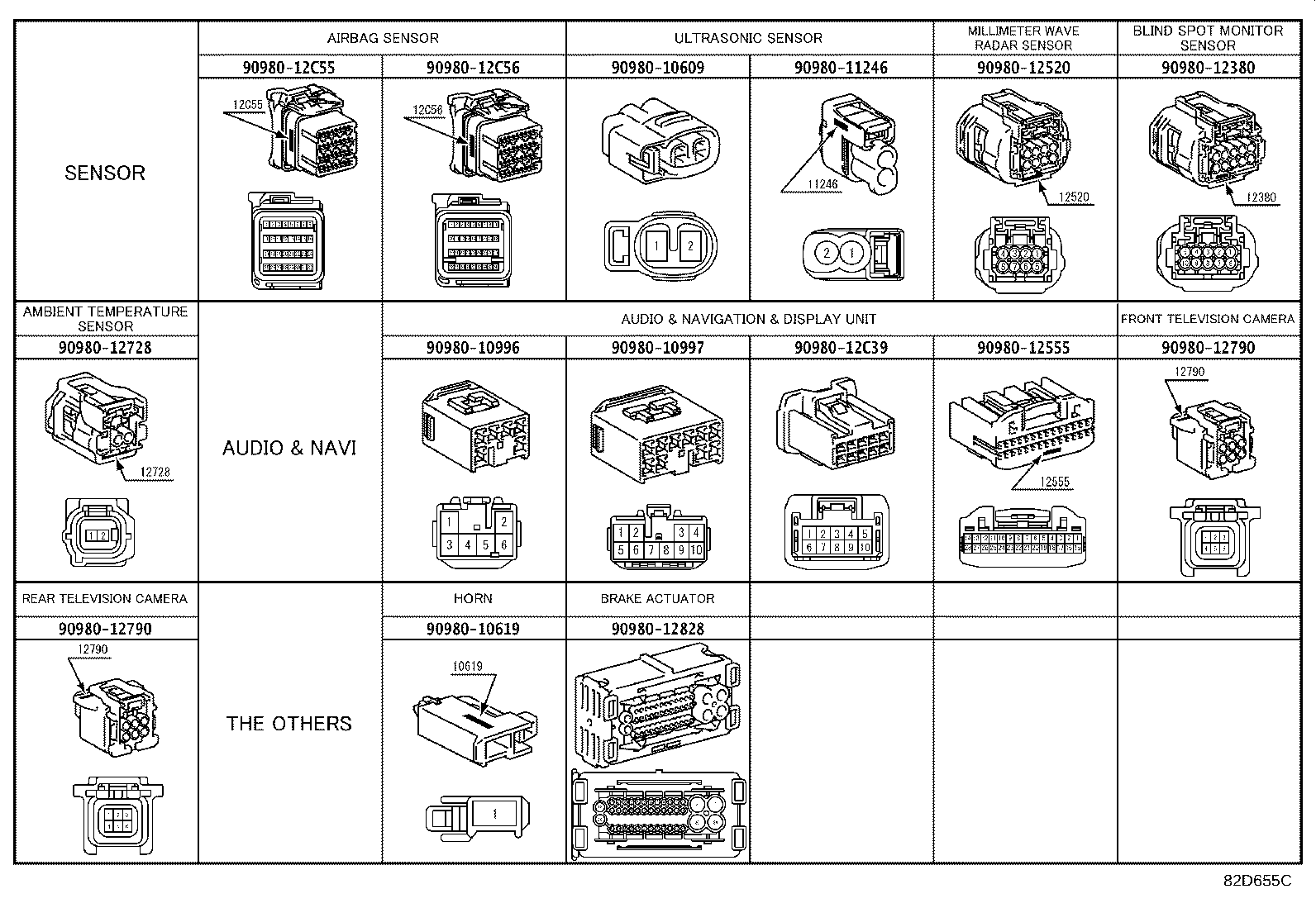

Figure 82D484A 82D484A 2020-04 → 2023-04 Figure 82D484A 82D484A 2020-04 → — Figure 82D485C 82D485C 2020-04 → 2023-04 Figure 82D485C 82D485C 2020-04 → — Figure 82D486C 82D486C 2020-04 → — Figure 82D487D 82D487D 2020-04 → — Figure 82D488C 82D488C 2020-04 → — Figure 82D489E 82D489E 2020-04 → — Figure 82H033A 82H033A 2023-04 → — Figure 82H034B 82H034B 2023-04 → — Figure 82H035A 82H035A 2023-04 → — Figure 82H036C 82H036C 2023-04 → — Figure 82D490 82D490 2020-04 → 2023-04 Figure 82D490 82D490 2020-04 → — Figure 82D491B 82D491B 2020-04 → 2023-04 Figure 82D491B 82D491B 2020-04 → — Figure 82D492B 82D492B 2020-04 → — Figure 82D493B 82D493B 2020-04 → — Figure 82D494A 82D494A 2020-04 → — Figure 82D495A 82D495A 2020-04 → — Figure 82H037 82H037 2023-04 → — Figure 82H038A 82H038A 2023-04 → — Figure 82H039 82H039 2023-04 → — Figure 82H040A 82H040A 2023-04 → — Figure 82H041 82H041 2023-04 → — Figure 82H042A 82H042A 2023-04 → — Figure 82H043 82H043 2023-04 → — Figure 82H044A 82H044A 2023-04 → — Figure 82D496C 82D496C 2020-04 → — Figure 82D497 82D497 2020-04 → — Figure 82D498C 82D498C 2020-04 → — Figure 82D499C 82D499C 2020-04 → — Figure 82D500A 82D500A 2020-04 → — Figure 82D501A 82D501A 2020-04 → — Figure 82D502 82D502 2020-04 → — Figure 82D503B 82D503B 2020-04 → — Figure 82D504D 82D504D 2020-04 → — Figure 82D654B 82D654B 2020-04 → — Figure 82D655C 82D655C 2020-04 → —

Part groups

PNCDescription
31364E Wire, Clutch Control Solenoid
46431 Bolt, Wire
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125 Wire, Transmission
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82143C Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163B Wire, Floor NO.5
82164 Wire, Frame
82166 Wire, Console Box
82169A Wire, Floor, NO.6
8216B Wire, Floor NO.8
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1

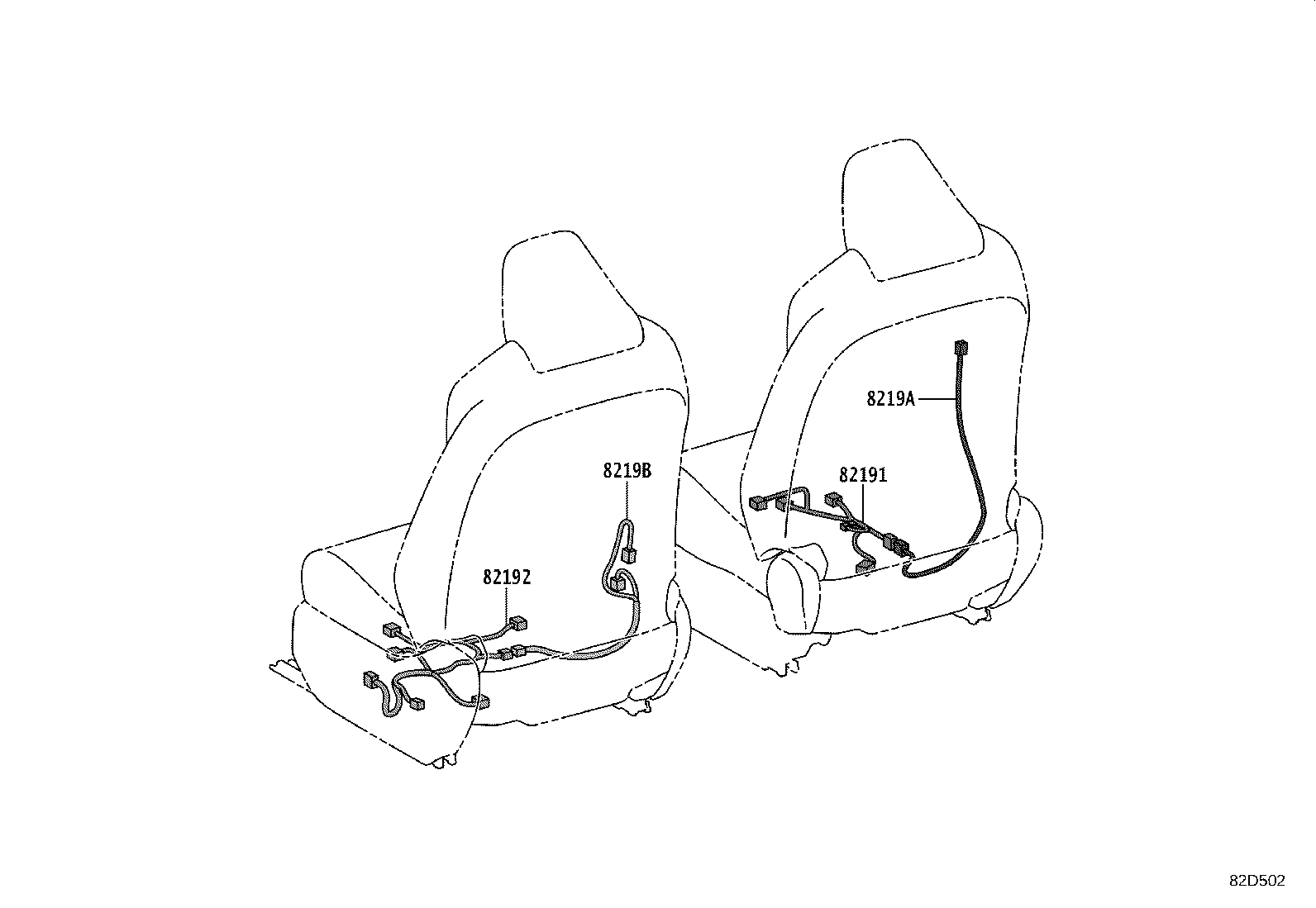

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
82219A Wire, Sensor
82284 Wire, Earth
82285E Wire, Illumination
82286A Wire, Earth, NO.2
82412 Wire, Fuel Gage
82661H Cover, Relay Block
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82712C Support, Wiring Harness, NO.1
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9
82816M Cover, Wiring Harness Protector, NO.10
82816P Cover, Wiring Harness Protector, NO.12
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82818V Protector, Wiring Harness, NO.18
82818Y Protector, Wiring Harness, NO.21
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821P Cover, Connector
82823 Cap, Terminal, NO.1
82930 Condenser Assy, Wiring Harness, NO.1
82H21W Cover, Connector
82H21X Cover, Connector
82H21Y Cover, Connector
82H21Z Cover, Connector
82T21 Cover, Connector
82T21A Cover, Connector
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89348X Clip, Ultrasonic Sensor, Front
G921D Protector, Inverter Connector Cover
G921G Protector, Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
