Toyota Wildlander (GTMC)

2020-04 → present · chassis AXAH5#,AXAL5#,MXAA5# · catalogue 664330 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

6 part groups · 2 illustrations

Illustrations

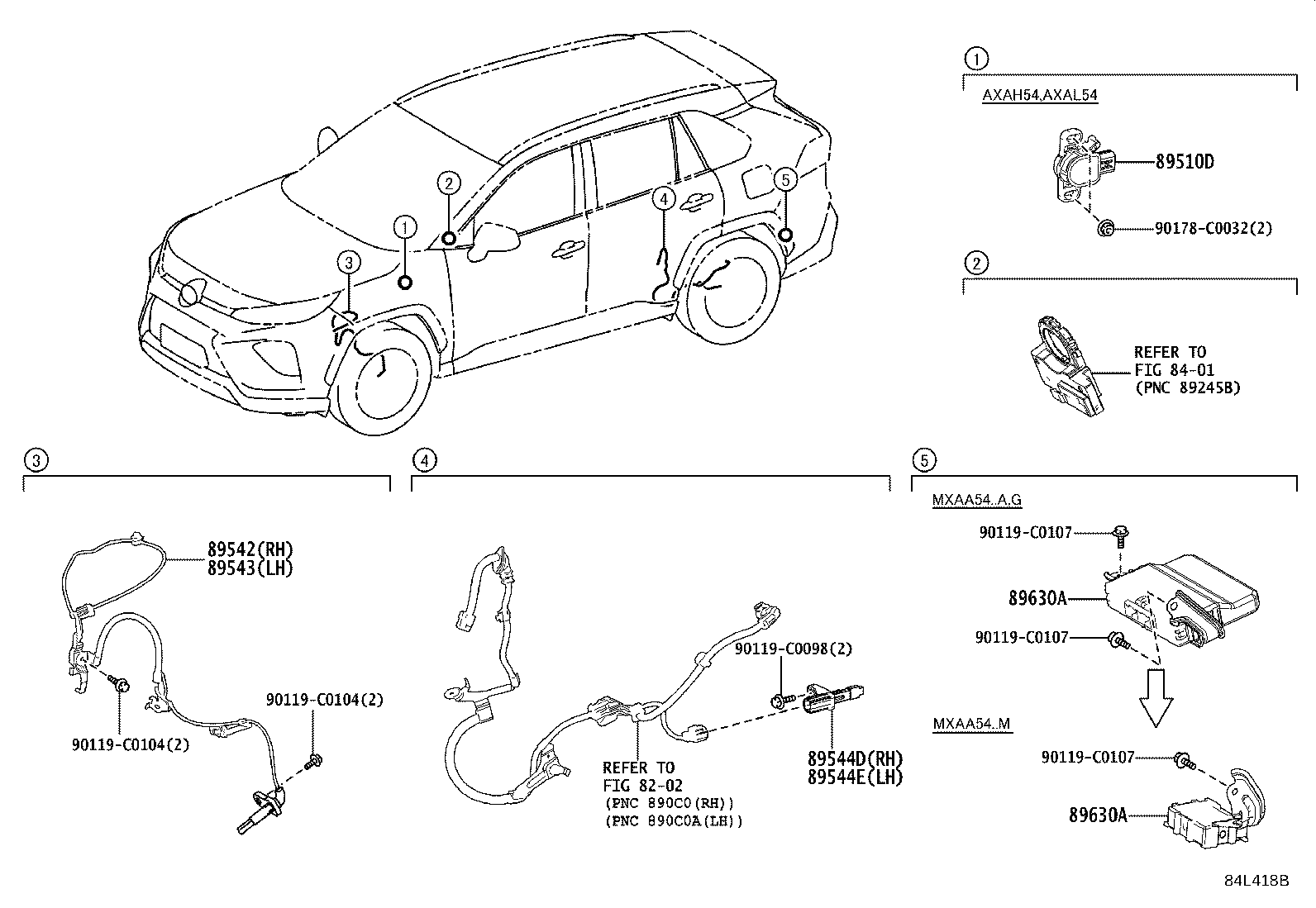

Figure 84L417C 84L417C 2020-04 → — Figure 84L418B 84L418B 2020-04 → —

Part groups

PNCDescription
89510D Sensor Assy, Brake Pedal Stroke
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544D Sensor, Skid Control, Rear RH
89544E Sensor, Skid Control, Rear LH
89630A Computer Assy, 4WD
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
