Toyota Wildlander (GTMC)
2020-04 → present · chassis AXAH5#,AXAL5#,MXAA5# · catalogue 664330 · General
Supported model
Data version 2024-04

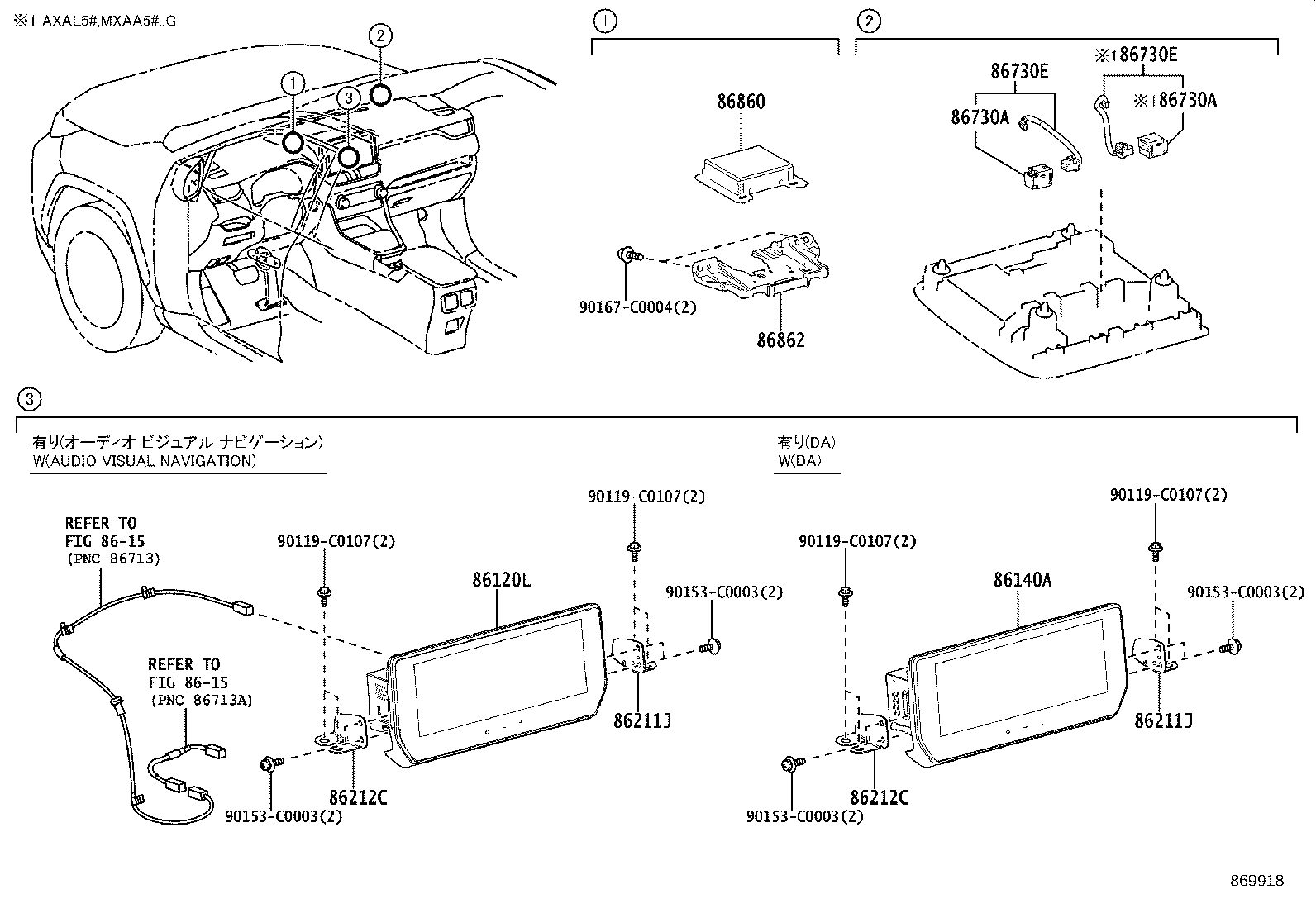

Navigation & Front Monitor Display
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86120L | Receiver Assy, Navigation |
| 86140A | Receiver Assy, Radio & Display |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86730A | Microphone Assy, Telephone |
| 86730E | Microphone Assy |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
