Toyota Wildlander (GTMC)
2020-04 → present · chassis AXAH5#,AXAL5#,MXAA5# · catalogue 664330 · General
Supported model
Data version 2024-04
Telephone & Mayday

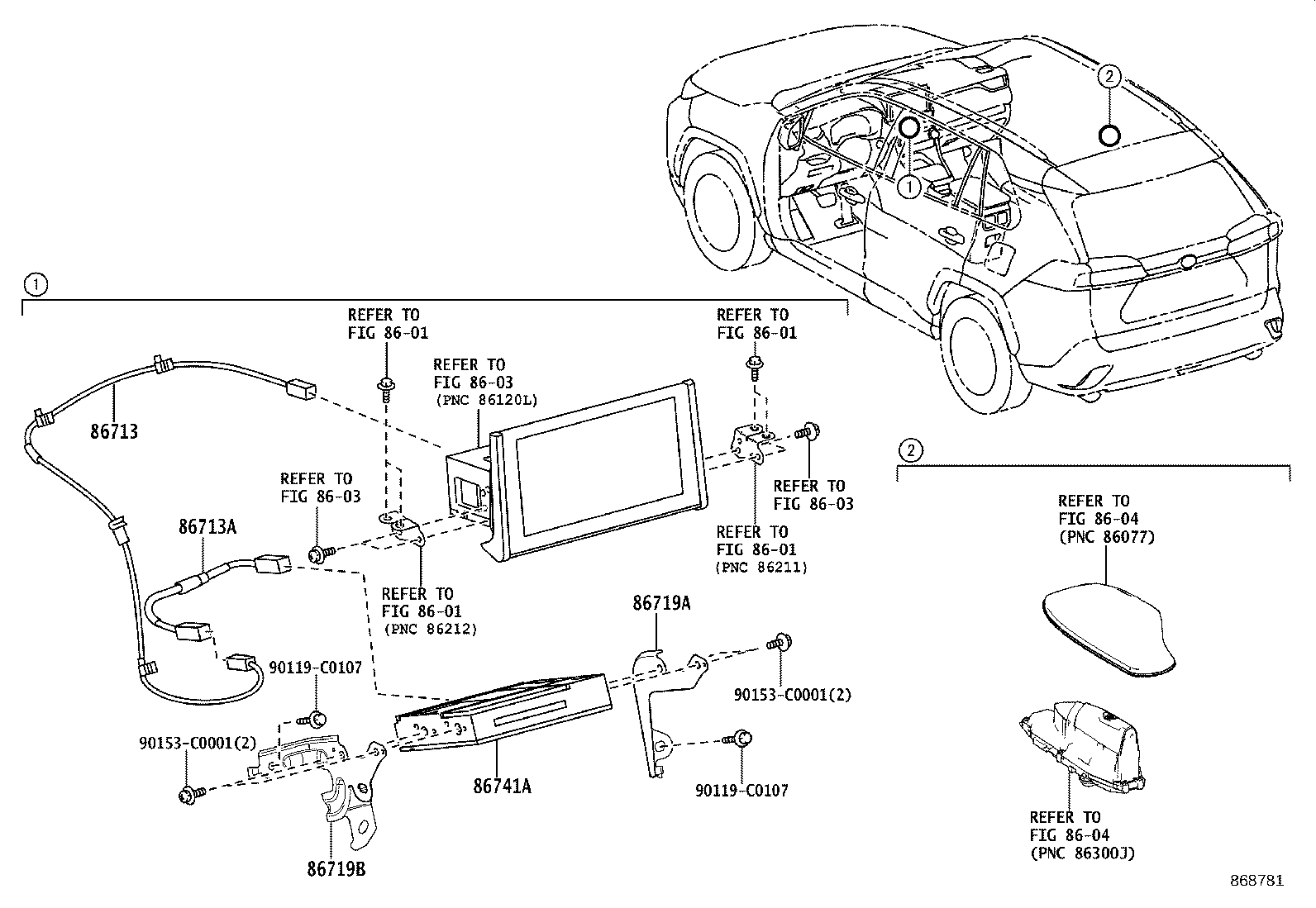

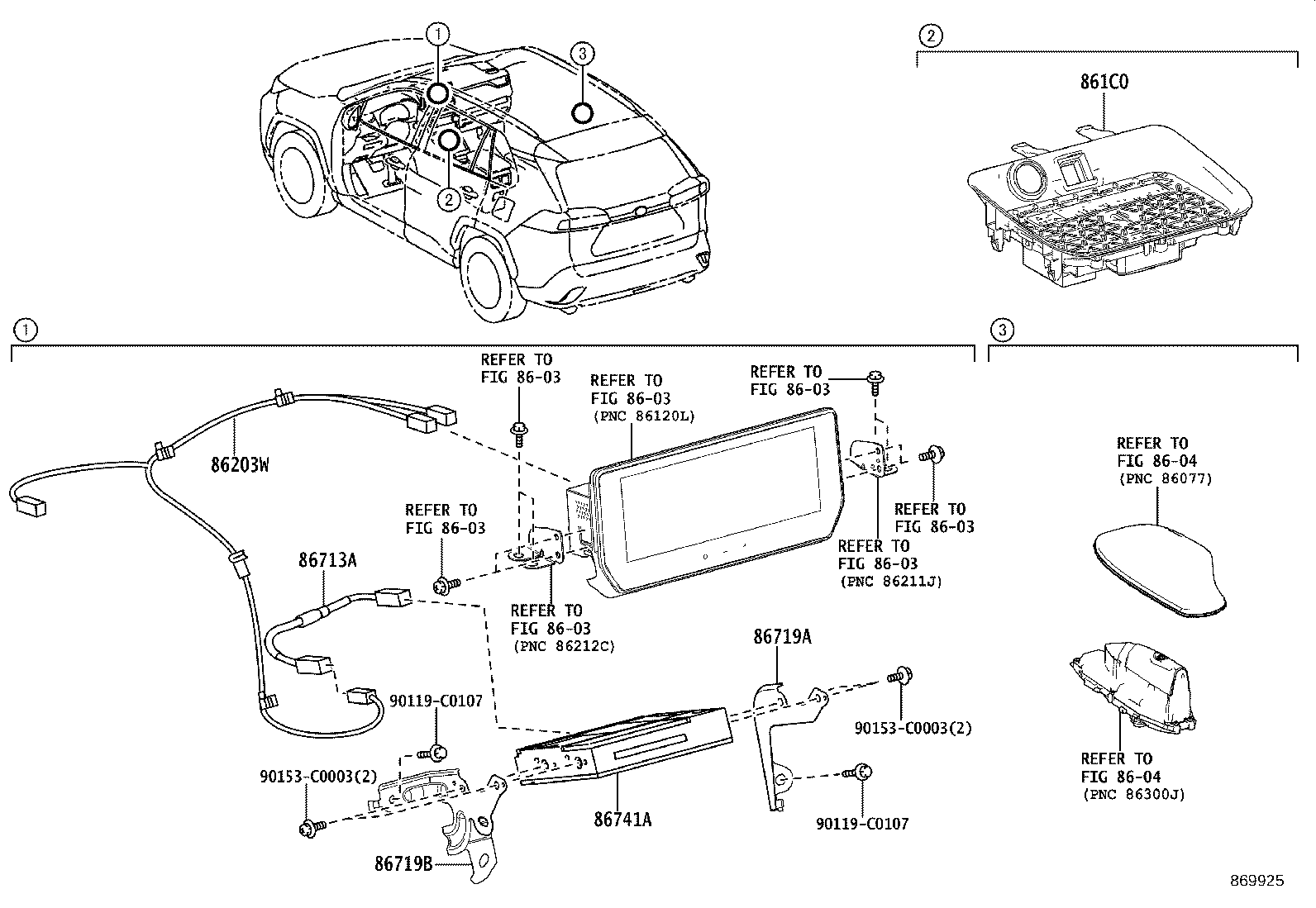

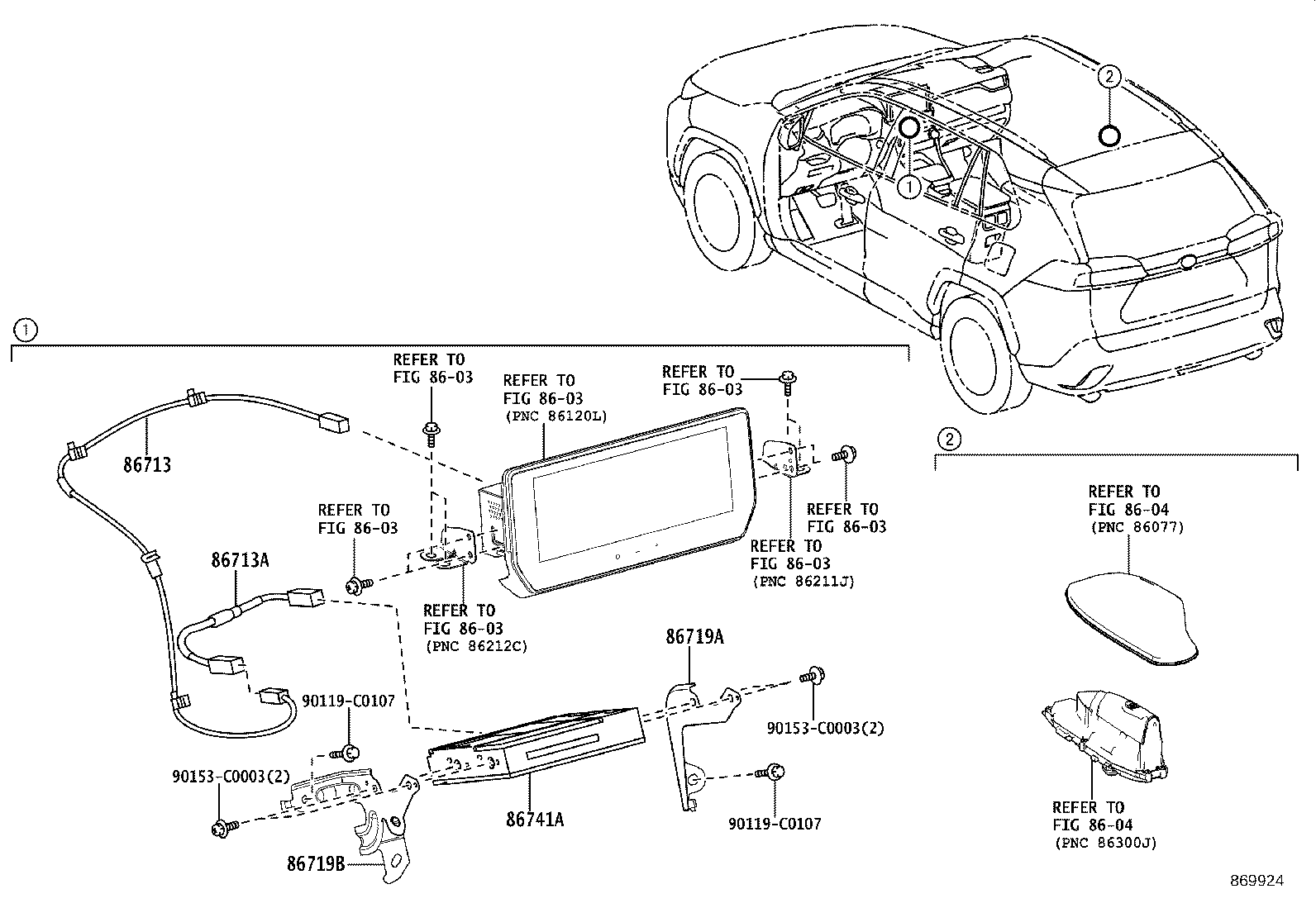

7 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 86203W | Wiring Sub-assy, Radio |
| 86713 | Wire, Telephone Computer |
| 86713A | Wire, Telephone Computer, (TO TRANSCEIVER) |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86741A | Transceiver, Telematics |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
