Toyota Wildlander (GTMC)

2020-04 → present · chassis AXAH5#,AXAL5#,MXAA5# · catalogue 664330 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

29 part groups · 6 illustrations

Illustrations

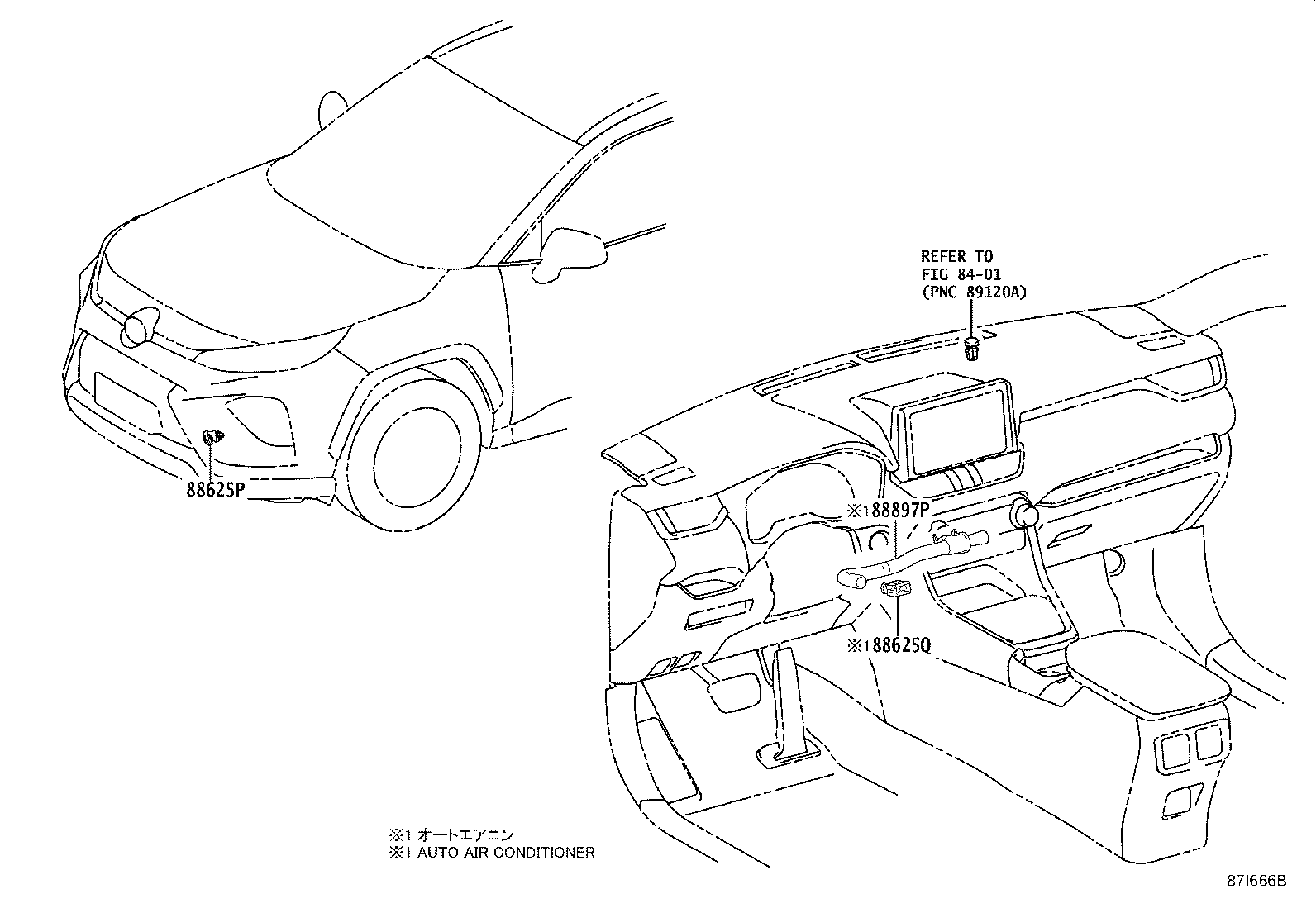

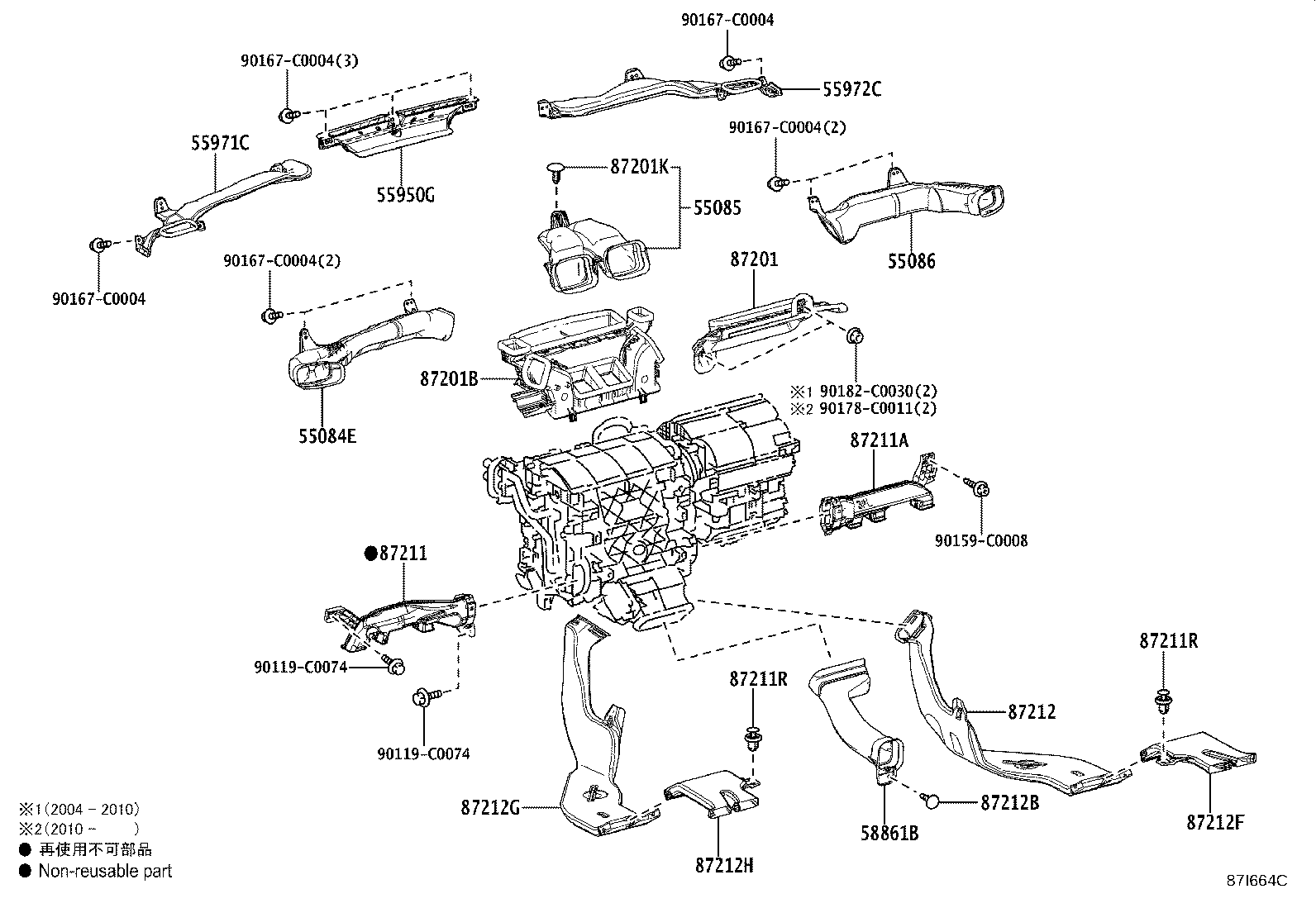

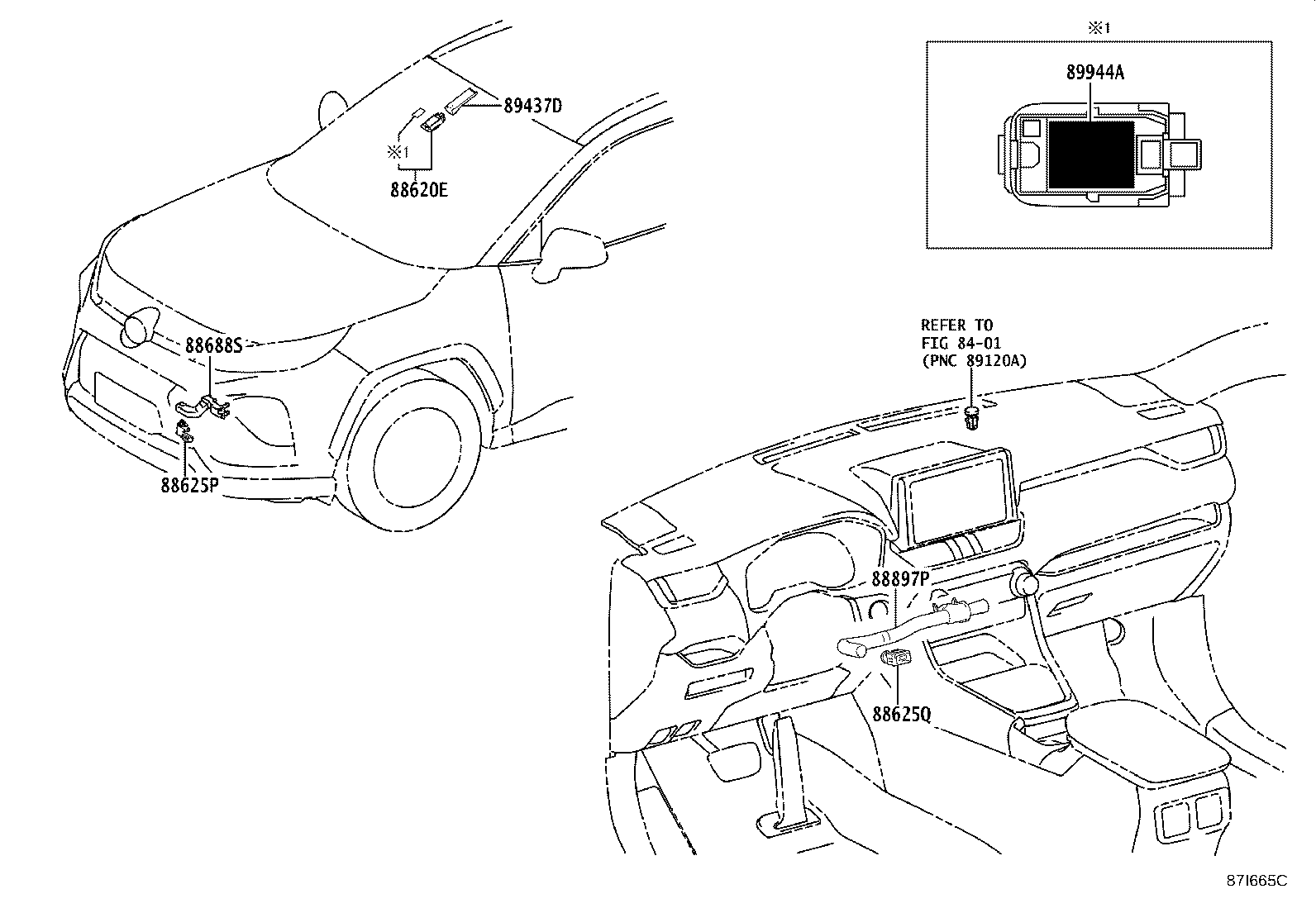

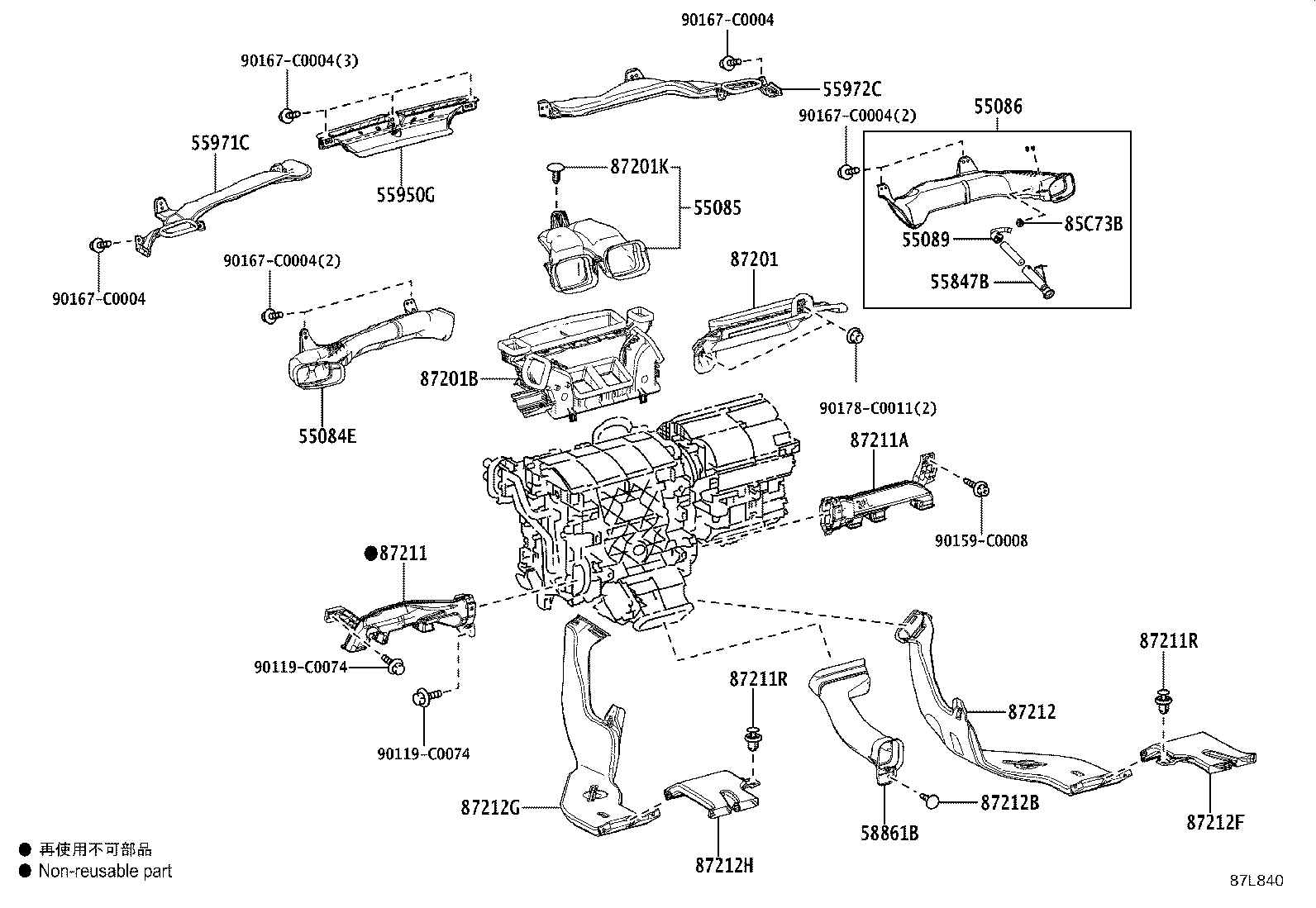

Figure 87I663A 87I663A 2020-04 → — Figure 87I664C 87I664C 2020-04 → — Figure 87I664C 87I664C 2023-04 → — Figure 87L840 87L840 2023-04 → — Figure 87I665C 87I665C 2020-04 → — Figure 87I666B 87I666B 2020-04 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55089 Duct Sub-assy, Heater TO Register, NO.6
55847B Duct, Heater TO Register, NO.5
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
85C73B Grommet, Washer
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201K Clip (FOR AIR DUCT)
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
88620E Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88688S Bracket (FOR COOLER THERMISTOR)
88897P Aspirator
89437D Cover, Sensor
89944A Tape(FOR AIR CONDITIONER THERMISTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
