Toyota RAV4 Phev
2021-04 → present · chassis AXAP5# · catalogue 667310 · General
Supported model
Data version 2023-03

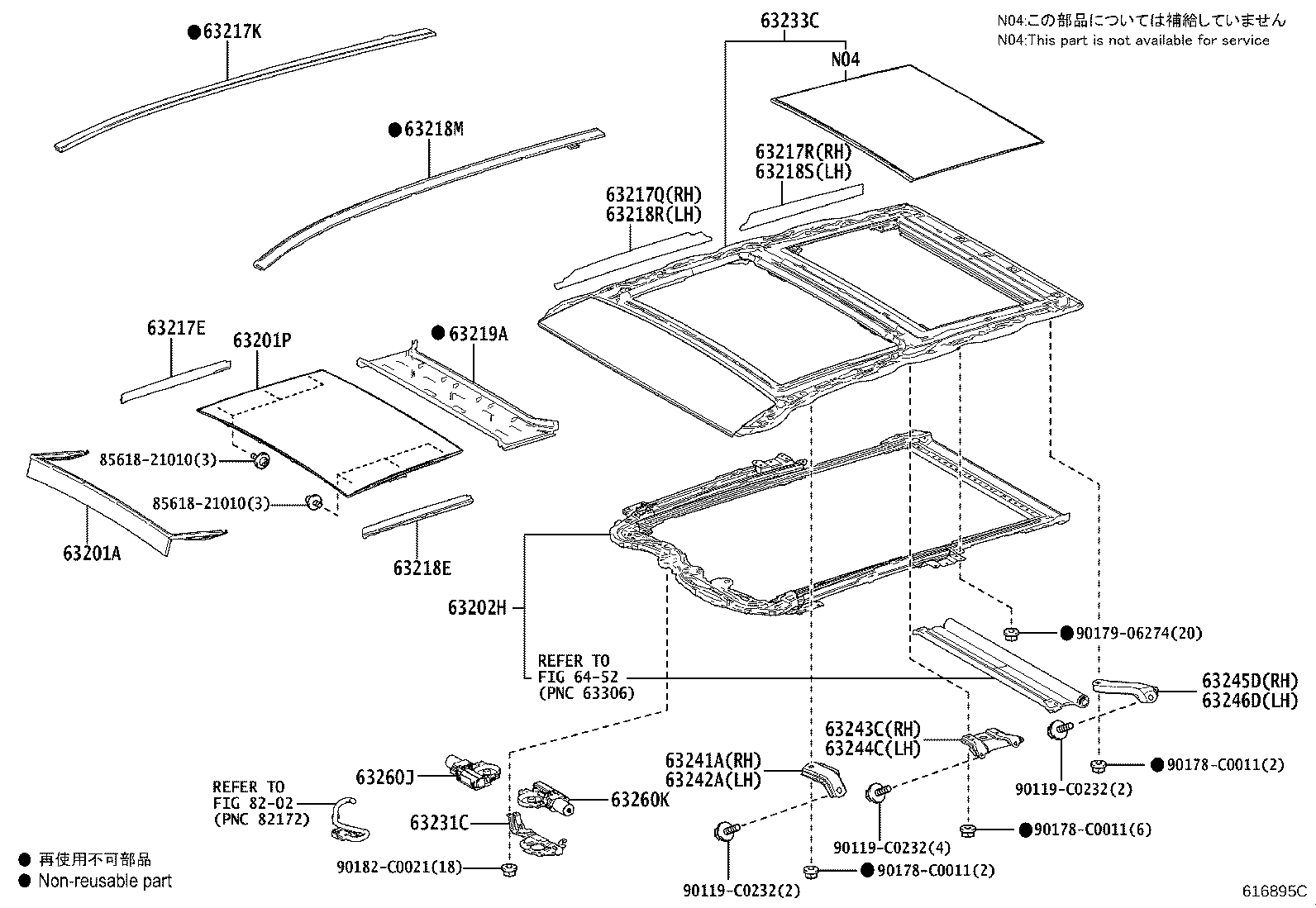

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201A — Panel Sub-assy, Sliding Roof OR Removable Roof | ||||
| 63201-0R100 |
Panel Sub-assy, Sliding Roof OR Removable Roof
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63201-0R100 |
Panel Sub-assy, Sliding Roof OR Removable Roof
2023-04 → —
|
AXAP54 | — | |
| 63201P — Glass Sub-assy, Sliding Roof | ||||
| 63201-0R110 |
Glass Sub-assy, Sliding Roof
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63201-0R110 |
Glass Sub-assy, Sliding Roof
2023-04 → —
|
AXAP54 | — | |
| 63202H — Rail Sub-assy, Slide Roof | ||||
| 63202-0R081-B0 note |
Rail Sub-assy, Slide Roof
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63202-0R081-B0 note |
Rail Sub-assy, Slide Roof
2023-04 → —
|
AXAP54 | — | |
| 63217E — Garnish, Sliding Roof, Front RH | ||||
| 63217-0R070 |
Garnish, Sliding Roof, Front RH
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63217-0R070 |
Garnish, Sliding Roof, Front RH
2023-04 → —
|
AXAP54 | — | |
| 63217K — Garnish, Sliding Roof Side, RH | ||||
| 63217-07020 |
Garnish, Sliding Roof Side, RH
2021-04 → 2023-04
ended
|
AXAP52 M | — | |
| 63217-0R100 |
Garnish, Sliding Roof Side, RH
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63217-07020 |
Garnish, Sliding Roof Side, RH
2023-04 → —
|
AXAP52 M | — | |
| 63217-0R100 |
Garnish, Sliding Roof Side, RH
2023-04 → —
|
AXAP54 | — | |
| 63217Q — Garnish, Sliding Roof Side, RH | ||||
| 63217-0R080 |
Garnish, Sliding Roof Side, RH
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63217-0R080 |
Garnish, Sliding Roof Side, RH
2023-04 → —
|
AXAP54 | — | |
| 63217R — Garnish, Sliding Roof Side, RH | ||||
| 63217-0R090 |
Garnish, Sliding Roof Side, RH
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63217-0R090 |
Garnish, Sliding Roof Side, RH
2023-04 → —
|
AXAP54 | — | |
| 63218E — Garnish, Sliding Roof, Front LH | ||||
| 63218-0R070 |
Garnish, Sliding Roof, Front LH
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63218-0R070 |
Garnish, Sliding Roof, Front LH
2023-04 → —
|
AXAP54 | — | |
| 63218M — Garnish, Sliding Roof Side, LH | ||||
| 63217-07020 |
Garnish, Sliding Roof Side, LH
2021-04 → 2023-04
ended
|
AXAP52 M | — | |
| 63218-0R100 |
Garnish, Sliding Roof Side, LH
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63217-07020 |
Garnish, Sliding Roof Side, LH
2023-04 → —
|
AXAP52 M | — | |
| 63218-0R100 |
Garnish, Sliding Roof Side, LH
2023-04 → —
|
AXAP54 | — | |
| 63218R — Garnish, Sliding Roof Side, LH | ||||
| 63218-0R080 |
Garnish, Sliding Roof Side, LH
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63218-0R080 |
Garnish, Sliding Roof Side, LH
2023-04 → —
|
AXAP54 | — | |
| 63218S — Garnish, Sliding Roof Side, LH | ||||
| 63218-0R090 |
Garnish, Sliding Roof Side, LH
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63218-0R090 |
Garnish, Sliding Roof Side, LH
2023-04 → —
|
AXAP54 | — | |
| 63219A — Garnish, Sliding Roof, Rear | ||||
| 63219-0R020 |
Garnish, Sliding Roof, Rear
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63219-0R020 |
Garnish, Sliding Roof, Rear
2023-04 → —
|
AXAP54 | — | |
| 63231C — Bracket, Room Lamp | ||||
| 63231-0R100 |
Bracket, Room Lamp
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63231-0R100 |
Bracket, Room Lamp
2023-04 → —
|
AXAP54 | — | |
| 63233C — Panel, Sliding Roof Housing | ||||
| 63233-0R072 |
Panel, Sliding Roof Housing
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63233-0R072 |
Panel, Sliding Roof Housing
2023-04 → —
|
AXAP54 | — | |
| 63241A — Bracket, Sliding Roof Housing Front Mounting, RH | ||||
| 63241-0R070 |
Bracket, Sliding Roof Housing Front Mounting, RH
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63241-0R070 |
Bracket, Sliding Roof Housing Front Mounting, RH
2023-04 → —
|
AXAP54 | — | |
| 63242A — Bracket, Sliding Roof Housing Front Mounting, LH | ||||
| 63241-0R070 |
Bracket, Sliding Roof Housing Front Mounting, LH
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63241-0R070 |
Bracket, Sliding Roof Housing Front Mounting, LH
2023-04 → —
|
AXAP54 | — | |
| 63243C — Bracket, Sliding Roof Housing Center Mounting, RH | ||||
| 63243-0R050 |
Bracket, Sliding Roof Housing Center Mounting, RH
2021-04 → 2021-07
ended
|
AXAP54 | — | |
| 63243-0R051 |
Bracket, Sliding Roof Housing Center Mounting, RH
2021-08 → 2023-04
ended
|
AXAP54 | — | |
| 63243-0R051 |
Bracket, Sliding Roof Housing Center Mounting, RH
2023-04 → —
|
AXAP54 | — | |
| 63244C — Bracket, Sliding Roof Housing Center Mounting, LH | ||||
| 63244-0R050 |
Bracket, Sliding Roof Housing Center Mounting, LH
2021-04 → 2021-07
ended
|
AXAP54 | — | |
| 63244-0R051 |
Bracket, Sliding Roof Housing Center Mounting, LH
2021-08 → 2023-04
ended
|
AXAP54 | — | |
| 63244-0R051 |
Bracket, Sliding Roof Housing Center Mounting, LH
2023-04 → —
|
AXAP54 | — | |
| 63245D — Bracket, Sliding Roof Housing Rear Mounting, RH | ||||
| 63245-0R070 |
Bracket, Sliding Roof Housing Rear Mounting, RH
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63245-0R070 |
Bracket, Sliding Roof Housing Rear Mounting, RH
2023-04 → —
|
AXAP54 | — | |
| 63246D — Bracket, Sliding Roof Housing Rear Mounting, LH | ||||
| 63246-0R040 |
Bracket, Sliding Roof Housing Rear Mounting, LH
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63246-0R040 |
Bracket, Sliding Roof Housing Rear Mounting, LH
2023-04 → —
|
AXAP54 | — | |
| 63260J — Gear Assy, Sliding Roof Drive | ||||
| 63260-0R071 |
Gear Assy, Sliding Roof Drive
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63260-0R071 |
Gear Assy, Sliding Roof Drive
2023-04 → —
|
AXAP54 | — | |
| 63260K — Gear Assy, Sliding Roof Drive | ||||
| 63260-0R080 |
Gear Assy, Sliding Roof Drive
2021-04 → 2023-04
ended
|
AXAP54 | — | |
| 63260-0R080 |
Gear Assy, Sliding Roof Drive
2023-04 → —
|
AXAP54 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
