Toyota RAV4 Phev
2021-04 → present · chassis AXAP5# · catalogue 667310 · General
Supported model
Data version 2023-03

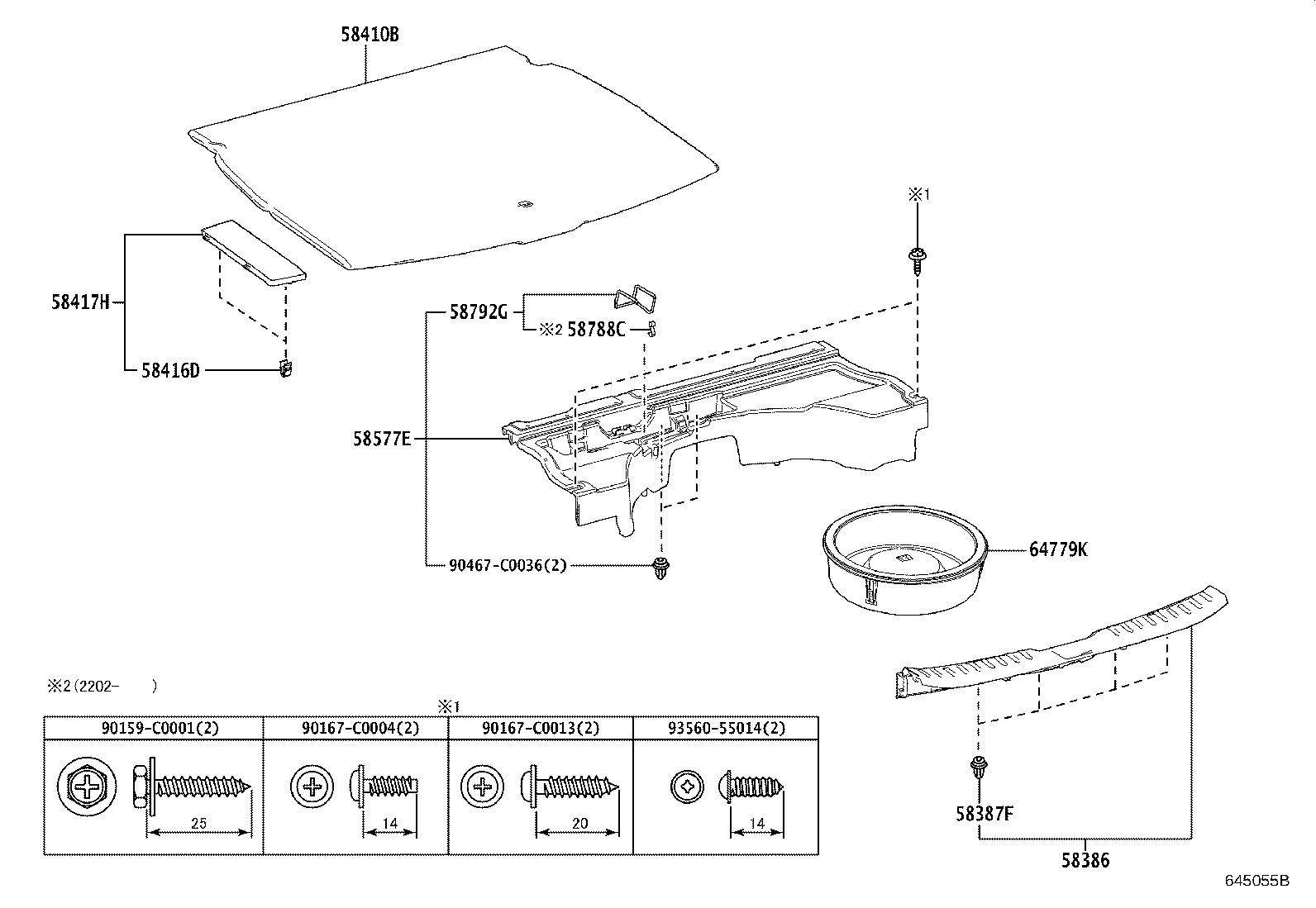

Deck Board & Deck Trim Cover
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58386 | Plate, Rear Floor Finish |
| 58387F | Clip, Rear Floor Finish Plate |
| 58410B | Board Assy, Deck |
| 58416D | Clip, Rear Floor Board |
| 58417H | Board, Rear Floor, NO.3 |
| 58460D | Striker Assy, Luggage Hold Belt |
| 58577E | Plate, Rear Floor Mat Support Side, NO.1 |
| 58788C | Hook, Tool Box Band, NO.1 |
| 58792G | Support, Jack Carrier |
| 64714J | Cover, Deck Side Trim, RH |
| 64718A | Cover, Deck Trim Service Hole |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64730J | Panel Assy, Deck Trim Side, RH |
| 64730K | Clip(FOR DECK SIDE TRIM PANEL) |
| 64740E | Panel Assy, Deck Trim Side, LH |
| 64779K | Stopper, Spare Wheel Cover |
| 65351A | Cover, Battery Hole |
| 73708A | Bracket Set, Tether Anchor |
| 75210B | Box Assy, Tool |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
