Toyota RAV4 Phev
2021-04 → present · chassis AXAP5# · catalogue 667310 · General
Supported model
Data version 2023-03
Interior Lamp
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |

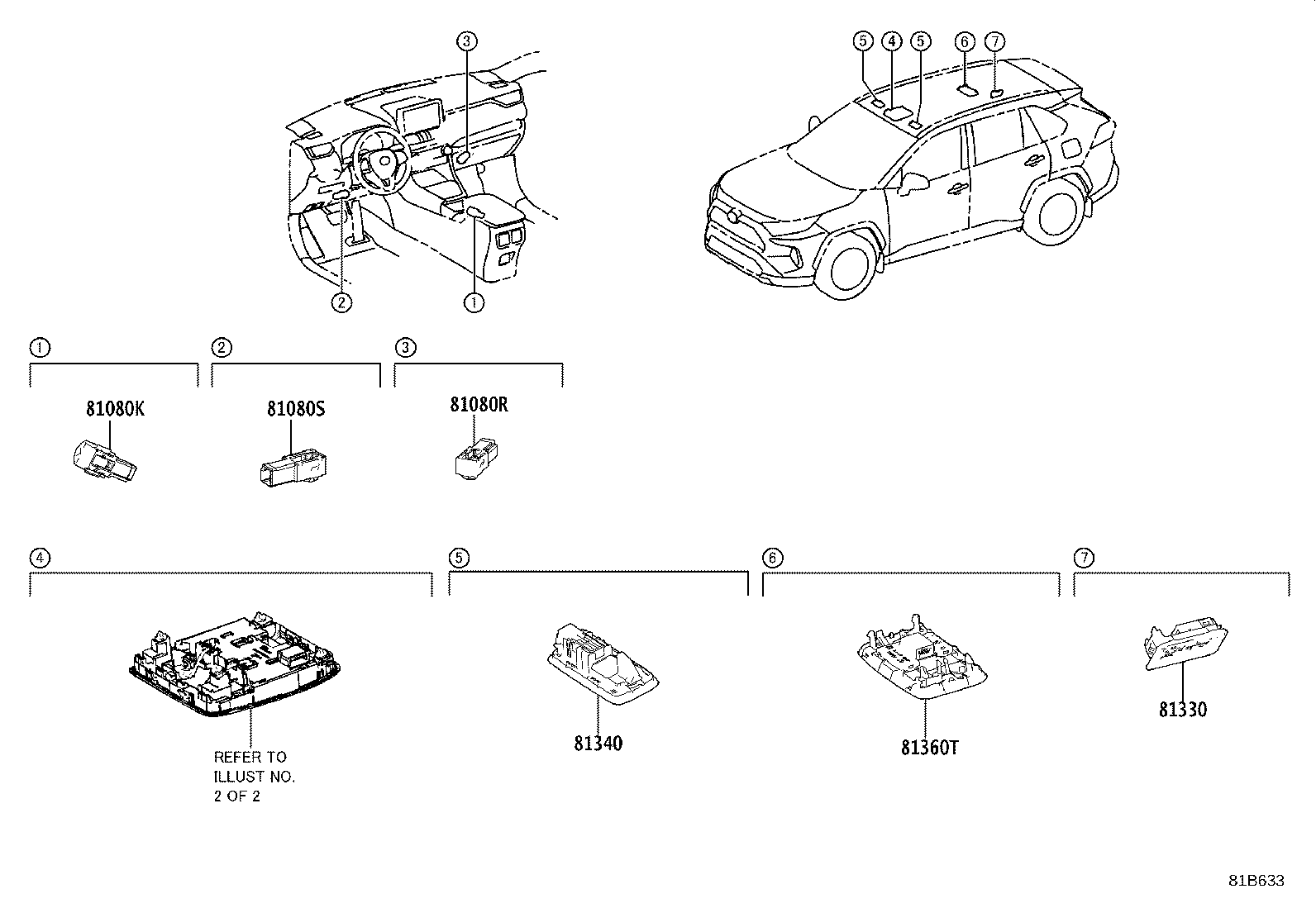

| 81080K | Lamp Assy, Console Box Illumination |
| 81080R | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080S | Lamp Assy, Interior Illumination, NO.1 LH |

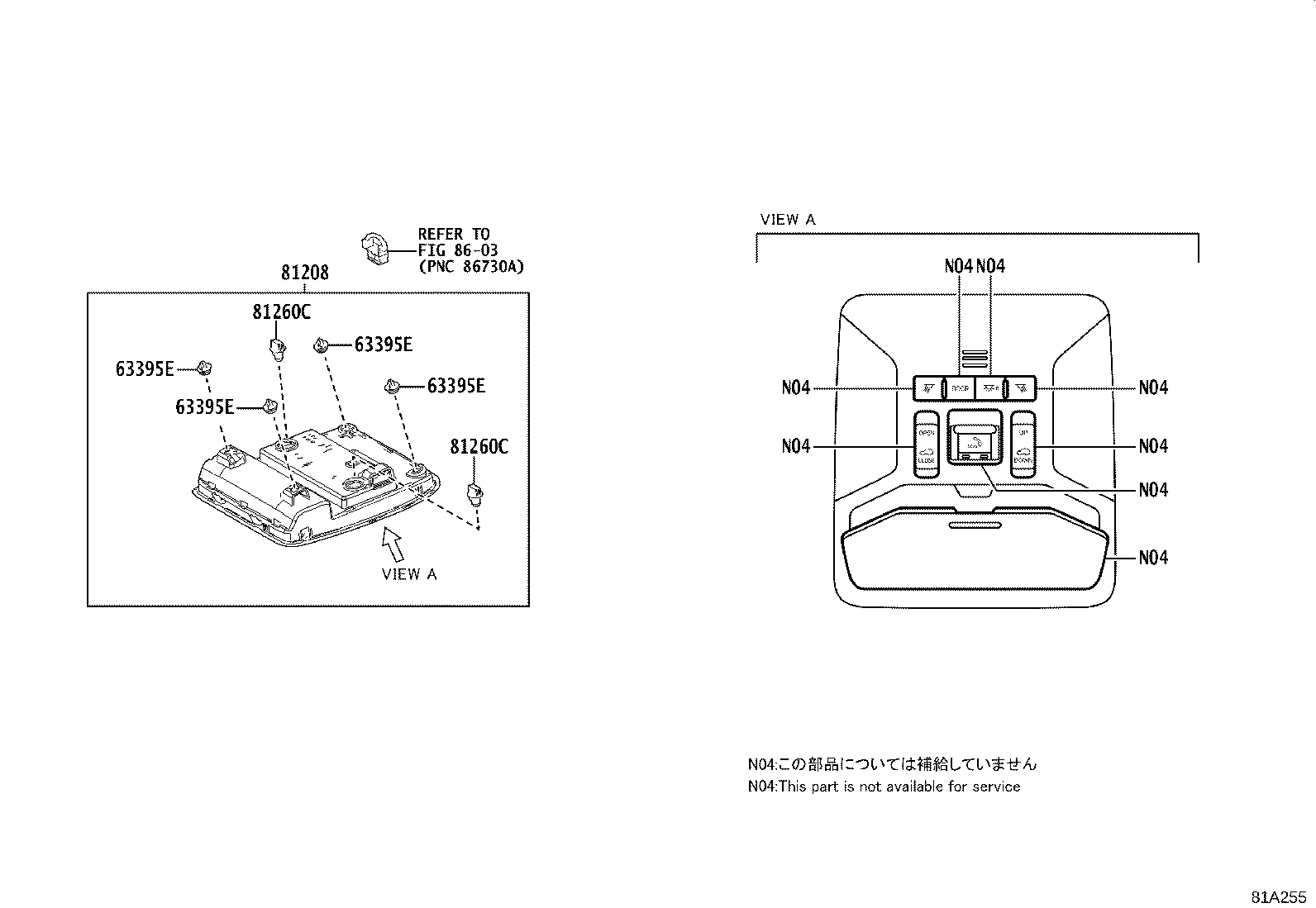

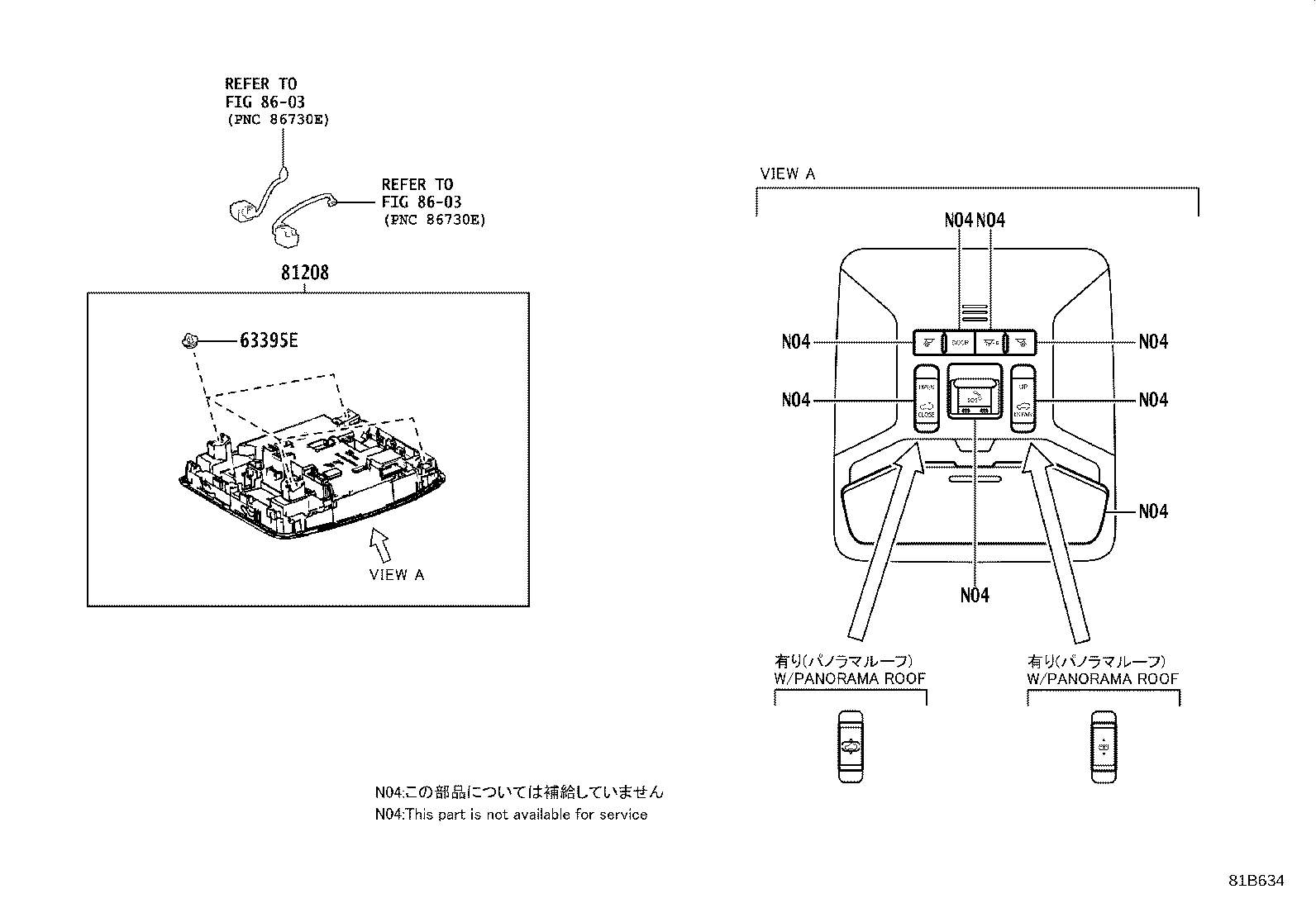

| 81208 | Lamp Sub-assy, Map |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81260C | Bulb(FOR MAP LAMP) |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360T | Lamp Assy, Spot |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
