Toyota RAV4 Phev

2021-04 → present · chassis AXAP5# · catalogue 667310 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

6 part groups · 2 illustrations

Illustrations

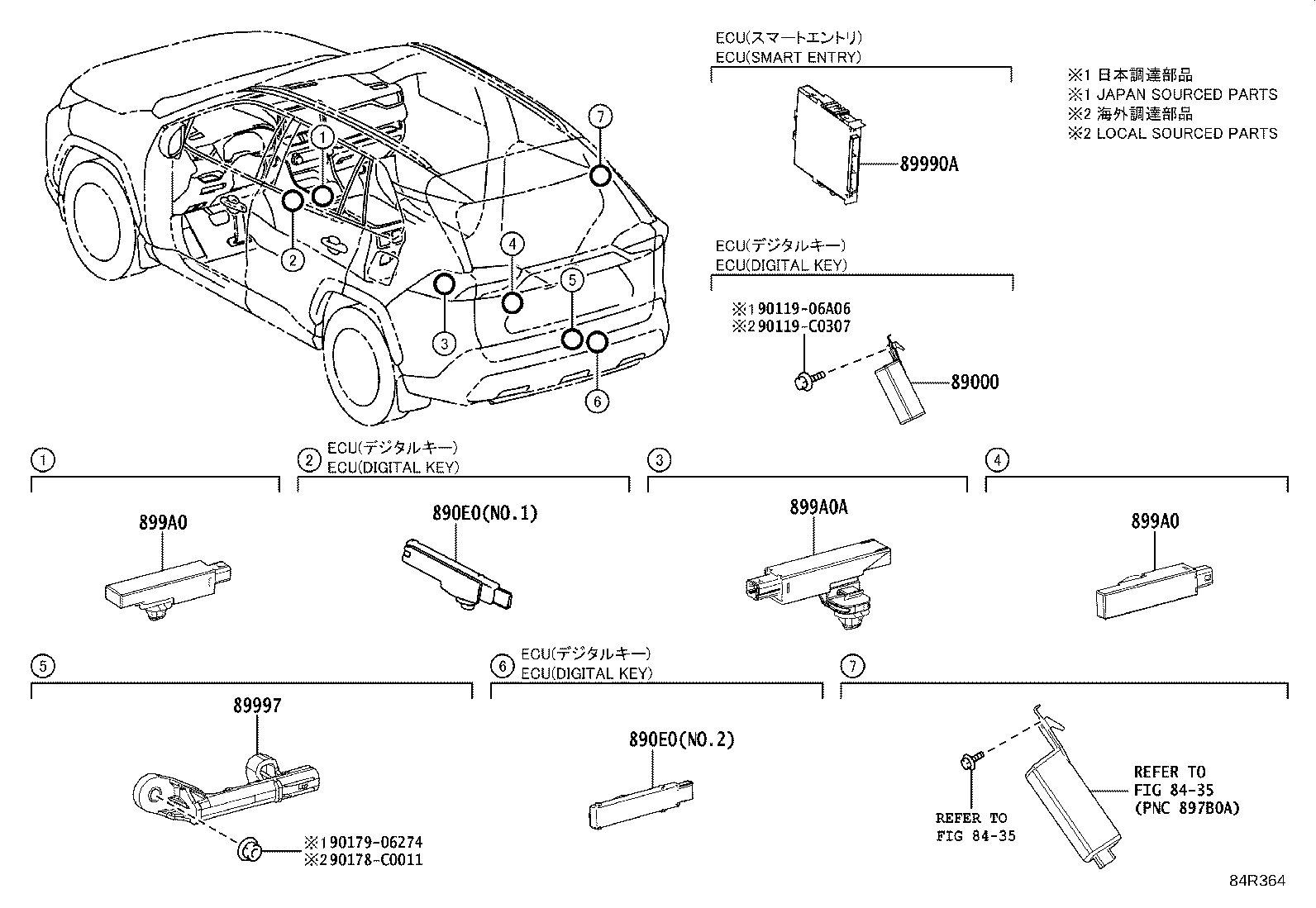

Figure 84M936A 84M936A 2021-04 → 2024-09 Figure 84R364 84R364 2024-09 → —

Part groups

PNCDescription
89000 Computer Assy, Digital Key
890E0 Receiver Assy, Ble Digital Key
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
