Toyota RAV4 Phev

2021-04 → present · chassis AXAP5# · catalogue 667310 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

7 part groups · 3 illustrations

Illustrations

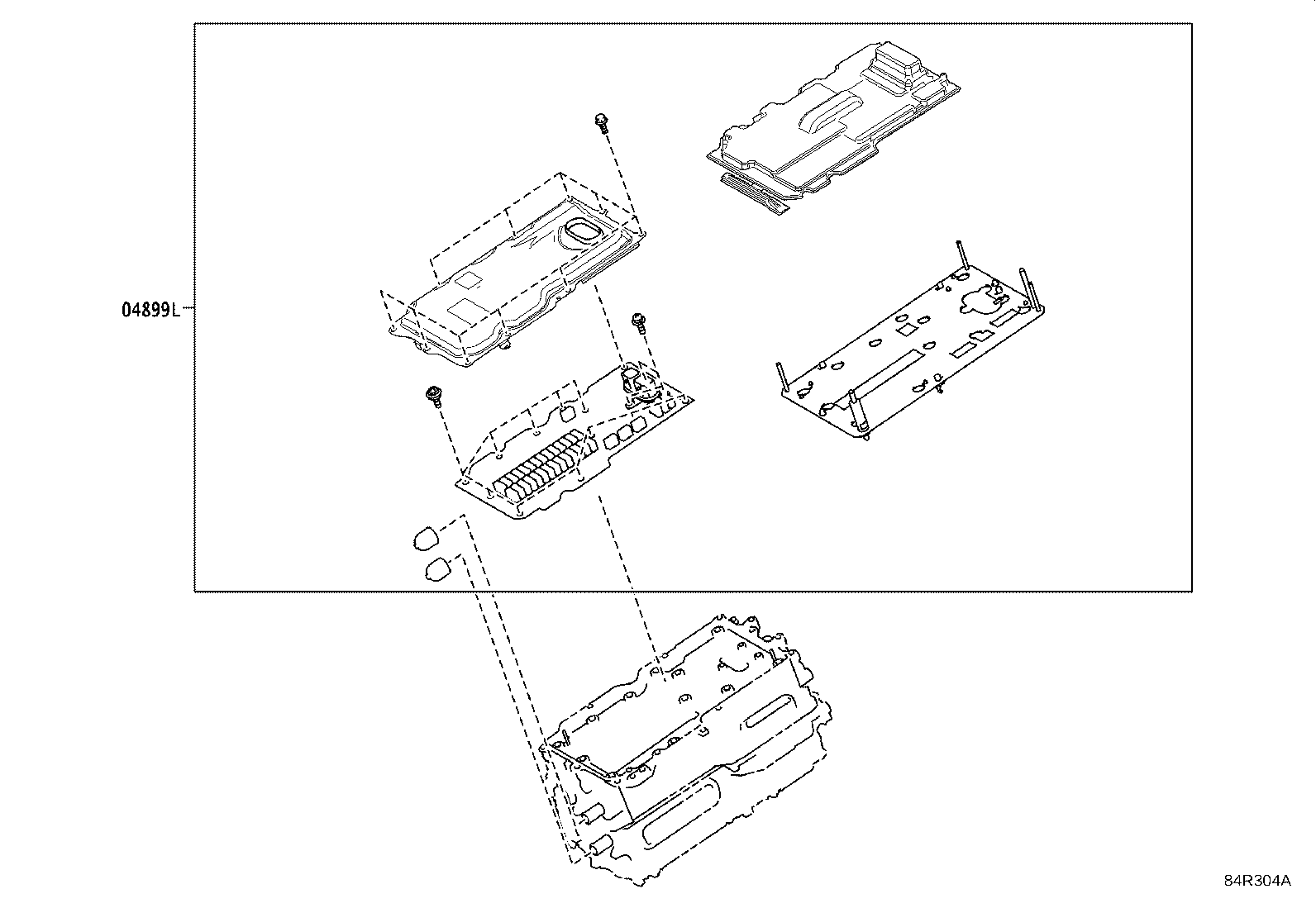

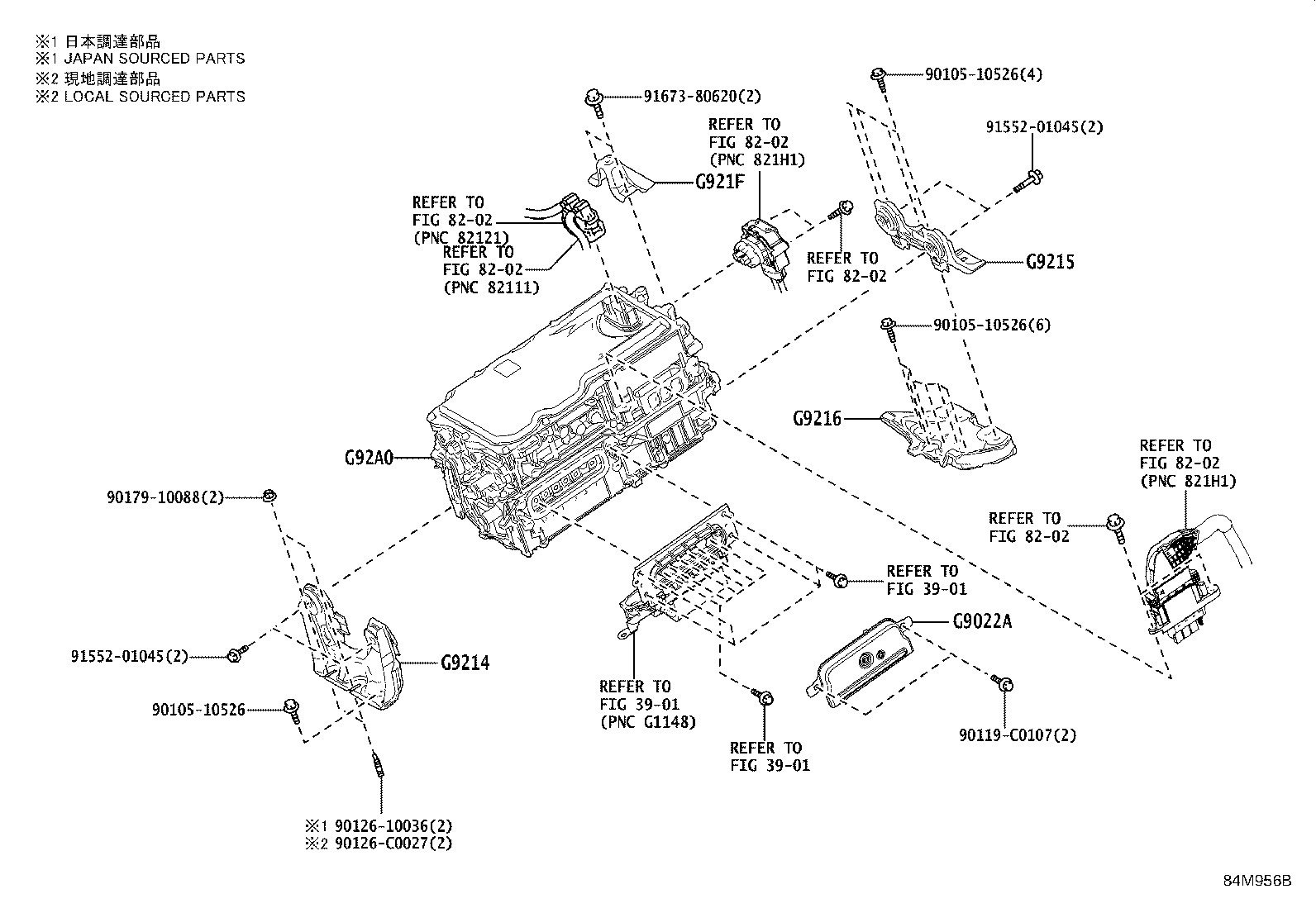

Figure 84M955B 84M955B 2021-04 → — Figure 84M956B 84M956B 2021-04 → — Figure 84R304A 84R304A 2021-04 → —

Part groups

PNCDescription
04899L Computer Kit, Motor Generator Control
G9022A Cover Sub-assy, Inverter, Upper
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9216 Bracket, Inverter, NO.3
G921F Protector, Inverter, NO.2
G92A0 Inverter Assy, Hybrid Motor Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
