Toyota RAV4 Phev

2021-04 → present · chassis AXAP5# · catalogue 667310 · General

Supported model Data version 2023-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

8 part groups · 2 illustrations

Illustrations

868623 2021-04 → 2023-04

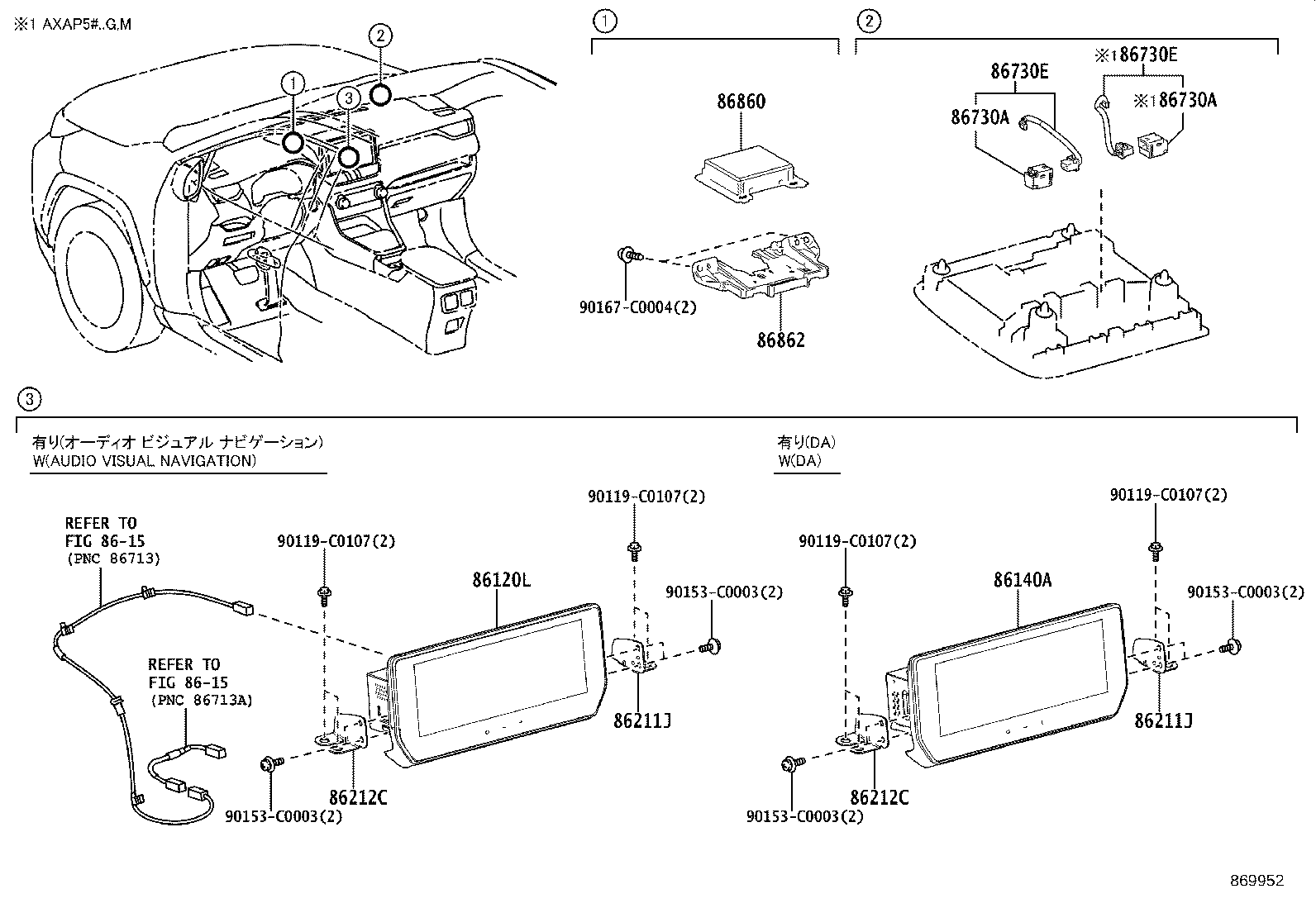

869952 2023-04 → —

Part groups

PNC	Description
86120L	Receiver Assy, Navigation
86140A	Receiver Assy, Radio & Display
86211J	Bracket, Radio Receiver, NO.1
86212C	Bracket, Radio Receiver, NO.2
86730A	Microphone Assy, Telephone
86730E	Microphone Assy
86860	Antenna Assy, Navigation
86862	Bracket, Navigation Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
