Toyota Wildlander Phev

2021-05 → present · chassis AXAP5# · catalogue 668310 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 616946E 6452 — not listed in this catalogue 8202 — not listed in this catalogue 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (2 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (2 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (3 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (3 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (2 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (2 parts) 8561821010 — not listed in this catalogue 8561821010 — not listed in this catalogue 90119C0232 — not listed in this catalogue 90119C0232 — not listed in this catalogue 90119C0232 — not listed in this catalogue 90178C0011 — not listed in this catalogue 90178C0011 — not listed in this catalogue 90178C0069 — not listed in this catalogue 9017906274 — not listed in this catalogue 90178C0011 — not listed in this catalogue 90182C0021 — not listed in this catalogue 63201A — PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF (2 parts) 63217E — GARNISH, SLIDING ROOF, FRONT RH (2 parts) 63231C — BRACKET, ROOM LAMP (2 parts) 63260J — GEAR ASSY, SLIDING ROOF DRIVE (3 parts) 63260K — GEAR ASSY, SLIDING ROOF DRIVE (2 parts) 63218E — GARNISH, SLIDING ROOF, FRONT LH (2 parts) 63233C — PANEL, SLIDING ROOF HOUSING (2 parts) 63217K — GARNISH, SLIDING ROOF SIDE, RH (3 parts) 63218M — GARNISH, SLIDING ROOF SIDE, LH (3 parts) 63202H — RAIL SUB-ASSY, SLIDE ROOF (3 parts) 63201P — GLASS SUB-ASSY, SLIDING ROOF (2 parts) 63219A — GARNISH, SLIDING ROOF, REAR (2 parts) 63217Q — GARNISH, SLIDING ROOF SIDE, RH (3 parts) 63225C — SPRING, ROOF WIND DEFLECTOR (1 parts) 63227R — CASE, WIND DEFLECTOR ARM (1 parts) 63218R — GARNISH, SLIDING ROOF SIDE, LH (3 parts) 63217R — GARNISH, SLIDING ROOF SIDE, RH (3 parts) 63218S — GARNISH, SLIDING ROOF SIDE, LH (3 parts) 90105C0081 — not listed in this catalogue 90105C0081 — not listed in this catalogue

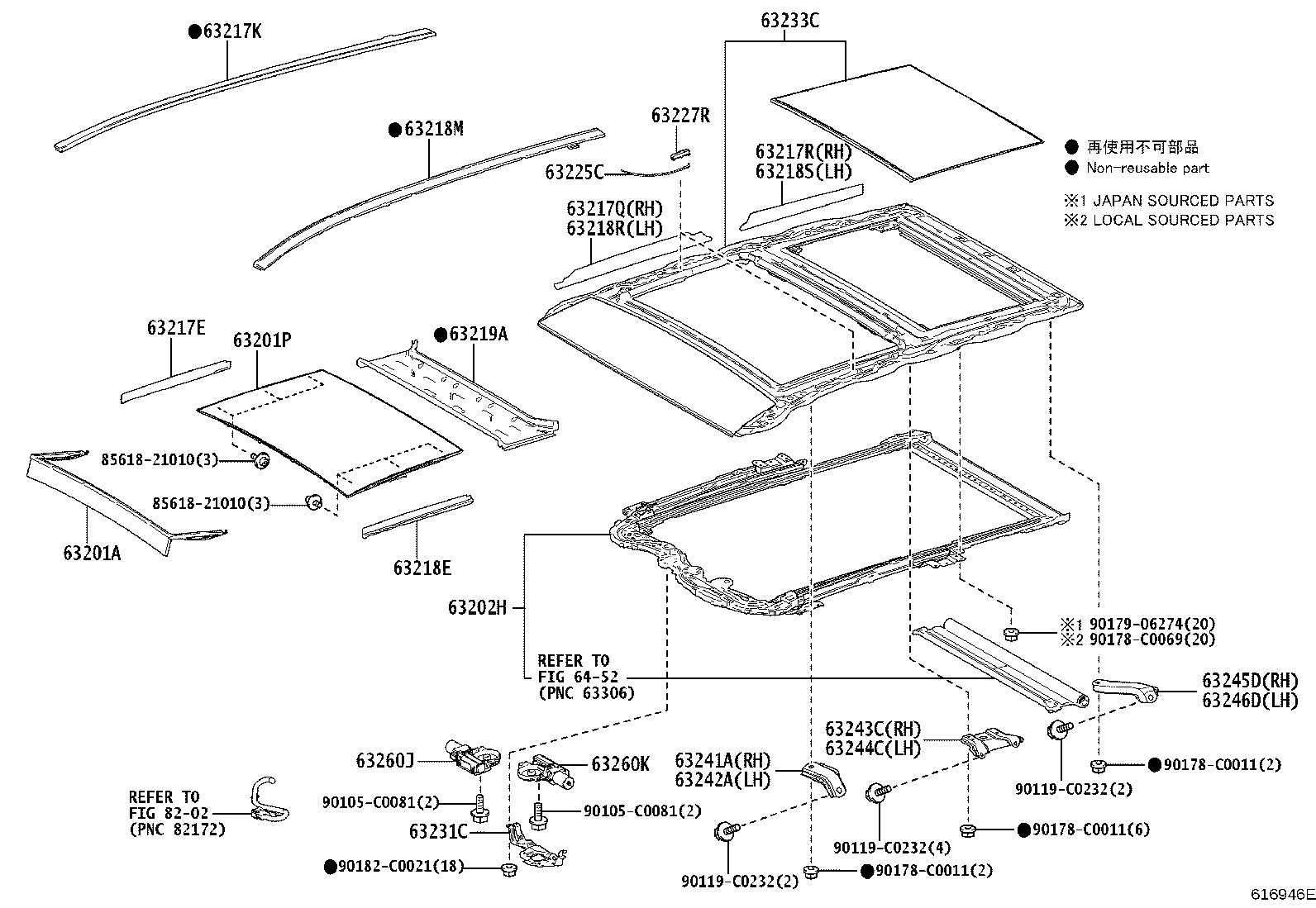

616946E · 24 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
63201A — Panel Sub-assy, Sliding Roof OR Removable Roof
63201-0R140 Panel Sub-assy, Sliding Roof OR Removable Roof
2021-05 → —
AXAP54 A —
63201-0R140 Panel Sub-assy, Sliding Roof OR Removable Roof
2023-04 → —
AXAP5# —
63201P — Glass Sub-assy, Sliding Roof
63201-0R150 Glass Sub-assy, Sliding Roof
2021-05 → —
AXAP54 A —
63201-0R150 Glass Sub-assy, Sliding Roof
2023-04 → —
AXAP5# —
63202H — Rail Sub-assy, Slide Roof
63202-0R100-B0 note Rail Sub-assy, Slide Roof
2021-05 → 2022-10 ended
AXAP54 A —
63202-0R101-B0 note Rail Sub-assy, Slide Roof
2022-10 → —
AXAP54 A —
63202-0R101-B0 note Rail Sub-assy, Slide Roof
2023-04 → —
AXAP5# —
63217E — Garnish, Sliding Roof, Front RH
63217-0R120 Garnish, Sliding Roof, Front RH
2021-05 → —
AXAP54 A —
63217-0R120 Garnish, Sliding Roof, Front RH
2023-04 → —
AXAP5# —
63217K — Garnish, Sliding Roof Side, RH
63217-06080 Garnish, Sliding Roof Side, RH
2021-05 → 2023-04 ended
AXAP5# M —
63217-0R150 Garnish, Sliding Roof Side, RH
2021-05 → —
AXAP54 A —
63217-0R150 Garnish, Sliding Roof Side, RH
2023-04 → —
AXAP5# —
63217Q — Garnish, Sliding Roof Side, RH
63217-0R130 Garnish, Sliding Roof Side, RH
2021-05 → —
AXAP54 A —
63217-0R130 Garnish, Sliding Roof Side, RH
2023-04 → 2024-04 ended
AXAP5# —
63217-0R131 Garnish, Sliding Roof Side, RH
2024-05 → —
AXAP5# —
63217R — Garnish, Sliding Roof Side, RH
63217-0R140 Garnish, Sliding Roof Side, RH
2021-05 → —
AXAP54 A —
63217-0R140 Garnish, Sliding Roof Side, RH
2023-04 → 2024-04 ended
AXAP5# —
63217-0R141 Garnish, Sliding Roof Side, RH
2024-05 → —
AXAP5# —
63218E — Garnish, Sliding Roof, Front LH
63218-0R120 Garnish, Sliding Roof, Front LH
2021-05 → —
AXAP54 A —
63218-0R120 Garnish, Sliding Roof, Front LH
2023-04 → —
AXAP5# —
63218M — Garnish, Sliding Roof Side, LH
63217-06080 Garnish, Sliding Roof Side, LH
2021-05 → 2023-04 ended
AXAP5# M —
63218-0R150 Garnish, Sliding Roof Side, LH
2021-05 → —
AXAP54 A —
63218-0R150 Garnish, Sliding Roof Side, LH
2023-04 → —
AXAP5# —
63218R — Garnish, Sliding Roof Side, LH
63218-0R130 Garnish, Sliding Roof Side, LH
2021-05 → —
AXAP54 A —
63218-0R130 Garnish, Sliding Roof Side, LH
2023-04 → 2024-04 ended
AXAP5# —
63218-0R131 Garnish, Sliding Roof Side, LH
2024-05 → —
AXAP5# —
63218S — Garnish, Sliding Roof Side, LH
63218-0R140 Garnish, Sliding Roof Side, LH
2021-05 → —
AXAP54 A —
63218-0R140 Garnish, Sliding Roof Side, LH
2023-04 → 2024-04 ended
AXAP5# —
63218-0R141 Garnish, Sliding Roof Side, LH
2024-05 → —
AXAP5# —
63219A — Garnish, Sliding Roof, Rear
63219-0R030 Garnish, Sliding Roof, Rear
2021-05 → —
AXAP54 A —
63219-0R030 Garnish, Sliding Roof, Rear
2023-04 → —
AXAP5# —
63225C — Spring, Roof Wind Deflector
63225-0R010 Spring, Roof Wind Deflector
2023-07 → —
AXAP5# —
63227R — Case, Wind Deflector Arm
63227-0R060 Case, Wind Deflector Arm
2023-07 → —
AXAP5# —
63231C — Bracket, Room Lamp
63231-0R120 Bracket, Room Lamp
2021-05 → —
AXAP54 A —
63231-0R120 Bracket, Room Lamp
2023-04 → —
AXAP5# —
63233C — Panel, Sliding Roof Housing
63233-0R090 Panel, Sliding Roof Housing
2021-05 → —
AXAP54 A —
63233-0R090 Panel, Sliding Roof Housing
2023-04 → —
AXAP5# —
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-0R100 Bracket, Sliding Roof Housing Front Mounting, RH
2021-05 → —
AXAP54 A —
63241-0R100 Bracket, Sliding Roof Housing Front Mounting, RH
2023-04 → —
AXAP5# —
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63241-0R100 Bracket, Sliding Roof Housing Front Mounting, LH
2021-05 → —
AXAP54 A —
63241-0R100 Bracket, Sliding Roof Housing Front Mounting, LH
2023-04 → —
AXAP5# —
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-0R080 Bracket, Sliding Roof Housing Center Mounting, RH
2021-05 → 2022-06 ended
AXAP54 A —
63243-0R081 Bracket, Sliding Roof Housing Center Mounting, RH
2022-07 → —
AXAP54 A —
63243-0R081 Bracket, Sliding Roof Housing Center Mounting, RH
2023-04 → —
AXAP5# —
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-0R080 Bracket, Sliding Roof Housing Center Mounting, LH
2021-05 → 2022-06 ended
AXAP54 A —
63244-0R081 Bracket, Sliding Roof Housing Center Mounting, LH
2022-07 → —
AXAP54 A —
63244-0R081 Bracket, Sliding Roof Housing Center Mounting, LH
2023-04 → —
AXAP5# —
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-0R100 Bracket, Sliding Roof Housing Rear Mounting, RH
2021-05 → —
AXAP54 A —
63245-0R100 Bracket, Sliding Roof Housing Rear Mounting, RH
2023-04 → —
AXAP5# —
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63246-0R050 Bracket, Sliding Roof Housing Rear Mounting, LH
2021-05 → —
AXAP54 A —
63246-0R050 Bracket, Sliding Roof Housing Rear Mounting, LH
2023-04 → —
AXAP5# —
63260J — Gear Assy, Sliding Roof Drive
63260-0R100 Gear Assy, Sliding Roof Drive
2021-05 → —
AXAP54 A —
63260-0R100 Gear Assy, Sliding Roof Drive
2023-04 → 2023-06 ended
AXAP5# —
63260-0R101 Gear Assy, Sliding Roof Drive
2023-07 → —
AXAP5# —
63260K — Gear Assy, Sliding Roof Drive
63260-0R110 Gear Assy, Sliding Roof Drive
2021-05 → —
AXAP54 A —
63260-0R110 Gear Assy, Sliding Roof Drive
2023-04 → —
AXAP5# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
