Toyota Wildlander Phev

2021-05 → present · chassis AXAP5# · catalogue 668310 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

26 part groups · 2 illustrations

Illustrations

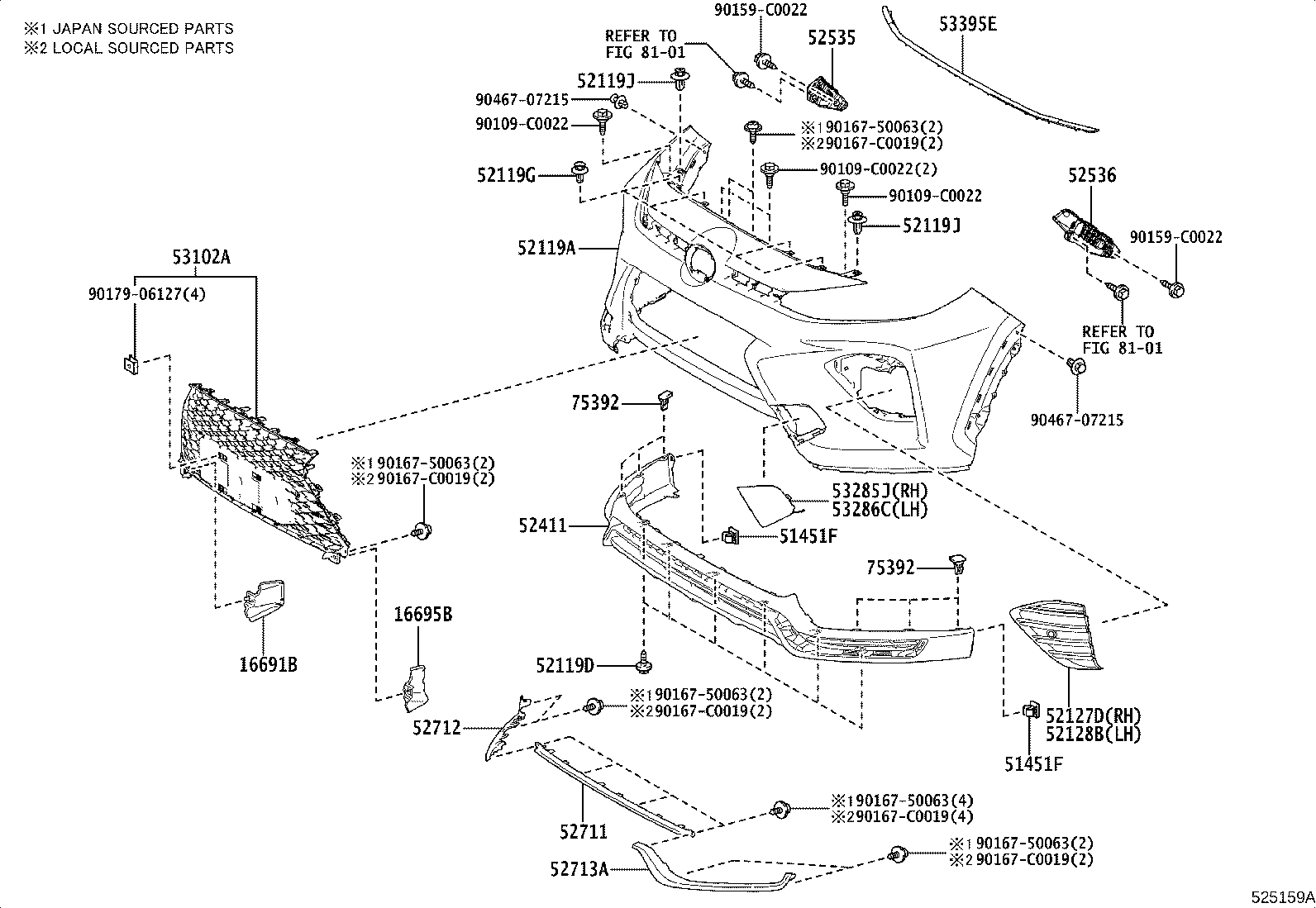

Figure 525158A 525158A 2021-05 → — Figure 525159A 525159A 2021-05 → —

Part groups

PNCDescription
16691B Plate, Radiator Side Air Guide, Front RH
16695B Plate, Radiator Side Air Guide, Front LH
51451F Grommet, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52102F Extension Sub-assy, Front Bumper, RH
52103C Extension Sub-assy, Front Bumper, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52119G Clip, NO.1
52119J Clip, NO.3
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52132A Reinforcement, Front Bumper, NO.2
52411 Guard, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52614 Absorber, Front Bumper Energy, NO.2
52618 Absorber, Front Bumper, Lower
52711 Moulding, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53102A Grille Sub-assy, Radiator, Lwr
53285J Cover, Front Bumper Arm Hole, RH
53286C Cover, Front Bumper Arm Hole, LH
53395E Seal, Hood TO Front End Panel
75392 Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
