Toyota Wildlander Phev

2021-05 → present · chassis AXAP5# · catalogue 668310 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

7 part groups · 2 illustrations

Illustrations

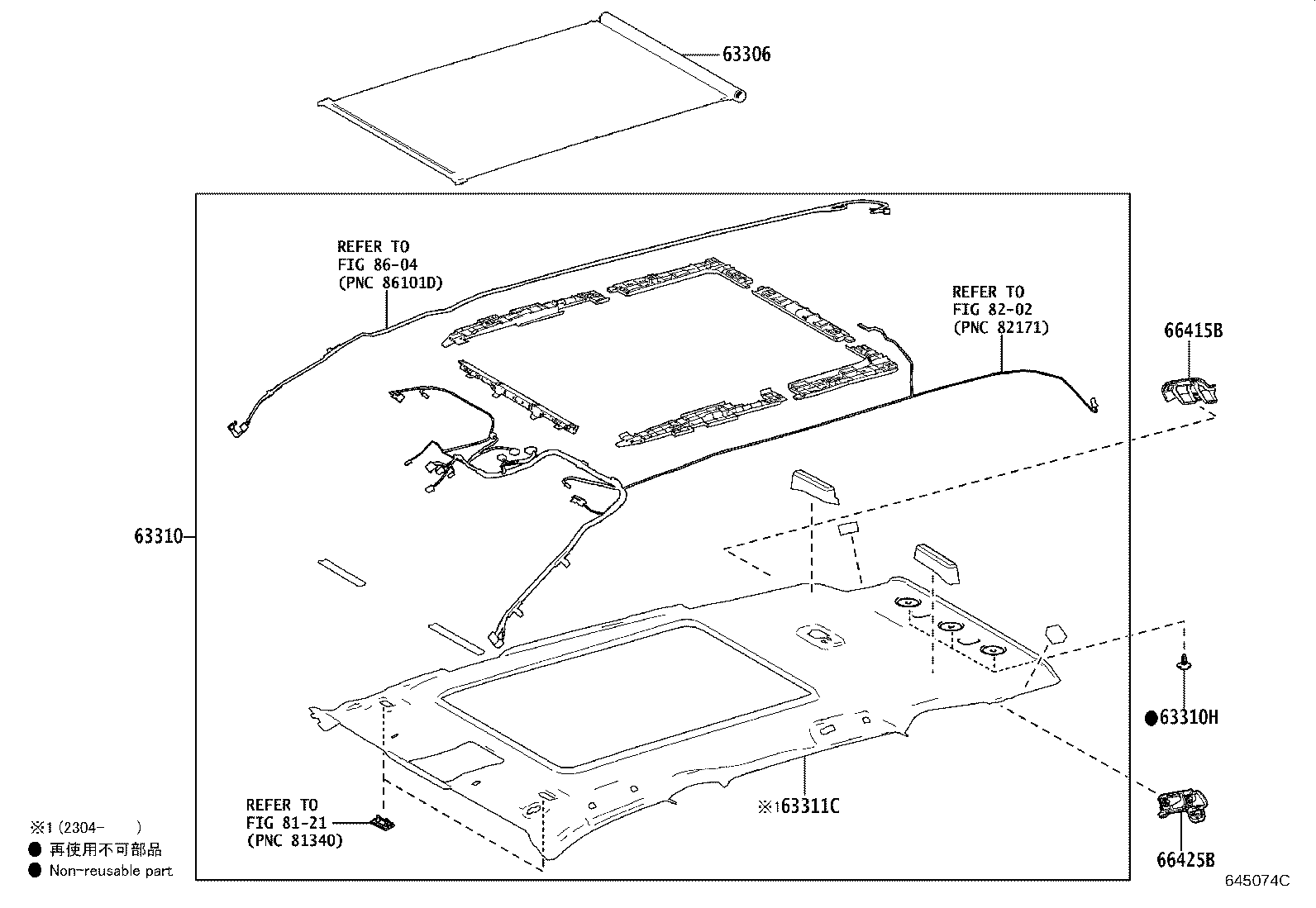

Figure 645073B 645073B 2021-05 → — Figure 645074C 645074C 2021-05 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63318C Moulding, Sun Roof Opening Trim
66415B Spacer, Side Rail, Rear NO.2 RH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
