Toyota Wildlander Phev

2021-05 → present · chassis AXAP5# · catalogue 668310 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

9 part groups · 5 illustrations

Illustrations

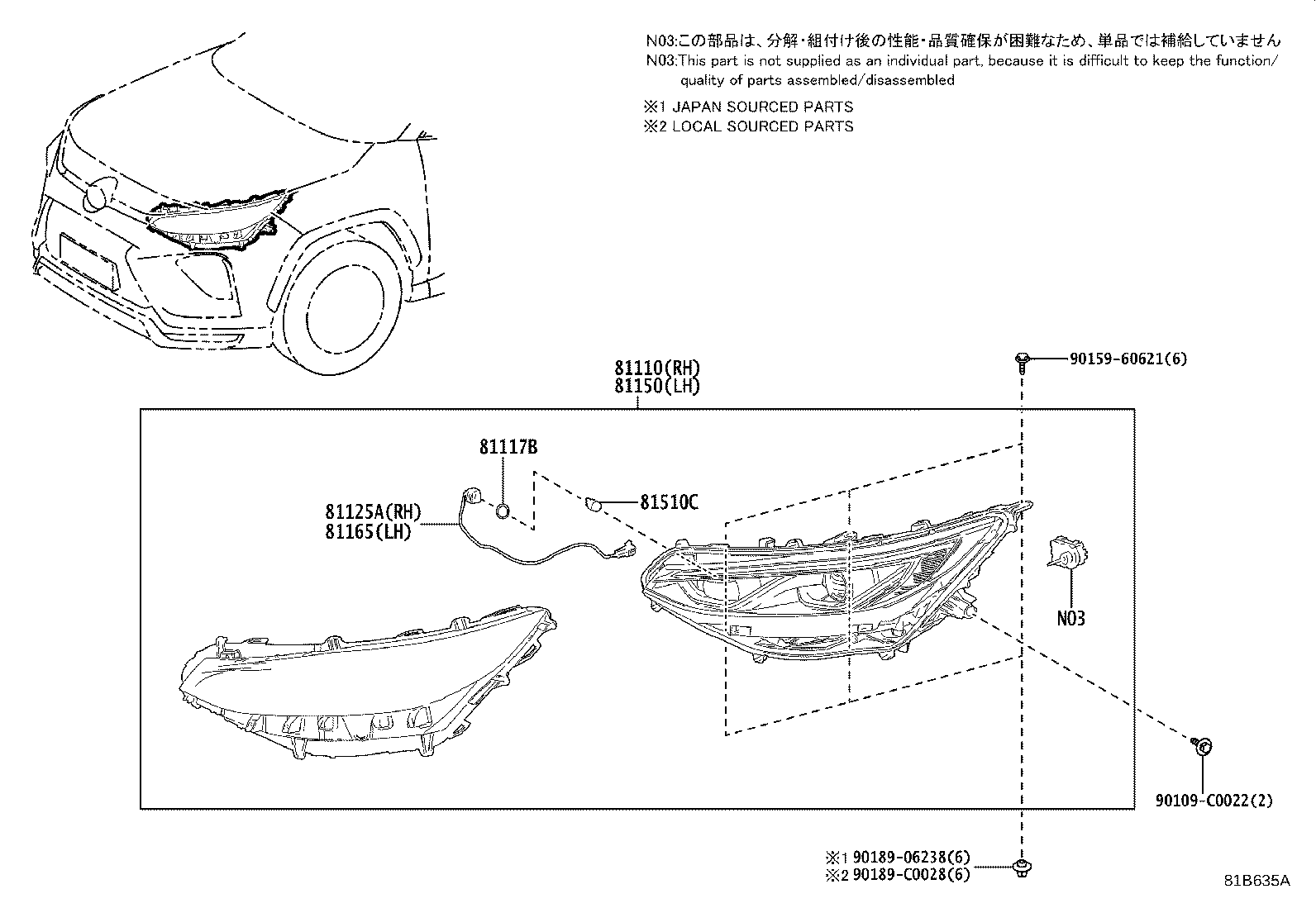

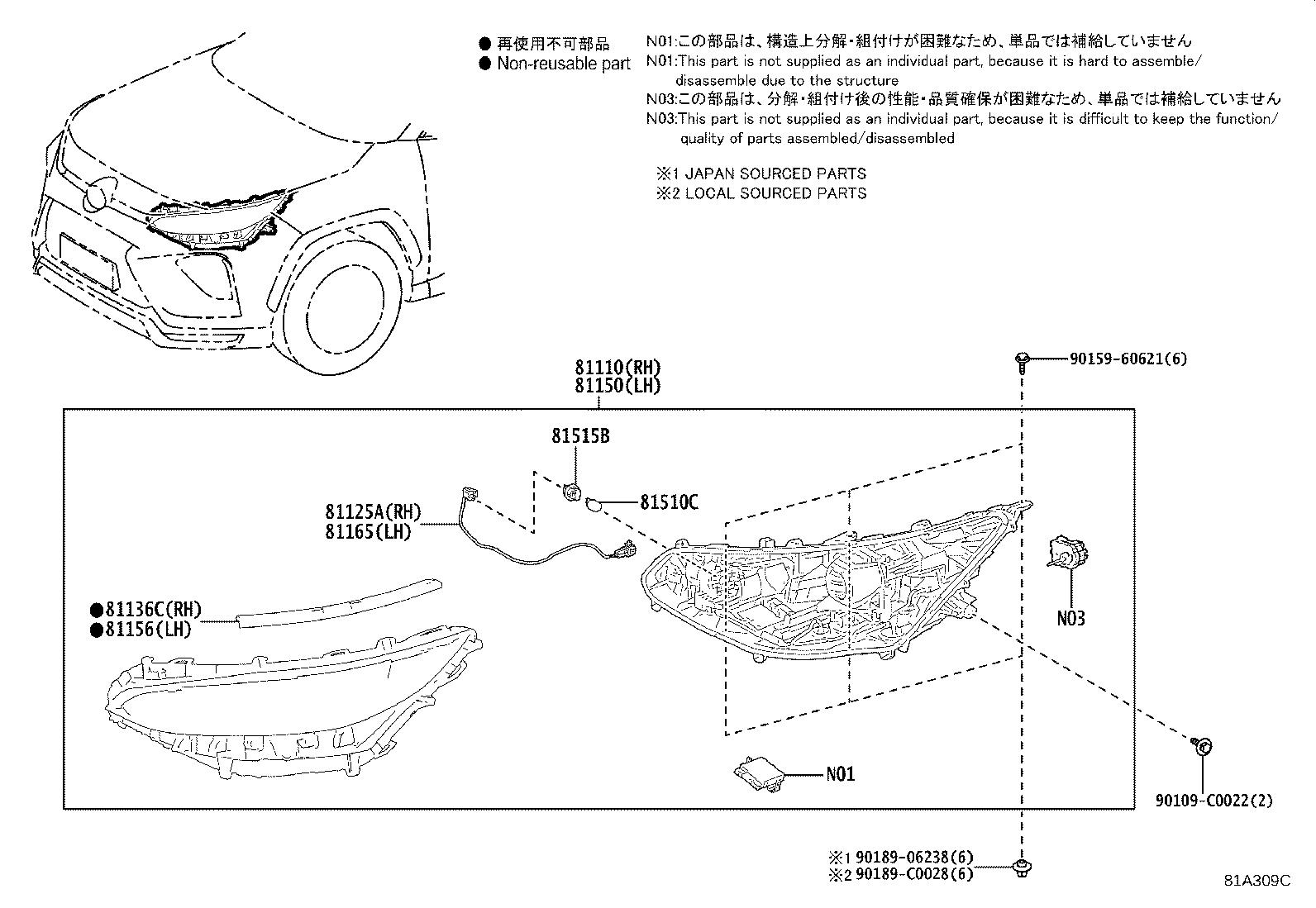

Figure 81A308C 81A308C 2021-05 → 2023-04 Figure 81A308C 81A308C 2021-05 → — Figure 81A309C 81A309C 2021-05 → 2023-04 Figure 81A309C 81A309C 2021-05 → — Figure 81B635A 81B635A 2023-04 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81117B Gasket
81125A Cord, Headlamp, RH
81136C Rim, Headlamp, RH
81150 Headlamp Assy, LH
81156 Rim, Headlamp, LH
81165 Cord, Headlamp, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
