Toyota Wildlander Phev

2021-05 → present · chassis AXAP5# · catalogue 668310 · General

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

28 part groups · 3 illustrations

Illustrations

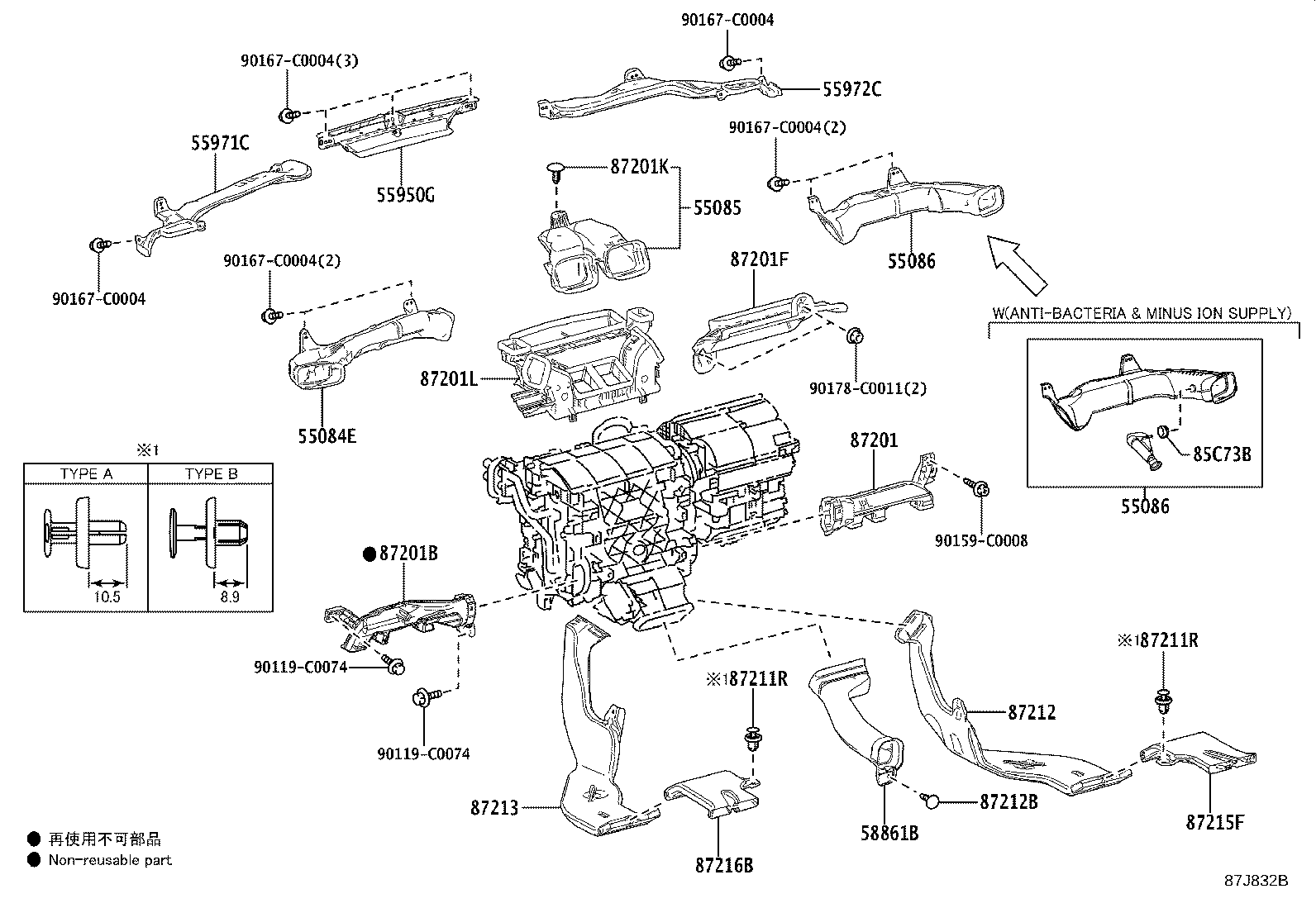

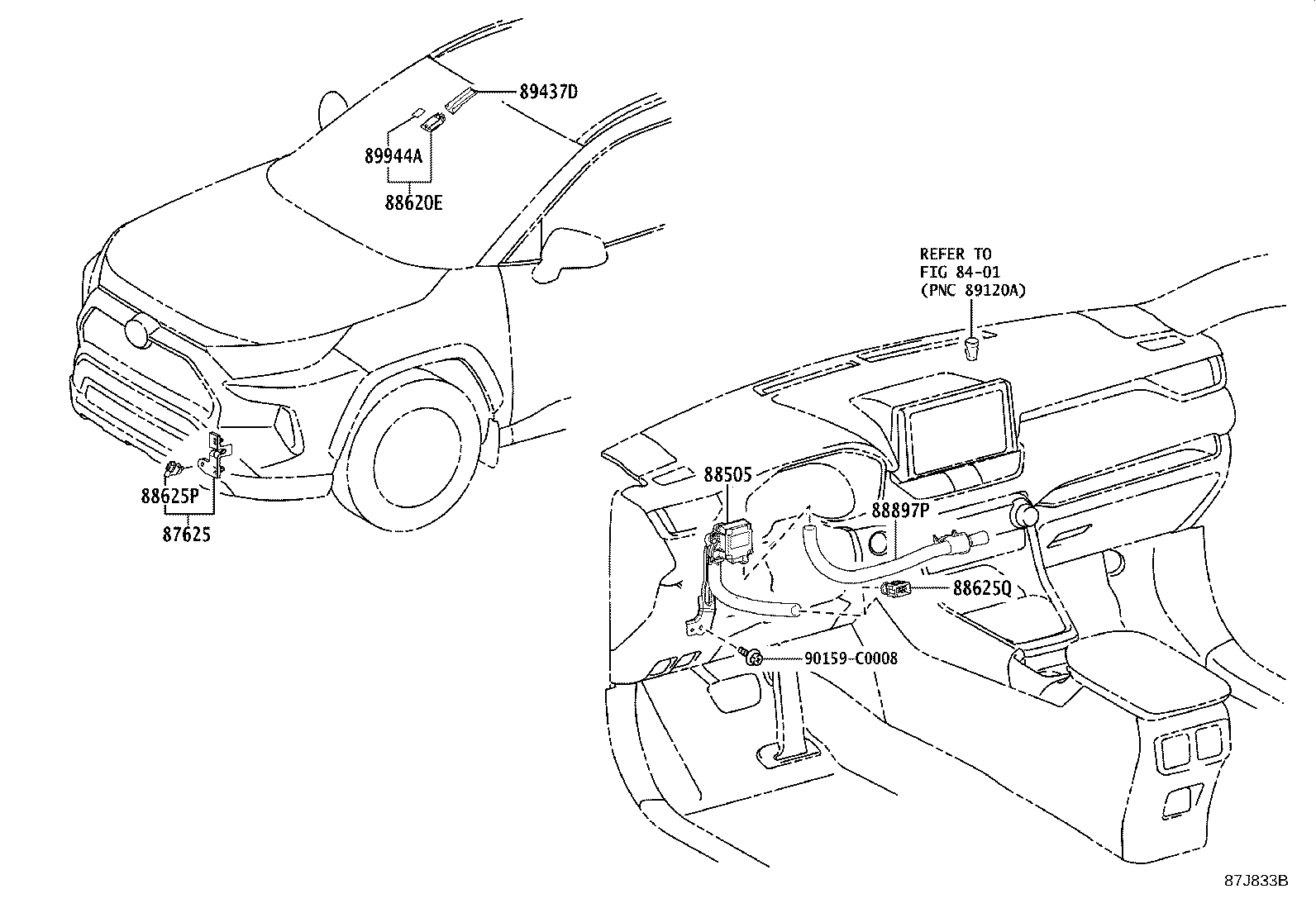

Figure 87J831 87J831 2021-05 → — Figure 87J832B 87J832B 2021-05 → — Figure 87J833B 87J833B 2021-05 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
85C73B Grommet, Washer
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201K Clip (FOR AIR DUCT)
87201L Duct Sub-assy, Air, NO.4
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4
87625 Thermistor Assy
88505 Duct Sub-assy,Air Conditioner
88620E Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88897P Aspirator
89437D Cover, Sensor
89944A Tape(FOR AIR CONDITIONER THERMISTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
