Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · General

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Short Block Assembly

1 part groups · 2 illustrations

Illustrations

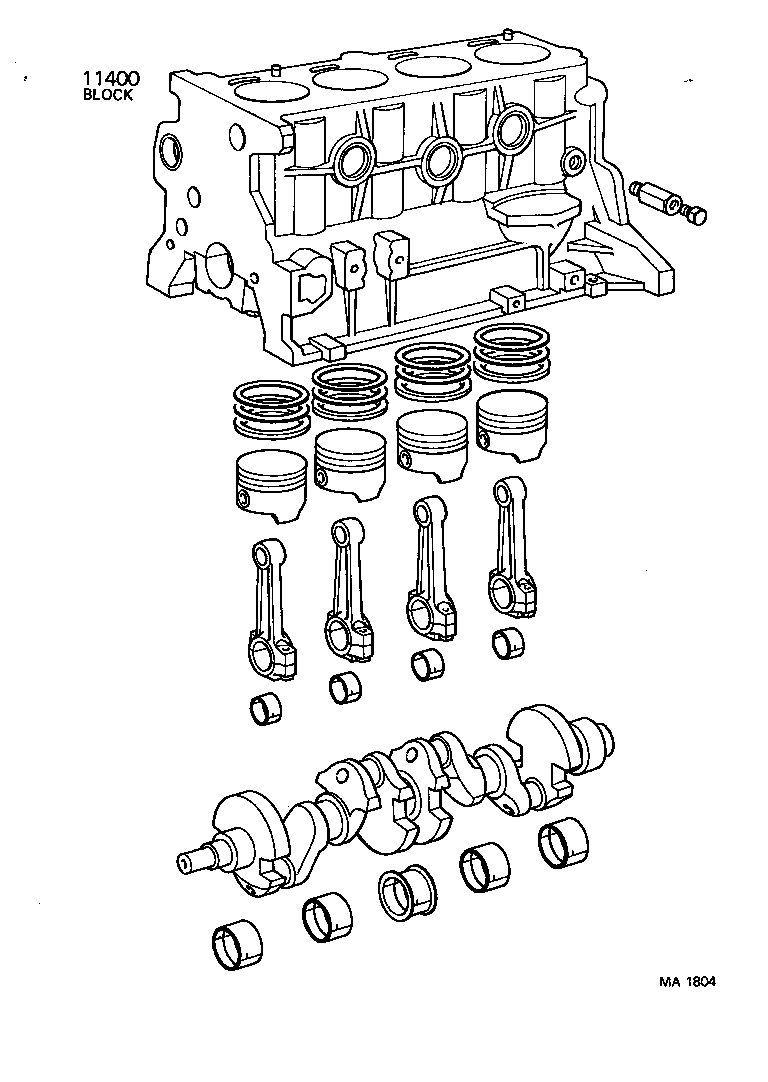

Figure MA3347 MA3347 1972-05 → 1978-07 Figure MA1804 MA1804 1974-04 → 1978-07

Part groups

PNCDescription
11400 Block Assy, Short
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
