Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · General

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

26 part groups · 2 illustrations

Illustrations

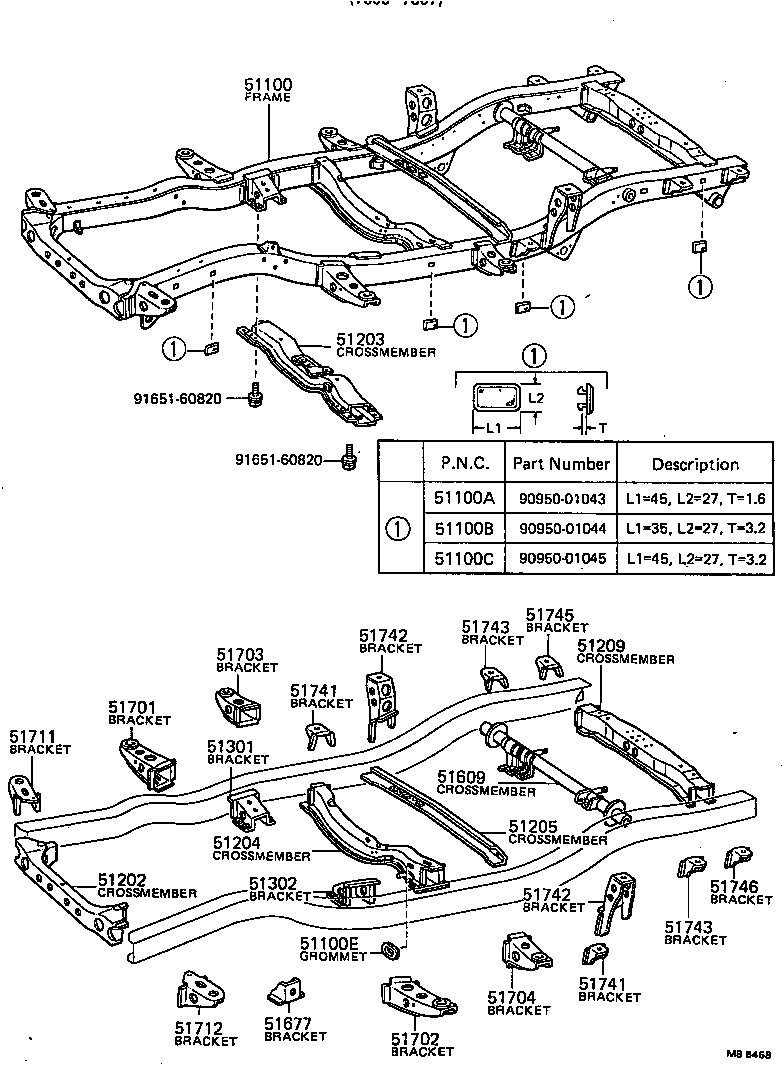

Figure MB7729 MB7729 1972-05 → 1976-05 Figure MB6468 MB6468 1976-05 → 1978-07

Part groups

PNCDescription
51100 Frame Assy
51100A Plug, Hole(FOR FRAME)
51100B Plug, Hole(FOR FRAME)
51100C Plug, Hole(FOR FRAME)
51100D Plug, Hole(FOR FRAME)
51100E Grommet(FOR FRAME)
51202 Crossmember Sub-assy, Frame, NO.1
51203 Crossmember Sub-assy, Frame, NO.2
51204 Crossmember Sub-assy, Frame, NO.3
51205 Crossmember Sub-assy, Frame, NO.4
51209 Crossmember Sub-assy, Frame, NO.8
51301 Bracket, Frame NO.2 Crossmember, RH
51302 Bracket, Frame NO.2 Crossmember, LH
51609 Crossmember Sub-assy, Rear Shock Absorber Support
51677 Bracket, Steering Gear Box
51701 Bracket Sub-assy, Cab Mounting, NO.1 RH
51702 Bracket Sub-assy, Cab Mounting, NO.1 LH
51703 Bracket Sub-assy, Cab Mounting, NO.2, RH
51704 Bracket Sub-assy, Cab Mounting, NO.2 LH
51711 Bracket, Front Body Support OR Mounting, RH
51712 Bracket, Front Body Support OR Mounting, LH
51741 Bracket, Rear Body Mounting, NO.1
51742 Bracket, Body Mounting, NO.2
51743 Bracket, Body Mounting, NO.3
51745 Bracket, Body Mounting, NO.5
51746 Bracket, Body Mounting, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
