Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · General

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

17 part groups · 3 illustrations

Illustrations

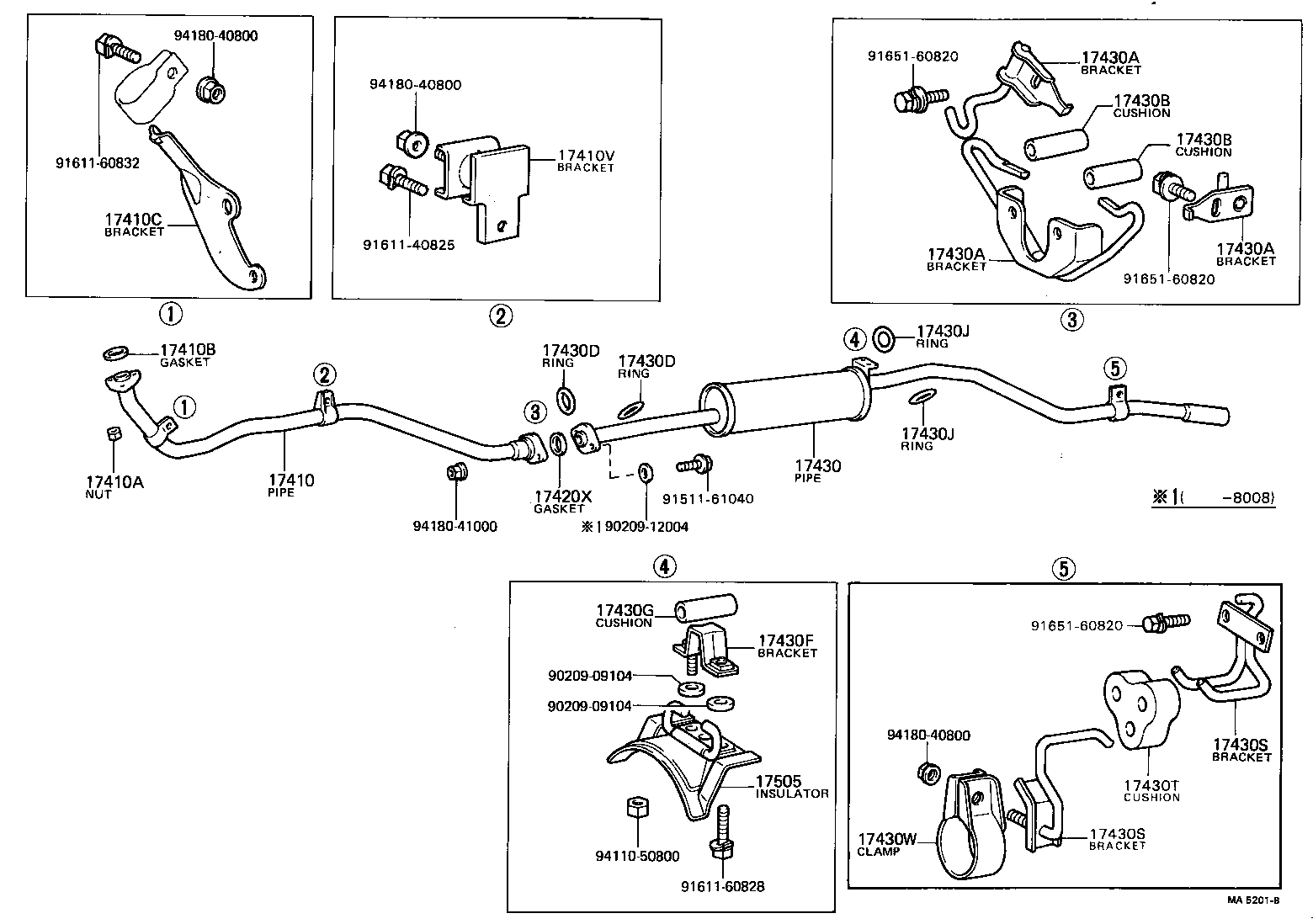

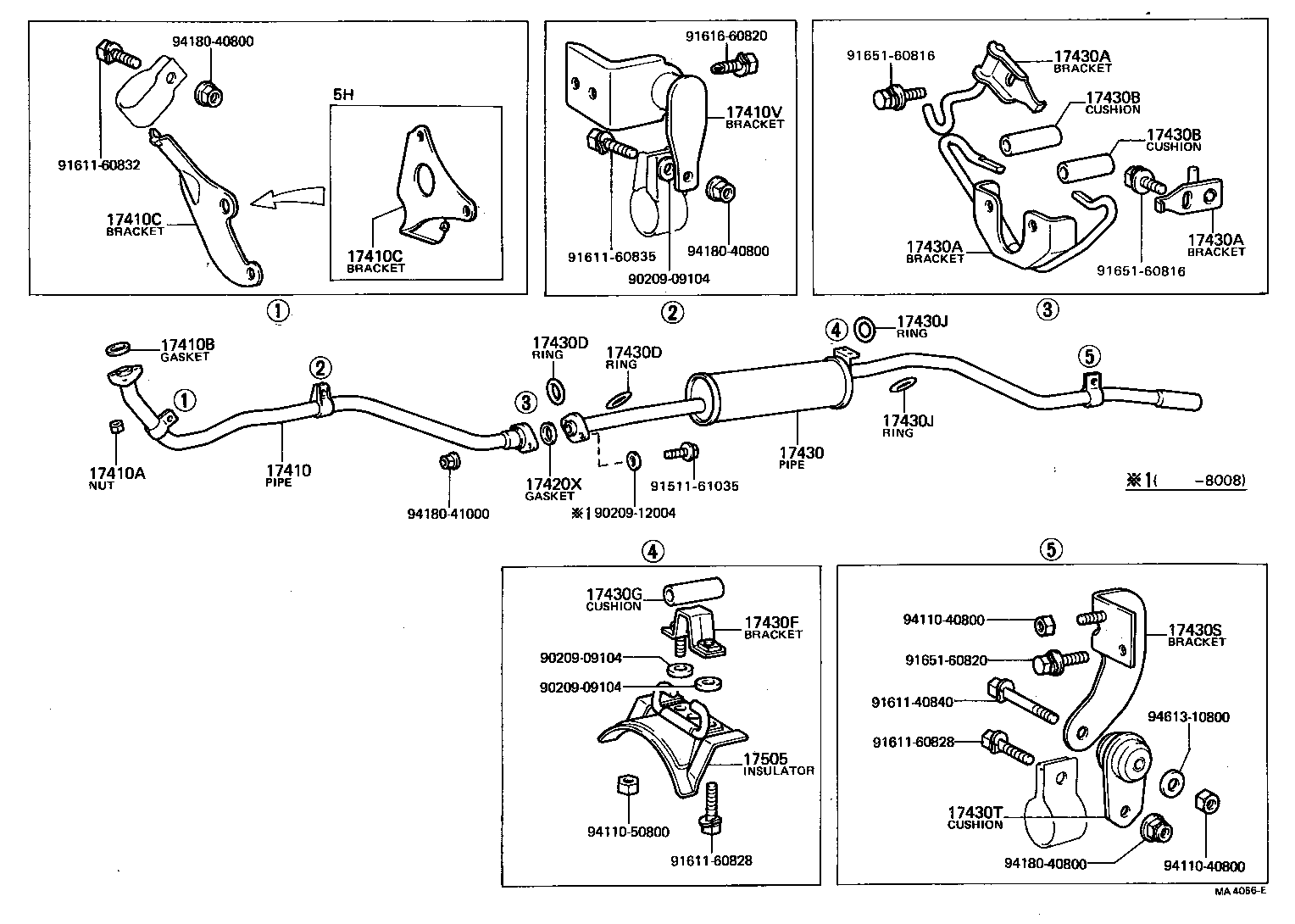

Figure MA3972F MA3972F 1978-08 → — Figure MA4056E MA4056E 1979-09 → — Figure MA5201B MA5201B 1981-03 → 1983-07

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
