Toyota Hilux
1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · General
Discontinued model
Data version 1984-05

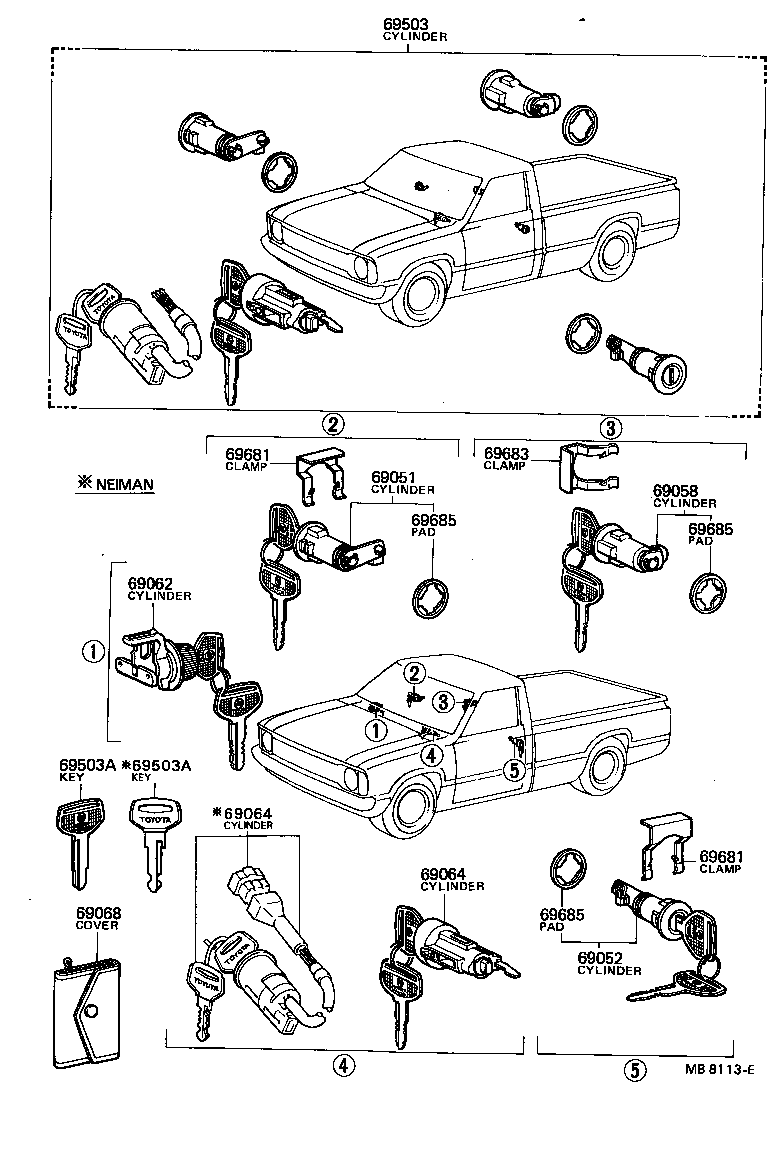

Lock Cylinder Set
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69058 | Cylinder & Key Set, Fuel Filler Lid |
| 69058C | Gasket, Fuel Filler Lid Cylinder |
| 69062 | Cylinder & Key Set, Glove Compartment Lock |
| 69064 | Cylinder & Key Set, Ignition Switch Lock |
| 69068 | Cover Sub-assy, Key |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69681 | Clamp, Door Lock Cylinder & Sleeve |
| 69683 | Clamp, Fuel Lock Cylinder |
| 69685 | Pad, Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
