Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · General

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 7 illustrations

Illustrations

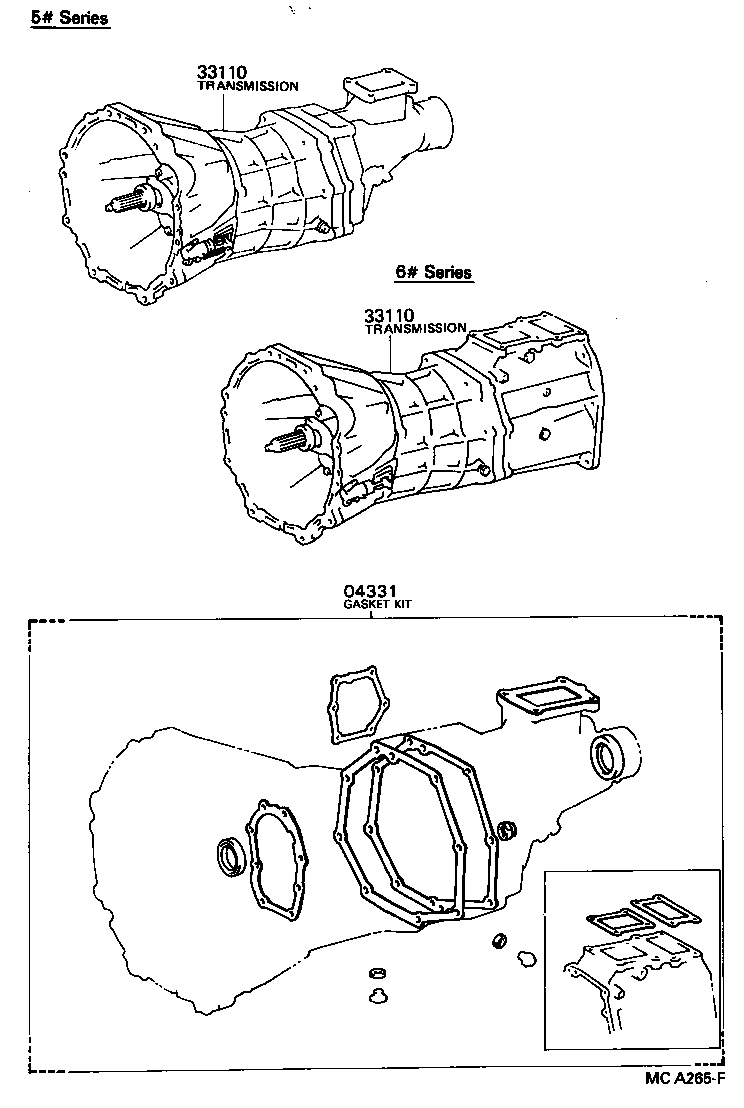

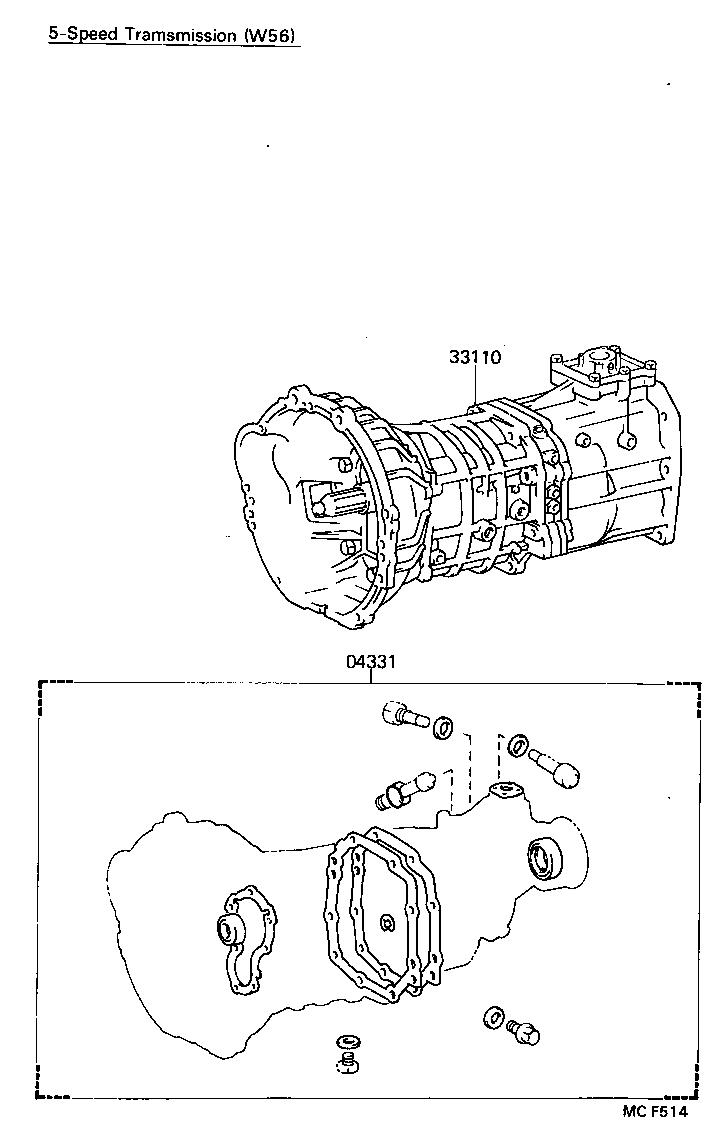

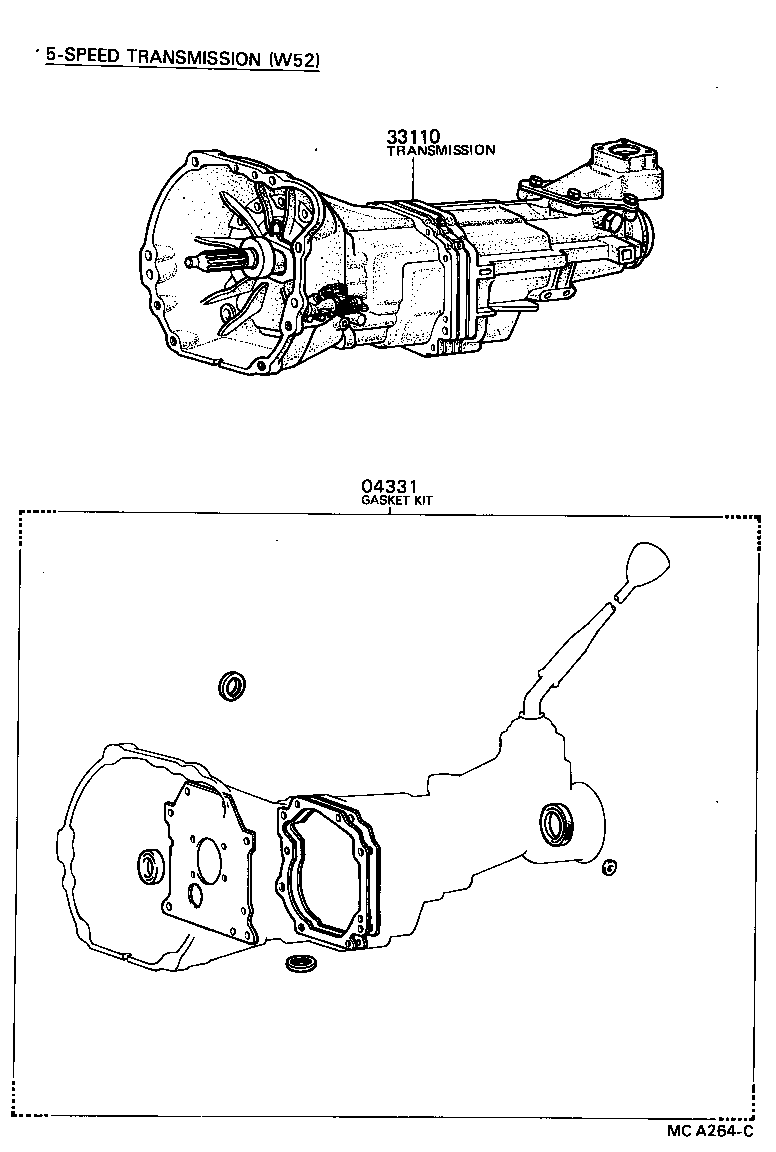

Figure MCA263B MCA263B 1983-08 → 1991-08 Figure MCA263B MCA263B 1983-08 → — Figure MCA264C MCA264C 1983-08 → 1985-08 Figure MCA265F MCA265F 1983-08 → 1985-08 Figure MCA265F MCA265F 1985-08 → 1994-07 Figure MCA265F MCA265F 1994-07 → — Figure MCF514 MCF514 1987-12 → 1989-03

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
