Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · General

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

12 part groups · 5 illustrations

Illustrations

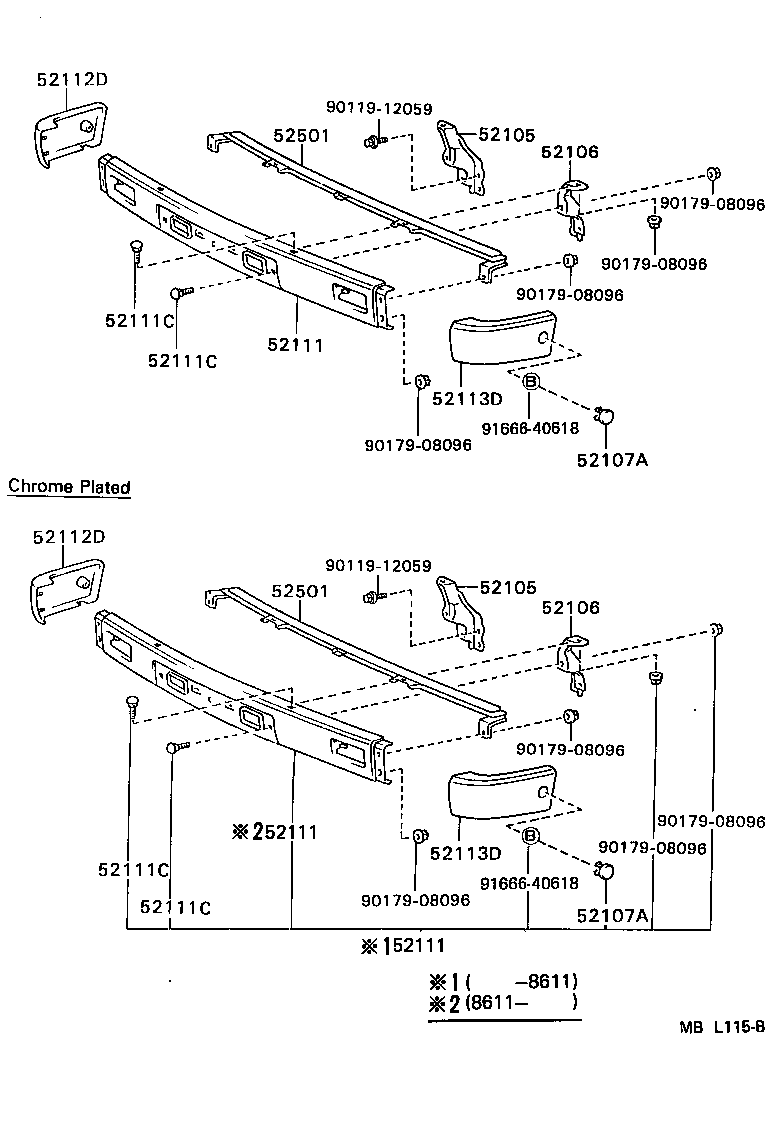

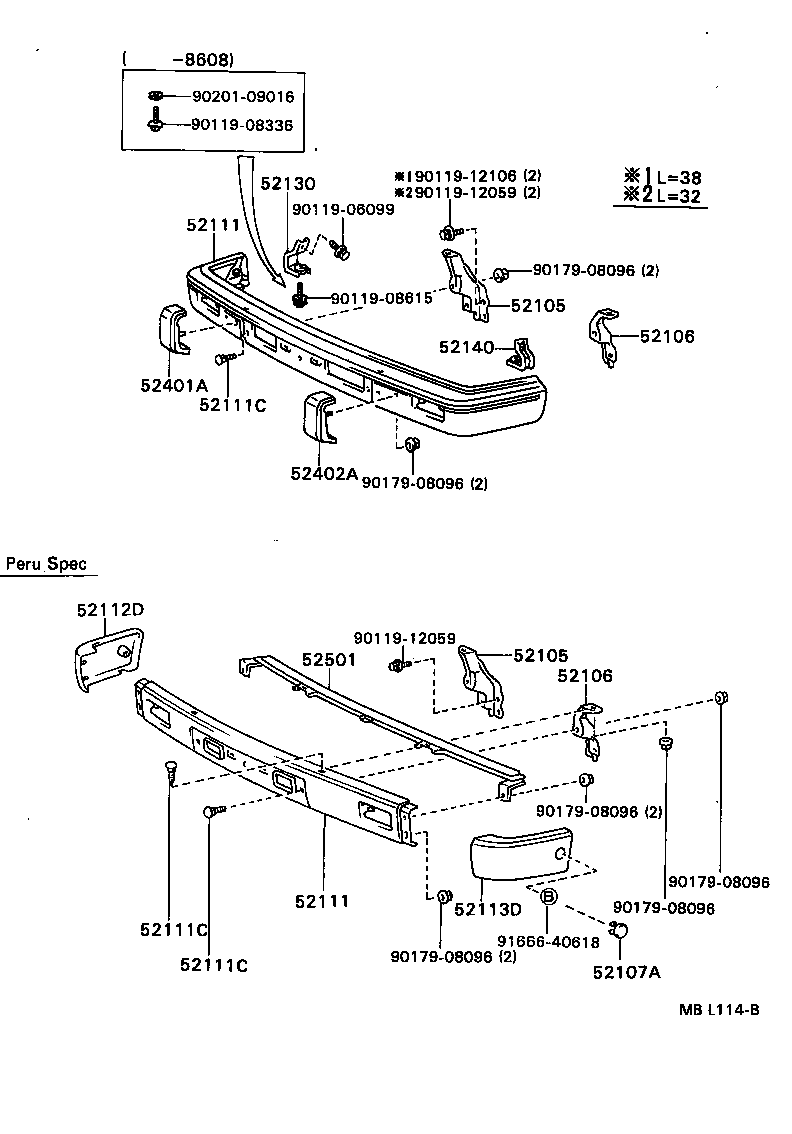

Figure MBF968C MBF968C 1983-08 → 1986-08 Figure MBL114B MBL114B 1986-08 → — Figure MBL115B MBL115B 1986-08 → 1987-08 Figure MBL115B MBL115B 1987-08 → — Figure MBM094 MBM094 1987-08 → 1989-03

Part groups

PNCDescription
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52107A Cover, Front Bumper Arm Hole
52111 Bumper Assy, Front
52111C Bolt, Round Head Square Neck(FOR FRONT BUMPER)
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52130 Bracket Assy, Front Bumper Side Mounting, RH
52140 Bracket Assy, Front Bumper Side Mounting, LH
52401A Guard Sub-assy, Front Bumper, RH
52402A Guard Sub-assy, Front Bumper, LH
52501 Filler Sub-assy, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
