Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · General

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

15 part groups · 2 illustrations

Illustrations

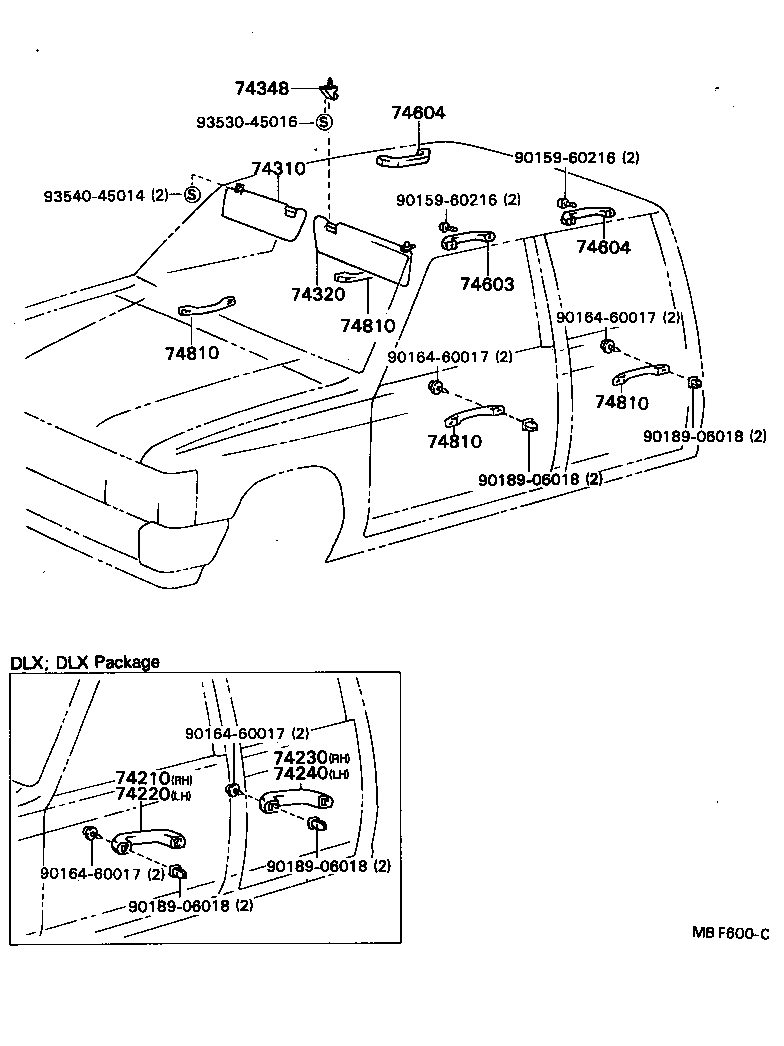

Figure MBF599J MBF599J 1983-08 → — Figure MBF600C MBF600C 1983-12 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74217 Reinforcement, Door Armrest
74220 Armrest Assy, Front, LH
74223 Cap, Door Armrest, RH
74224 Cap, Door Armrest, LH
74230 Armrest Assy, Rear, RH
74240 Armrest Assy, Rear, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74604 Grip Sub-assy, Assist, Rear
74613 Plug, Assist Grip
74641 Hook, Coat, B
74810 Pull Assy, Door, Inside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
