Toyota Hilux/4Runner (4WD)

1988-08 → 2004-12 · chassis LN,RN,YN,VZN10#,11#,13#,KZN,LN205 · catalogue 671350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 22 illustrations

Illustrations

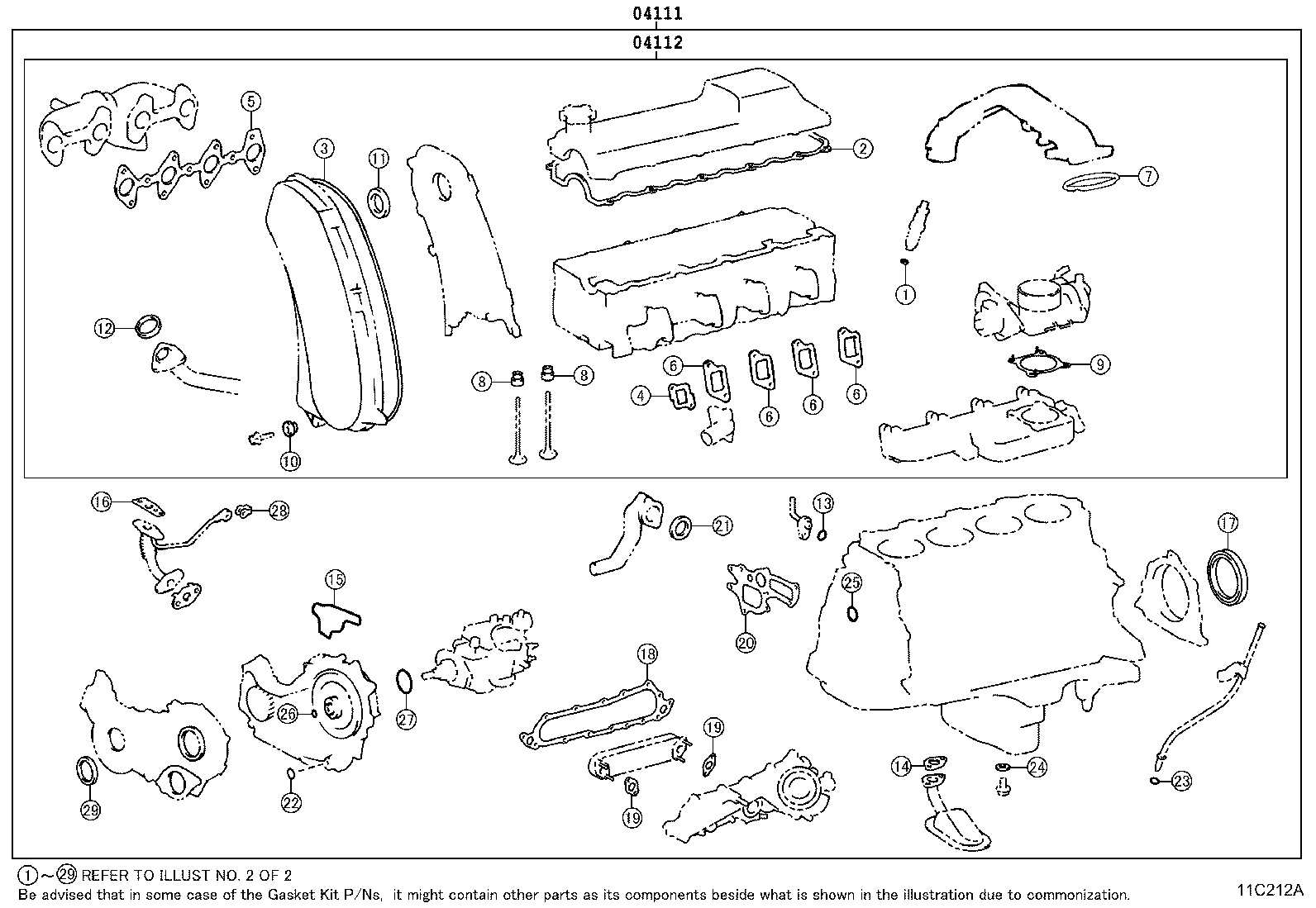

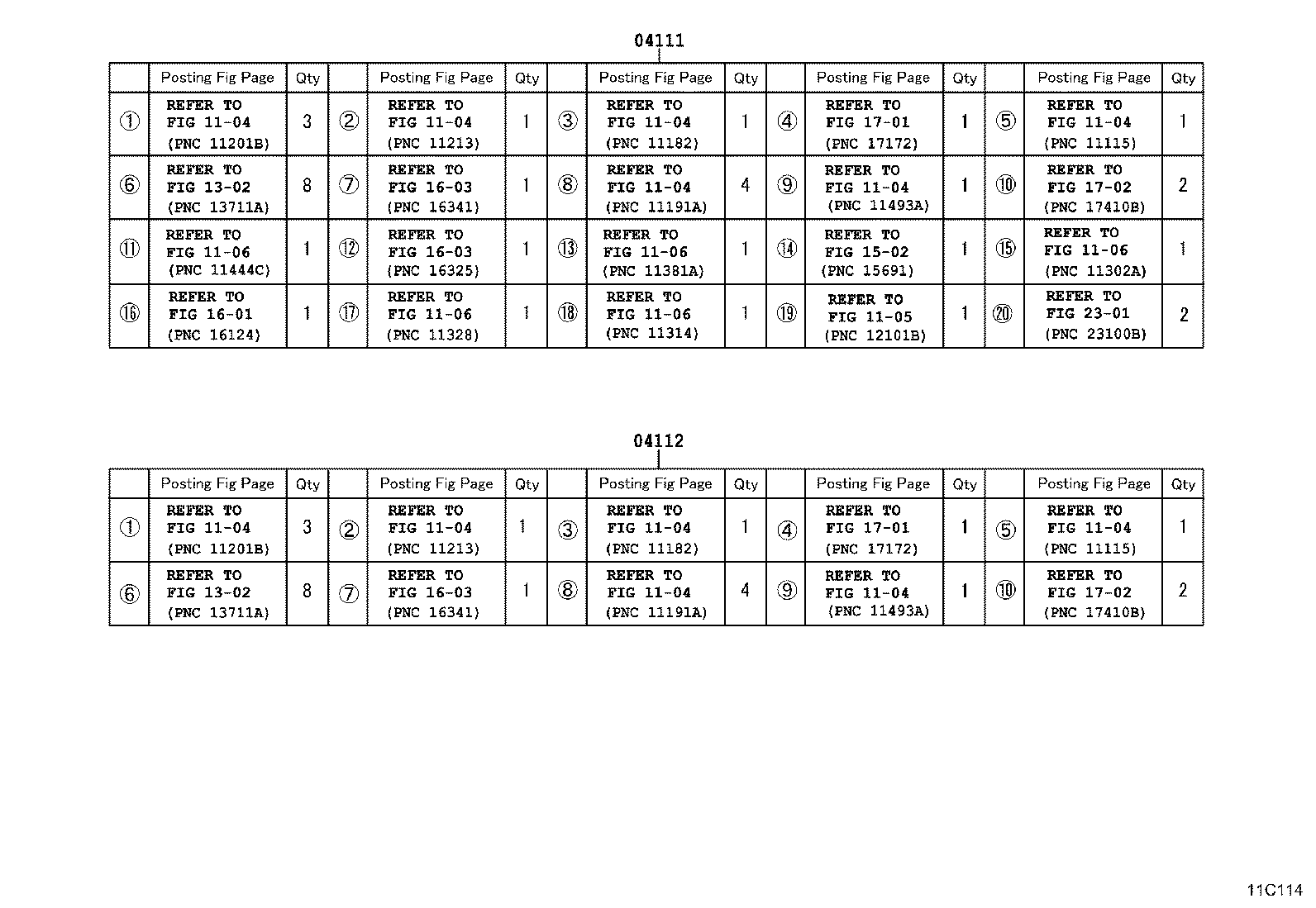

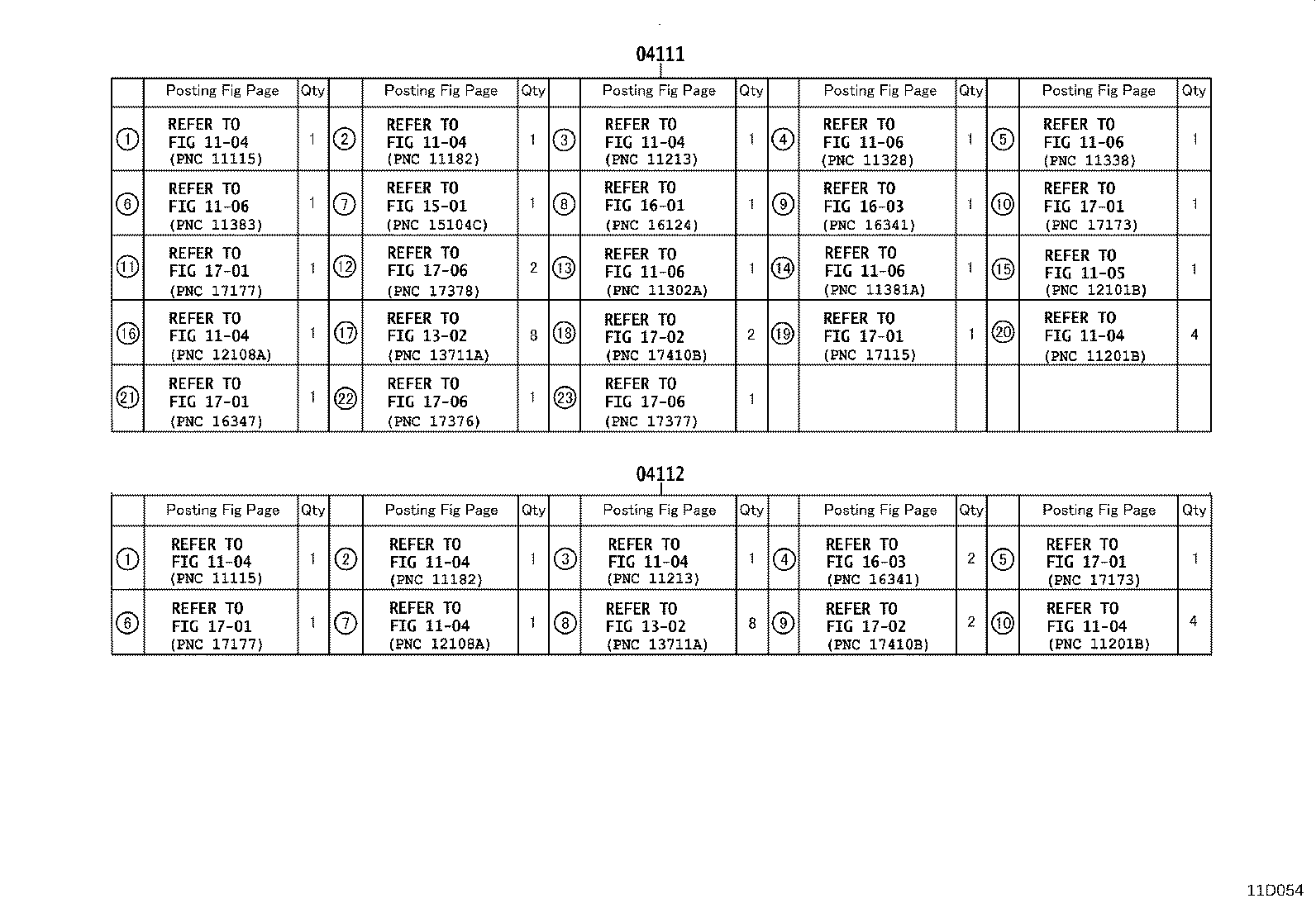

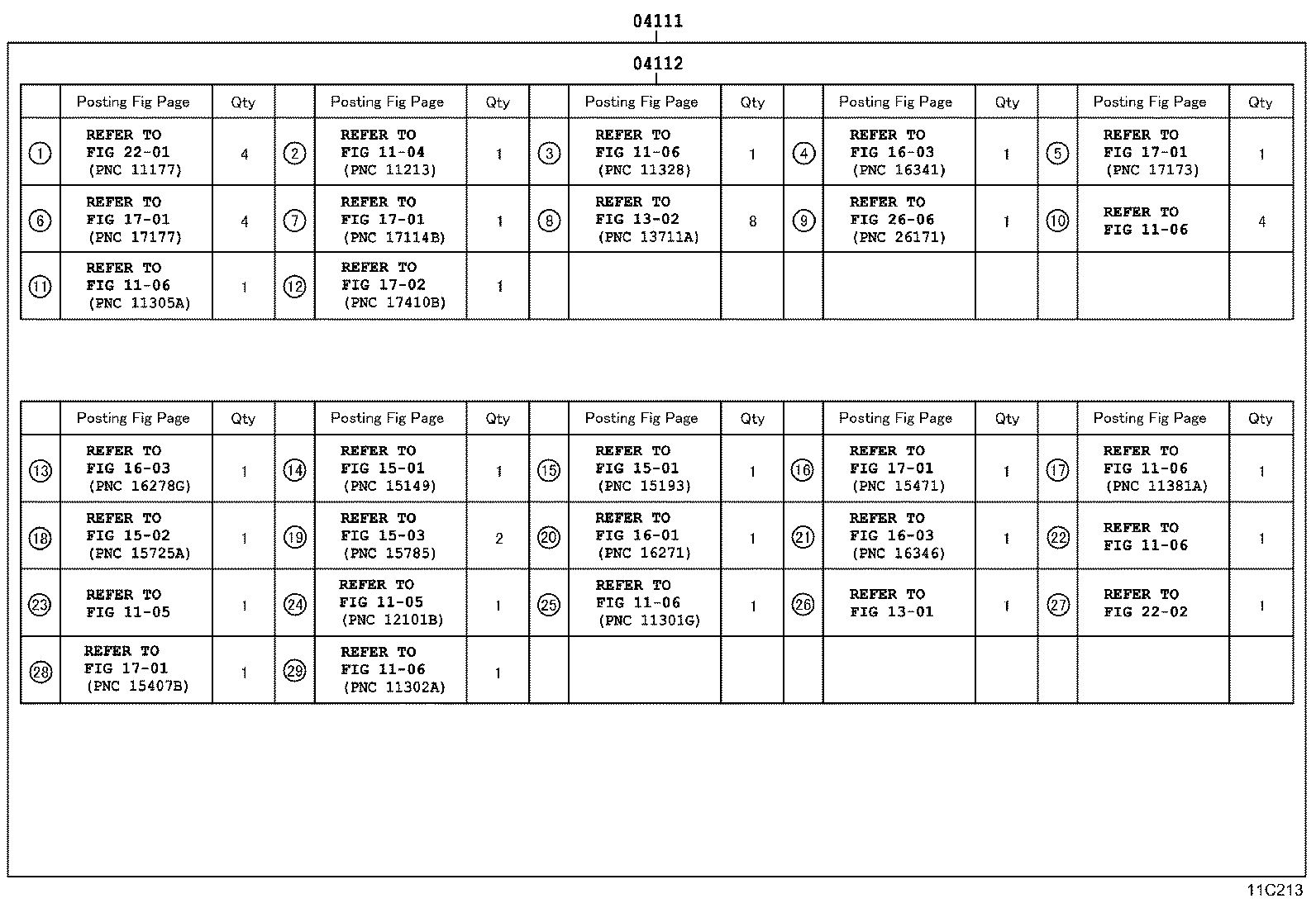

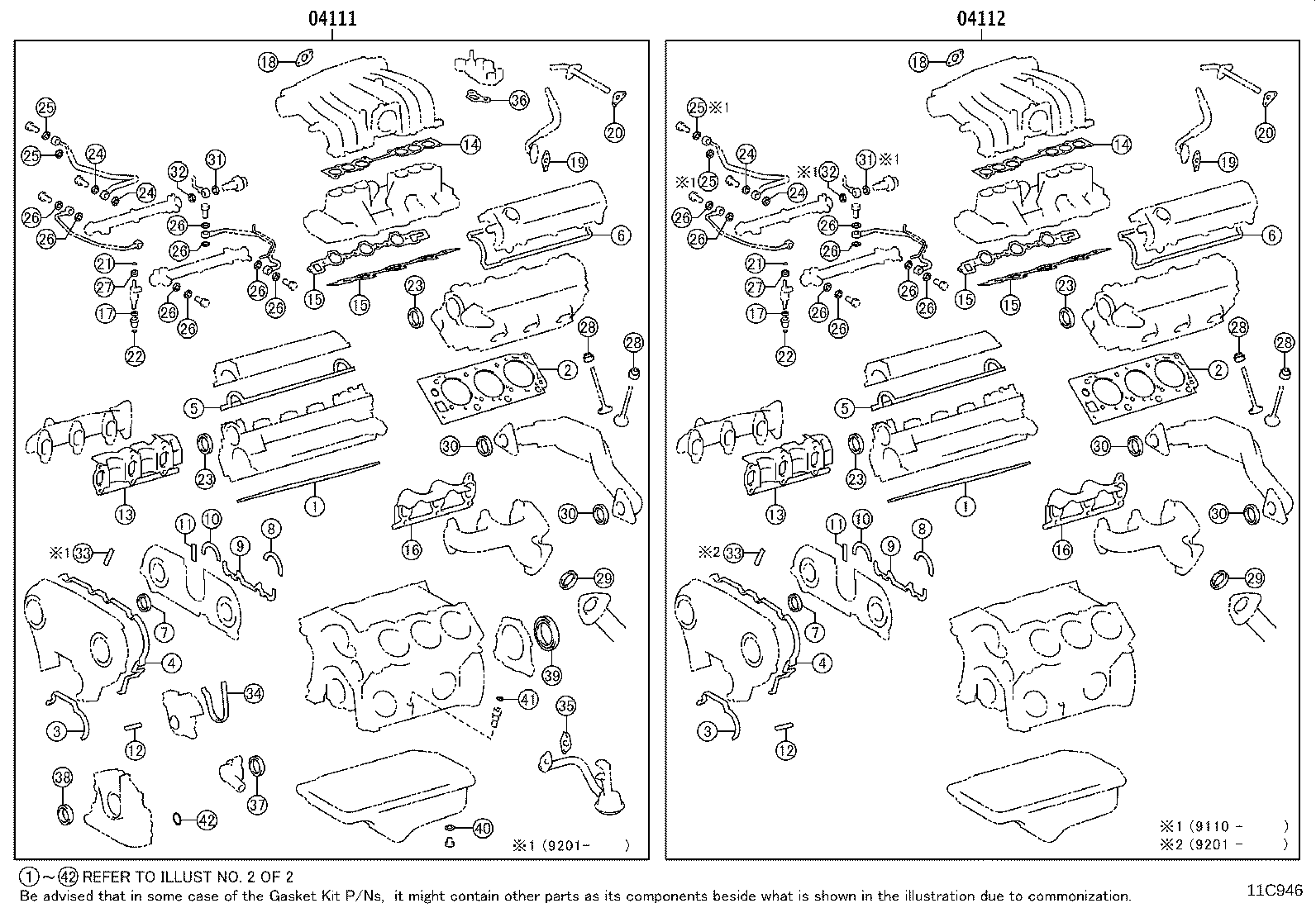

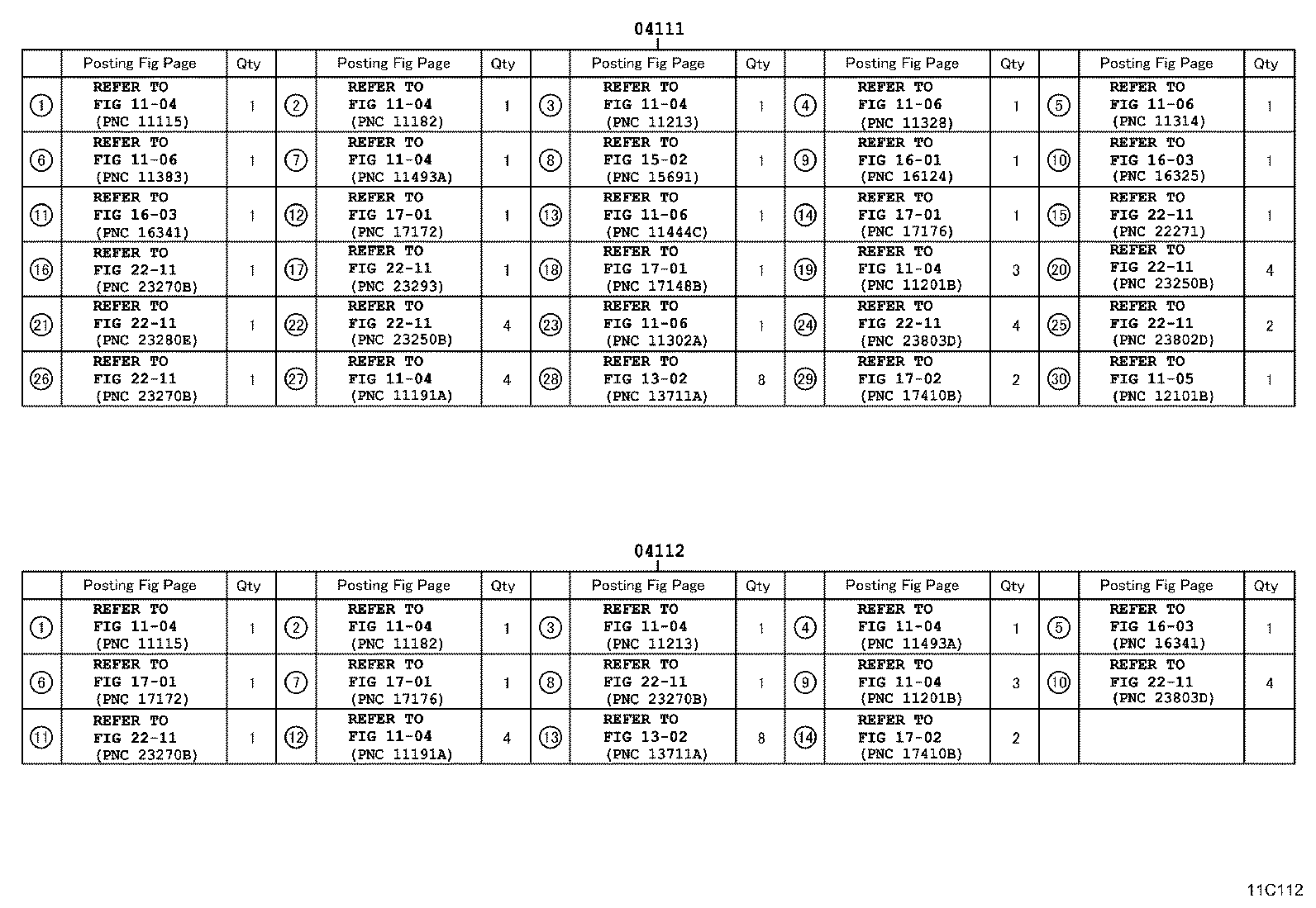

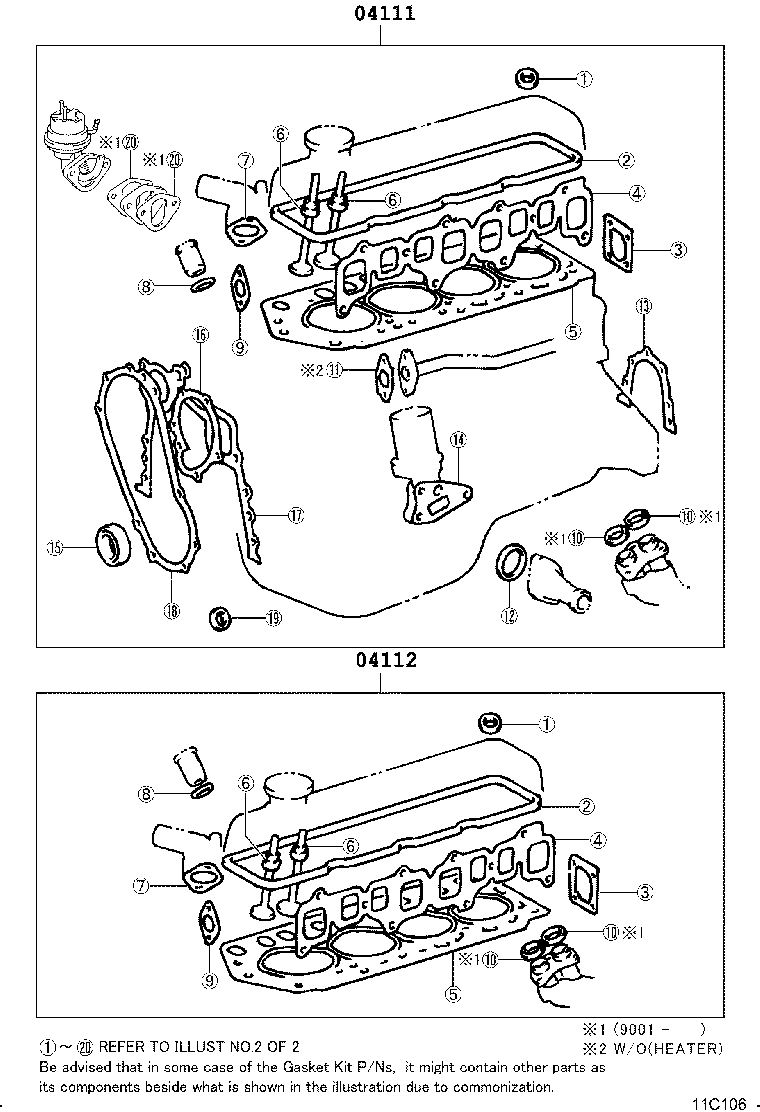

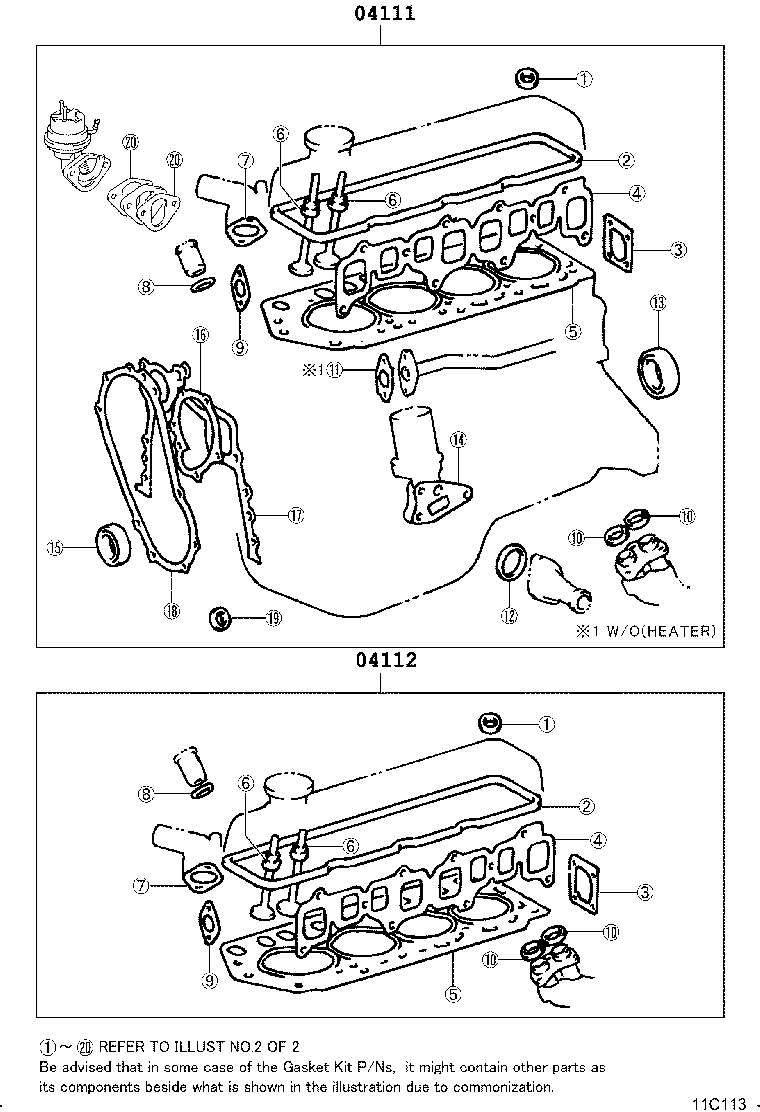

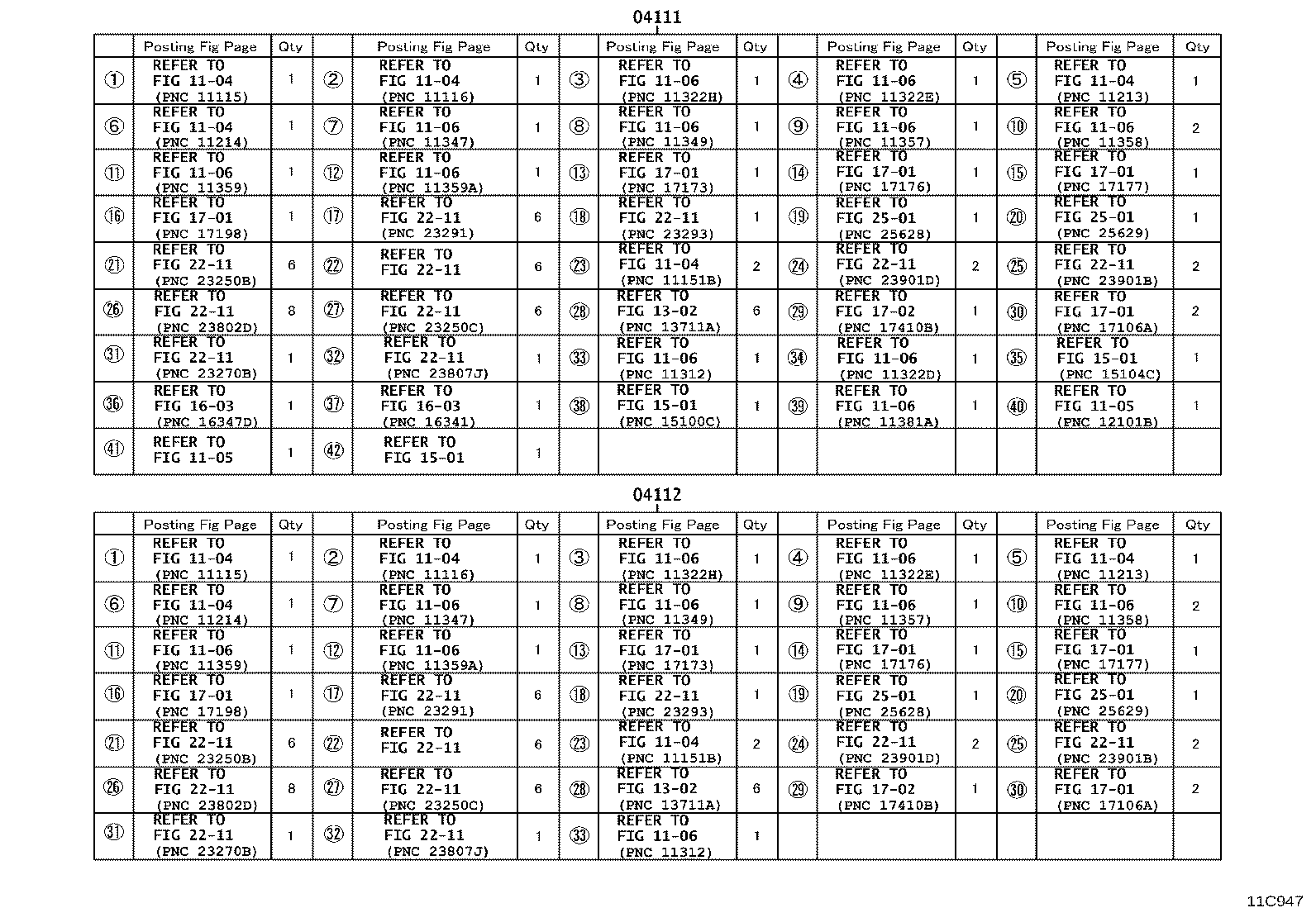

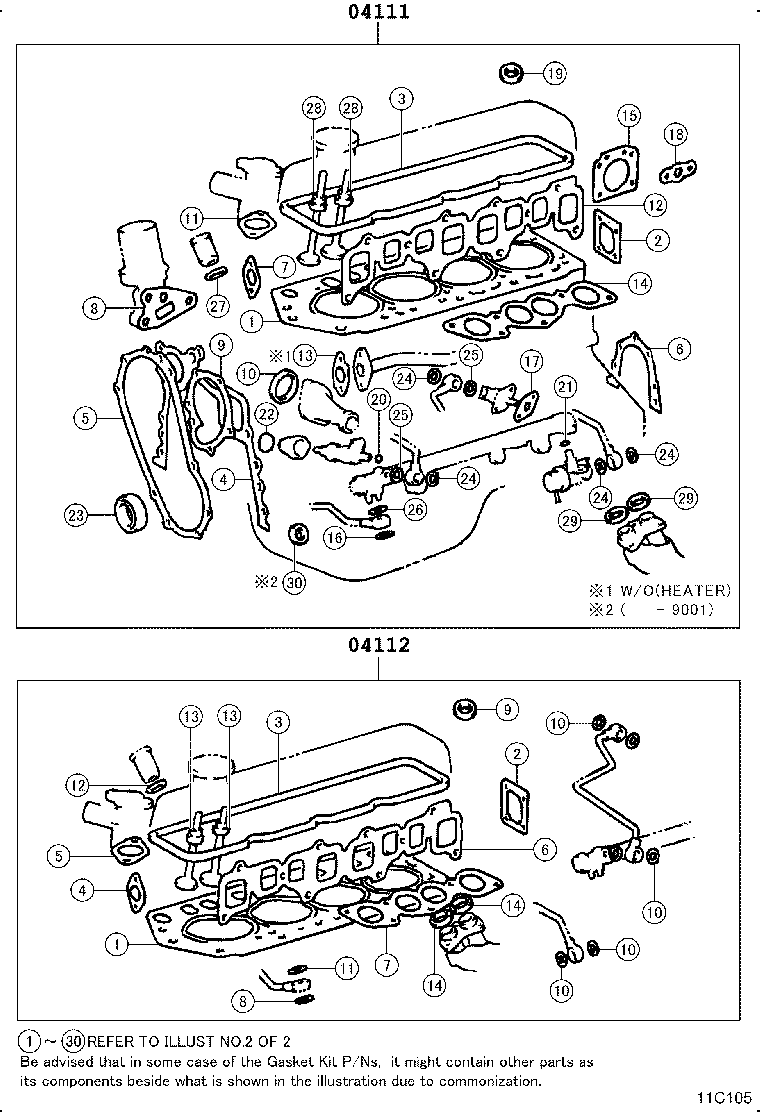

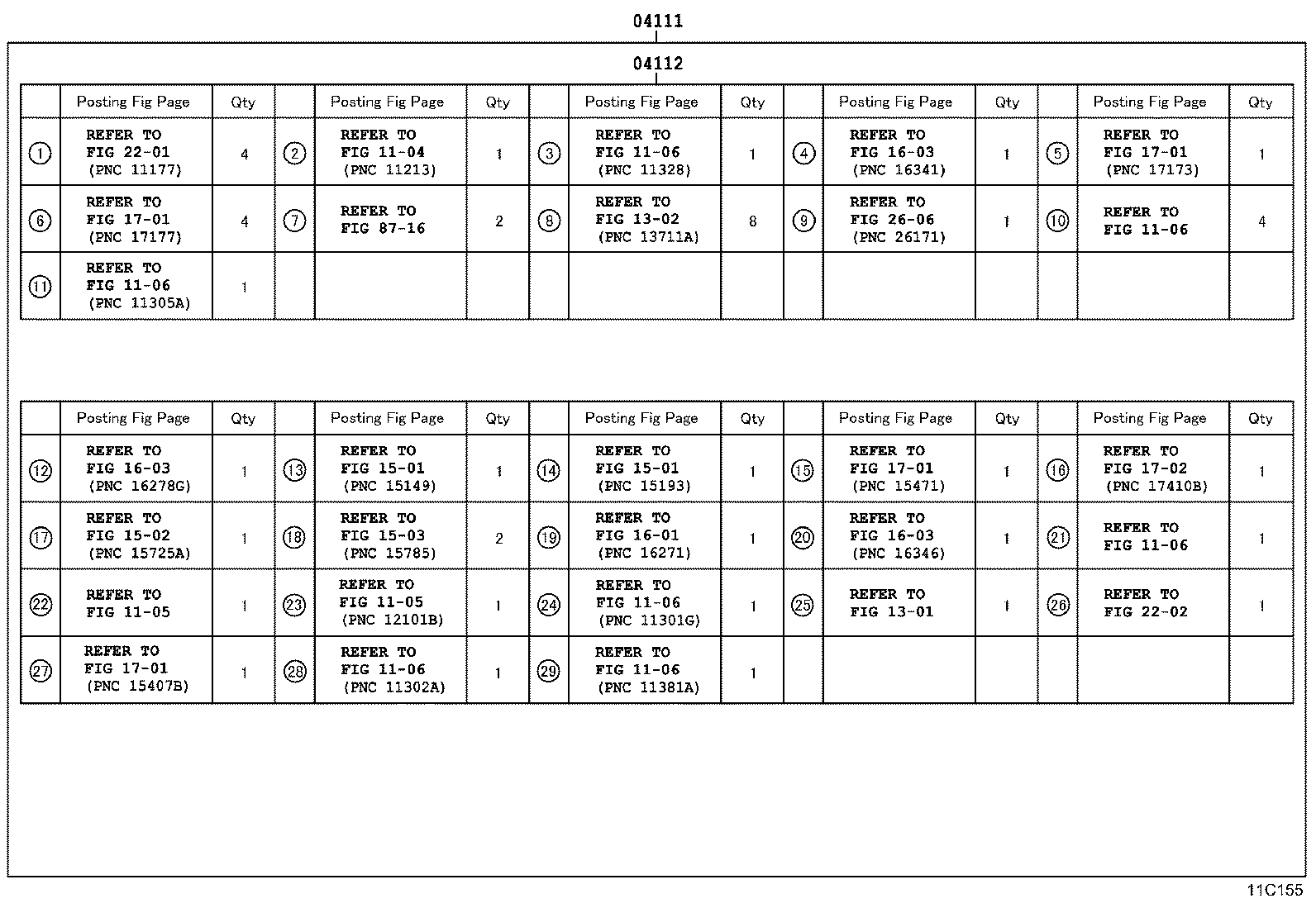

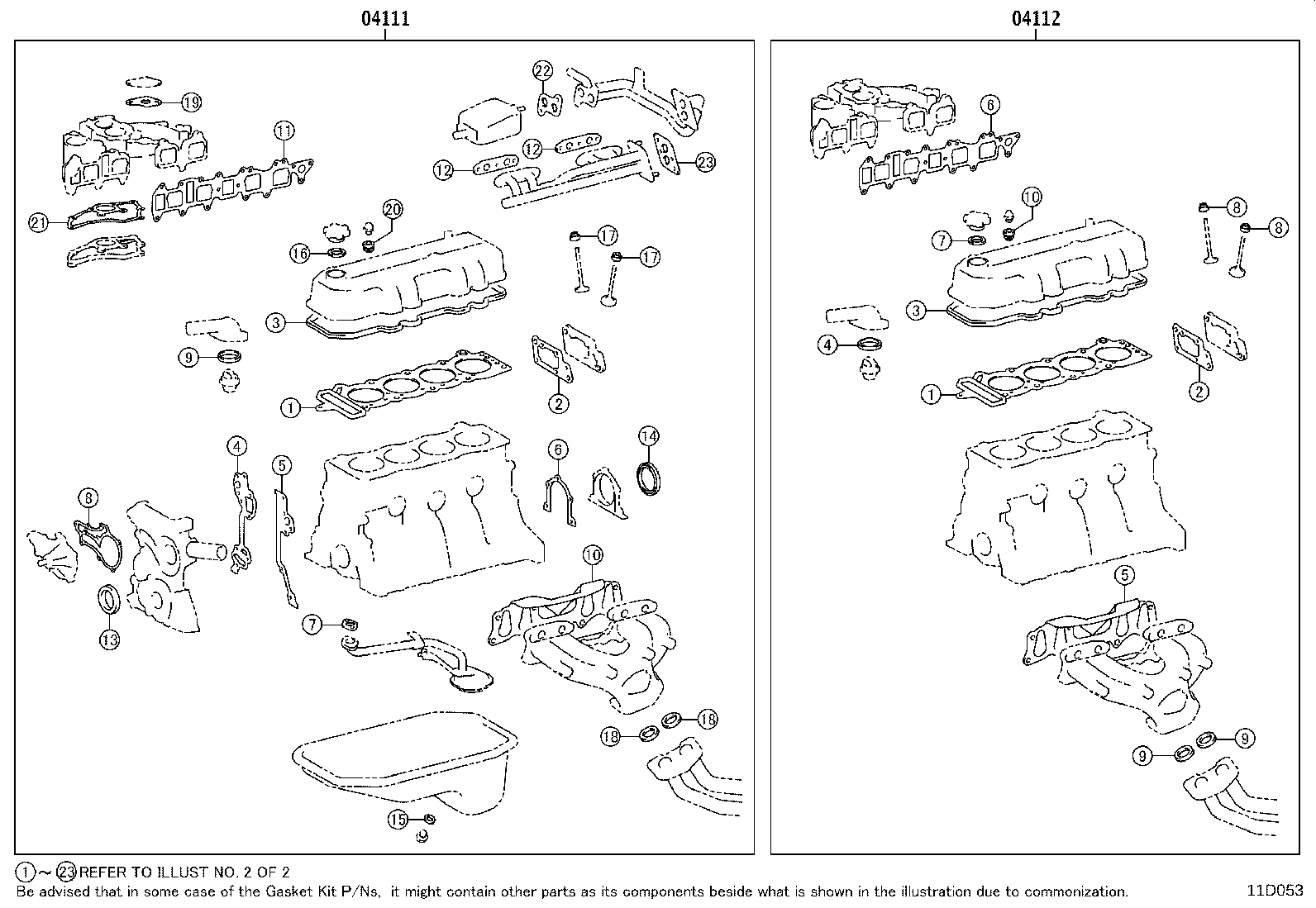

Figure 11C154 11C154 2001-08 → 2004-01 Figure 11C155 11C155 2001-08 → 2004-01 Figure 11C212A 11C212A 2004-01 → — Figure 11C213 11C213 2004-01 → — Figure 11A095 11A095 1988-08 → 1991-08 Figure 11A096 11A096 1991-08 → — Figure 11A097 11A097 1988-08 → 1991-08 Figure 11A098 11A098 1991-08 → — Figure 11A099 11A099 2001-06 → — Figure 11A100 11A100 2001-06 → — Figure 11D053 11D053 1988-08 → — Figure 11D054 11D054 1988-08 → — Figure 11D055 11D055 1994-01 → — Figure 11D056 11D056 1994-01 → — Figure 11C946 11C946 1990-08 → 1995-11 Figure 11C947 11C947 1990-08 → 1995-11 Figure 11C106 11C106 1988-08 → 1991-06 Figure 11C111 11C111 1988-08 → 1991-06 Figure 11C113 11C113 1991-06 → 1997-08 Figure 11C114 11C114 1991-06 → 1997-08 Figure 11C105 11C105 1989-08 → 1990-08 Figure 11C112 11C112 1989-08 → 1990-08

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
