Toyota Hilux/4Runner (4WD)

1988-08 → 2004-12 · chassis LN,RN,YN,VZN10#,11#,13#,KZN,LN205 · catalogue 671350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 6 illustrations

Illustrations

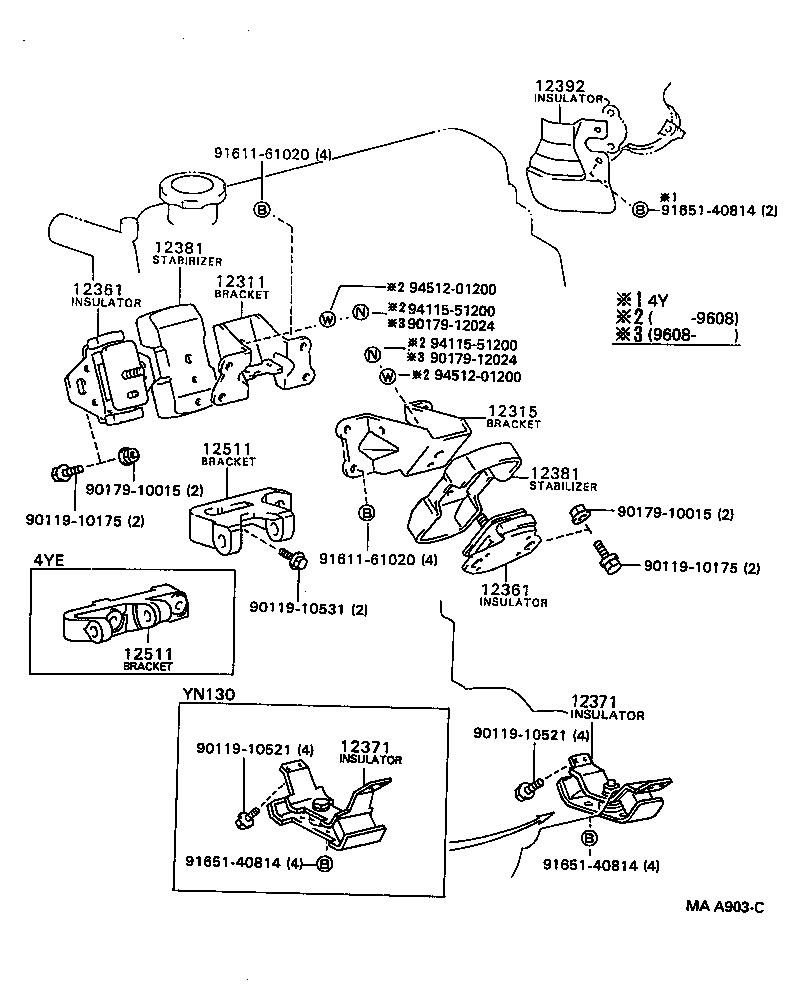

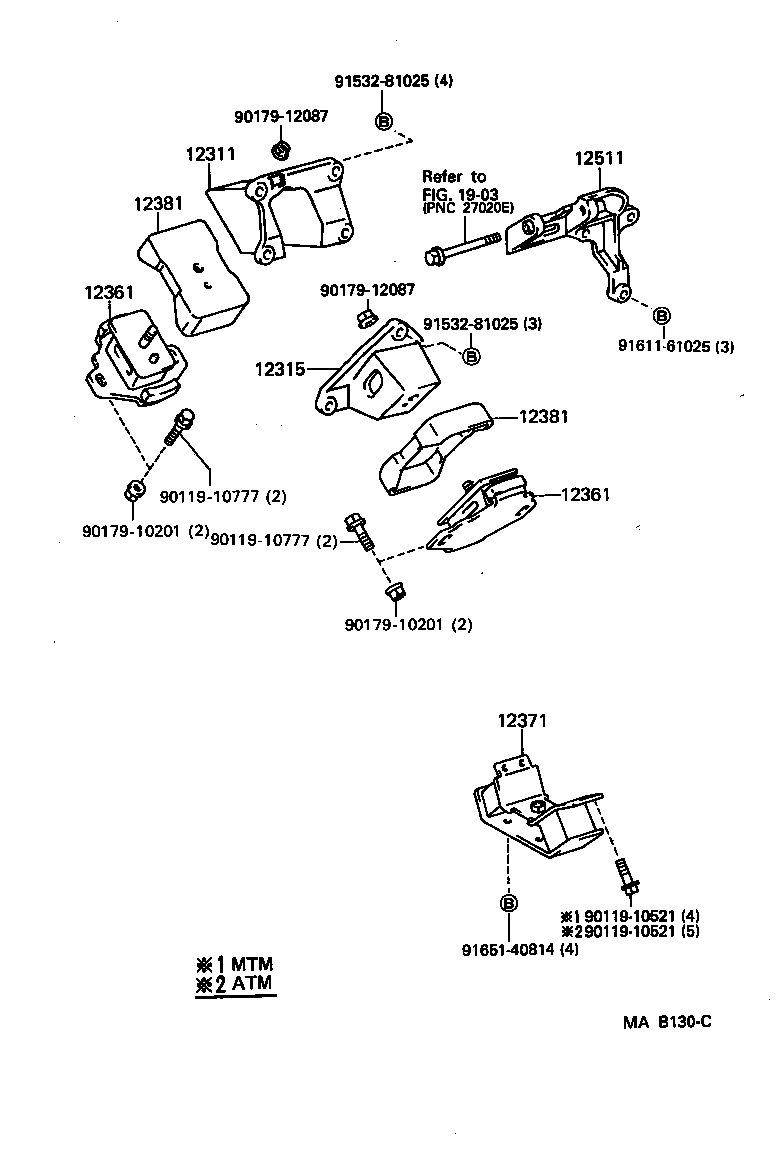

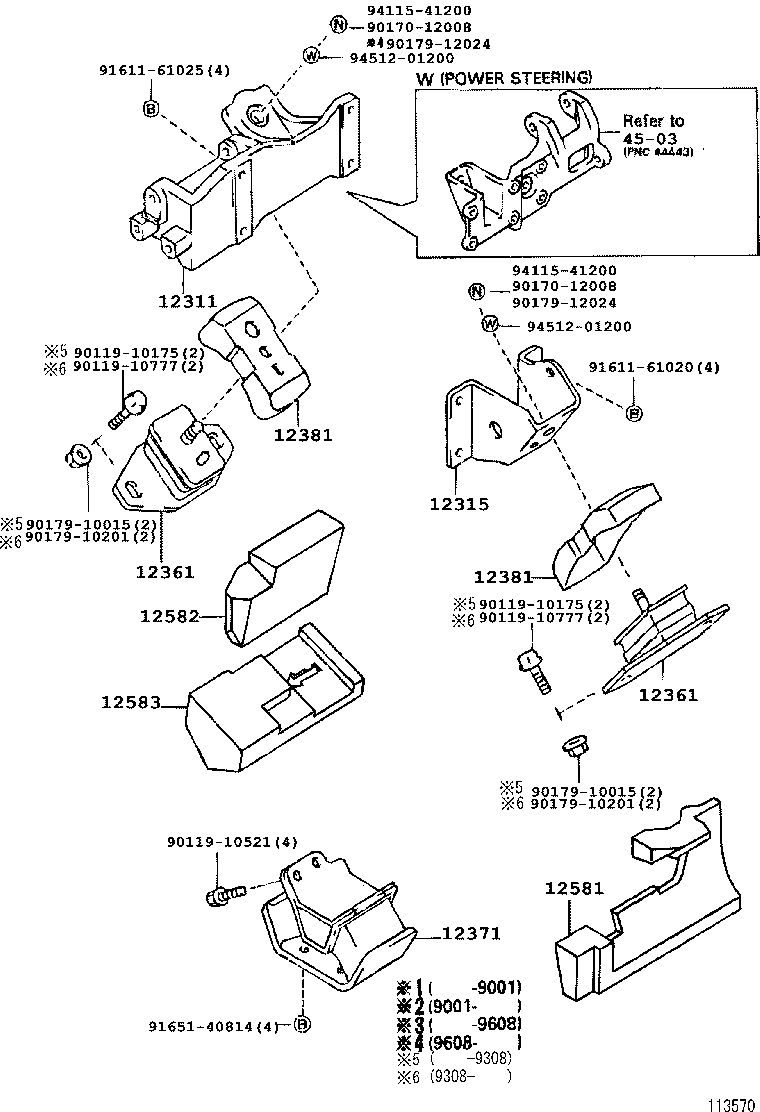

Figure 112131D 112131D 2001-08 → — Figure 113570 113570 1988-08 → 2001-06 Figure 112045A 112045A 2001-06 → — Figure MAA952B MAA952B 1988-08 → — Figure MAB130C MAB130C 1990-08 → 1995-11 Figure MAA903C MAA903C 1988-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12392 Insulator, Engine Mounting Heat, Front LH
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12581 Insulator, Cylinder Block, NO.1
12582 Insulator, Cylinder Block, NO.2
12583 Insulator, Cylinder Block, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
