Toyota Hilux/4Runner (4WD)
1988-08 → 2004-12 · chassis LN,RN,YN,VZN10#,11#,13#,KZN,LN205 · catalogue 671350 · General
Discontinued model
Data version 2005-07
Vacuum Piping
35 part groups · 18 illustrations

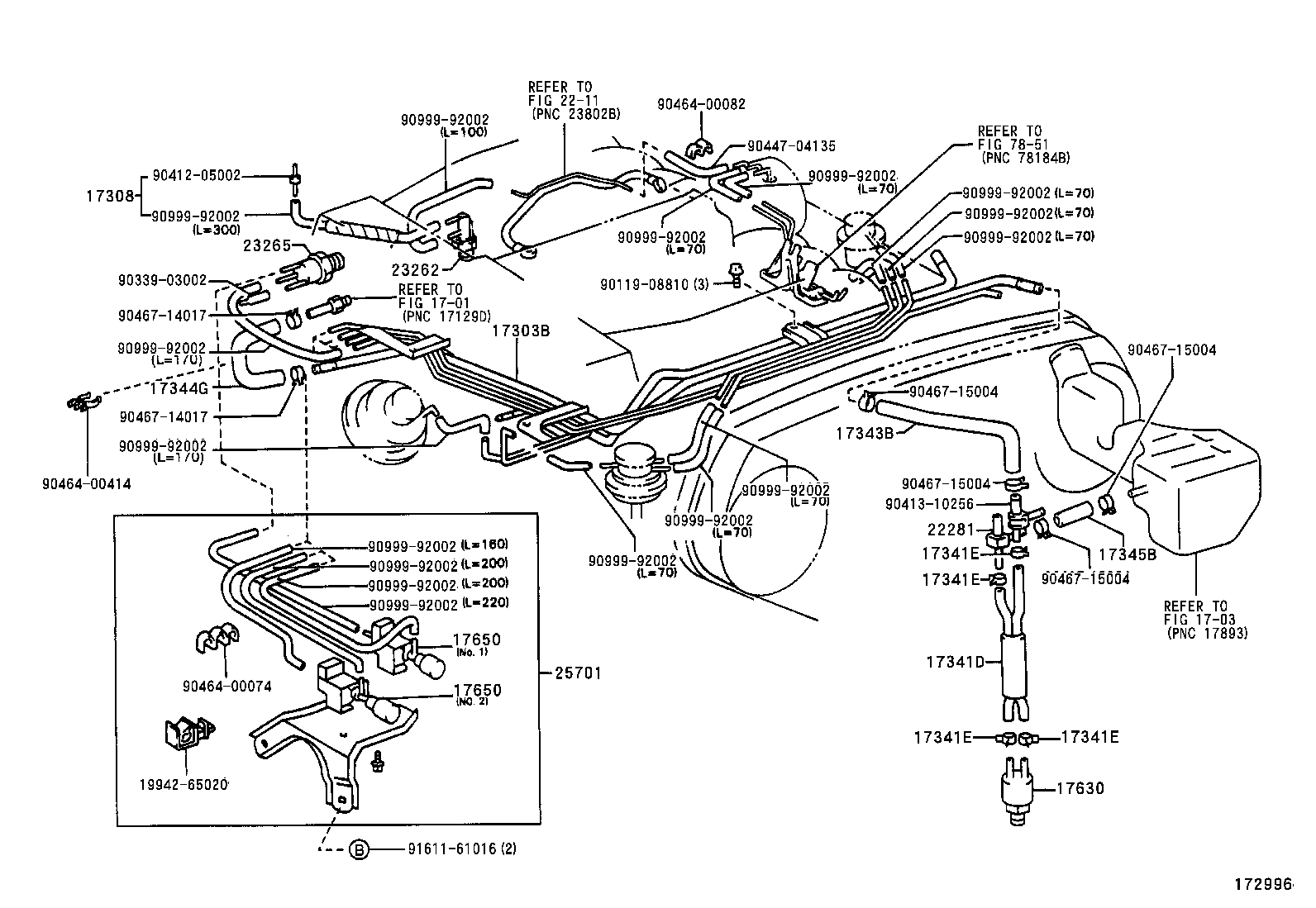

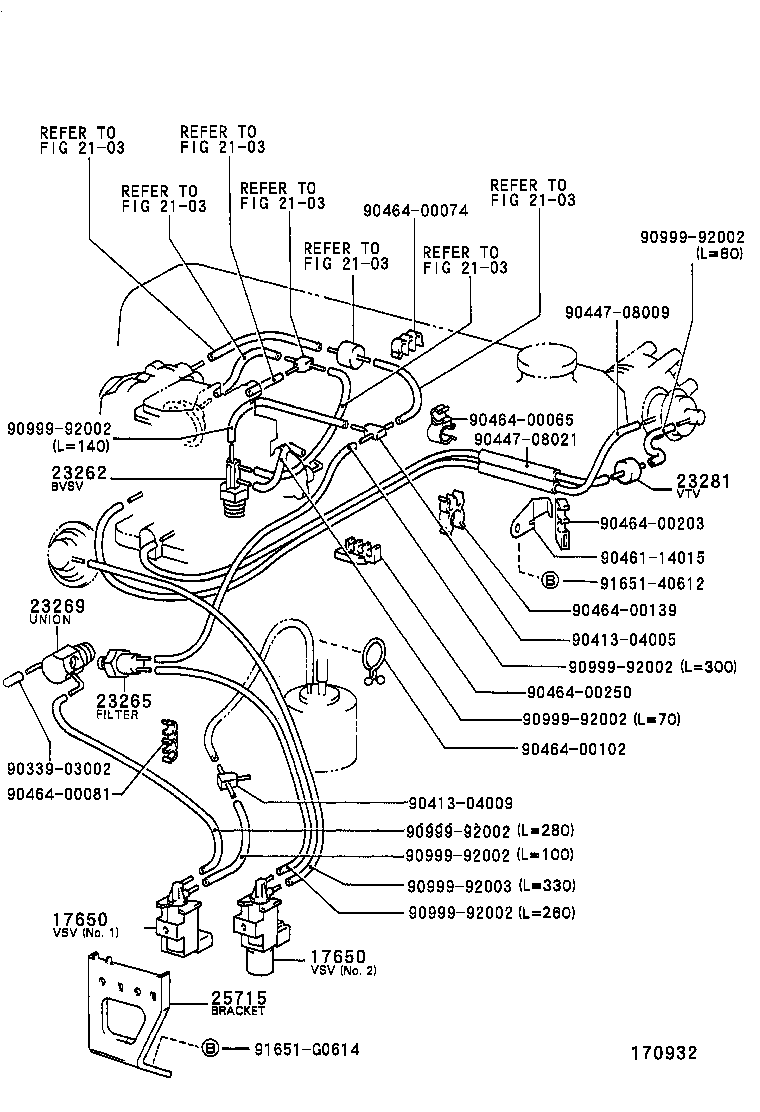

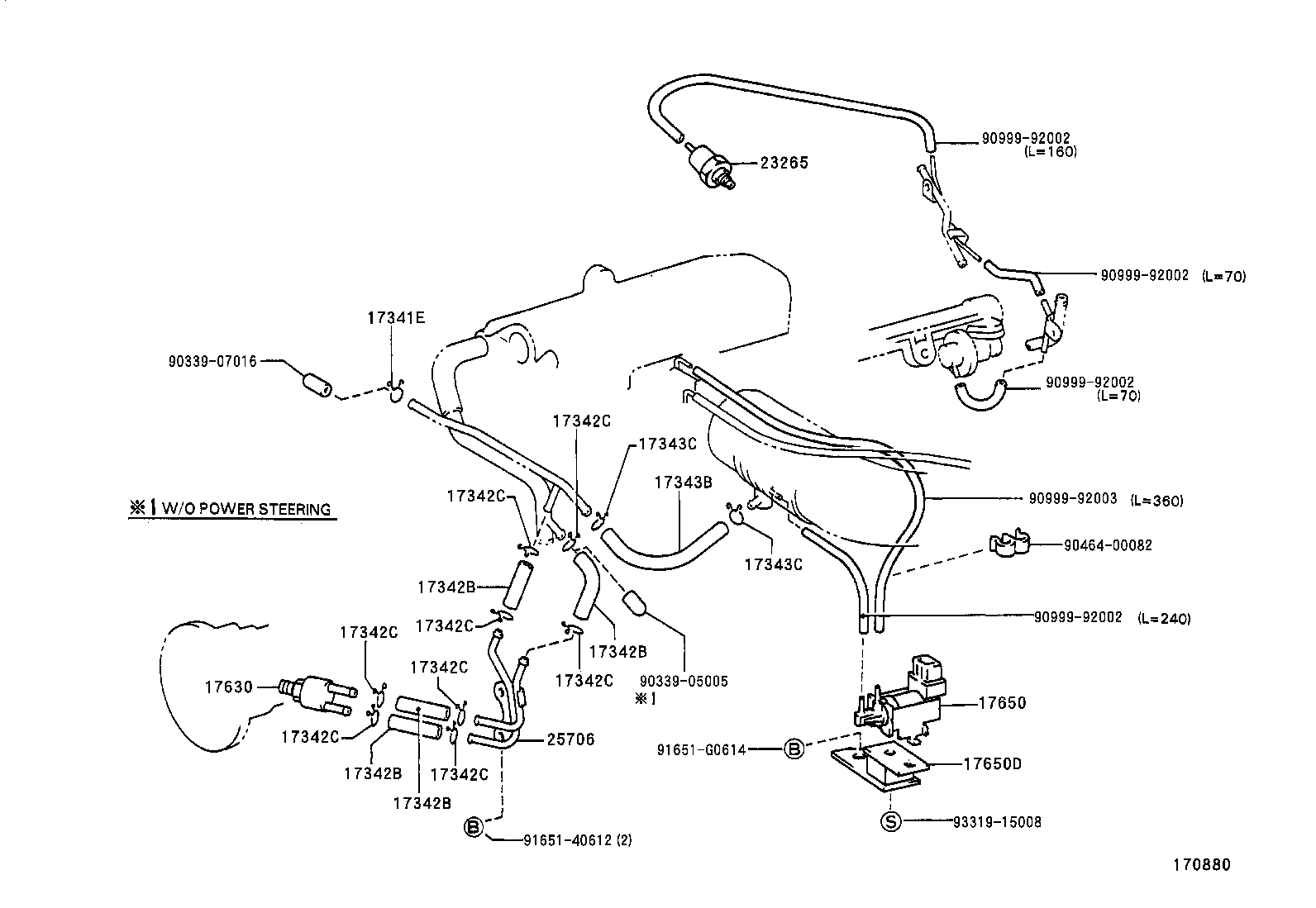

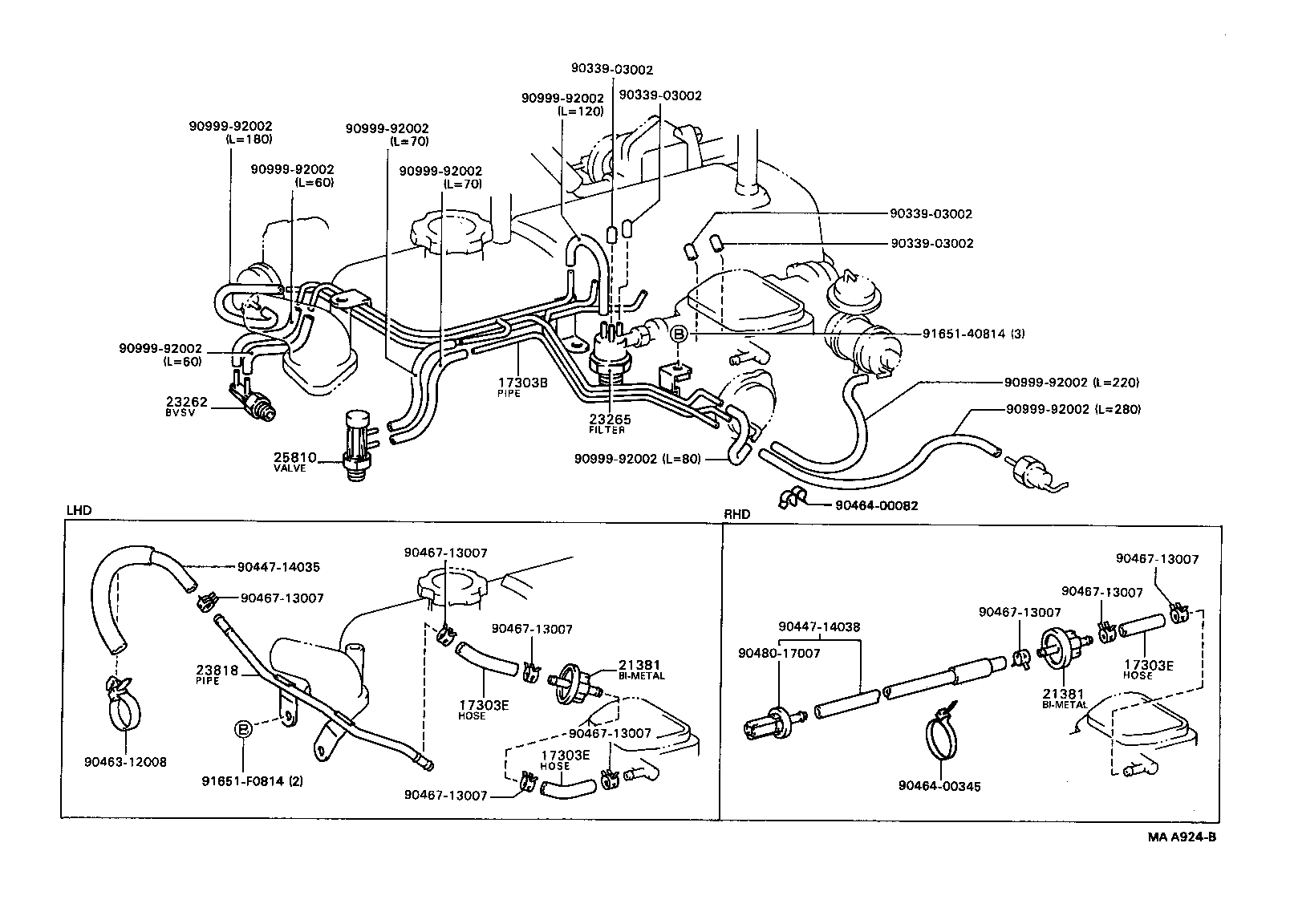

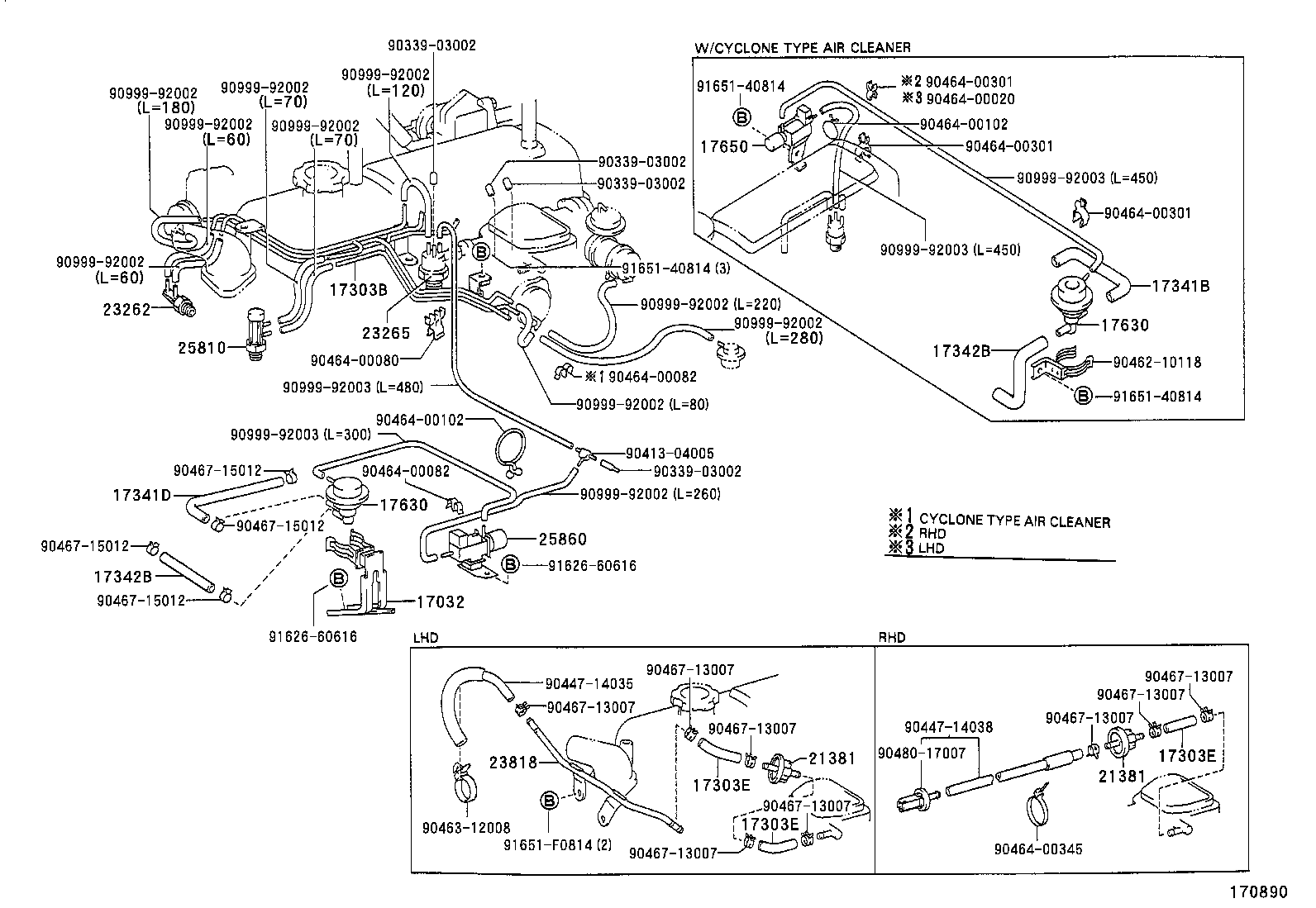

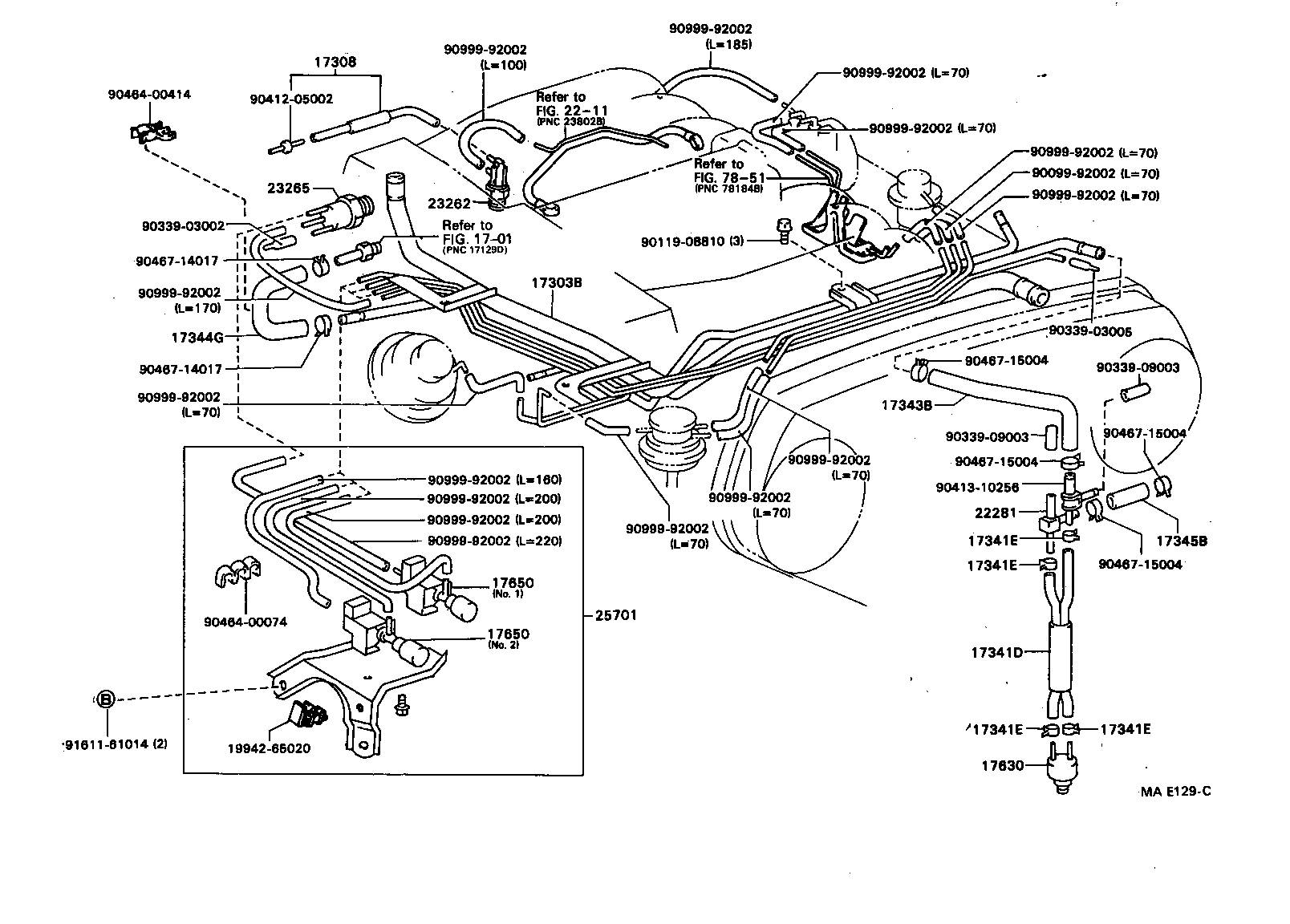

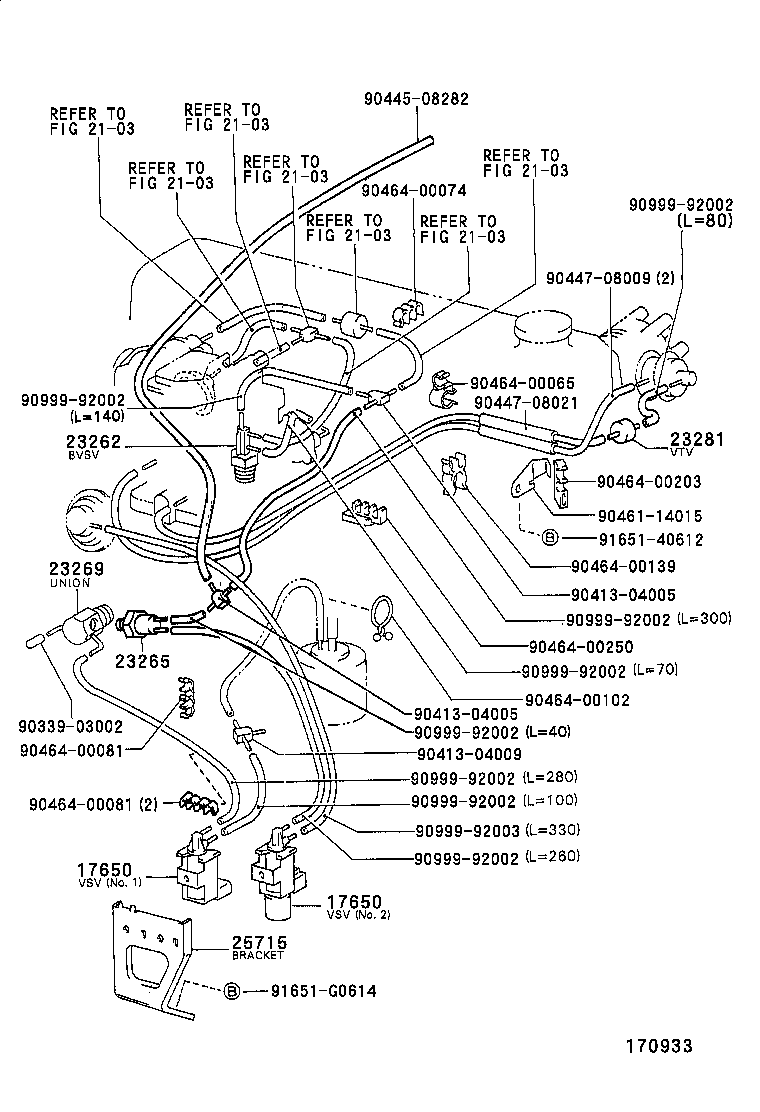

Illustrations
Part groups
| PNC | Description |
|---|---|
| 17032 | Bracket Sub-assy, Air Valve |
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17303E | Hose, NO.1(FOR AIR PIPE) |
| 17308 | Hose Sub-assy, Vacuum(FOR IDLE-UP) |
| 17341B | Hose, NO.1(FOR AIR INJECTION SYSTEM) |
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17341E | Clip, NO.1(FOR IDLE-UP HOSE) |
| 17342B | Hose, NO.2(FOR IDLE-UP) |
| 17342C | Clip, NO.2(FOR IDLE-UP HOSE) |
| 17343B | Hose, NO.3(FOR IDLE-UP) |
| 17343C | Clip, NO.3(FOR IDLE-UP HOSE) |
| 17344G | Hose, Air, NO.4 |
| 17345B | Hose, NO.5(FOR IDLE-UP) |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 17650D | Bracket, Vacuum Switching Valve |
| 21381 | Bimetal, Thermostatic |
| 22281 | Way, Air Delivery |
| 23262 | Valve, Bimetal Vacuum Switching, NO.1 |
| 23263 | Valve, Bimetal Vacuum Switching, NO.2 |
| 23265 | Filter, Gas, NO.1 |
| 23269 | Union(FOR GAS FILTER) |
| 23275 | Valve, Vacuum Control, NO.1 |
| 23281 | Valve, Vacuum Transmitting, NO.1 |
| 23285A | Valve, Check, NO.1 |
| 23818 | Pipe, Fuel Vapor Feed |
| 25701 | Valve Set, Emission Control |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25709 | Valve Sub-assy, High Altitude Compensator |
| 25709A | Clamp(FOR HIGH ALTITUDE COMPENSATOR VALVE) |
| 25715 | Bracket, Emission Control Valve |
| 25795 | Element, Altitude Compensator Filter |
| 25810 | Valve Assy, Bimetal |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 88031R | Actuator Set, Idle-up |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
