Toyota Hilux/4Runner (4WD)

1988-08 → 2004-12 · chassis LN,RN,YN,VZN10#,11#,13#,KZN,LN205 · catalogue 671350 · General

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

8 part groups · 5 illustrations

Illustrations

230190 2001-08 → —

Figure 230143A

230143A 1988-08 → 2001-06

Figure 230185A

230185A 2001-06 → —

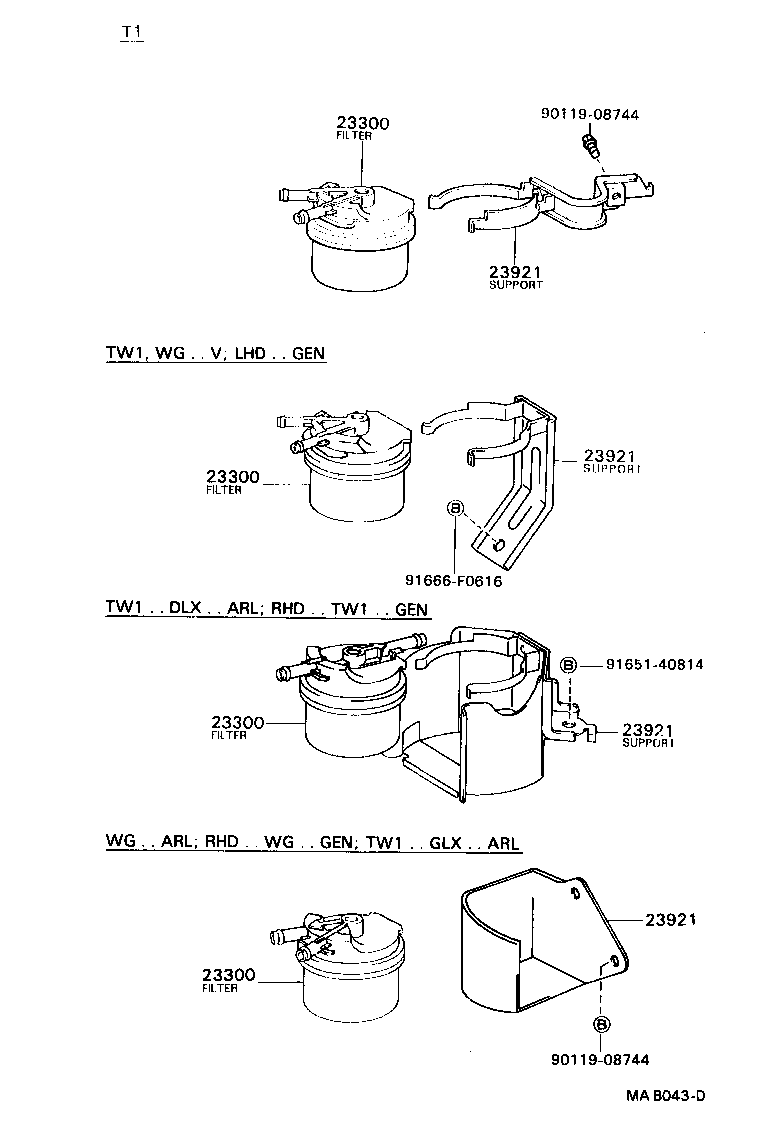

Figure MAB043D

MAB043D 1988-08 → —

Figure MAA938B

MAA938B 1988-08 → —

Part groups

PNC	Description
23300	Filter Assy, Fuel
23301A	Cap Assy, Fuel Filter
23303	Element Sub-assy, Fuel Filter
23322	Plug, Drain(FOR FUEL FILTER)
23322A	Ring, O(FOR DRAIN PLUG)
23338	Gasket(FOR WARNING SWITCH)
23921	Support, Fuel Filter
84461B	Switch, Level Warning

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
