Toyota Hilux/4Runner (4WD)
1988-08 → 2004-12 · chassis LN,RN,YN,VZN10#,11#,13#,KZN,LN205 · catalogue 671350 · General
Discontinued model
Data version 2005-07

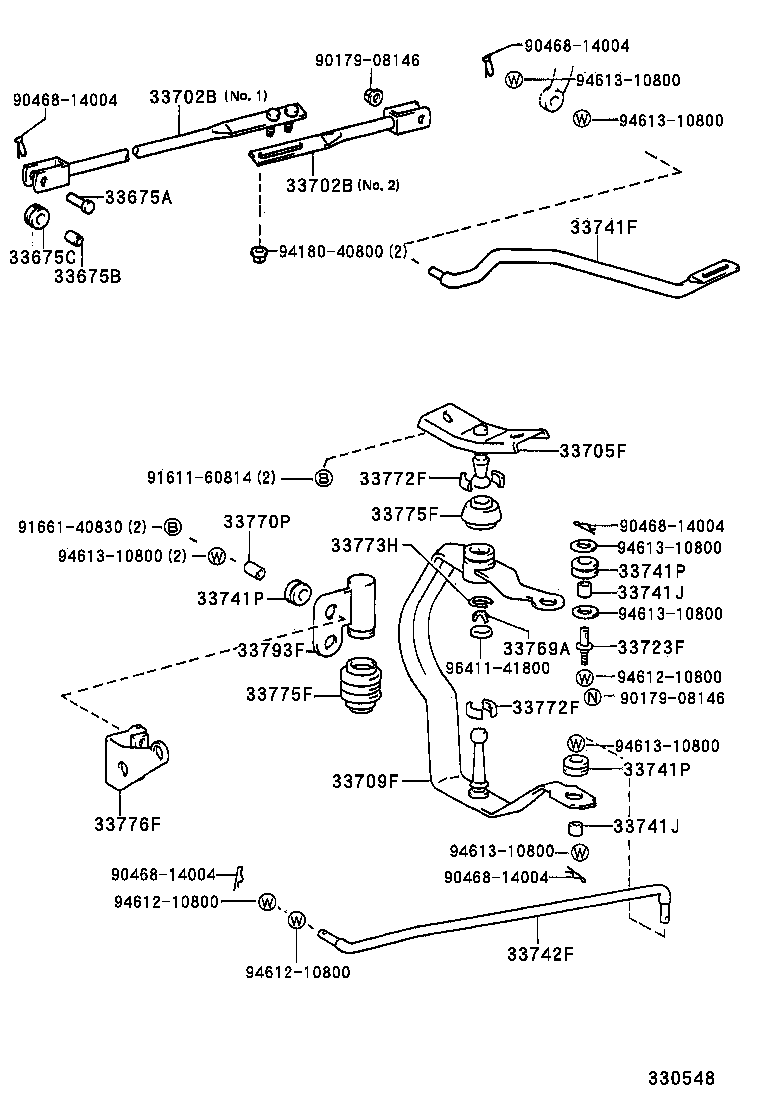

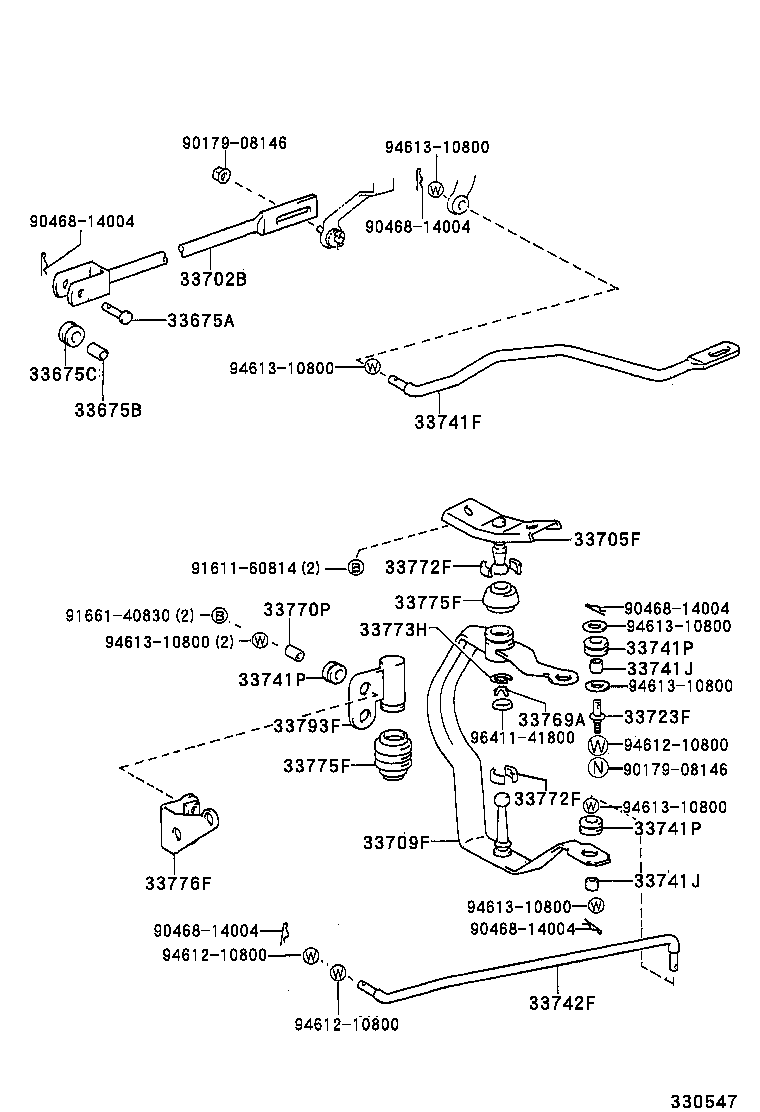

Shift Lever & Retainer
63 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 33105A | Deflector Sub-assy, Extension Housing Oil(MTM) |
| 33501F | Shaft Sub-assy, Control (FOR FLOOR SHIFT) |
| 33501G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33502 | Plate Sub-assy, Shift Lever |
| 33502A | Collar (FOR FLOOR SHIFT SETTING) |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33504C | Screw (FOR SHIFT LEVER KNOB SETTING) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33504G | Spring, Compression (FOR SHIFT LEVER KNOB) |
| 33505B | Seat Sub-assy, Shift Lever |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33506W | Plug, Breather (FOR SHIFT LEVER RETAINER) |
| 33515C | Shaft, Control, NO.2 |
| 33516A | Shaft, Control, NO.3 |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33548F | Bush, NO.1, Shift Lever (FOR FLOOR SHIFT) |
| 33550D | Bulb, Position Indicator Lamp |
| 33555 | Boot, Shift Lever |
| 33584F | Gasket, Control Shift Lever Retainer (FOR FLOOR SHIFT) |
| 33593F | Holder, Spring (FOR FLOOR SHIFT) |
| 33623 | Button, Shift Lever Knob |
| 33625 | Sleeve, Shift Lever Knob |
| 33626 | Stopper, Shift Lever Button |
| 33631 | Rod, Detent |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33631D | Pin, Grooved (FOR DETENT ROD) |
| 33635A | Guide, Wire, NO.1 (FOR SHIFT LEVER) |
| 33636 | Guide, Wire, NO.2 (FOR SHIFT LEVER) |
| 33675A | Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) |
| 33675B | Bush (FOR TRANSMISSION CONTROL ROD) |
| 33675C | Grommet (FOR TRANSMISSION CONTROL ROD) |
| 33702B | Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT) |
| 33705F | Support Sub-assy, Cross Shaft, NO.1 (FOR FLOOR SHIFT) |
| 33709F | Shaft Sub-assy, Cross, NO.1 (FOR FLOOR SHIFT) |
| 33723F | Swivel, Connecting Rod (FOR FLOOR SHIFT) |
| 33723G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33723H | Grommet (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33741F | Rod, Gear Shifting, NO.1 (FOR FLOOR SHIFT) |
| 33741J | Bush, NO.2 (FOR SHIFTING OR SELECTING ROD) |
| 33741P | Grommet, NO.2 (FOR SHIFTING OR SELECTING ROD) |
| 33742F | Rod, Gear Shifting, NO.2(FOR FLOOR SHIFT) |
| 33769A | Spring, Cross Shaft End |
| 33770P | Coller (FOR CROSS SHAFT) |
| 33772F | Bush, Cross Shaft Support, NO.1 (FOR FLOOR SHIFT) |
| 33773H | Ring, Snap (FOR CROSS SHAFT SUPPORT SNAP) |
| 33775F | Cover, Cross Shaft Dust, NO.1 (FOR FLOOR SHIFT) |
| 33776F | Bracket, Cross Shaft, NO.1 (FOR FLOOR SHIFT) |
| 33793F | Bracket, Cross Shaft, NO.2(FOR FLOOR SHIFT) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35907 | Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT) |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
| 36321H | Lever, Transfer Shift |
| 36321P | Spring (FOR TRANSFER SHIFT LEVER) |
| 36322A | Lever, Transfer Shift, NO.2 |
| 36325A | Knob, Lever, NO.2 |
| 36381A | Button, Transfer Shift Lever Knob |
| 36381B | Spring, Compression (FOR SHIFT LEVER KNOB) |
| 36382A | Stopper, Transfer Shift Lever Button |
| 36383A | Support, Transfer Detent Block |
| 36384A | Block, Transfer Detent |
| 36391A | Cover, Transfer Slide |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
