Toyota Hilux/4Runner (4WD)

1988-08 → 2004-12 · chassis LN,RN,YN,VZN10#,11#,13#,KZN,LN205 · catalogue 671350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

49 part groups · 6 illustrations

Illustrations

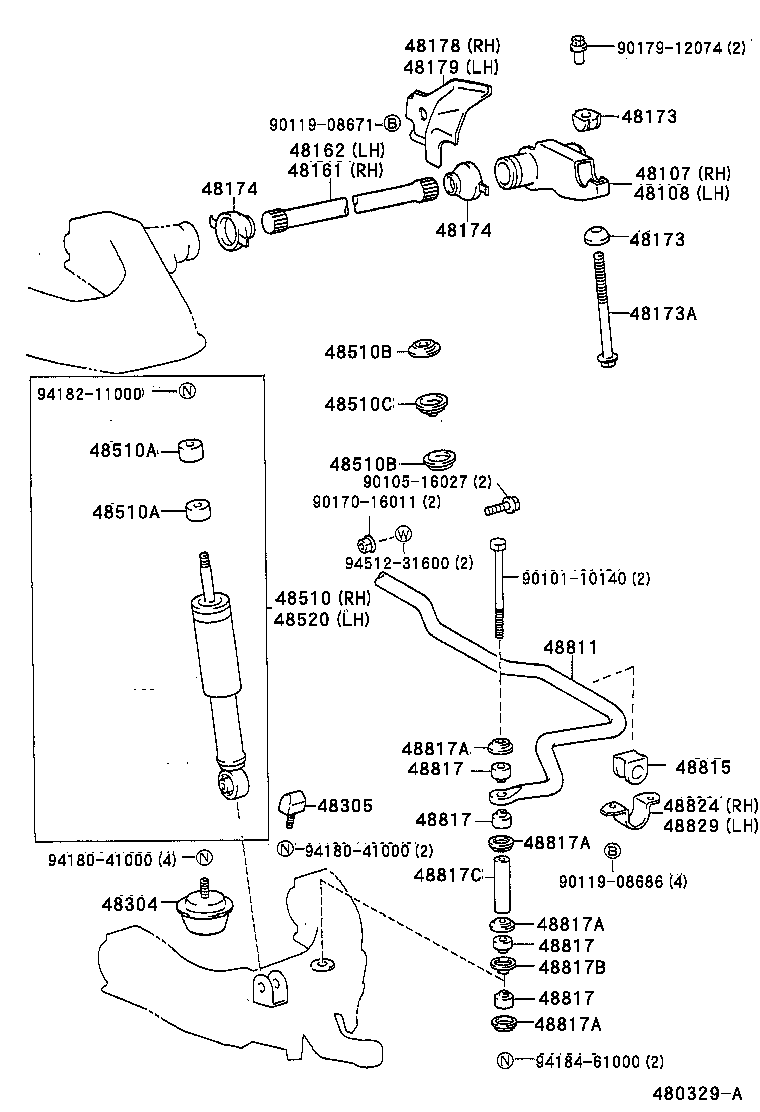

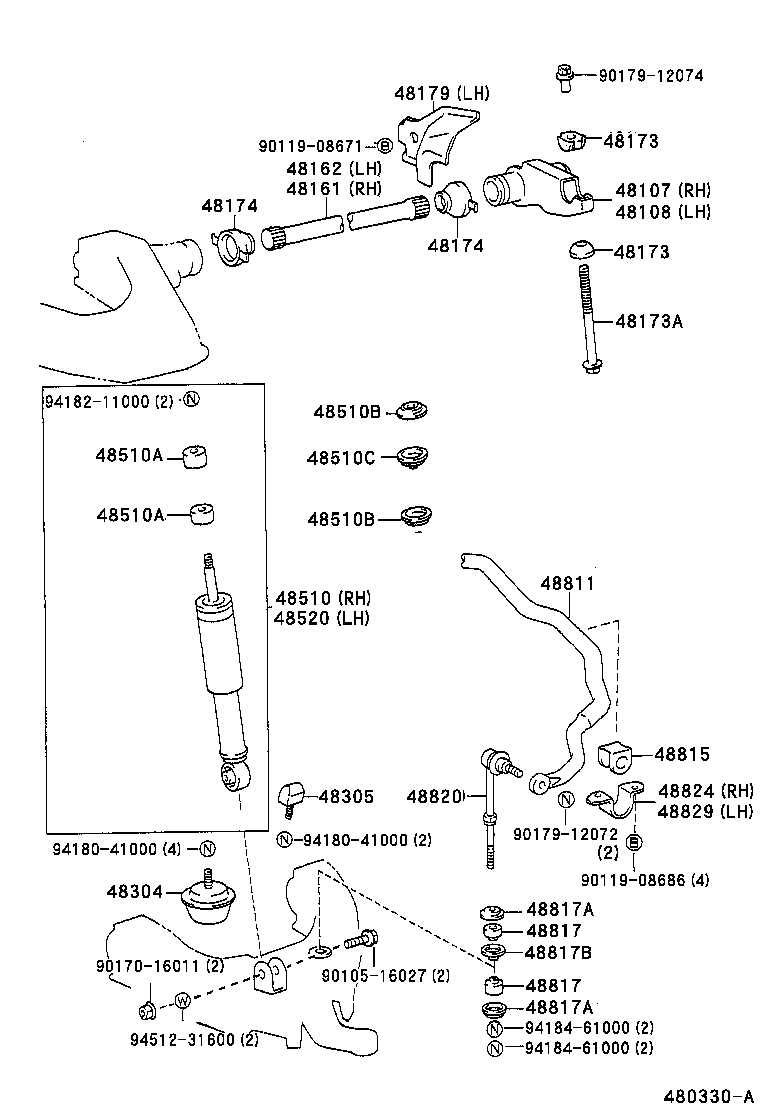

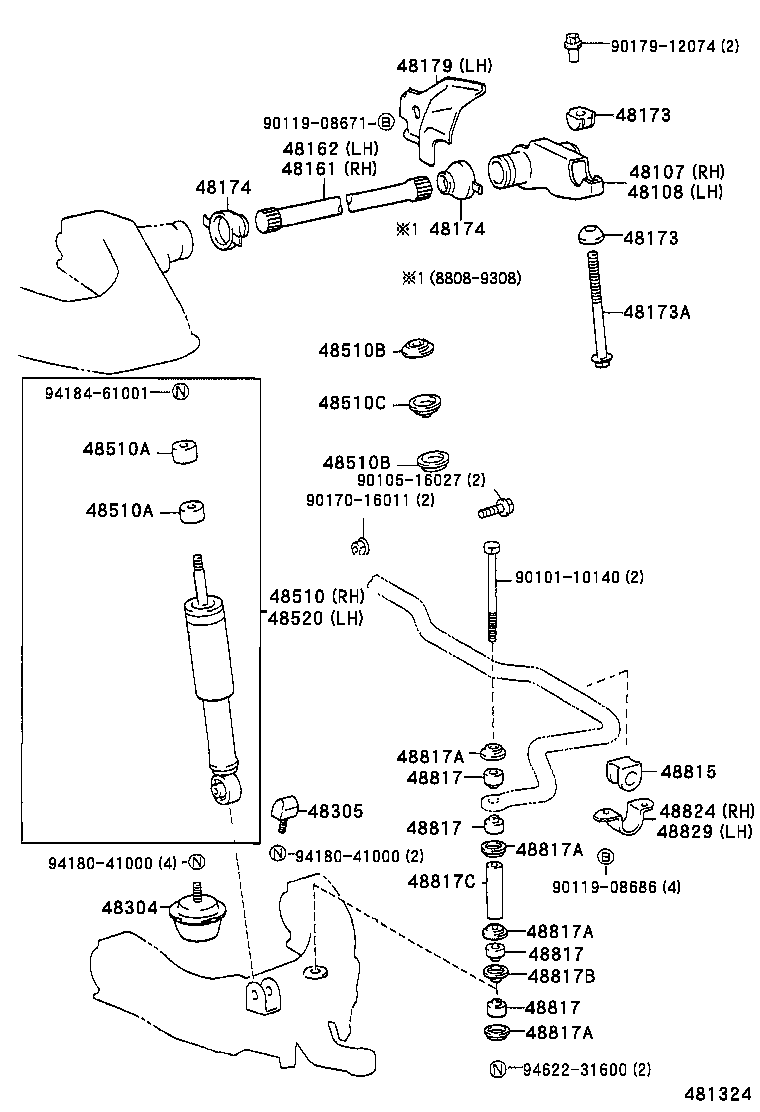

Figure 480328C 480328C 1988-08 → 1999-09 Figure MCG530A MCG530A 1988-08 → 1999-09 Figure 480329A 480329A 1988-08 → 2001-06 Figure 480330A 480330A 1989-08 → 1991-08 Figure 480330A 480330A 1991-08 → 1995-11 Figure 481324 481324 2001-06 → —

Part groups

PNCDescription
04481 Shackle Kit, Front Spring
04482 Pin Kit, Front Spring
48107 Arm Sub-assy, Anchor, RH
48108 Arm Sub-assy, Anchor, LH
48110 Spring Assy, Front, RH
48110A Bush(FOR FRONT SPRING SHACKLE)
48110B Bush(FOR FRONT SPRING PIN)
48111 Leaf, Front Spring, NO.1
48112 Leaf, Front Spring, NO.2
48113 Leaf, Front Spring, NO.3
48114 Leaf, Front Spring, NO.4
48115 Leaf, Front Spring, NO.5
48120 Spring Assy, Front, LH
48147 Bolt, Front Spring, Center
48161 Spring, Torsion Bar, RH
48162 Spring, Torsion Bar, LH
48173 Seat, Anchor Arm Adjuster
48173A Bolt, Hexagon(FOR ANCHOR ARM ADJUSTING)
48174 Cover, Torsion Bar Dust
48178 Protector, Torsion Bar Dust Cover, RH
48179 Protector, Torsion Bar Dust Cover, LH
48252D Silencer
48304 Bumper Sub-assy, Front Spring, NO.1
48305 Bumper Sub-assy, Front Spring, NO.2
48331 Bumper, Front Spring, NO.1
48411 Bracket, Front Spring(FOR FRONT RH)
48412 Bracket, Front Spring(FOR FRONT LH)
48471A Seat, Front Spring Support
48505A Bolt, U(FOR FRONT SPRING)
48510 Absorber Assy, Shock, Front RH
48510A Cushion, Front Shock Absorber
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48512A Bracket, Front Shock Absorber, Upper RH
48513 Bracket, Front Shock Absorber, Upper LH
48520 Absorber Assy, Shock, Front LH
48770 Rod Sub-assy, Torque
48770B Bush, Torque Rod
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48817A Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48817C Collar(FOR STABILIZER BAR)
48817D Bolt(FOR FRONT STABILIZER)
48820 Link Assy, Front Stabilizer
48823 Cover, Stabilizer Link(FOR FRONT)
48824 Bracket, Stabilizer, Front
48829 Bracket, Stabilizer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
